Modular Workshop & Maintenance Buildings
A workshop is judged on what you can get through the door, what the floor will take and whether the power and ventilation suit the work. Joined P600 modules give you a clear, insulated, lit and powered working space with a staff WC and tea point in the same run — and where a requirement goes beyond what the standard module can carry, we take it through our bespoke design route instead of pretending otherwise.
Get a price for workshops & maintenance
Tell us what you need and we'll come back with pricing and lead times — usually within one working day.
Hire Workshops & Maintenance in the UK
Need workshops & maintenance for a fixed period? Hire it instead of buying. Adacon manufactures the building to your layout and hands it over on hire terms, then collects it when you no longer need it — with the same quality, fit-out and design freedom as a purchase.
Hire terms are flexible — tell us how long you need the unit and we will confirm the rate for that period.
Get a hire price for workshops & maintenance
Tell us when you need it and for how long. We reply with hire terms — and a purchase price too if you tick compare.
Set out around the work, the access and the services
We start with what has to come in and out — a vehicle, a machine, pallets — then set the door type and position around it. Modules are joined to give one clear working span rather than a row of separate rooms, with the bench, storage and staff areas planned off to one side.
- Wide personnel, double or roller access doors where the structure allows
- Joined modules for one clear working area rather than separate cells
- Floor loading reviewed against machinery, benches and vehicle weight
- Three-phase or heavy single-phase provision and distribution planning
- Extraction and ventilation provision for fumes, dust or welding
- Bench runs, tool boards, racking and secure parts storage
- Staff WC, wash-up and tea point built into the same run
- Insulation, LED lighting and heating for year-round working
Example configurations
Buildings combine P300, P400, P500, P600 and P700 units, with bespoke options. A separate P600 provides approximately 11.4 m² usable internally. Example areas use a conservative per-module allowance before partitions; open joins can provide more space. Units can be combined or stacked over two storeys.
Maintenance or repair workshop: bench run, tool storage and a wide access door.
Working bay plus separate parts store, staff WC and tea point.
Larger workshop with multiple work areas, stores, office and welfare — on one level or with office space above.
Workshops & Maintenance — key facts
- P300 unit
- 2.9m × 2.2m externally; approximately 2.7m × 2.0m usable internally (5.4 m² usable internal area per separate unit)
- P400 unit
- 3.9m × 2.2m externally; approximately 3.7m × 2.0m usable internally (7.4 m² usable internal area per separate unit)
- P500 unit
- 4.9m × 2.2m externally; approximately 4.7m × 2.0m usable internally (9.4 m² usable internal area per separate unit)
- P600 unit
- 5.9m × 2.2m externally; approximately 5.7m × 2.0m usable internally (11.4 m² usable internal area per separate unit)
- P700 unit
- 6.9m × 2.2m externally; approximately 6.7m × 2.0m usable internally (13.4 m² usable internal area per separate unit)
- Configuration
- Mix P300, P400, P500, P600 and P700 units to create tailored footprints and shapes
- Bespoke
- Bespoke sizes considered to suit your brief — contact us
- Joined internal space
- Open joins remove the adjoining shell walls and can increase usable space. Final clear area depends on layout and partitions.
- Unit height
- 2.40m external / 2.16m internal
- Storeys
- Up to two storeys, subject to final project design
- Delivery
- UK mainland and Northern Ireland — transport quoted separately
Adacon modular buildings use P300, P400, P500, P600 and P700 units with external lengths of 2.9m, 3.9m, 4.9m, 5.9m and 6.9m, a common 2.2m width and 2.40m external / 2.16m internal height. The sizes can be combined to create more tailored floor areas and building shapes, joined side by side or stacked to two storeys subject to the final project design.
What's available for a workshops & maintenance
Large clear spans, heavy floor loadings, crane or lifting provision, spray booths and hazardous-process ventilation go beyond a standard module. Where your requirement needs that, we assess it through our bespoke design service and confirm what is achievable before quoting rather than making a blanket claim.

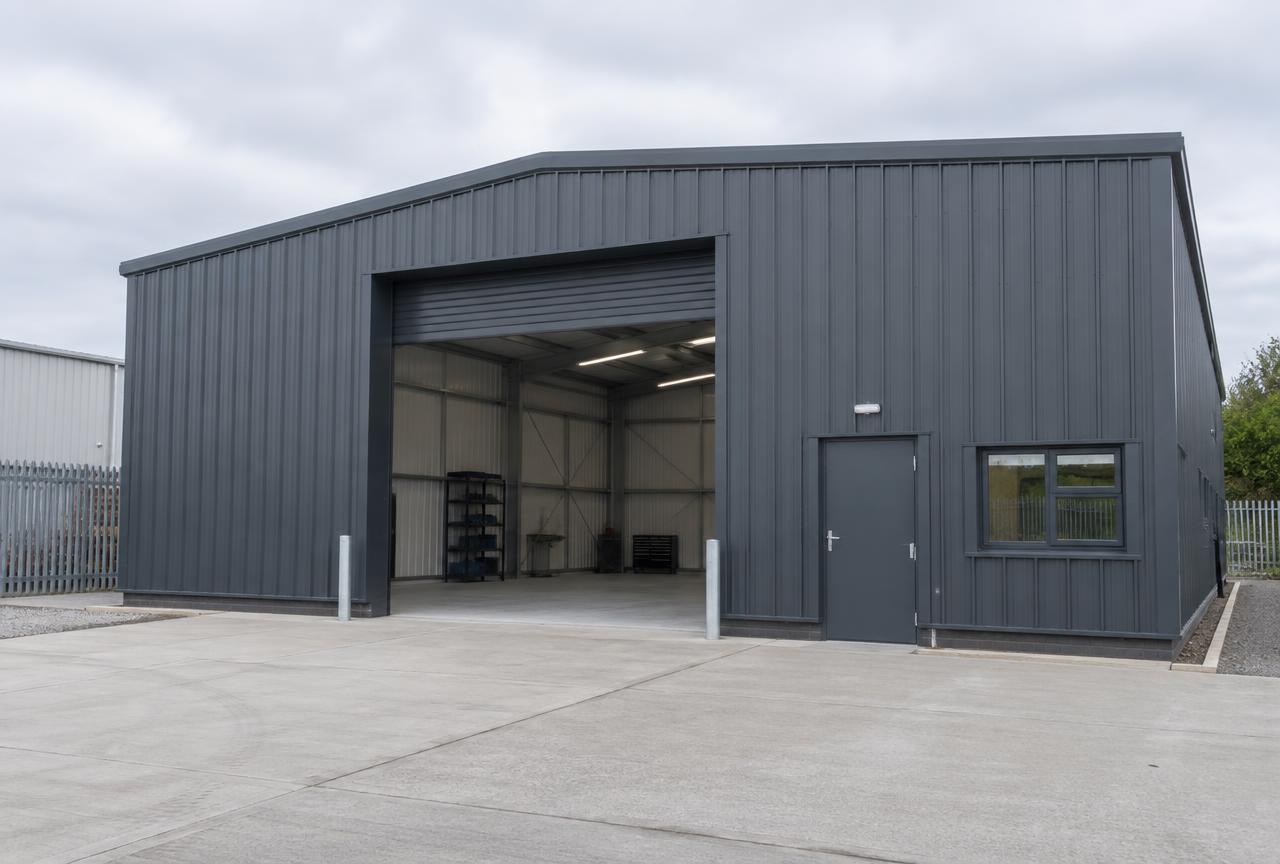

Workshops & Maintenance — photo gallery
Design your workshop building
Set the working area, access doors and storage and get an estimated price.
Workshops & Maintenance — common questions
Related uses
Robust modular site offices for construction projects — desks, meeting space, heating, power and optional welfare. Configure your site office online.
Modular office buildings from a single room to multi-module, two-storey layouts. Fitted out, insulated and delivered UK-wide. Configure yours online.
Modular welfare units combining canteen, drying room, toilets and washing facilities for UK construction sites. Configure your welfare unit online.
Design options for this build
All design optionsLiving in one of these?
All modular homesUseful guides
A well-specified modular building on a sound base is a permanent structure. Learn what determines lifespan and what maintenance keeps it in condition.
A straight comparison of static caravans and modular holiday homes: price, size, transport, site requirements, insulation, layout, planning, site licence, maintenance and appearance.
Practical guidance on module sizes, configuration, fit-out and the factors that shape a tailored modular-building quotation.
Built from five unit sizes, or bespoke
Every Adacon building is made from these units, or built to a bespoke size. Units can be combined — joined end to end, side by side, or stacked to two storeys — to create larger buildings.
| Unit | External footprint | Approximate usable internal area |
|---|---|---|
| P300 | 2.9m × 2.2m | 2.7m × 2.0m (≈5.4 m²) |
| P400 | 3.9m × 2.2m | 3.7m × 2.0m (≈7.4 m²) |
| P500 | 4.9m × 2.2m | 4.7m × 2.0m (≈9.4 m²) |
| P600 | 5.9m × 2.2m | 5.7m × 2.0m (≈11.4 m²) |
| P700 | 6.9m × 2.2m | 6.7m × 2.0m (≈13.4 m²) |
| Bespoke | Built to your size | Contact us |
