    Modular Bungalows
    3 modules·approx. 34.2 m² usable
    Modular Homes

    Modular Bungalows

    A modular bungalow is a single-storey run of joined modules. Because everything sits on one level, the layout suits level access, wide doorways and step-free thresholds, and there are no stairs to design around.

    Everything on one level

    Single-storey plans spread rather than stack, so the footprint matters more than the module count. Doorways, bathroom size and turning space are set at design stage rather than adapted afterwards.

    • Level-access threshold and step-free entry
    • Wider doorways and circulation where required
    • Shower room sized for the access needed
    • Bedrooms placed away from the entrance
    • Open living and kitchen space across the front elevation
    • Terrace or decking connecting to the garden

    Example configurations

    Combine P300, P400, P500, P600 and P700 units to tailor room sizes and footprints. Matching units can also stack over two storeys.

    3 modules
    approx. 34.2 m² usable

    One bedroom bungalow with open living and a shower room.

    5 modules
    approx. 57 m² usable

    Two bedroom bungalow with a separate kitchen and bathroom.

    8 modules
    approx. 91.2 m² usable

    Three bedroom single-storey arrangement with two bathrooms.

    Modular Bungalows — key facts

    P200 unit
    1.9m × 2.2m externally; approximately 1.7m × 2.0m usable internally (3.4 m² usable internal area per separate unit)
    P300 unit
    2.9m × 2.2m externally; approximately 2.7m × 2.0m usable internally (5.4 m² usable internal area per separate unit)
    P400 unit
    3.9m × 2.2m externally; approximately 3.7m × 2.0m usable internally (7.4 m² usable internal area per separate unit)
    P500 unit
    4.9m × 2.2m externally; approximately 4.7m × 2.0m usable internally (9.4 m² usable internal area per separate unit)
    P600 unit
    5.9m × 2.2m externally; approximately 5.7m × 2.0m usable internally (11.4 m² usable internal area per separate unit)
    P700 unit
    6.9m × 2.2m externally; approximately 6.7m × 2.0m usable internally (13.4 m² usable internal area per separate unit)
    Configuration
    Mix P200, P300, P400, P500, P600 and P700 units to create tailored footprints and shapes
    Bespoke
    Bespoke sizes considered to suit your brief — contact us
    Joined internal space
    Open joins remove the adjoining shell walls and can increase usable space. Final clear area depends on layout and partitions.
    Unit height
    2.40m external / 2.16m internal
    Storeys
    Up to two storeys, subject to final project design
    Delivery
    UK mainland and Northern Ireland — transport quoted separately

    Adacon modular buildings use P200, P300, P400, P500, P600 and P700 units with external lengths of 1.9m, 2.9m, 3.9m, 4.9m, 5.9m and 6.9m, a common 2.2m width and 2.40m external / 2.16m internal height. The sizes can be combined to create more tailored floor areas and building shapes, joined side by side or stacked to two storeys subject to the final project design.

    What's available

    Bedrooms and internal partitionsShower room and WCKitchen or kitchenetteInsulated walls, floor and roofDouble-glazed windows and doorsFull-height glazingHeating provisionLED lighting and power socketsTerrace, decking or balconyPer-wall cladding style and colour

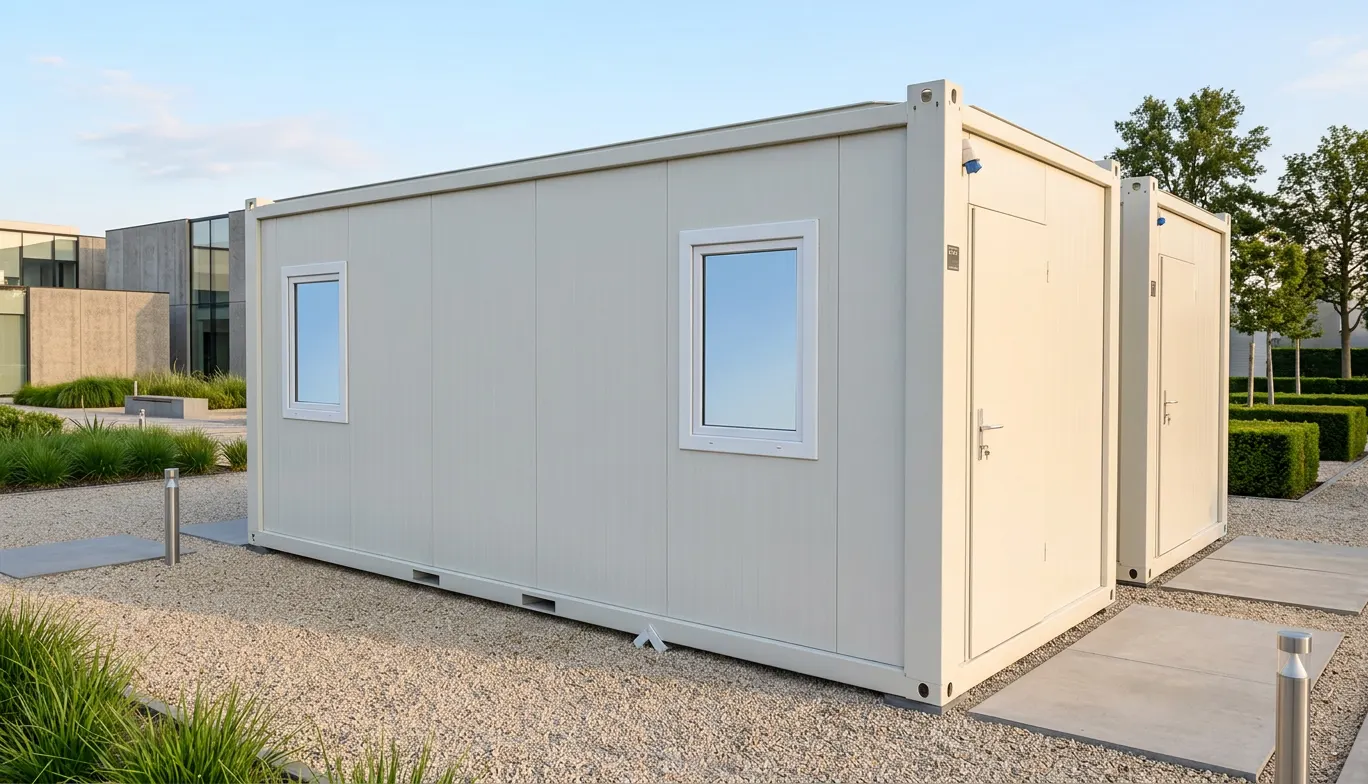

    Modular Bungalows — photo gallery

    Two-Storey Modular Homes
    Two-Storey Modular Homes
    Tiny Homes
    Tiny Homes
    One Bedroom Modular Homes
    One Bedroom Modular Homes
    Two Bedroom Modular Homes
    Two Bedroom Modular Homes
    Three Bedroom Modular Homes
    Three Bedroom Modular Homes
    Garden Annexes & Granny Flats
    Garden Annexes & Granny Flats
    Modular House Extensions
    Modular House Extensions
    Guest & Garden Accommodation
    Guest & Garden Accommodation
    Modular Holiday Homes
    Modular Holiday Homes

    Whether a building can be used as a permanent dwelling, and what Building Regulations, planning permission, foundations and energy-performance requirements apply, depends entirely on your site and how the building will be used. We make no blanket claim that a standard configuration constitutes a compliant dwelling — this must be confirmed for your specific project.
