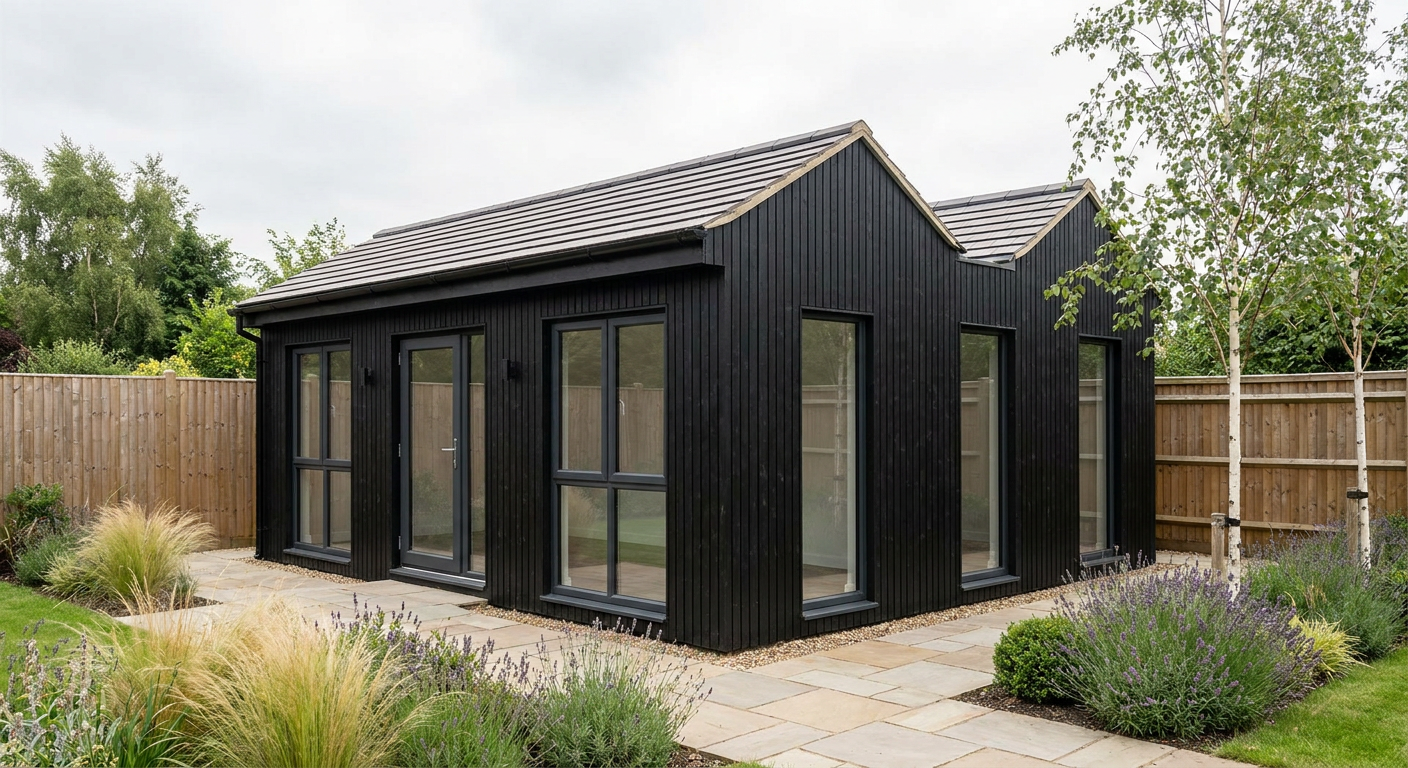

Three-module garden room, one storey, black cladding, door and windows, no shutters or terrace, Adacon P600 modular building — This three-module, single-storey P600 configuration provides an approximately 37 m² garden room for extra living space.

Garden Rooms

3-Module Garden Room with Kitchenette and WC

This single-storey P600 garden room combines three modules to provide approximately 37 m² of extra living space. It suits homeowners who want a substantial, fitted room in the garden with its own kitchenette and WC.

£36,750ex VAT

£44,100 inc VAT · standard fitted specification. Delivery, groundworks and site-specific works quoted separately.

Configure this design Request a quote

Modules: 3
Storeys: 1
Floor area: 37 m²
Footprint: 5.9m x 6.6m footprint

What's included

Three linked P600 modules on one storey
5.9m x 6.6m overall footprint
Approximately 37 m² internal floor area
Black timber cladding with dual-pitch apex roof
Single glazed door with ten specified windows
Fitted kitchenette and WC

Wide three-module configuration

This garden room is formed from three 5.9m x 2.2m P600 modules linked side by side. The resulting wide layout has an overall footprint of 5.9m x 6.6m and provides approximately 37 m² of internal floor area across one storey.

Module 1 forms the northern section, Module 2 sits in the centre and Module 3 forms the southern section. Linking the modules creates a broader internal space than a single linear unit, making the building suitable for use as an additional lounge, hobby room, home workspace or flexible family room.

Doors and windows

On Module 1, the exposed north-facing 5.9m wall has a large window, a single glazed entrance door and a second large window. Its east and west 2.2m end walls each have a full-size window, bringing glazing to both ends of the module as well as the main entrance elevation.

Module 2 has a full-size window in each exposed 2.2m end wall. As the central module, its north and south sides connect to the adjoining modules rather than forming external elevations.

Module 3 also has full-size windows in its east and west end walls. Its exposed south-facing 5.9m wall contains two large windows, giving the opposite long elevation a balanced glazed arrangement without an additional external door.

Across the complete building, the specified openings comprise one single glazed door, four large windows on the north and south elevations, and six full-size end windows across the east and west elevations.

Exterior finish and internal fit-out

The exterior is finished in black timber cladding, giving the building a defined contemporary appearance within a residential garden. A dual-pitch apex roof completes the profile and distinguishes this configuration from a standard flat-roof modular arrangement.

The standard fitted specification includes a kitchenette and WC, allowing the room to function more independently from the main house. Their final position and the associated service connections should be confirmed as part of the project specification. No other unlisted rooms, fittings or external features are assumed.

Indicative price and specification

The indicative price is £36,750 excluding VAT, or £44,100 including VAT, for the standard fitted specification. This covers the three-module, single-storey building in the configuration described, including the black timber-clad exterior, apex roof, listed doors and windows, kitchenette and WC. The arrangement can be reviewed using the P600 configurator.

Delivery, groundworks and site-specific works are not included in the indicative price and are quoted separately. The final cost depends on the site, access requirements, service connections and any agreed changes to the standard specification.

Lead time and siting requirements

A typical lead time is 8–12 weeks. The confirmed programme will depend on final specification approval, project scheduling and the readiness of the site for delivery and installation.

The building requires a suitable, level and correctly prepared base, together with clear access for delivery and positioning of all three modules. The site must also accommodate the overall 5.9m x 6.6m footprint and installation clearances. Drainage, water and power requirements for the kitchenette and WC need to be established before installation. Planning permission, Building Regulations and other site-specific obligations should be checked for the individual property.

Full specification

3 P600 modules (single storey), wide layout, 5.9m x 6.6m footprint, approx 37 m2 internal floor area.
Exterior: timber cladding in Black. Roof: dual-pitch (apex) roof.
Module 1 (ground floor) exposed walls — north (5.9m side): Large window + Glazed door (single) + Large window; east (2.2m end): Full-size window; west (2.2m end): Full-size window.
Module 2 (ground floor) exposed walls — east (2.2m end): Full-size window; west (2.2m end): Full-size window.
Module 3 (ground floor) exposed walls — east (2.2m end): Full-size window; south (5.9m side): Large window + Large window; west (2.2m end): Full-size window.
Internal fit-out includes: kitchenette, WC.
