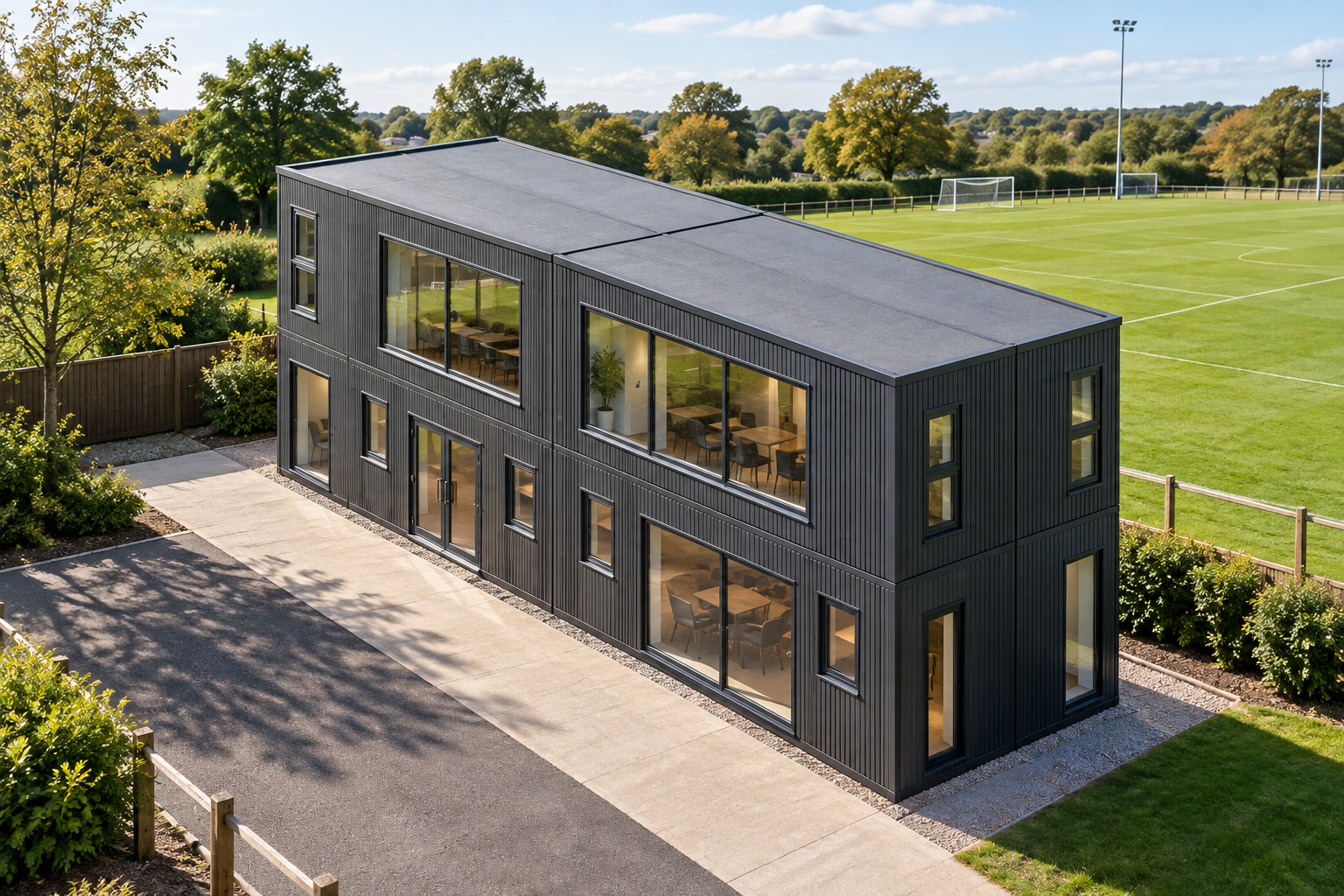

Two-storey anthracite modular clubhouse beside a community sports ground — Eight-module, two-storey P600 clubhouse configured for sport and leisure use.

Modular Clubhouses

Two-Storey 8-Module Clubhouse

This two-storey modular clubhouse combines eight P600 modules to provide approximately 91 m² of usable internal space. It is configured for sports clubs and community organisations seeking dedicated clubhouse, welfare and hospitality facilities.

£108,000ex VAT

£129,600 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.

Made to order. Build and delivery timing will be confirmed with your quotation.

Call about this item

PLACE ORDER

Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.

Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.

Change the layout in the configurator

Modules: 8
Storeys: 2
Floor area: 91 m²
Footprint: 11.8m x 4.4m footprint

Design highlights

Eight P600 steel-framed modules across two storeys
Approximately 91 m² of internal usable floor area
11.8m x 4.4m completed footprint
Internal staircase connecting both floors
Anthracite ARLINE 24136 vertical slatted cladding
Large, small and full-size windows across exposed walls
Requested kitchenette, WC and shower fit-out

Configuration and scale

This P600 clubhouse uses eight steel-framed modules arranged across two storeys, with four modules on the ground floor and four on the first floor. The completed configuration has an 11.8m x 4.4m footprint and provides approximately 91 m² of internal usable floor area. Each module measures 5.9m x 2.2m, has an external height of 2.40m and provides an approximate usable interior of 5.7m x 2.0m. The internal ceiling height is 2.16m. An internal staircase connects the two floors and is not visible from outside.

Ground-floor openings

The ground floor combines broad glazed areas with smaller windows across the exposed north, south, east and west walls:

Module 1: two large windows and a glazed double-door set on the north wall, plus a full-size west-end window.
Module 2: one large window between two small windows on the north wall, plus a full-size east-end window.
Module 3: one large window between two small windows on the south wall, plus a full-size west-end window.
Module 4: one large window between two small windows on the south wall, plus a full-size east-end window.

First-floor openings

The first floor follows a consistent window arrangement around all four exposed elevations:

Modules 5 and 6: two large windows on each north wall.
Modules 7 and 8: two large windows on each south wall.
Modules 5 and 7: two small windows on each west-end wall.
Modules 6 and 8: two small windows on each east-end wall.

Anthracite external finish

Every selected exposed wall is finished with Anthracite ARLINE 24136 slatted cladding, applied between the frame with the boards running vertically. This finish covers the north and west walls of Modules 1 and 5, the north and east walls of Modules 2 and 6, the south and west walls of Modules 3 and 7, and the south and east walls of Modules 4 and 8. Cladding is priced as part of the project quotation rather than itemised publicly. The building has a flat roof with an approximately 120mm steel-frame fascia and no additional fascia.

Requested clubhouse fit-out

The requested internal fit-out includes a kitchenette, WC and shower, with their final positions and room arrangement to be confirmed in the completed layout and quotation. Toilet and shower rooms require hygienic wall panels and wet-room PVC flooring. Elsewhere, the included wall finish is white, lightly ribbed insulated sandwich panelling. Plasterboard and alternative hygienic-panel styles can be selected as upgrades or choices. Flooring outside the wet rooms remains a room-by-room selection and is not specified as included in this stored design.

The configuration is intended for the Sport & Leisure sector and can support the practical needs of a modular clubhouse. Illustrated fixtures and finishes are indicative where not expressly specified, with final details confirmed by quotation and through the configuration process.

Estimate, transport and siting

The indicative configured estimate is £108,000 excluding VAT, or £129,600 including VAT, subject to quotation. Transport is priced separately according to the destination postcode and site access. Offloading or cranage, groundworks and other site-specific works are also separate. Siting is subject to survey, including confirmation of access, ground conditions and the requirements of the chosen location.

Full specification

8 P600 modules (two storeys), two-storey layout, 11.8m x 4.4m footprint, approx 91 m2 internal usable floor area. Each module is 2.40m externally with a 2.16m internal ceiling; its approximate usable interior is 5.7m x 2.0m.
Exterior: ARLINE 24136 slatted applied to exposed walls between the frame in Anthracite. Roof: flat roof with approximately 120mm steel-frame fascia (no extra fascia).
Selected outside walls: Module 1 North wall: Full-wall cladding, Anthracite, ARLINE 24136 slatted, vertical boards; Module 1 West wall: Full-wall cladding, Anthracite, ARLINE 24136 slatted, vertical boards; Module 2 North wall: Full-wall cladding, Anthracite, ARLINE 24136 slatted, vertical boards; Module 2 East wall: Full-wall cladding, Anthracite, ARLINE 24136 slatted, vertical boards; Module 3 South wall: Full-wall cladding, Anthracite, ARLINE 24136 slatted, vertical boards; Module 3 West wall: Full-wall cladding, Anthracite, ARLINE 24136 slatted, vertical boards; Module 4 East wall: Full-wall cladding, Anthracite, ARLINE 24136 slatted, vertical boards; Module 4 South wall: Full-wall cladding, Anthracite, ARLINE 24136 slatted, vertical boards; Module 5 North wall: Full-wall cladding, Anthracite, ARLINE 24136 slatted, vertical boards; Module 5 West wall: Full-wall cladding, Anthracite, ARLINE 24136 slatted, vertical boards; Module 6 North wall: Full-wall cladding, Anthracite, ARLINE 24136 slatted, vertical boards; Module 6 East wall: Full-wall cladding, Anthracite, ARLINE 24136 slatted, vertical boards; Module 7 South wall: Full-wall cladding, Anthracite, ARLINE 24136 slatted, vertical boards; Module 7 West wall: Full-wall cladding, Anthracite, ARLINE 24136 slatted, vertical boards; Module 8 East wall: Full-wall cladding, Anthracite, ARLINE 24136 slatted, vertical boards; Module 8 South wall: Full-wall cladding, Anthracite, ARLINE 24136 slatted, vertical boards. Cladding prices are quote-only and must not be itemised in public copy.
Module 1 P600 (ground floor) exposed walls — north (5.9m side): Large window + Glazed door (double) + Large window; west (2.2m end): Full-size window.
Module 2 P600 (ground floor) exposed walls — north (5.9m side): Small window + Large window + Small window; east (2.2m end): Full-size window.
Module 3 P600 (ground floor) exposed walls — south (5.9m side): Small window + Large window + Small window; west (2.2m end): Full-size window.
Module 4 P600 (ground floor) exposed walls — east (2.2m end): Full-size window; south (5.9m side): Small window + Large window + Small window.
Module 5 P600 (first floor) exposed walls — north (5.9m side): Large window + Large window; west (2.2m end): Small window + Small window.
Module 6 P600 (first floor) exposed walls — north (5.9m side): Large window + Large window; east (2.2m end): Small window + Small window.
Module 7 P600 (first floor) exposed walls — south (5.9m side): Large window + Large window; west (2.2m end): Small window + Small window.
Module 8 P600 (first floor) exposed walls — east (2.2m end): Small window + Small window; south (5.9m side): Large window + Large window.
Internal staircase between the two floors (not visible outside).
Requested fit-out to confirm in the final layout: kitchenette, WC, shower. Toilet/shower rooms require hygienic wall panels and wet-room PVC flooring; elsewhere white lightly ribbed insulated sandwich panels are the included wall finish. Plasterboard, other hygienic-panel styles and room-by-room flooring are selectable upgrades/choices, not included claims unless specified.
