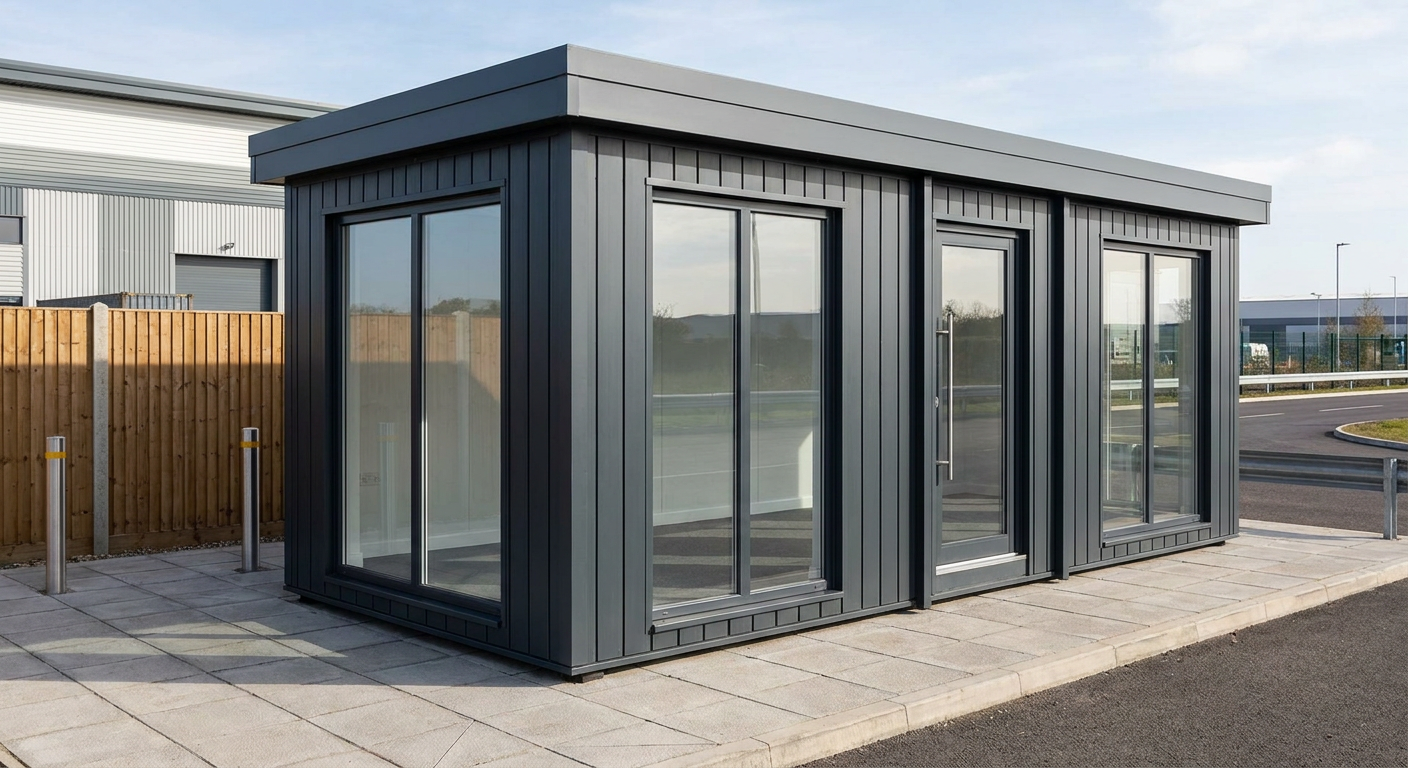

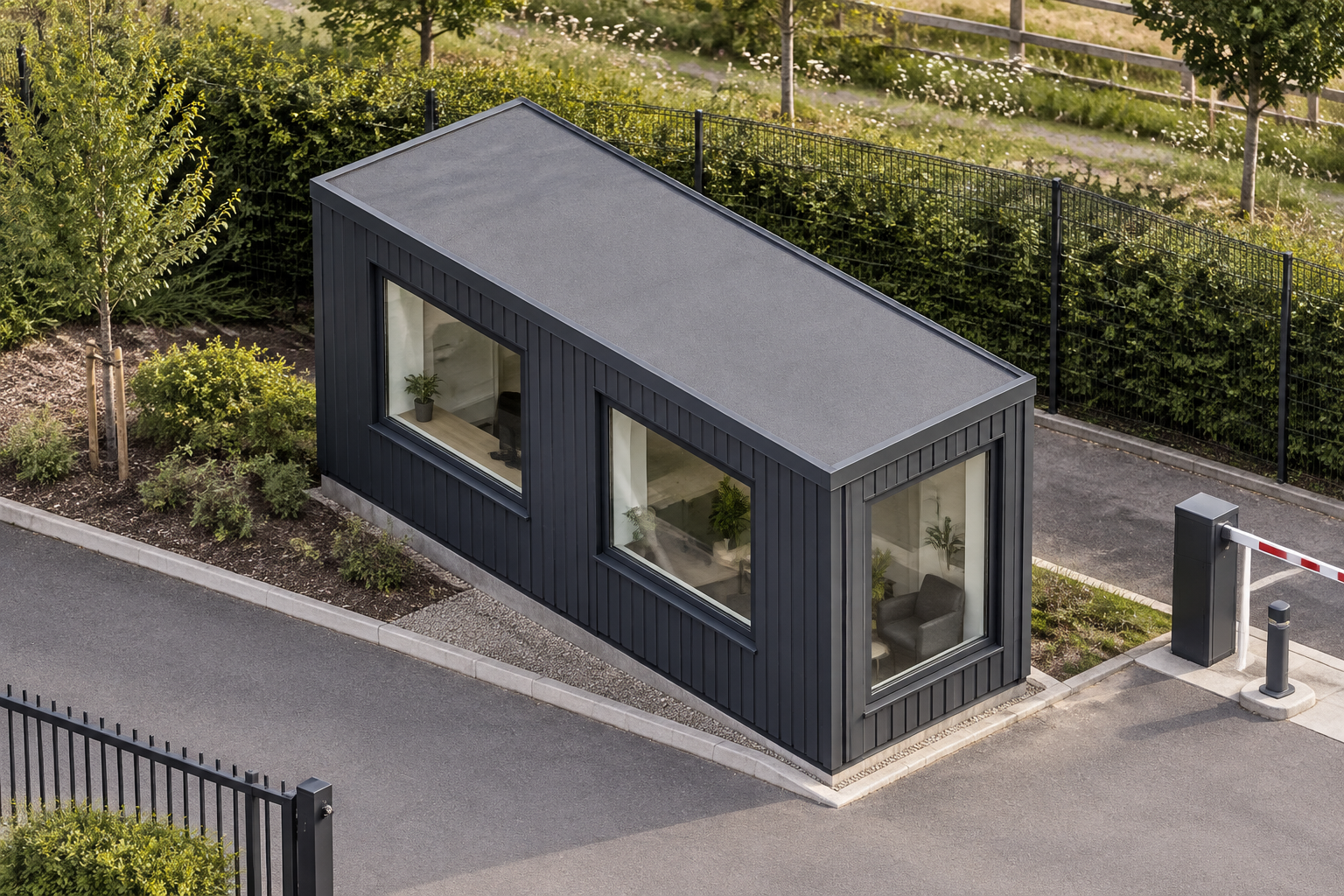

    1-module single-storey gatehouse, Adacon modular building (illustrative)
    Single-module P600 gatehouse with WC for security and site control at logistics parks, schools and gated developments.

    Gatehouses

    Single-Module Gatehouse with WC

    A compact, single-storey P600 gatehouse providing approx. 11.40 m² usable internal area before partitions and an integrated WC. It is suited to security and site-control points at logistics parks, schools and gated developments.

    £12,900ex VAT

    £15,480 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.

    Made to order. Build and delivery timing will be confirmed with your quotation.

    Call about this item
    PLACE ORDER

    Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.

    WhatsApp

    Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.

    Change the layout in the configurator
    Modules
    1
    Storeys
    1
    Approx. usable internal area
    11.4 m² before partitions
    External dimensions
    5.9m x 2.2m footprint

    Design highlights

    • One P600 module over a single storey
    • 5.9m x 2.2m external footprint
    • approx. 11.40 m² usable internal area before partitions
    • Four large windows across three elevations
    • Single glazed entrance door
    • Internal fit-out including WC
    • Dark grey vertical cladding and slim-fascia flat roof

    Compact accommodation for security and site control

    This single-module P600 building provides a practical gatehouse for staffed entrances, access-control points and site security positions. Its 5.9m x 2.2m footprint uses limited space efficiently while providing approx. 11.40 m² usable internal area before partitions for day-to-day gatehouse duties.

    The configuration is designed for logistics parks, schools and gated developments that require a defined point for monitoring arrivals, checking access or managing vehicle and pedestrian movements. Further examples of this type of building are available in Adacon’s gatehouses range.

    Single-module run layout

    The building comprises one P600 module arranged at ground-floor level in a single-storey run layout. As a self-contained module, it does not depend on adjoining units to create the usable internal space. The rectangular footprint can be positioned alongside an entrance lane, boundary or access route, subject to the site layout and required clearances.

    The north-facing 5.9m wall contains two large windows, providing a broad field of view along that side of the gatehouse. The east-facing 2.2m end wall has one large window, while the west-facing 2.2m end wall has a further large window.

    Access is through a single glazed door on the south-facing 5.9m wall. Together, the glazed door and four large windows provide visibility across all four exposed elevations without adding openings that are not required by this configuration.

    Dark grey external finish

    The exterior is finished with vertical cladding in Dark grey, giving the gatehouse a straightforward, professional appearance that suits contemporary commercial, educational and residential entrance settings. A flat roof with a slim fascia keeps the roofline low and visually clean.

    Internal fit-out with WC

    The internal fit-out includes a WC, allowing security or site-control staff to remain close to the entrance rather than relying entirely on facilities elsewhere on the site. The remaining internal area provides the main operational space within the approx. 11.40 m² usable internal area before partitions.

    No additional rooms or equipment are assumed beyond the stated configuration. Where a project requires a different internal arrangement, opening layout or number of modules, options can be explored through the P600 configurator.

    Indicative price and project costs

    The indicative price is £12,900 excluding VAT, or £15,480 including VAT, for the standard fitted specification. This covers the single P600 module in the configuration described, including the Dark grey vertical cladding, flat roof with slim fascia, specified glazed door and windows, and internal fit-out with WC.

    Delivery covers the UK mainland and Northern Ireland, with transport quoted separately based on destination and access; offloading or cranage where required is separate. Final costs depend on the delivery location, site access, installation requirements and any works needed to prepare or connect the building.

    Lead time and siting requirements

    A typical lead time is 8–12 weeks. The project programme is confirmed against the agreed specification, delivery arrangements and site requirements, so sufficient time should be allowed for approvals, ground preparation and coordination before installation.

    The gatehouse requires a suitable prepared base and clear access for delivery and installation. The site must also provide the connections needed to serve the WC. Planning requirements, building-control considerations, drainage arrangements and other site-specific obligations should be checked for the intended location before delivery.

    Full specification

    1 P600 modules (single storey), run layout, 5.9m x 2.2m footprint, approx. 11.40 m² usable internal area before partitions.
Exterior: vertical cladding in Dark grey. Roof: flat roof with slim fascia.
Module 1 (ground floor) exposed walls — north (5.9m side): Large window + Large window; east (2.2m end): Large window; south (5.9m side): Glazed door (single); west (2.2m end): Large window.
Internal fit-out includes: WC.
