ADACON UK

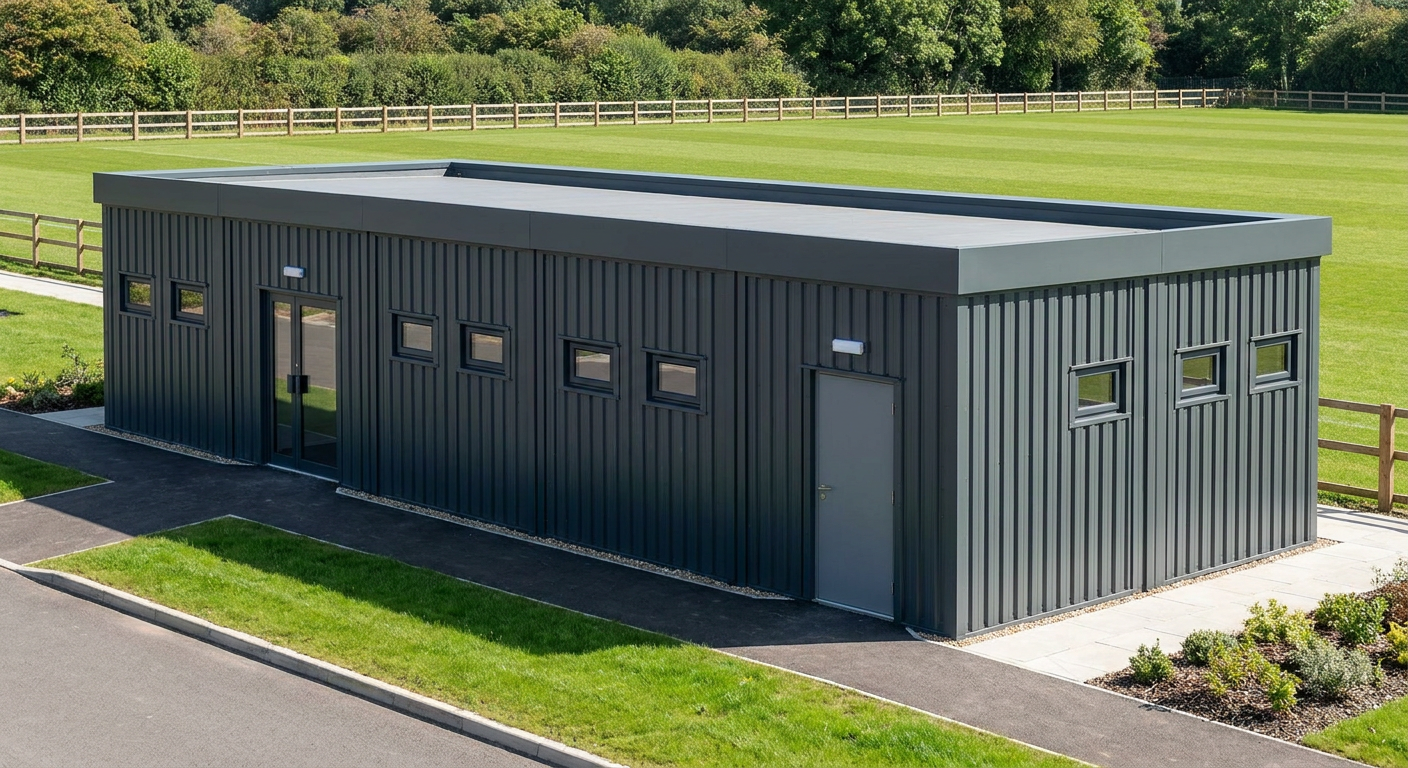

    5-module single-storey modular changing room, Adacon modular building (illustrative)
    Five-module, single-storey P600 modular changing room configuration for football, rugby and cricket clubs.

    Modular Changing Rooms

    5-Module Changing Rooms with WC and Shower

    This single-storey P600 building provides approximately 61 m² of modular changing room space, including a WC and shower. Its five-module layout suits football, rugby and cricket clubs requiring permanent-quality facilities with a defined footprint and price.

    £64,500ex VAT

    £77,400 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.

    Made to order. Build and delivery timing will be confirmed with your quotation.

    Call about this item
    PLACE ORDER

    Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.

    WhatsApp

    Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.

    Change the layout in the configurator
    Modules
    5
    Storeys
    1
    Approx. usable internal area
    57 m² before partitions
    External dimensions
    17.7m x 4.4m footprint

    Design highlights

    • Five linked P600 modules
    • Single-storey grid layout
    • approx. 57.00 m² usable internal area before partitions
    • 17.7m x 4.4m overall footprint
    • WC and shower included
    • Double-leaf glazed entrance door
    • Dark grey vertical cladding with slim fascia

    Configured footprint and arrangement

    This configuration combines five P600 steel-framed modules in a single-storey grid layout. Each module measures 5.9m by 2.2m, creating an overall footprint of 17.7m by 4.4m and approx. 57.00 m² usable internal area before partitions. The connected modules form practical modular changing rooms for football, rugby and cricket clubs.

    The five modules are arranged across a grid measuring three module lengths by two module widths. Internal connections create a combined floor plate, while the specified external walls provide the entrance and window arrangement. The layout includes WC and shower facilities as part of the internal fit-out.

    Module-by-module openings

    The doors and windows are positioned on the exposed north, south, east and west elevations as follows:

    • Module 1: The north-facing 5.9m wall has a small window, a double-leaf glazed door and a second small window. The west-facing 2.2m end has two small windows.
    • Module 2: The north-facing 5.9m wall has three small windows, spaced across the exposed elevation.
    • Module 3: The north and south 5.9m walls each have three small windows. The east-facing 2.2m end has two small windows.
    • Module 4: The south-facing 5.9m wall has three small windows, while the west-facing 2.2m end has two.
    • Module 5: The south-facing 5.9m wall has three small windows. Its east-facing 2.2m end has two small windows.

    Across the complete building, the configuration provides one double-leaf glazed entrance door and 25 small windows. This distributes natural light around every exposed elevation without adding openings that are not required by the selected layout.

    External finish

    The exterior is finished in Dark grey vertical cladding, giving the building a consistent appearance on all exposed walls. A flat roof with a slim fascia keeps the roofline clean and restrained. The single-storey format is suitable where clubs need an accessible ground-floor facility without the scale of a stacked building.

    WC and shower fit-out

    The standard fitted specification includes a WC and shower within the building. These facilities make the configuration directly relevant to sports and leisure use, where changing accommodation needs supporting washroom provision. The precise internal arrangement should be confirmed against the club’s operational requirements, expected occupancy and site service locations before production.

    Indicative price and scope

    The indicative price is £64,500 excluding VAT, or £77,400 including VAT, for the standard fitted specification. This covers the five-module building in the configuration described, including the specified external finish, door and window arrangement, WC and shower. Delivery, groundworks and site-specific works are quoted separately. The layout can also be reviewed through the P600 configurator.

    Lead time and siting requirements

    A typical lead time is 8–12 weeks. The confirmed programme will depend on the final specification, site requirements and current production and installation scheduling.

    The site must have a suitable prepared base or foundation solution for the 17.7m by 4.4m footprint, together with adequate access for delivery and installation. Space around the building may also be required for lifting operations and safe installation. Ground conditions, levels, drainage and utility connection points for the WC and shower must be established before installation. Groundworks, service connections and any other site-specific requirements are assessed and priced separately.

    Full specification

    5 P600 modules (single storey), grid layout, 17.7m x 4.4m footprint, approx. 57.00 m² usable internal area before partitions.
Exterior: vertical cladding in Dark grey. Roof: flat roof with slim fascia.
Module 1 (ground floor) exposed walls — north (5.9m side): Small window + Glazed door (double) + Small window; west (2.2m end): Small window + Small window.
Module 2 (ground floor) exposed walls — north (5.9m side): Small window + Small window + Small window.
Module 3 (ground floor) exposed walls — north (5.9m side): Small window + Small window + Small window; east (2.2m end): Small window + Small window; south (5.9m side): Small window + Small window + Small window.
Module 4 (ground floor) exposed walls — south (5.9m side): Small window + Small window + Small window; west (2.2m end): Small window + Small window.
Module 5 (ground floor) exposed walls — east (2.2m end): Small window + Small window; south (5.9m side): Small window + Small window + Small window.
Internal fit-out includes: WC, shower.
