Two-Storey 4-Module Site Welfare Unit
This two-storey site welfare unit combines four P600 modules within a compact 5.9m x 4.4m footprint. It suits construction sites requiring space for canteen, drying, WC and shower facilities, subject to confirmation of the final internal layout.
£54,800ex VAT
£65,760 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.
Made to order. Build and delivery timing will be confirmed with your quotation.
Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.
Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.
- Modules
- 4
- Storeys
- 2
- Floor area
- 46 m²
- Footprint
- 5.9m x 4.4m footprint
Design highlights
- Four P600 modules arranged over two storeys
- Approximately 46m² of internal usable floor area
- Compact 5.9m x 4.4m footprint
- Internal staircase between ground and first floors
- Anthracite ARLINE AR16016 vertical grooved cladding
- Requested kitchenette, WC and shower fit-out
- Indicative estimate £54,800 ex VAT
Two-storey module arrangement

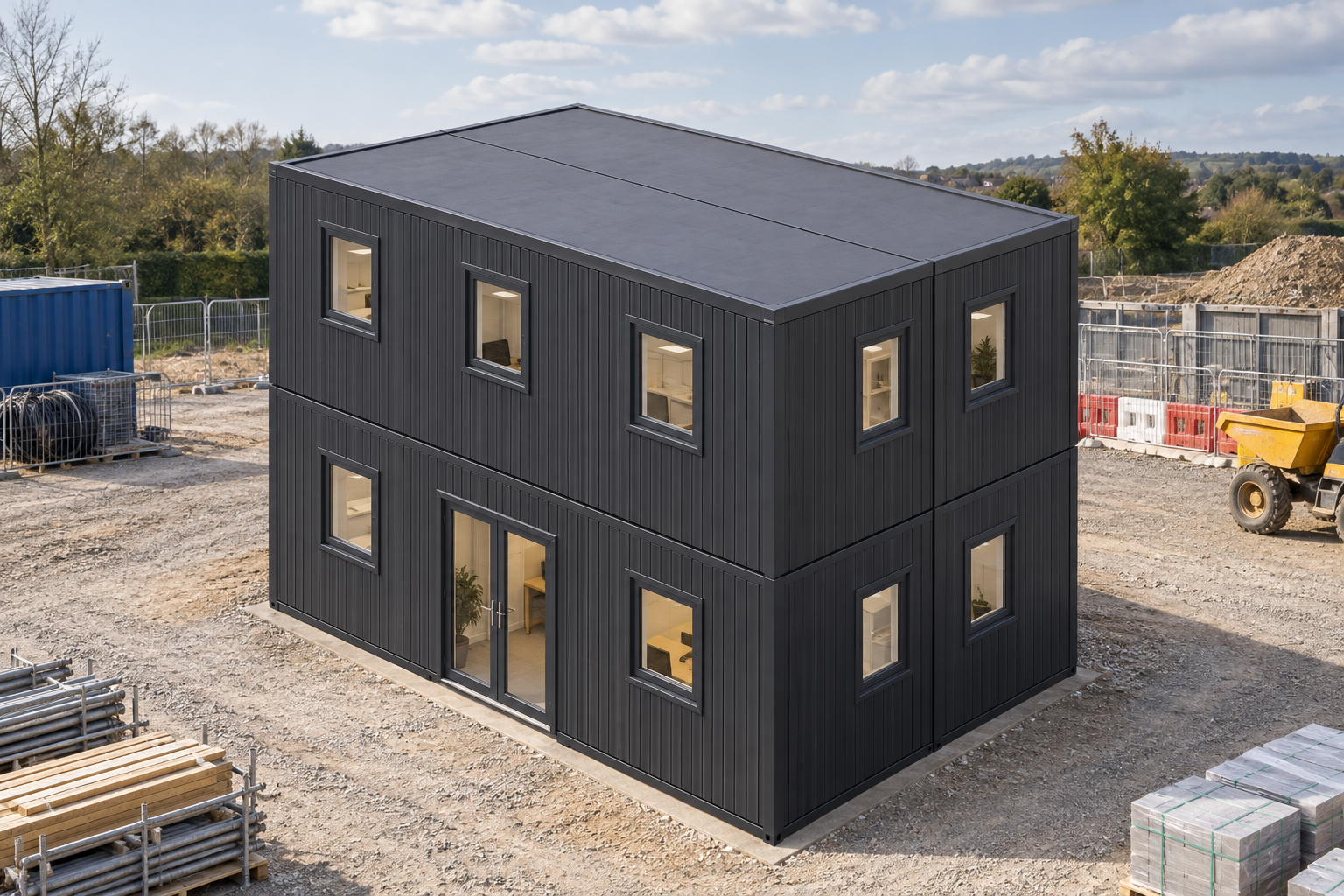

This stored P600 configuration uses four steel-framed modules, with two modules on the ground floor and two directly above. Together they create a 5.9m x 4.4m footprint and approximately 46m² of internal usable floor area. An internal staircase connects the two storeys and is not visible from outside.
Each P600 module measures 5.9m x 2.2m, with an external height of 2.40m and an internal ceiling height of 2.16m. The approximate usable interior of each module is 5.7m x 2.0m. The arrangement provides a practical two-level format for a construction-site welfare layout while keeping the ground-level footprint compact.
Windows and entrance
On the ground floor, Module 1 has two small windows and a glazed double door on its north wall. Its east and west end walls each have two small windows. Module 2 has three small windows on the south wall, plus two small windows on each of its east and west end walls.
On the first floor, Module 3 has three small windows on the north wall and two small windows on each east and west end wall. Module 4 repeats the opposite elevation pattern, with three small windows on the south wall and two on each east and west end wall. These are the stored openings for this configuration; their relationship to individual internal rooms is confirmed through the final layout.
Anthracite external finish
Every listed exposed outside wall is finished between the frame with Anthracite ARLINE AR16016 grooved plank cladding. The boards run vertically across the selected full-wall cladding areas, covering the north, east and west exposed walls of Modules 1 and 3, and the east, south and west exposed walls of Modules 2 and 4.
The building has a flat roof with an approximately 120mm steel-frame fascia. No additional fascia is specified. Cladding and other final external details remain subject to the project quotation.
Requested welfare fit-out
The requested fit-out comprises a kitchenette, WC and shower, with their positions and adjoining welfare spaces to be confirmed in the final plan. Toilet and shower rooms require hygienic wall panels and wet-room PVC flooring. Elsewhere, the included wall finish is white, lightly ribbed insulated sandwich panelling.
Plasterboard, alternative hygienic-panel styles and room-by-room flooring selections are available as choices or upgrades rather than included specifications for this stored design. This allows the final arrangement to be developed around canteen, drying room and WC requirements without making assumptions about finishes that have not yet been selected.
Construction-sector use
This configuration is intended as a site welfare unit for the construction sector. Its two-storey format is suited to sites that need approximately 46m² of usable internal accommodation while limiting the building footprint. The stored design can be reviewed through the building configurator, with the final room plan and fit-out confirmed by quotation.
Estimate, transport and siting
The indicative configured estimate is £54,800 excluding VAT, or £65,760 including VAT, subject to quotation. Transport is priced separately according to postcode and site access. Offloading or cranage, groundworks and other site-specific works are also separate. Siting remains subject to survey, including access, ground conditions and the requirements of the selected location.
Full specification
4 P600 modules (two storeys), two-storey layout, 5.9m x 4.4m footprint, approx 46 m2 internal usable floor area. Each module is 2.40m externally with a 2.16m internal ceiling; its approximate usable interior is 5.7m x 2.0m. Exterior: ARLINE AR16016 grooved plank applied to exposed walls between the frame in Anthracite. Roof: flat roof with approximately 120mm steel-frame fascia (no extra fascia). Selected outside walls: Module 1 North wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 1 East wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 1 West wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 2 East wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 2 South wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 2 West wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 3 North wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 3 East wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 3 West wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 4 East wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 4 South wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 4 West wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards. Cladding prices are quote-only and must not be itemised in public copy. Module 1 P600 (ground floor) exposed walls — north (5.9m side): Small window + Glazed door (double) + Small window; east (2.2m end): Small window + Small window; west (2.2m end): Small window + Small window. Module 2 P600 (ground floor) exposed walls — east (2.2m end): Small window + Small window; south (5.9m side): Small window + Small window + Small window; west (2.2m end): Small window + Small window. Module 3 P600 (first floor) exposed walls — north (5.9m side): Small window + Small window + Small window; east (2.2m end): Small window + Small window; west (2.2m end): Small window + Small window. Module 4 P600 (first floor) exposed walls — east (2.2m end): Small window + Small window; south (5.9m side): Small window + Small window + Small window; west (2.2m end): Small window + Small window. Internal staircase between the two floors (not visible outside). Requested fit-out to confirm in the final layout: kitchenette, WC, shower. Toilet/shower rooms require hygienic wall panels and wet-room PVC flooring; elsewhere white lightly ribbed insulated sandwich panels are the included wall finish. Plasterboard, other hygienic-panel styles and room-by-room flooring are selectable upgrades/choices, not included claims unless specified.
