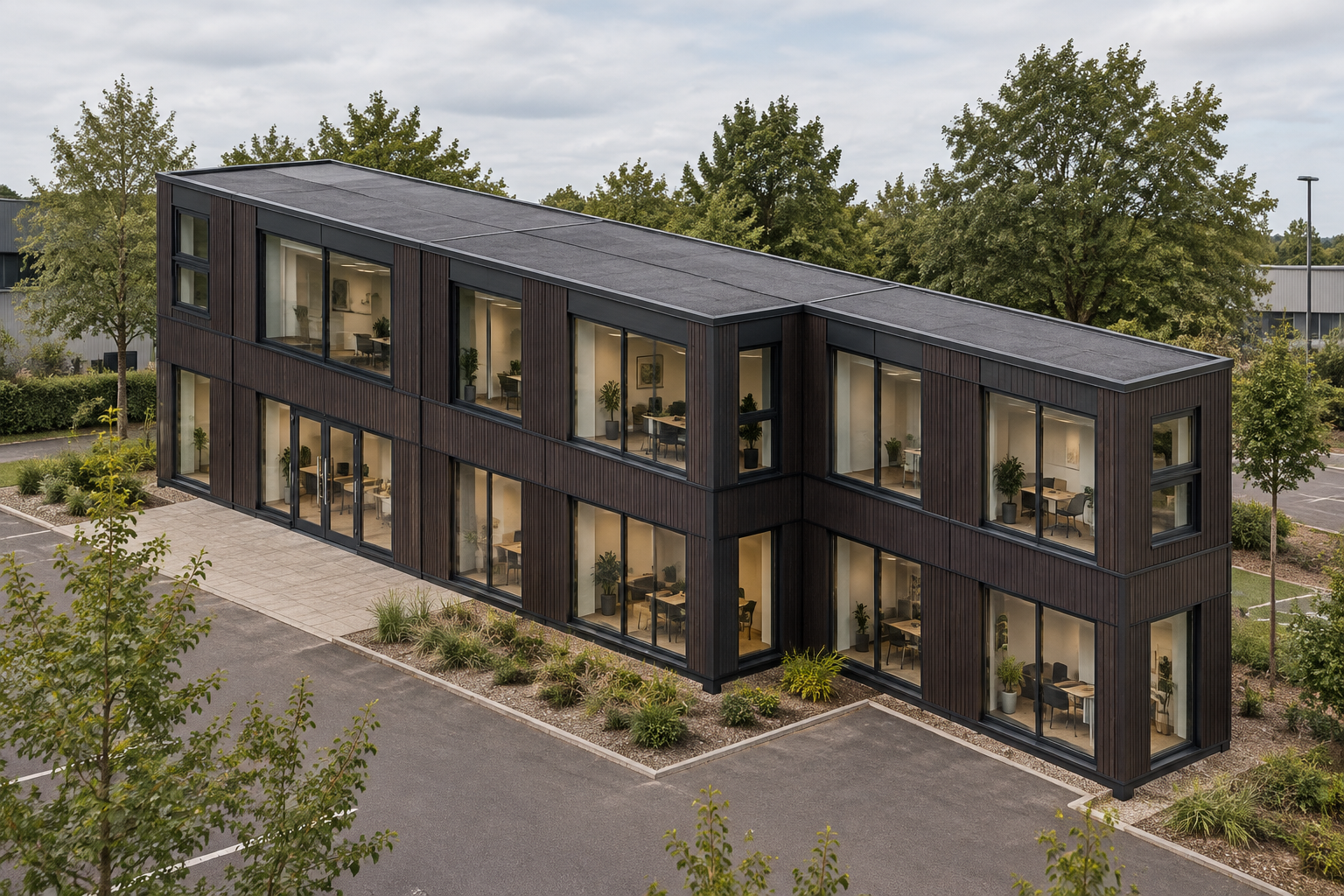

Two-storey modular office with dark vertical cladding in a landscaped commercial setting. — The two-storey, ten-module P600 configuration provides modular office space for Offices & Commercial use.

Modular Offices

Two-Storey 10-Module P600 Office

This two-storey modular office links and stacks ten P600 modules to create approximately 114 m² of usable internal area before partitions. It suits growing businesses seeking permanent office space quickly within the Offices & Commercial sector.

£135,400ex VAT

£162,480 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.

Made to order. Build and delivery timing will be confirmed with your quotation.

Call about this item

PLACE ORDER

Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.

Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.

Change the layout in the configurator

Modules: 10
Storeys: 2
Approx. usable internal area: 114 m² before partitions
External dimensions: 17.7m x 4.4m footprint

Design highlights

Ten linked P600 steel-framed modules
Two storeys with an internal staircase
17.7m x 4.4m external footprint
Approx 114 m² usable internal area before partitions
Vertical ARLINE grooved plank cladding in Venge
Glazed double entrance with extensive window arrangement
Requested kitchenette and WC fit-out

Ten-module, two-storey layout

This P600 configuration uses ten linked steel-framed modules arranged over two storeys, with five ground-floor modules and five first-floor modules. The external footprint is 17.7m x 4.4m, while the conservative per-module allowance gives approximately 114 m² of usable internal area before partitions. Connected open layouts may provide more space.

Each module measures 5.9m x 2.2m, with an external height of 2.40m and an internal ceiling height of 2.16m. The approximate usable interior of each module is 5.7m x 2.0m. An internal staircase connects the two floors and is not visible externally. This format is designed for the modular offices use case, giving growing businesses a substantial commercial workspace across a relatively compact site footprint.

Windows and entrance arrangement

The ground floor uses a combination of large side windows, full-size end windows and a glazed double door:

Module 1 has two large north-facing windows around a glazed double door, plus a full-size west end window.
Module 2 has two large windows on its north wall.
Module 3 has two large windows on both its north and south walls, plus a full-size east end window.
Module 4 has two large south-facing windows and a full-size west end window.
Module 5 has two large south-facing windows and a full-size east end window.

On the first floor, Module 6 has two large north-facing windows and two small west end windows. Module 7 has two large north-facing windows. Module 8 has two large windows on both its north and south walls, with two small east end windows. Module 9 has two large south-facing windows and two small west end windows, while Module 10 has two large south-facing windows and two small east end windows.

Selected external treatment

All exposed walls specified in this configuration receive ARLINE AR16016 grooved plank cladding in Venge, fitted as vertical boards between the frame. The dark finish is applied across the selected north, south, east and west external walls of the ten-module arrangement. Above, the building has a flat roof with an approximately 120mm steel-frame fascia and no additional fascia.

Requested internal fit-out

The requested fit-out includes a kitchenette and WC, with their positions and final details to be confirmed as part of the agreed room layout. Elsewhere, insulated sandwich panels are the included internal wall finish, with other finishes selected to suit the final arrangement.

Where bathroom walls are included in the agreed layout, the standard specification uses 40mm waterproof insulated sandwich panels. Hygienic panels are available as an optional selection. Plaster can be applied to the outside faces of bathroom walls when selected. If a shower room is incorporated into the final plan, wet-room PVC flooring is used. Illustrated fixtures and finishes remain subject to the final quotation.

Estimate and site considerations

The indicative configured estimate is £135,400 ex VAT, or £162,480 including VAT, subject to quotation. Transport is priced separately according to the site postcode and access. Offloading or cranage, groundworks and other site-specific works are also separate. Siting remains subject to survey and confirmation of the property-specific requirements before the final configuration is agreed through the building configurator.

Full specification

10 P600 modules (two storeys), two-storey layout, 17.7m x 4.4m footprint, approx 114 m2 usable internal area before partitions (conservative per-module allowance; connected open layouts may provide more space). Each module is 2.40m externally with a 2.16m internal ceiling; its approximate usable interior is 5.7m x 2.0m.
Exterior: ARLINE AR16016 grooved plank applied to exposed walls between the frame in Venge. Roof: flat roof with approximately 120mm steel-frame fascia (no extra fascia).
Selected outside walls: Module 1 North wall: Full-wall cladding, Venge, ARLINE AR16016 grooved plank, vertical boards; Module 1 West wall: Full-wall cladding, Venge, ARLINE AR16016 grooved plank, vertical boards; Module 2 North wall: Full-wall cladding, Venge, ARLINE AR16016 grooved plank, vertical boards; Module 3 North wall: Full-wall cladding, Venge, ARLINE AR16016 grooved plank, vertical boards; Module 3 East wall: Full-wall cladding, Venge, ARLINE AR16016 grooved plank, vertical boards; Module 3 South wall: Full-wall cladding, Venge, ARLINE AR16016 grooved plank, vertical boards; Module 4 South wall: Full-wall cladding, Venge, ARLINE AR16016 grooved plank, vertical boards; Module 4 West wall: Full-wall cladding, Venge, ARLINE AR16016 grooved plank, vertical boards; Module 5 East wall: Full-wall cladding, Venge, ARLINE AR16016 grooved plank, vertical boards; Module 5 South wall: Full-wall cladding, Venge, ARLINE AR16016 grooved plank, vertical boards; Module 6 North wall: Full-wall cladding, Venge, ARLINE AR16016 grooved plank, vertical boards; Module 6 West wall: Full-wall cladding, Venge, ARLINE AR16016 grooved plank, vertical boards; Module 7 North wall: Full-wall cladding, Venge, ARLINE AR16016 grooved plank, vertical boards; Module 8 North wall: Full-wall cladding, Venge, ARLINE AR16016 grooved plank, vertical boards; Module 8 East wall: Full-wall cladding, Venge, ARLINE AR16016 grooved plank, vertical boards; Module 8 South wall: Full-wall cladding, Venge, ARLINE AR16016 grooved plank, vertical boards; Module 9 South wall: Full-wall cladding, Venge, ARLINE AR16016 grooved plank, vertical boards; Module 9 West wall: Full-wall cladding, Venge, ARLINE AR16016 grooved plank, vertical boards; Module 10 East wall: Full-wall cladding, Venge, ARLINE AR16016 grooved plank, vertical boards; Module 10 South wall: Full-wall cladding, Venge, ARLINE AR16016 grooved plank, vertical boards. Cladding prices are quote-only and must not be itemised in public copy.
Module 1 P600 (ground floor) exposed walls — north (5.9m side): Large window + Glazed door (double) + Large window; west (2.2m end): Full-size window.
Module 2 P600 (ground floor) exposed walls — north (5.9m side): Large window + Large window.
Module 3 P600 (ground floor) exposed walls — north (5.9m side): Large window + Large window; east (2.2m end): Full-size window; south (5.9m side): Large window + Large window.
Module 4 P600 (ground floor) exposed walls — south (5.9m side): Large window + Large window; west (2.2m end): Full-size window.
Module 5 P600 (ground floor) exposed walls — east (2.2m end): Full-size window; south (5.9m side): Large window + Large window.
Module 6 P600 (first floor) exposed walls — north (5.9m side): Large window + Large window; west (2.2m end): Small window + Small window.
Module 7 P600 (first floor) exposed walls — north (5.9m side): Large window + Large window.
Module 8 P600 (first floor) exposed walls — north (5.9m side): Large window + Large window; east (2.2m end): Small window + Small window; south (5.9m side): Large window + Large window.
Module 9 P600 (first floor) exposed walls — south (5.9m side): Large window + Large window; west (2.2m end): Small window + Small window.
Module 10 P600 (first floor) exposed walls — east (2.2m end): Small window + Small window; south (5.9m side): Large window + Large window.
Internal staircase between the two floors (not visible outside).
Requested fit-out to confirm in the final layout: kitchenette, WC. Bathroom walls use 40mm waterproof insulated sandwich panels as standard, with hygienic panels optional; shower rooms use wet-room PVC flooring. Plaster applies outside bathroom walls when selected. Elsewhere insulated sandwich panels are the included wall finish; other finishes are selected for the final room layout.
