Security Cabins
Two-Module P600 Security Cabin with WC Provision

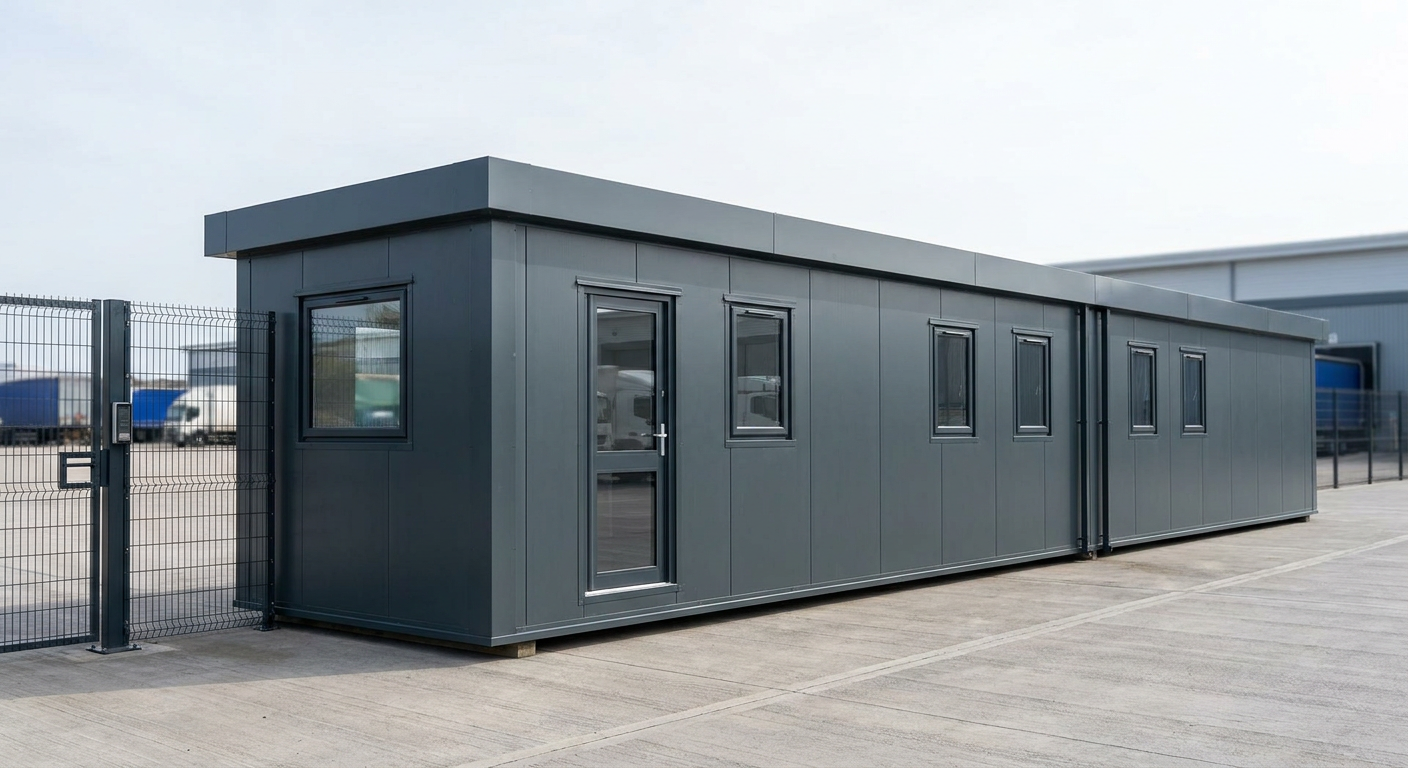

This single-storey security cabin combines two P600 modules in an 11.8m run, providing approximately 23m² of usable internal floor area. It suits sites, car parks and distribution centres that need a dedicated base for controlling access.
£25,800ex VAT
£30,960 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.
Made to order. Build and delivery timing will be confirmed with your quotation.
Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.
Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.
- Modules
- 2
- Storeys
- 1
- Floor area
- 23 m²
- Footprint
- 11.8m x 2.2m footprint
Design highlights
- Two linked P600 modules in a single-storey run
- 11.8m x 2.2m overall footprint
- Approximately 23m² usable internal floor area
- Single glazed entrance door with multiple windows
- Smooth Anthracite Grey RAL 7016 insulated panels
- Flat roof with approximately 120mm steel-frame fascia
- WC requested for confirmation in the final layout
Two-module run layout
This configuration uses two steel-framed P600 modules linked in a straight, single-storey run. Together, they form an overall footprint of 11.8m x 2.2m and provide approximately 23m² of usable internal floor area. Each module measures 5.9m x 2.2m, with an external height of 2.40m, an internal ceiling height of 2.16m and an approximate usable interior of 5.7m x 2.0m.
The layout is intended as a security cabin for the Security & Site Control sector. Its extended linear format is suited to staffed entrances at operational sites, car parks and distribution centres, where teams need a clear working base close to vehicle or pedestrian access points.
Windows and entrance arrangement
Module 1 has three small windows along its exposed north side. Its south side contains a small window, a single glazed door and a further small window, creating the building’s external entrance. The exposed west end is fitted with one large window.
Module 2 also has three small windows along its exposed north side. Three further small windows are arranged along the south side, while the exposed east end contains one large window. This combination gives the two-module cabin glazing across both long elevations and at each outer end. Final fixture positions and layout details remain subject to confirmation by quotation.
Anthracite Grey exterior
The selected external finish uses included vertical insulated sandwich panels in Anthracite Grey, RAL 7016. The specified north, south, west and east exposed walls use standard smooth insulated panels in the same colour, giving the run a consistent appearance across its selected external elevations.
The building has a flat roof finished with an approximately 120mm steel-frame fascia. No additional fascia has been selected for this configuration.
Requested WC and internal finishes
A WC has been requested for confirmation in the final internal layout. Where a toilet or shower room is incorporated, that room requires hygienic wall panels and wet-room PVC flooring. The exact room arrangement, associated fixtures and final specification must therefore be confirmed as part of the quotation.
Elsewhere, the included internal wall finish is white, lightly ribbed insulated sandwich panel. Plasterboard and other hygienic-panel styles can be selected as alternatives or upgrades. Room-by-room flooring choices are also selectable, but no specific general flooring finish is included as a claim for this stored design. These selections can be reviewed when the layout is finalised through the building configurator.
Price and site considerations
The indicative configured estimate is £25,800 excluding VAT, or £30,960 including VAT, subject to quotation. Transport is priced separately according to the delivery postcode and site access. Offloading or cranage, groundworks and other site-specific works are also separate from this estimate.
Positioning and site requirements are subject to survey. Access for transport and offloading, ground conditions, finished levels, service routes and any site-specific constraints should be assessed before the final quotation and installation arrangements are confirmed.
Full specification
2 P600 modules (single storey), run layout, 11.8m x 2.2m footprint, approx 23 m2 internal usable floor area. Each module is 2.40m externally with a 2.16m internal ceiling; its approximate usable interior is 5.7m x 2.0m. Exterior: included vertical insulated sandwich panels in Anthracite Grey (RAL 7016). Roof: flat roof with approximately 120mm steel-frame fascia (no extra fascia). Selected outside walls: Module 1 North wall: Standard insulated panel, Anthracite Grey (RAL 7016), Smooth; Module 1 South wall: Standard insulated panel, Anthracite Grey (RAL 7016), Smooth; Module 1 West wall: Standard insulated panel, Anthracite Grey (RAL 7016), Smooth; Module 2 North wall: Standard insulated panel, Anthracite Grey (RAL 7016), Smooth; Module 2 East wall: Standard insulated panel, Anthracite Grey (RAL 7016), Smooth; Module 2 South wall: Standard insulated panel, Anthracite Grey (RAL 7016), Smooth. Cladding prices are quote-only and must not be itemised in public copy. Module 1 P600 (ground floor) exposed walls — north (5.9m side): Small window + Small window + Small window; south (5.9m side): Small window + Glazed door (single) + Small window; west (2.2m end): Large window. Module 2 P600 (ground floor) exposed walls — north (5.9m side): Small window + Small window + Small window; east (2.2m end): Large window; south (5.9m side): Small window + Small window + Small window. Requested fit-out to confirm in the final layout: WC. Toilet/shower rooms require hygienic wall panels and wet-room PVC flooring; elsewhere white lightly ribbed insulated sandwich panels are the included wall finish. Plasterboard, other hygienic-panel styles and room-by-room flooring are selectable upgrades/choices, not included claims unless specified.
