Two-Module Changing Room with WC and Shower

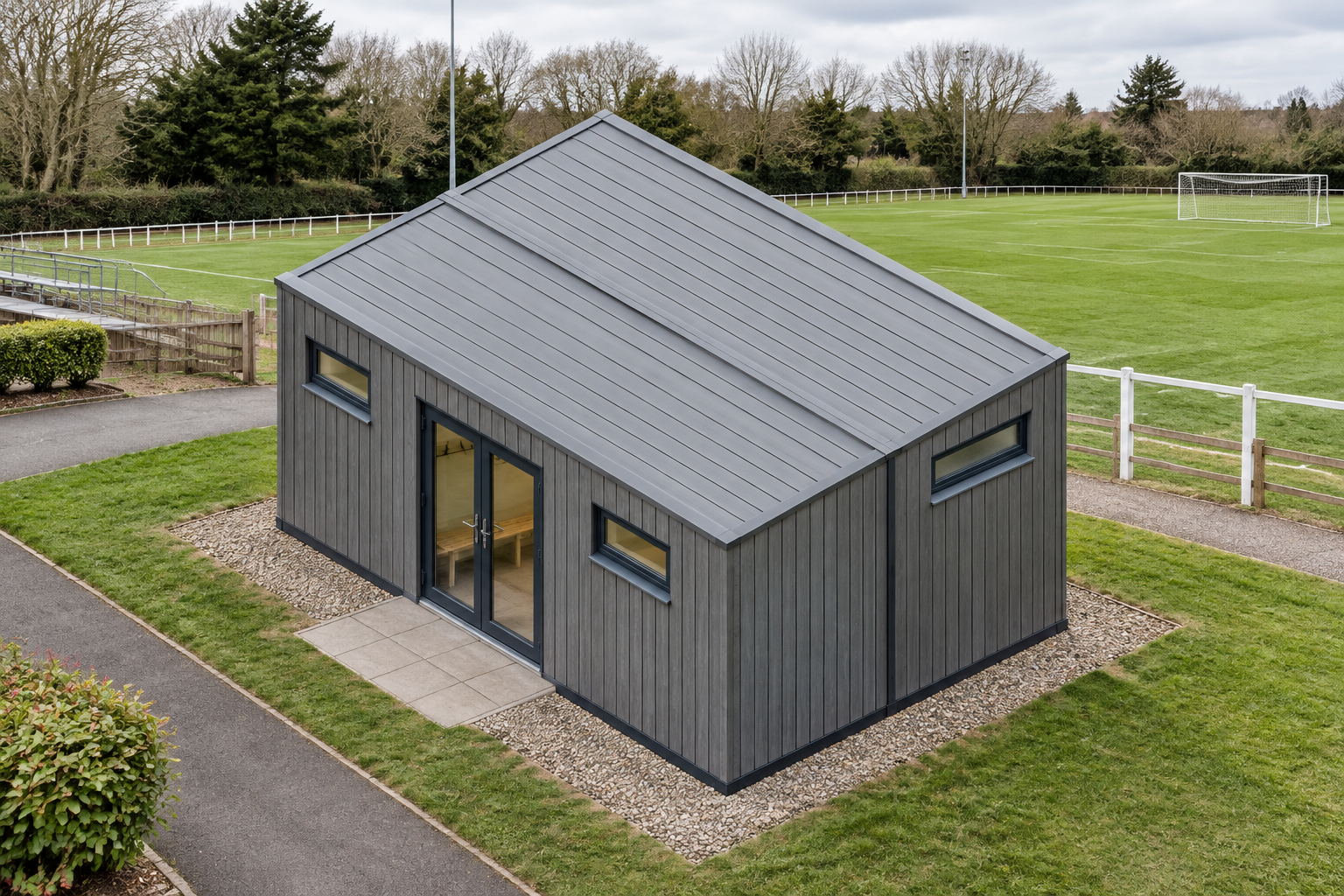

This single-storey modular changing room combines two P600 modules in a wide 5.9m x 4.4m configuration, with a WC and shower requested for the final layout. It is suited to football, rugby and cricket clubs seeking dedicated Sport & Leisure facilities.
£31,600ex VAT
£37,920 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.
Made to order. Build and delivery timing will be confirmed with your quotation.
Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.
Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.
- Modules
- 2
- Storeys
- 1
- Approx. usable internal area
- 22.8 m² before partitions
- External dimensions
- 5.9m x 4.4m footprint
Design highlights
- Two connected P600 modules in a wide, single-storey layout
- 5.9m x 4.4m external footprint
- Approximately 22.8 m2 usable internal area before partitions
- Grey vertical ARLINE AR16016 grooved-plank cladding
- Dual-pitch apex roof
- Double-door glazed entrance with small and high-level windows
- WC and shower requested for the final internal layout
Configuration and dimensions
This wide, single-storey building comprises two connected P600 steel-framed modules. Together, they create an external footprint of 5.9m x 4.4m. Each module is 5.9m x 2.2m externally, with an external height of 2.40m and an internal ceiling height of 2.16m. The approximate usable interior of each module is 5.7m x 2.0m.
The configuration provides approximately 22.8 m2 of usable internal area before partitions, using a conservative per-module allowance. A connected open arrangement may provide more usable space, but no larger figure is assumed for this design. The final division between changing space, circulation and washing facilities will depend on the confirmed room layout.
Openings and external finish
Module 1 has its principal openings on the exposed north wall: a small window, a double-door glazed entrance and a second small window. Its exposed east and west ends each have one high-level, top-only window. Module 2 has three small windows across its exposed south wall, with one high-level, top-only window on each of the exposed east and west ends.
The selected finish is Grey ARLINE AR16016 grooved plank, installed as vertical boards between the frame on the exposed walls. Full-wall cladding is specified for Module 1’s north, east and west walls and Module 2’s east, south and west walls. A dual-pitch apex roof completes the exterior design.
The combination of a glazed entrance, small windows and high-level end windows is specific to this stored configuration. It gives the main elevations external openings while retaining higher-level glazing at all four exposed module ends.
Requested WC and shower fit-out
A WC and shower are requested, subject to confirmation in the final internal layout. Bathroom walls use 40mm waterproof insulated sandwich panels as standard, with hygienic panels available as an optional selection. Shower rooms use wet-room PVC flooring. The exact positions, room sizes, sanitary fittings and associated internal details are confirmed through the final quotation and layout.
Elsewhere, insulated sandwich panels are the included internal wall finish. Plaster can be applied outside bathroom walls when selected, while other wall and floor finishes are chosen to suit the final room arrangement. Illustrated fixtures and finishes should therefore be treated as indicative unless they are expressly confirmed in the quotation.
Club use and commercial details
This configuration is intended as a modular changing room for the Sport & Leisure sector, particularly for football, rugby and cricket clubs. Its two-module width provides scope for a practical changing area alongside the requested washing facilities, subject to the final partition plan.
The indicative configured estimate is £31,600 ex VAT, or £37,920 including VAT, and remains subject to quotation. Transport is priced separately according to the site postcode and access conditions. Offloading or cranage, groundworks and other site-specific works are also separate.
Siting is subject to survey, including confirmation of access, ground conditions and any project-specific requirements. Final layout details, finishes and quoted works are established through the stored design and subsequent configuration process.
Full specification
2 P600 modules (single storey), wide layout, 5.9m x 4.4m footprint, approx 22.8 m2 usable internal area before partitions (conservative per-module allowance; connected open layouts may provide more space). Each module is 2.40m externally with a 2.16m internal ceiling; its approximate usable interior is 5.7m x 2.0m. Exterior: ARLINE AR16016 grooved plank applied to exposed walls between the frame in Grey. Roof: dual-pitch (apex) roof. Selected outside walls: Module 1 North wall: Full-wall cladding, Grey, ARLINE AR16016 grooved plank, vertical boards; Module 1 East wall: Full-wall cladding, Grey, ARLINE AR16016 grooved plank, vertical boards; Module 1 West wall: Full-wall cladding, Grey, ARLINE AR16016 grooved plank, vertical boards; Module 2 East wall: Full-wall cladding, Grey, ARLINE AR16016 grooved plank, vertical boards; Module 2 South wall: Full-wall cladding, Grey, ARLINE AR16016 grooved plank, vertical boards; Module 2 West wall: Full-wall cladding, Grey, ARLINE AR16016 grooved plank, vertical boards. Cladding prices are quote-only and must not be itemised in public copy. Module 1 P600 (ground floor) exposed walls — north (5.9m side): Small window + Glazed door (double) + Small window; east (2.2m end): Top-only window (high level); west (2.2m end): Top-only window (high level). Module 2 P600 (ground floor) exposed walls — east (2.2m end): Top-only window (high level); south (5.9m side): Small window + Small window + Small window; west (2.2m end): Top-only window (high level). Requested fit-out to confirm in the final layout: WC, shower. Bathroom walls use 40mm waterproof insulated sandwich panels as standard, with hygienic panels optional; shower rooms use wet-room PVC flooring. Plaster applies outside bathroom walls when selected. Elsewhere insulated sandwich panels are the included wall finish; other finishes are selected for the final room layout.
