Single-Module P600 Security Cabin with WC
This single-storey P600 security cabin uses one compact module with extensive glazing and a requested WC fit-out. It suits sites, car parks and distribution centres that need a dedicated position for controlling access.
£12,900ex VAT
£15,480 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.
Made to order. Build and delivery timing will be confirmed with your quotation.
Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.
Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.
- Modules
- 1
- Storeys
- 1
- Approx. usable internal area
- 11.4 m² before partitions
- External dimensions
- 5.9m x 2.2m footprint
Design highlights
- One 5.9m x 2.2m P600 module
- Approximately 11.4m² usable internal area before partitions
- Three small windows and two full-size windows
- Single glazed entrance door
- Smooth Black Grey RAL 7021 insulated external panels
- Flat roof with approximately 120mm steel-frame fascia
- Requested WC fit-out, subject to final layout
Single-module security cabin layout
This stored P600 configuration is a single-storey security cabin formed from one 5.9m x 2.2m module. It provides approximately 11.4m² of usable internal area before partitions, based on a conservative per-module allowance. The approximate usable interior measures 5.7m x 2.0m, with a 2.16m internal ceiling beneath the module’s 2.40m external height.
The compact footprint is intended for security and site-control duties where personnel need a defined base close to an entrance, barrier or traffic route. Typical settings include commercial sites, car parks and distribution centres. Further information about this application is available on the security cabins page.
Windows and access

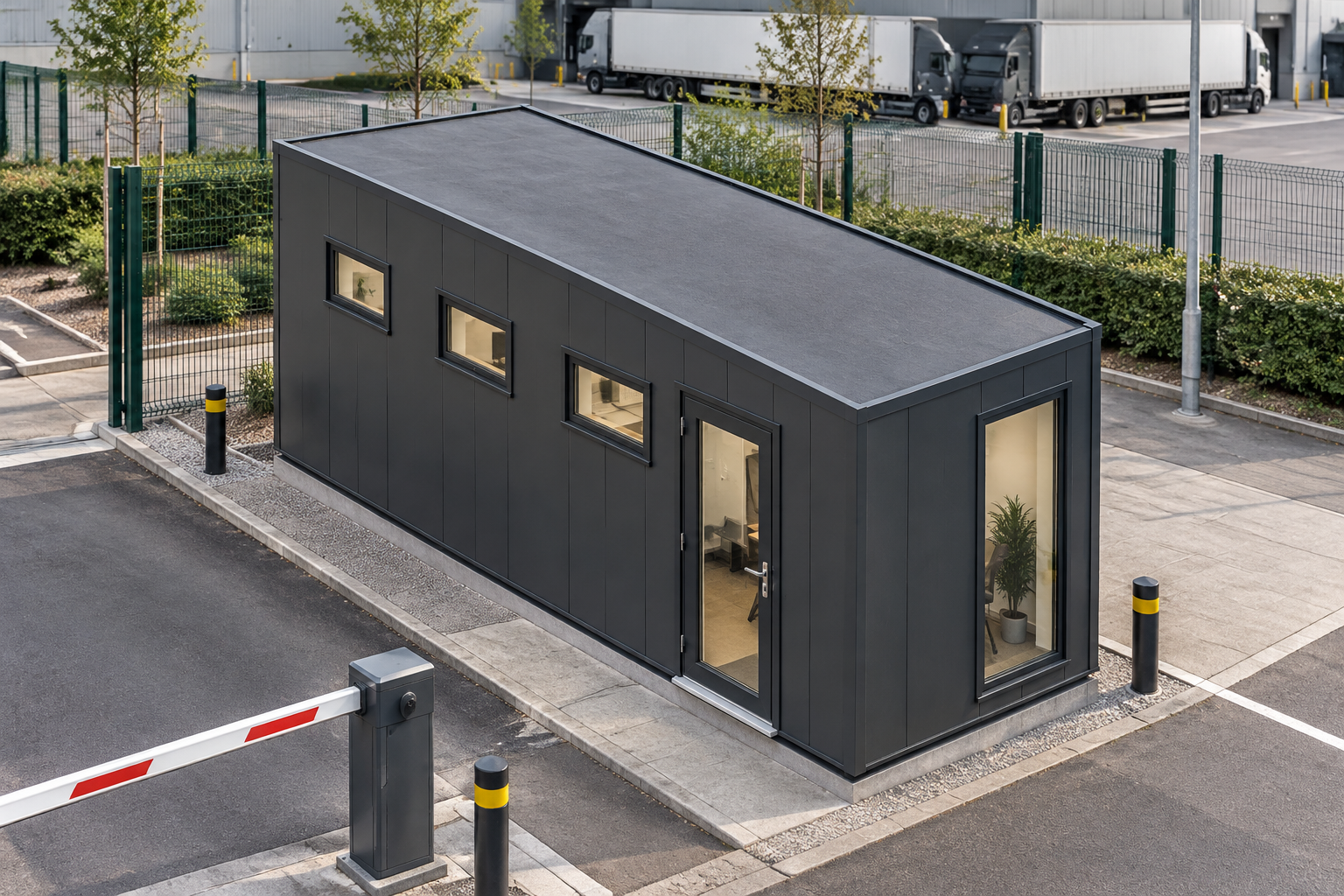

The exposed north wall, running along one 5.9m side, has three small windows. The opposite south wall has a single glazed door. Each 2.2m end wall has one full-size window: one on the east elevation and one on the west elevation. Together, these stored openings support outward visibility from several sides while providing glazed pedestrian access.
The precise internal arrangement remains subject to the final room layout. Positioning furniture, equipment or internal partitions must take account of the specified door and window locations as well as the requested WC area.
External finish and roof
All four outside walls use included vertical insulated sandwich panels in Black Grey, RAL 7021, with a smooth finish. This same selected treatment applies to the north, east, south and west elevations. The module has a flat roof with an approximately 120mm steel-frame fascia; no additional fascia is specified in this configuration.
Requested WC and internal finishes
A WC has been requested for this security cabin, with its inclusion, position and detailed fit-out to be confirmed in the final layout and quotation. Bathroom walls use 40mm waterproof insulated sandwich panels as standard, while hygienic panels are an optional selection. Plaster applies outside bathroom walls when that finish is selected.
Elsewhere, insulated sandwich panels are the included wall finish. Other internal finishes are selected in relation to the confirmed room arrangement. No shower room is specified in this stored configuration; where a shower room is selected, wet-room PVC flooring is used. Illustrated fixtures, finishes and room details remain subject to confirmation by quotation.
Price and site requirements
The indicative configured estimate is £12,900 excluding VAT, or £15,480 including VAT, subject to quotation. Transport is priced separately according to the delivery postcode and site access. Offloading or cranage, groundworks and other site-specific works are also separate and are not included in the indicative estimate.
Proposed siting is subject to survey, including access, ground conditions and the requirements of the chosen location. The final specification and project-specific costs can be reviewed through the building configurator.
Full specification
1 P600 module (single storey), single layout, 5.9m x 2.2m footprint, approx 11.4 m2 usable internal area before partitions (conservative per-module allowance; connected open layouts may provide more space). Each module is 2.40m externally with a 2.16m internal ceiling; its approximate usable interior is 5.7m x 2.0m. Exterior: included vertical insulated sandwich panels in Black Grey (RAL 7021). Roof: flat roof with approximately 120mm steel-frame fascia (no extra fascia). Selected outside walls: Module 1 North wall: Standard insulated panel, Black Grey (RAL 7021), Smooth; Module 1 East wall: Standard insulated panel, Black Grey (RAL 7021), Smooth; Module 1 South wall: Standard insulated panel, Black Grey (RAL 7021), Smooth; Module 1 West wall: Standard insulated panel, Black Grey (RAL 7021), Smooth. Cladding prices are quote-only and must not be itemised in public copy. Module 1 P600 (ground floor) exposed walls — north (5.9m side): Small window + Small window + Small window; east (2.2m end): Full-size window; south (5.9m side): Glazed door (single); west (2.2m end): Full-size window. Requested fit-out to confirm in the final layout: WC. Bathroom walls use 40mm waterproof insulated sandwich panels as standard, with hygienic panels optional; shower rooms use wet-room PVC flooring. Plaster applies outside bathroom walls when selected. Elsewhere insulated sandwich panels are the included wall finish; other finishes are selected for the final room layout.
