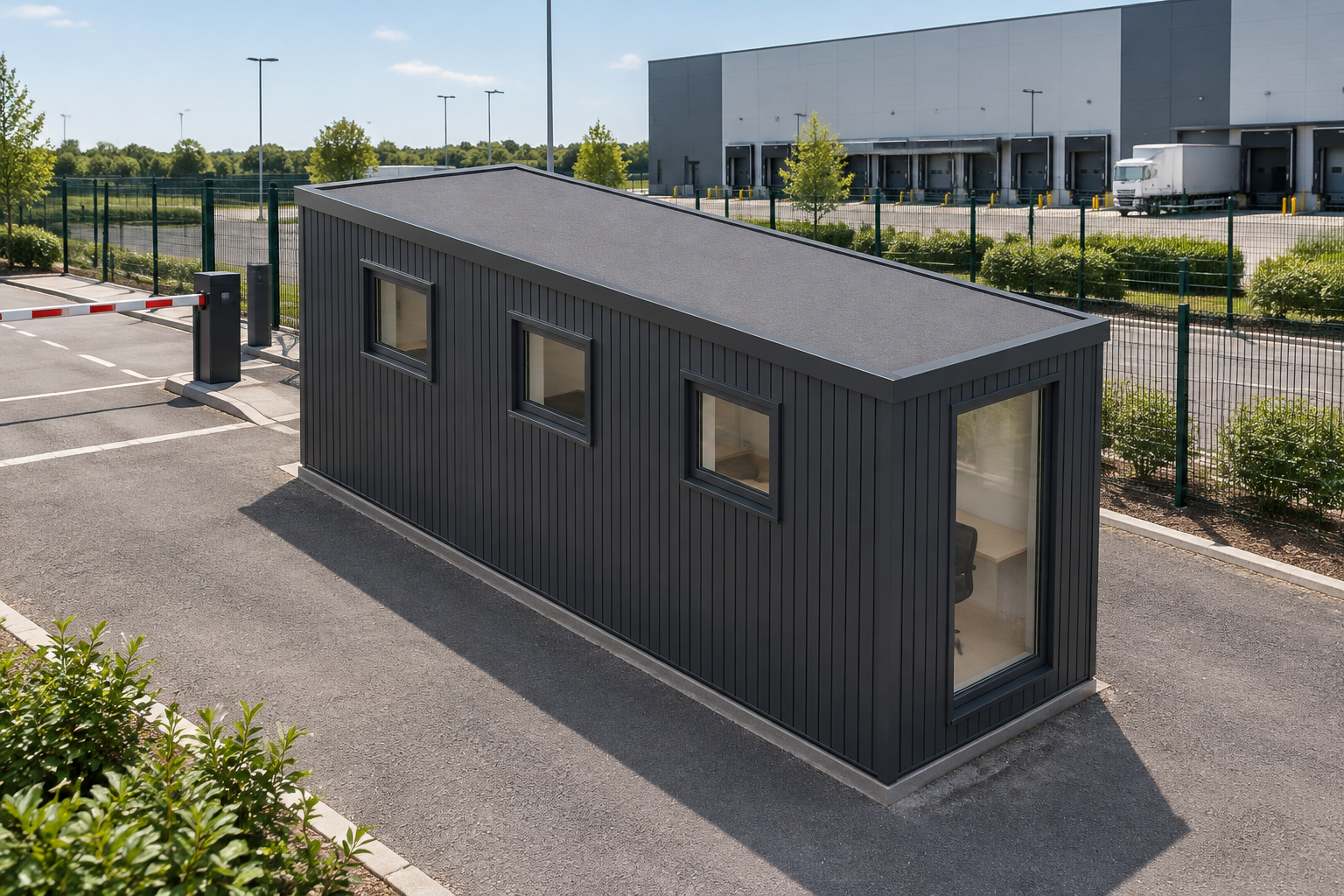

Anthracite single-storey P600 security cabin with glazed openings and a flat roof — Single-module P600 security cabin configured for access control at sites, car parks and distribution centres.

Security Cabins

Single-Module P600 Security Cabin with WC

This single-storey P600 security cabin provides approximately 11 m² of usable internal space in one compact module with a requested WC. It suits sites, car parks and distribution centres that need a dedicated base for access control and site security.

£14,100ex VAT

£16,920 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.

Made to order. Build and delivery timing will be confirmed with your quotation.

Call about this item

PLACE ORDER

Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.

Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.

Change the layout in the configurator

Modules: 1
Storeys: 1
Floor area: 11 m²
Footprint: 5.9m x 2.2m footprint

Design highlights

One single-storey P600 module
5.9m x 2.2m external footprint
Approximately 11 m² usable internal area
Anthracite ARLINE AR14514 cladding on all four walls
Three small windows and two full-size windows
Single glazed entrance door
Requested WC subject to final layout confirmation

A compact base for security and access control

This P600 configuration is a single-module, single-storey security cabin intended for the Security & Site Control sector. Its compact footprint is suited to sites, car parks and distribution centres where personnel need a defined space for monitoring arrivals, controlling access and carrying out day-to-day security duties. More applications can be viewed in our security cabins section.

The building uses one steel-framed P600 module in a run layout. It measures 5.9m long by 2.2m wide, with approximately 11 m² of usable internal floor area. The approximate usable interior is 5.7m by 2.0m. External module height is 2.40m, while the internal ceiling height is 2.16m.

Openings and external appearance

The north-facing 5.9m wall has three small windows arranged along its length. The east-facing 2.2m end wall has one full-size window, while the west-facing 2.2m end wall has a further full-size window. Access is provided by a single glazed door in the south-facing 5.9m wall.

All four outside walls are selected with full-wall ARLINE AR14514 fine-ribbed cladding in Anthracite. The vertical boards are applied to the exposed wall areas between the structural frame, creating a consistent finish around the north, east, south and west elevations. Cladding is priced as part of the final quotation rather than itemised publicly.

The module has a flat roof with an approximately 120mm steel-frame fascia. No additional fascia has been selected for this configuration.

Requested internal fit-out

A WC has been requested and is to be confirmed within the final internal layout. Toilet or shower rooms require hygienic wall panels and wet-room PVC flooring. The final WC arrangement, sanitary fittings and associated details will therefore be established through the quotation and layout confirmation process rather than assumed from illustrative material.

Outside the WC area, the included internal wall finish is white, lightly ribbed insulated sandwich panelling. Plasterboard and other hygienic-panel styles are selectable upgrades or choices. Room-by-room flooring selections can also be considered, but no particular general flooring finish is claimed as included in this stored configuration.

Configuration, quotation and siting

The indicative configured estimate is £14,100 excluding VAT, or £16,920 including VAT, subject to quotation. This estimate relates to the specified single-module building and its stored configuration. Final fixture, finish and layout details are confirmed by quotation and should not be inferred solely from illustrations.

One P600 steel-framed module
Single-storey 5.9m by 2.2m footprint
Approximately 11 m² of usable internal area
Anthracite fine-ribbed cladding to all four external walls
Glazed entrance door and windows on every elevation
Requested WC fit-out subject to final layout confirmation

Siting remains subject to survey and confirmation of the proposed location, access and ground conditions. Transport is priced according to postcode and access. Offloading or cranage, groundworks and other site-specific works are separate. Any changes to the stored arrangement can be explored through the building configurator and confirmed in the resulting quotation.

Full specification

1 P600 module (single storey), run layout, 5.9m x 2.2m footprint, approx 11 m2 internal usable floor area. Each module is 2.40m externally with a 2.16m internal ceiling; its approximate usable interior is 5.7m x 2.0m.
Exterior: ARLINE AR14514 fine-ribbed applied to exposed walls between the frame in Anthracite. Roof: flat roof with approximately 120mm steel-frame fascia (no extra fascia).
Selected outside walls: Module 1 North wall: Full-wall cladding, Anthracite, ARLINE AR14514 fine-ribbed, vertical boards; Module 1 East wall: Full-wall cladding, Anthracite, ARLINE AR14514 fine-ribbed, vertical boards; Module 1 South wall: Full-wall cladding, Anthracite, ARLINE AR14514 fine-ribbed, vertical boards; Module 1 West wall: Full-wall cladding, Anthracite, ARLINE AR14514 fine-ribbed, vertical boards. Cladding prices are quote-only and must not be itemised in public copy.
Module 1 P600 (ground floor) exposed walls — north (5.9m side): Small window + Small window + Small window; east (2.2m end): Full-size window; south (5.9m side): Glazed door (single); west (2.2m end): Full-size window.
Requested fit-out to confirm in the final layout: WC. Toilet/shower rooms require hygienic wall panels and wet-room PVC flooring; elsewhere white lightly ribbed insulated sandwich panels are the included wall finish. Plasterboard, other hygienic-panel styles and room-by-room flooring are selectable upgrades/choices, not included claims unless specified.
