Security Cabins
Single-Module P600 Security Cabin
This single-storey P600 security cabin uses one module to provide approximately 11 m² of internal usable floor area, with a WC requested for confirmation in the final layout. It suits sites, car parks and distribution centres that need a dedicated base for controlling access.
£12,900ex VAT
£15,480 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.
Made to order. Build and delivery timing will be confirmed with your quotation.
Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.
Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.
- Modules
- 1
- Storeys
- 1
- Floor area
- 11 m²
- Footprint
- 5.9m x 2.2m footprint
Design highlights
- One P600 module in a single-storey layout
- 5.9 m x 2.2 m external footprint
- Approximately 11 m² of internal usable floor area
- Four configured windows across three elevations
- One glazed door on the south wall
- Smooth Anthracite Grey RAL 7016 insulated wall panels
- WC requested for confirmation in the final layout
A compact base for site control

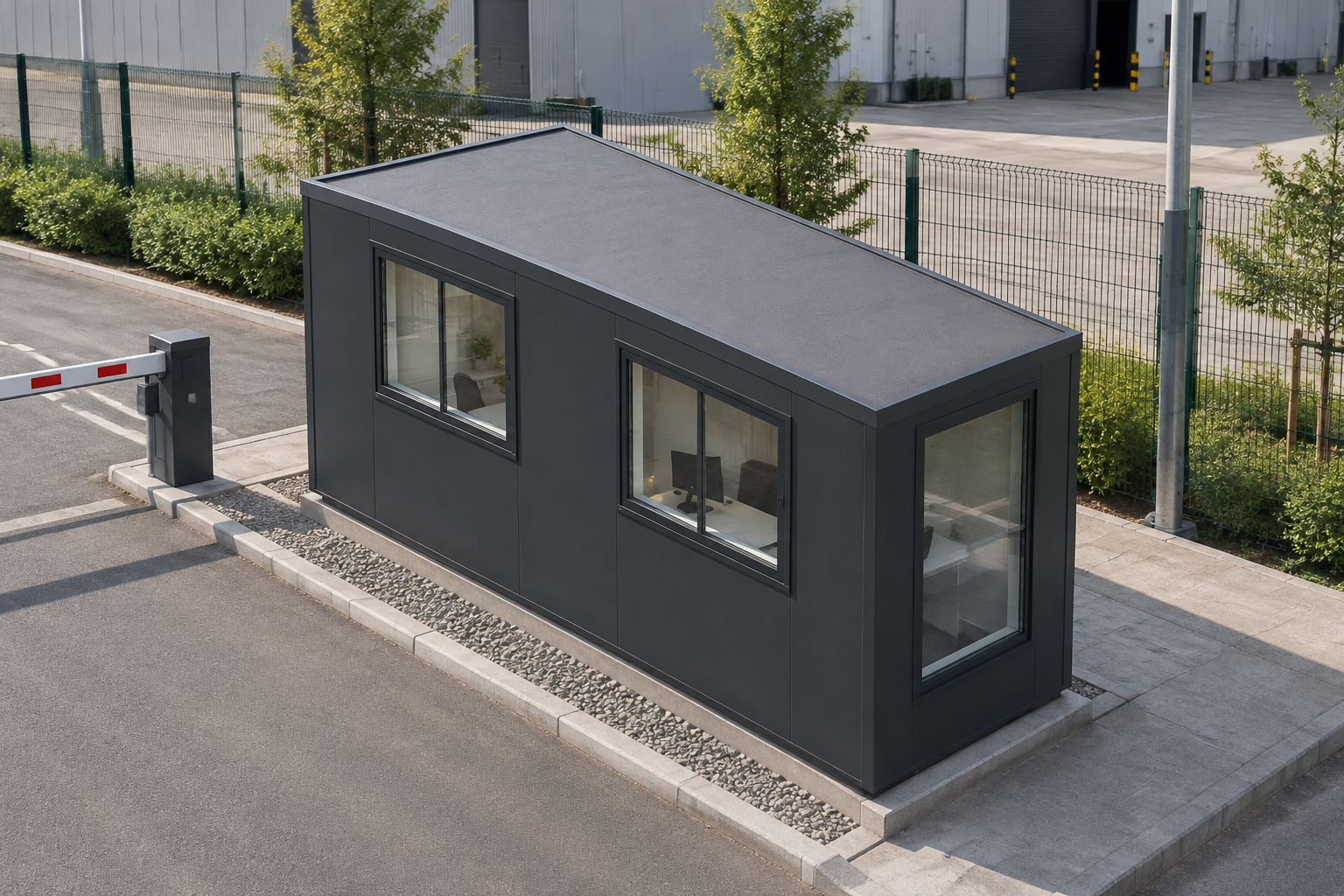

This P600 configuration is a one-module, single-storey security cabin designed for the Security & Site Control sector. Its 5.9 m x 2.2 m footprint makes it suited to access points where space is limited but a dedicated working environment is required. Typical applications include site entrances, car parks and distribution centres. More information about this type of building is available in our security cabins section.
Module dimensions and layout
The building uses one P600 module with a single configured layout. It provides approximately 11 m² of internal usable floor area, based on an approximate usable interior of 5.7 m x 2.0 m. The module is 2.40 m high externally and has a 2.16 m internal ceiling height. As a standalone single-storey design, this configuration does not include linked or stacked modules.
The exposed north wall, along the 5.9 m side, has two large windows. The east 2.2 m end wall has one full-size window, while the west 2.2 m end wall also has one full-size window. Access is through one glazed door in the south 5.9 m wall. These openings are specific to the stored configuration and provide visibility from multiple sides of the cabin.
Anthracite Grey exterior
All four outside walls use standard insulated sandwich panels with a smooth finish. The vertical panels are selected in Anthracite Grey, RAL 7016, across the north, east, south and west elevations. Above them is a flat roof with an approximately 120 mm steel-frame fascia. No additional fascia is included in this configuration.
Requested WC and internal finishes
A WC has been requested, but its arrangement remains subject to confirmation in the final layout and quotation. Where a toilet or shower room is included, that room requires hygienic wall panels and wet-room PVC flooring. The exact room arrangement and associated fit-out must therefore be agreed before the specification is finalised.
Elsewhere, the included internal wall finish is formed from white, lightly ribbed insulated sandwich panels. Plasterboard and other hygienic-panel styles are selectable alternatives rather than included features of this stored design. Room-by-room flooring choices are also selectable and should not be treated as confirmed unless they are stated in the final quotation. Illustrated fixtures, materials and finishes are indicative until the quotation confirms the final details.
Estimate, transport and siting
The indicative configured estimate is £12,900 excluding VAT, equivalent to £15,480 including VAT. This figure is subject to quotation. Transport is priced separately according to the delivery postcode and site access. Offloading or cranage, groundworks and other site-specific works are also separate and are not included in the indicative estimate.
Final siting is subject to survey and assessment of the proposed location, access route and site conditions. Suitable ground preparation, clearances and any offloading requirements need to be established for the individual project. The stored design can be reviewed through the building configurator, but the issued quotation remains the basis for the final specification and price.
Full specification
1 P600 module (single storey), single layout, 5.9m x 2.2m footprint, approx 11 m2 internal usable floor area. Each module is 2.40m externally with a 2.16m internal ceiling; its approximate usable interior is 5.7m x 2.0m. Exterior: included vertical insulated sandwich panels in Anthracite Grey (RAL 7016). Roof: flat roof with approximately 120mm steel-frame fascia (no extra fascia). Selected outside walls: Module 1 North wall: Standard insulated panel, Anthracite Grey (RAL 7016), Smooth; Module 1 East wall: Standard insulated panel, Anthracite Grey (RAL 7016), Smooth; Module 1 South wall: Standard insulated panel, Anthracite Grey (RAL 7016), Smooth; Module 1 West wall: Standard insulated panel, Anthracite Grey (RAL 7016), Smooth. Cladding prices are quote-only and must not be itemised in public copy. Module 1 P600 (ground floor) exposed walls — north (5.9m side): Large window + Large window; east (2.2m end): Full-size window; south (5.9m side): Glazed door (single); west (2.2m end): Full-size window. Requested fit-out to confirm in the final layout: WC. Toilet/shower rooms require hygienic wall panels and wet-room PVC flooring; elsewhere white lightly ribbed insulated sandwich panels are the included wall finish. Plasterboard, other hygienic-panel styles and room-by-room flooring are selectable upgrades/choices, not included claims unless specified.
