Gatehouses
Single-Module P600 Gatehouse with Requested WC

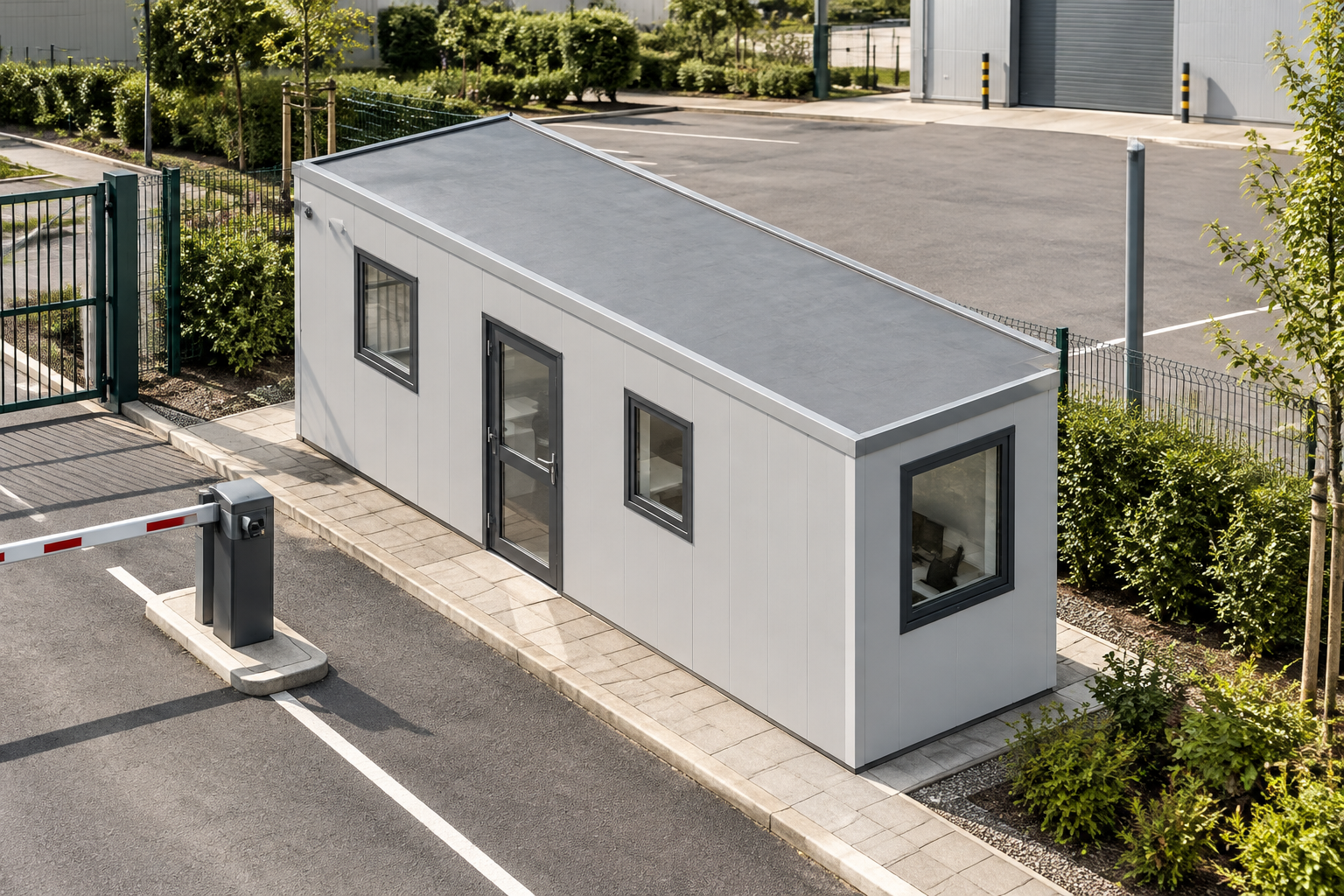

This single-storey P600 gatehouse provides an approximate 11 m² of usable internal space within one steel-framed module. It suits security and site control applications at logistics parks, schools and gated developments.
£12,900ex VAT
£15,480 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.
Made to order. Build and delivery timing will be confirmed with your quotation.
Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.
Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.
- Modules
- 1
- Storeys
- 1
- Floor area
- 11 m²
- Footprint
- 5.9m x 2.2m footprint
Design highlights
- One P600 steel-framed module
- Single-storey 5.9m x 2.2m footprint
- Approximately 11 m² usable internal area
- Light Grey RAL 7035 smooth external panels
- Windows on all four elevations
- Single glazed entrance door
- Requested WC subject to final layout confirmation
Single-module configuration
This P600 gatehouse comprises one steel-framed module arranged in a single-storey run layout. Its external footprint is 5.9m x 2.2m, with an approximate usable interior of 5.7m x 2.0m and around 11 m² of internal floor area. The module is 2.40m high externally and has a 2.16m internal ceiling height, creating a compact workspace for gatehouse and access-control duties.
The configuration is intended for the Security & Site Control sector. It provides a defined base for personnel monitoring entrances at logistics parks, schools and gated developments. Further context on this type of building is available in the gatehouses section.
Windows and entrance
The exposed north wall, along the 5.9m side, has two large windows. The south wall has two small windows with a single glazed door positioned between them. Each 2.2m end wall has one full-size window: one on the east wall and one on the west wall. This stored arrangement provides glazing on all four elevations while retaining a single external entrance.
External panels and roof
All four outside walls use standard vertical insulated sandwich panels in Light Grey, matched to RAL 7035, with a smooth finish. This selection applies to the north, east, south and west walls of the module. Cladding costs are confirmed through the project quotation and are not itemised in public pricing.
The building has a flat roof with an approximately 120mm steel-frame fascia. No additional fascia is selected for this configuration. Final external details remain subject to the quotation and agreed project specification.
Requested internal fit-out
A WC has been requested for this gatehouse, with its inclusion and position to be confirmed in the final internal layout. Toilet or shower rooms require hygienic wall panels and wet-room PVC flooring. These requirements apply to the proposed WC area if it is retained in the quoted design.
Elsewhere, the included internal wall finish is white, lightly ribbed insulated sandwich panelling. Plasterboard and other hygienic-panel styles are selectable alternatives rather than included features of this stored configuration. Room-by-room flooring choices outside the proposed WC have not been fixed and must also be confirmed through the final specification. Fixtures, finishes and layout details shown in supporting imagery are subject to quotation.
Siting and commercial details
The indicative configured estimate is £12,900 excluding VAT, or £15,480 including VAT, subject to quotation. Transport is priced separately according to the delivery postcode and site access. Offloading or cranage, groundworks and other site-specific works are separate from this estimate.
Proposed siting is subject to survey, including access, ground conditions and the practical requirements of the chosen location. The final quotation will confirm the building specification, requested WC layout, finish choices and project-specific costs. Any amendments to the stored design can be reviewed through the configuration process.
Full specification
1 P600 module (single storey), run layout, 5.9m x 2.2m footprint, approx 11 m2 internal usable floor area. Each module is 2.40m externally with a 2.16m internal ceiling; its approximate usable interior is 5.7m x 2.0m. Exterior: included vertical insulated sandwich panels in Light Grey (RAL 7035). Roof: flat roof with approximately 120mm steel-frame fascia (no extra fascia). Selected outside walls: Module 1 North wall: Standard insulated panel, Light Grey (RAL 7035), Smooth; Module 1 East wall: Standard insulated panel, Light Grey (RAL 7035), Smooth; Module 1 South wall: Standard insulated panel, Light Grey (RAL 7035), Smooth; Module 1 West wall: Standard insulated panel, Light Grey (RAL 7035), Smooth. Cladding prices are quote-only and must not be itemised in public copy. Module 1 P600 (ground floor) exposed walls — north (5.9m side): Large window + Large window; east (2.2m end): Full-size window; south (5.9m side): Small window + Glazed door (single) + Small window; west (2.2m end): Full-size window. Requested fit-out to confirm in the final layout: WC. Toilet/shower rooms require hygienic wall panels and wet-room PVC flooring; elsewhere white lightly ribbed insulated sandwich panels are the included wall finish. Plasterboard, other hygienic-panel styles and room-by-room flooring are selectable upgrades/choices, not included claims unless specified.
