Gatehouses
Single-Module P600 Gatehouse

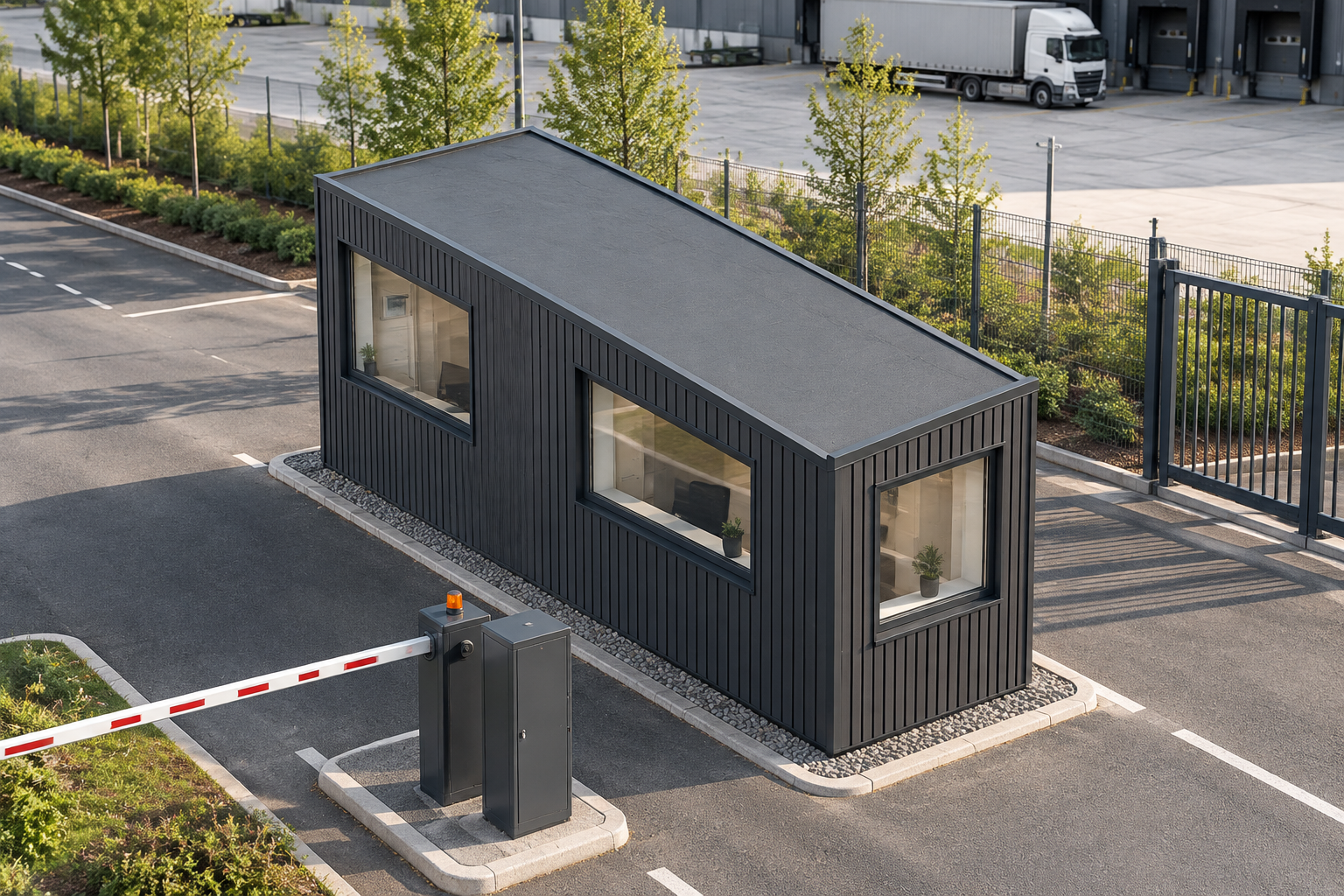

This single-storey P600 gatehouse uses one steel-framed module with approximately 11 m² of usable internal space. It suits security and site control at logistics parks, schools and gated developments.
£14,100ex VAT
£16,920 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.
Made to order. Build and delivery timing will be confirmed with your quotation.
Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.
Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.
- Modules
- 1
- Storeys
- 1
- Floor area
- 11 m²
- Footprint
- 5.9m x 2.2m footprint
Design highlights
- One P600 steel-framed module
- Single-storey 5.9m x 2.2m footprint
- Approximately 11 m² usable internal area
- Four large windows and one glazed single door
- Anthracite ARLINE AR16016 vertical grooved cladding
- Flat roof with approximately 120mm steel-frame fascia
- Requested WC fit-out, subject to final layout confirmation
Compact security and site control space
This P600 configuration is designed as a compact gatehouse for security and site control. The stored design uses one steel-framed module in a single-storey run layout, creating a self-contained building for sites that need a defined point of supervision or access management. Typical settings include logistics parks, school entrances and gated developments.
Single-module layout
The building has an external footprint of 5.9m x 2.2m and provides approximately 11 m² of usable internal floor area. Its approximate usable interior measures 5.7m x 2.0m. The module is 2.40m high externally, with an internal ceiling height of 2.16m. As this stored configuration contains one module only, there are no linked or stacked sections.
The arrangement includes four large windows and one glazed single door. Two large windows are positioned on the north-facing 5.9m wall. The east 2.2m end wall has one large window, while the west 2.2m end wall has another. The glazed single door is located on the south-facing 5.9m wall. These positions describe the selected configuration and should be checked against the final quotation and layout documentation.
Anthracite external finish
All four exposed outside walls are specified with full-wall ARLINE AR16016 grooved plank cladding in Anthracite, applied between the frame and arranged as vertical boards. This selected finish covers the north, east, south and west elevations around their respective openings. Cladding remains subject to quotation and is not separately itemised in public pricing.
The building has a flat roof with an approximately 120mm steel-frame fascia. No additional fascia is specified for this design. Final external details, colours and finishes are confirmed through the project quotation.
Requested WC and internal finishes
A WC has been requested for this gatehouse, with its final position and arrangement to be confirmed in the completed layout. Where a toilet or shower room is included, that room requires hygienic wall panels and wet-room PVC flooring. The exact room plan and associated details must therefore be agreed before quotation is finalised.
Elsewhere, the included internal wall finish is white, lightly ribbed insulated sandwich panelling. Plasterboard and alternative hygienic-panel styles are selectable choices or upgrades rather than included features of this stored design. Room-by-room flooring selections outside the requested WC area are also not fixed in the brief and must be confirmed as part of the final specification through the building configurator and quotation process.
Pricing and site considerations
The indicative configured estimate is £14,100 excluding VAT, or £16,920 including VAT. This figure is subject to quotation and confirmation of the final WC layout, finishes and project requirements. Transport is priced separately according to the delivery postcode and site access.
Siting remains subject to a site survey and assessment of access conditions. Offloading or cranage, groundworks and other site-specific works are separate from the indicative configured estimate. The survey and quotation process will establish the relevant access, transport and site requirements without assuming that these services are included.
Full specification
1 P600 module (single storey), run layout, 5.9m x 2.2m footprint, approx 11 m2 internal usable floor area. Each module is 2.40m externally with a 2.16m internal ceiling; its approximate usable interior is 5.7m x 2.0m. Exterior: ARLINE AR16016 grooved plank applied to exposed walls between the frame in Anthracite. Roof: flat roof with approximately 120mm steel-frame fascia (no extra fascia). Selected outside walls: Module 1 North wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 1 East wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 1 South wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 1 West wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards. Cladding prices are quote-only and must not be itemised in public copy. Module 1 P600 (ground floor) exposed walls — north (5.9m side): Large window + Large window; east (2.2m end): Large window; south (5.9m side): Glazed door (single); west (2.2m end): Large window. Requested fit-out to confirm in the final layout: WC. Toilet/shower rooms require hygienic wall panels and wet-room PVC flooring; elsewhere white lightly ribbed insulated sandwich panels are the included wall finish. Plasterboard, other hygienic-panel styles and room-by-room flooring are selectable upgrades/choices, not included claims unless specified.
