Single-Module P600 Garden Room with Covered Terrace

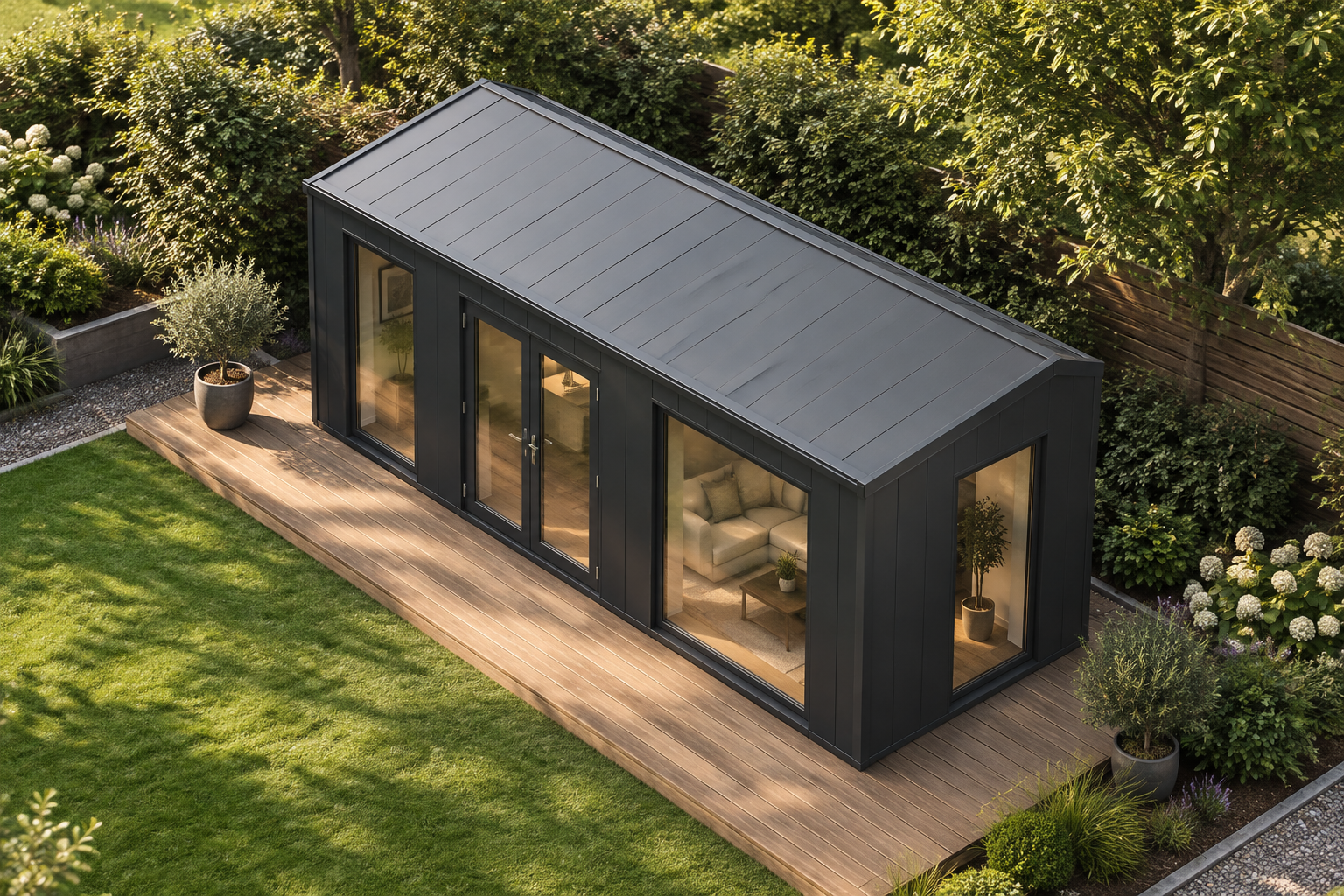

This single-storey P600 garden room combines a bright, extensively glazed layout with a covered ground-level timber terrace. It suits homeowners looking for extra living space in the garden.
£17,220ex VAT
£20,664 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.
Made to order. Build and delivery timing will be confirmed with your quotation.
Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.
Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.
- Modules
- 1
- Storeys
- 1
- Approx. usable internal area
- 11.4 m² before partitions
- External dimensions
- 5.9m x 2.2m footprint
Design highlights
- One P600 module arranged over a single storey
- 5.9m × 2.2m external footprint
- Approx. 11.4 m² usable internal area before partitions
- Smooth Anthracite Grey RAL 7016 insulated exterior panels
- Dual-pitch apex roof
- Glazed double door and windows on every elevation
- Covered ground-level timber terrace deck
Configuration and scale
This stored P600 design uses one self-contained module arranged over a single storey. Its external footprint is 5.9m × 2.2m, with an external module height of 2.40m and an internal ceiling height of 2.16m. The approximate usable interior measures 5.7m × 2.0m, providing approximately 11.4 m² of usable internal area before partitions.
The conservative area allowance reflects this one-module layout; no connected modules form part of the configuration. It is intended as a garden room for homeowners seeking extra living space and sits within Adacon’s garden rooms range. A covered, ground-level timber terrace deck runs alongside the building, creating an adjoining outdoor area.
Windows, doors and elevations
The exposed north wall is the 5.9m side of the module. Its stored arrangement comprises one small window, followed by one large window and a second small window. The east-facing 2.2m end has one full-size window.
On the south-facing 5.9m side, the configuration places a glazed double door between two large windows. The west-facing 2.2m end contains a further full-size window. Together, these openings provide glazing on every elevation while retaining the exact single-module arrangement shown in the brief.
External envelope and roof
All four outside walls use the included standard insulated sandwich panels. The panels are installed vertically and selected in a smooth Anthracite Grey finish, RAL 7016. This same panel specification applies to the north, east, south and west elevations; no separately priced decorative cladding is included in the public estimate.
Above the module is a dual-pitch apex roof. The building remains a single-storey configuration, with the covered timber terrace positioned at ground level alongside it.
Requested internal fit-out
A WC has been requested for confirmation in the final room layout. Its position, associated partitioning and final fixtures are not fixed by this stored configuration and must be agreed through the quotation. Any resulting partitions will reduce the approximately 11.4 m² usable internal area available before partitions.
For bathroom areas, the standard wall construction uses 40mm waterproof insulated sandwich panels, with hygienic panels available as an option. Wet-room PVC flooring applies where a shower room is selected; this design requests a WC rather than confirming a shower room. Plaster outside bathroom walls applies only when selected.
Elsewhere, insulated sandwich panels are the included internal wall finish. Other wall and floor finishes depend on the agreed room layout and selections recorded through the configuration process. Illustrated fixtures, finishes and dressing should not be treated as guaranteed inclusions, as final details are confirmed by quotation.
Estimate and siting
The indicative configured estimate is £17,220 excluding VAT, or £20,664 including VAT, subject to quotation. This estimate relates to the stored one-module garden room configuration and its specified exterior, openings, roof and terrace arrangement.
Transport is priced separately according to postcode and site access. Offloading or cranage, groundworks and other site-specific works are also separate. The proposed position and access must be assessed through a site survey before the final requirements and quotation can be confirmed.
Full specification
1 P600 module (single storey), single layout, 5.9m x 2.2m footprint, approx 11.4 m2 usable internal area before partitions (conservative per-module allowance; connected open layouts may provide more space). Each module is 2.40m externally with a 2.16m internal ceiling; its approximate usable interior is 5.7m x 2.0m. Exterior: included vertical insulated sandwich panels in Anthracite Grey (RAL 7016). Roof: dual-pitch (apex) roof. Selected outside walls: Module 1 North wall: Standard insulated panel, Anthracite Grey (RAL 7016), Smooth; Module 1 East wall: Standard insulated panel, Anthracite Grey (RAL 7016), Smooth; Module 1 South wall: Standard insulated panel, Anthracite Grey (RAL 7016), Smooth; Module 1 West wall: Standard insulated panel, Anthracite Grey (RAL 7016), Smooth. Cladding prices are quote-only and must not be itemised in public copy. Module 1 P600 (ground floor) exposed walls — north (5.9m side): Small window + Large window + Small window; east (2.2m end): Full-size window; south (5.9m side): Large window + Glazed door (double) + Large window; west (2.2m end): Full-size window. Covered ground-level timber terrace deck alongside the building. Requested fit-out to confirm in the final layout: WC. Bathroom walls use 40mm waterproof insulated sandwich panels as standard, with hygienic panels optional; shower rooms use wet-room PVC flooring. Plaster applies outside bathroom walls when selected. Elsewhere insulated sandwich panels are the included wall finish; other finishes are selected for the final room layout.
