Gatehouses

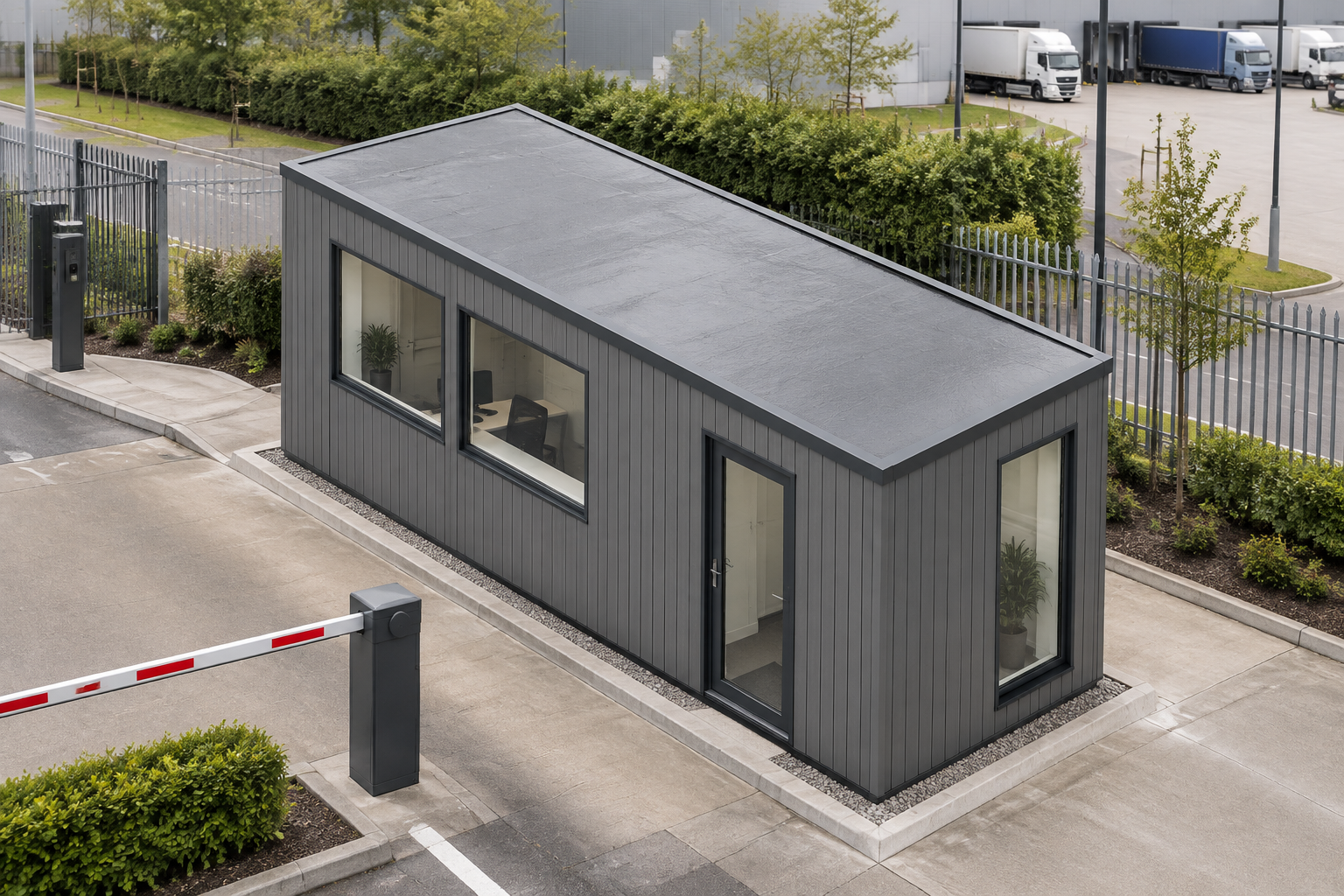

P600 Single-Module Gatehouse with WC
This single-storey P600 gatehouse combines a compact control space, extensive glazing and a requested WC within one 5.9m x 2.2m module. It suits entrance and security points at logistics parks, schools and gated developments.
£14,100ex VAT
£16,920 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.
Made to order. Build and delivery timing will be confirmed with your quotation.
Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.
Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.
- Modules
- 1
- Storeys
- 1
- Approx. usable internal area
- 11.4 m² before partitions
- External dimensions
- 5.9m x 2.2m footprint
Design highlights
- Single 5.9m x 2.2m P600 module
- Approx. 11.4m² usable internal area before partitions
- Two large windows and two full-size end windows
- Single glazed entrance door
- Grey ARLINE AR16016 vertical grooved cladding
- Requested WC subject to final layout confirmation
- Flat roof with approx. 120mm steel-frame fascia
Compact security and site control layout
This P600 configuration uses one steel-framed module arranged over a single storey. Its external footprint is 5.9m x 2.2m, with an approximate usable interior of 5.7m x 2.0m and a 2.16m internal ceiling. The module is 2.40m high externally.
Before partitions, the design provides approximately 11.4m² of usable internal area. This is a conservative per-module allowance. The requested WC and its final partition arrangement will reduce the remaining open space, so the exact internal layout must be confirmed as part of the quotation. The compact format is intended for a dedicated gatehouse role rather than a connected multi-module arrangement.
Typical applications include staffed entrances, visitor checkpoints and access-control positions at logistics parks, schools and gated developments. Further information about this type of building is available on the gatehouses page.
Windows, entrance and external finish
The north-facing 5.9m wall has two large windows. Both 2.2m end walls have a full-size window, giving the interior outward visibility on three sides. A single glazed door is positioned on the south-facing 5.9m wall.
All four outside walls are specified with Grey ARLINE AR16016 grooved plank cladding, applied vertically between the exposed frame. This full-wall treatment gives the module a consistent selected finish across its north, east, south and west elevations. Final fixture, colour and finish details remain subject to confirmation in the quotation.
Above, the building has a flat roof with an approximately 120mm steel-frame fascia. No additional fascia is included in this stored configuration.
Requested WC and internal finishes
A WC has been requested for the final fit-out, with its position and associated room layout still to be confirmed. Bathroom walls use 40mm waterproof insulated sandwich panels as standard. Hygienic wall panels are available as an optional selection. Where a shower room is selected, wet-room PVC flooring is used; a shower is not specified in this configuration.
Outside the bathroom area, insulated sandwich panels are the included internal wall finish. Plaster can be selected for the outside faces of bathroom walls, while any other wall or floor finishes are determined when the final room layout and quotation are agreed. Illustrated fixtures and finishes should therefore be treated as indicative rather than guaranteed inclusions.
Estimate, transport and siting
The indicative configured estimate is £14,100 excluding VAT, or £16,920 including VAT, subject to quotation. This figure reflects the stored configuration but is not a final site-specific price.
Transport is priced separately according to the delivery postcode and access conditions. Offloading or cranage, groundworks and other site-specific works are also separate. Siting is subject to survey, including confirmation of access, ground conditions, positioning and any project-specific requirements. The configuration can be reviewed through the online building configurator.
- One P600 module over a single storey
- Approximate 11.4m² usable internal area before partitions
- Requested WC, subject to final layout confirmation
- Grey vertical grooved plank cladding on all outside walls
- Glazing to three sides with a single glazed entrance door
- Flat roof with approximately 120mm steel-frame fascia
Full specification
1 P600 module (single storey), single layout, 5.9m x 2.2m footprint, approx 11.4 m2 usable internal area before partitions (conservative per-module allowance; connected open layouts may provide more space). Each module is 2.40m externally with a 2.16m internal ceiling; its approximate usable interior is 5.7m x 2.0m. Exterior: ARLINE AR16016 grooved plank applied to exposed walls between the frame in Grey. Roof: flat roof with approximately 120mm steel-frame fascia (no extra fascia). Selected outside walls: Module 1 North wall: Full-wall cladding, Grey, ARLINE AR16016 grooved plank, vertical boards; Module 1 East wall: Full-wall cladding, Grey, ARLINE AR16016 grooved plank, vertical boards; Module 1 South wall: Full-wall cladding, Grey, ARLINE AR16016 grooved plank, vertical boards; Module 1 West wall: Full-wall cladding, Grey, ARLINE AR16016 grooved plank, vertical boards. Cladding prices are quote-only and must not be itemised in public copy. Module 1 P600 (ground floor) exposed walls — north (5.9m side): Large window + Large window; east (2.2m end): Full-size window; south (5.9m side): Glazed door (single); west (2.2m end): Full-size window. Requested fit-out to confirm in the final layout: WC. Bathroom walls use 40mm waterproof insulated sandwich panels as standard, with hygienic panels optional; shower rooms use wet-room PVC flooring. Plaster applies outside bathroom walls when selected. Elsewhere insulated sandwich panels are the included wall finish; other finishes are selected for the final room layout.
