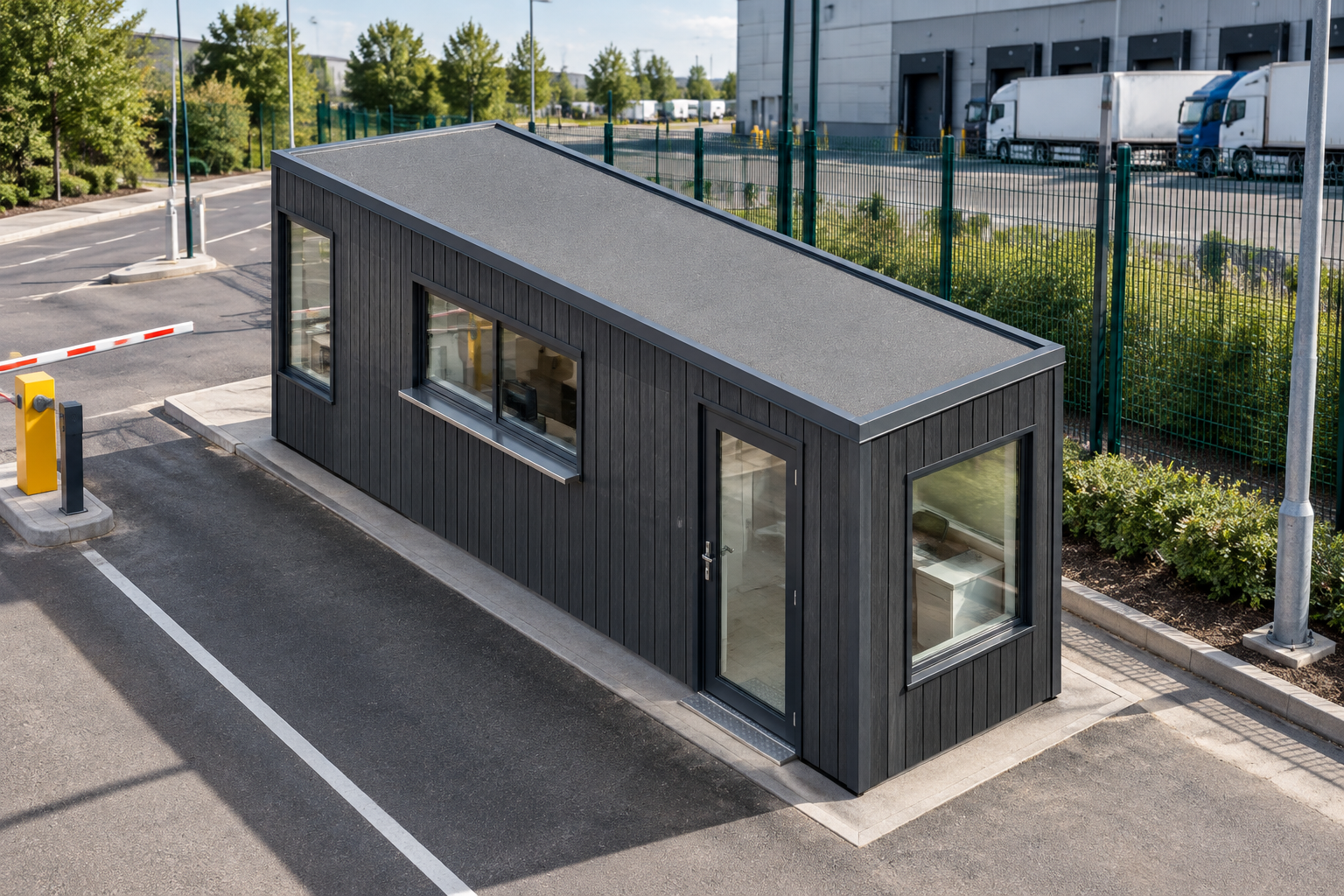

P600 Security Cabin with Drive-Through Serving Window
This single-storey P600 security cabin combines a drive-through serving window, glazed entrance and large windows within one compact module. It suits sites, car parks and distribution centres that need a dedicated point for controlling access.
£14,100ex VAT
£16,920 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.
Made to order. Build and delivery timing will be confirmed with your quotation.
Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.
Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.
- Modules
- 1
- Storeys
- 1
- Approx. usable internal area
- 11.4 m² before partitions
- External dimensions
- 5.9m x 2.2m footprint
Design highlights
- One P600 module in a single-storey run layout
- 5.9m x 2.2m external footprint
- Approximately 11.4 m2 usable internal area before partitions
- Sliding drive-through serving window
- Single glazed door and two large end windows
- Anthracite vertical ARLINE AR16016 grooved plank cladding
- Requested WC subject to final layout confirmation
Compact single-module layout
This configuration uses one P600 module in a single-storey run layout. Its external footprint is 5.9m x 2.2m, with an external module height of 2.40m and an internal ceiling height of 2.16m. The approximate usable interior measures 5.7m x 2.0m, providing around 11.4 m2 of usable internal area before partitions. This is a conservative per-module allowance, and the requested WC partition will reduce the open operational space available.
Designed as a security cabin, the building is intended for sites, car parks and distribution centres where staff oversee arrivals, departures or controlled entry. The single-module format keeps the accommodation focused while providing windows on three elevations and a separate glazed entrance.
Openings and access
The north-facing 5.9m wall has a sliding drive-through serving window, providing a practical point for communicating with drivers or checking access information. A large window is positioned in each 2.2m end wall: one on the east elevation and one on the west elevation. The south-facing 5.9m wall contains a single glazed door.
These openings are specific to the stored configuration. Their final detailing, including individual fixture and finish selections shown in any supporting illustration, is confirmed by quotation and the agreed final layout.
Anthracite external finish
All four exposed walls are specified with full-wall ARLINE AR16016 grooved plank cladding in Anthracite. The boards are applied vertically between the steel frame, creating a consistent finish across the north, east, south and west elevations. Cladding remains subject to the final quotation and is not separately itemised in public pricing.
The module has a flat roof with an approximately 120mm steel-frame fascia. No additional fascia has been selected for this configuration.
Requested WC and internal finishes
A WC has been requested for the fit-out, but its position and final arrangement must be confirmed in the quoted room layout. Where the bathroom is selected, its walls use 40mm waterproof insulated sandwich panels as standard. Hygienic panels are available as an optional bathroom wall finish. Plaster applies outside bathroom walls when that finish is selected.
Elsewhere, insulated sandwich panels are the included internal wall finish. Any alternative finishes are chosen in relation to the final room arrangement rather than assumed from illustrations. Wet-room PVC flooring is used for shower rooms; no shower room is specified in this stored design, so that finish would only apply if the final quoted configuration were changed accordingly. Layout and finish choices can be reviewed through the building configurator.
Indicative estimate and site requirements
The indicative configured estimate is £14,100 ex VAT, or £16,920 including VAT, subject to quotation. This estimate reflects the stored module configuration without publicly itemising the cladding cost. Transport is priced separately according to the delivery postcode and site access.
Offloading or cranage, groundworks and other site-specific works are separate. Final siting is subject to a site survey, including confirmation of access, levels, ground conditions, clearances and the requirements for positioning the module safely. The quotation will confirm the final layout, selected finishes and site-related pricing.
Full specification
1 P600 module (single storey), run layout, 5.9m x 2.2m footprint, approx 11.4 m2 usable internal area before partitions (conservative per-module allowance; connected open layouts may provide more space). Each module is 2.40m externally with a 2.16m internal ceiling; its approximate usable interior is 5.7m x 2.0m. Exterior: ARLINE AR16016 grooved plank applied to exposed walls between the frame in Anthracite. Roof: flat roof with approximately 120mm steel-frame fascia (no extra fascia). Selected outside walls: Module 1 North wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 1 East wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 1 South wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 1 West wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards. Cladding prices are quote-only and must not be itemised in public copy. Module 1 P600 (ground floor) exposed walls — north (5.9m side): Drive-through serving window (sliding); east (2.2m end): Large window; south (5.9m side): Glazed door (single); west (2.2m end): Large window. Requested fit-out to confirm in the final layout: WC. Bathroom walls use 40mm waterproof insulated sandwich panels as standard, with hygienic panels optional; shower rooms use wet-room PVC flooring. Plaster applies outside bathroom walls when selected. Elsewhere insulated sandwich panels are the included wall finish; other finishes are selected for the final room layout.
