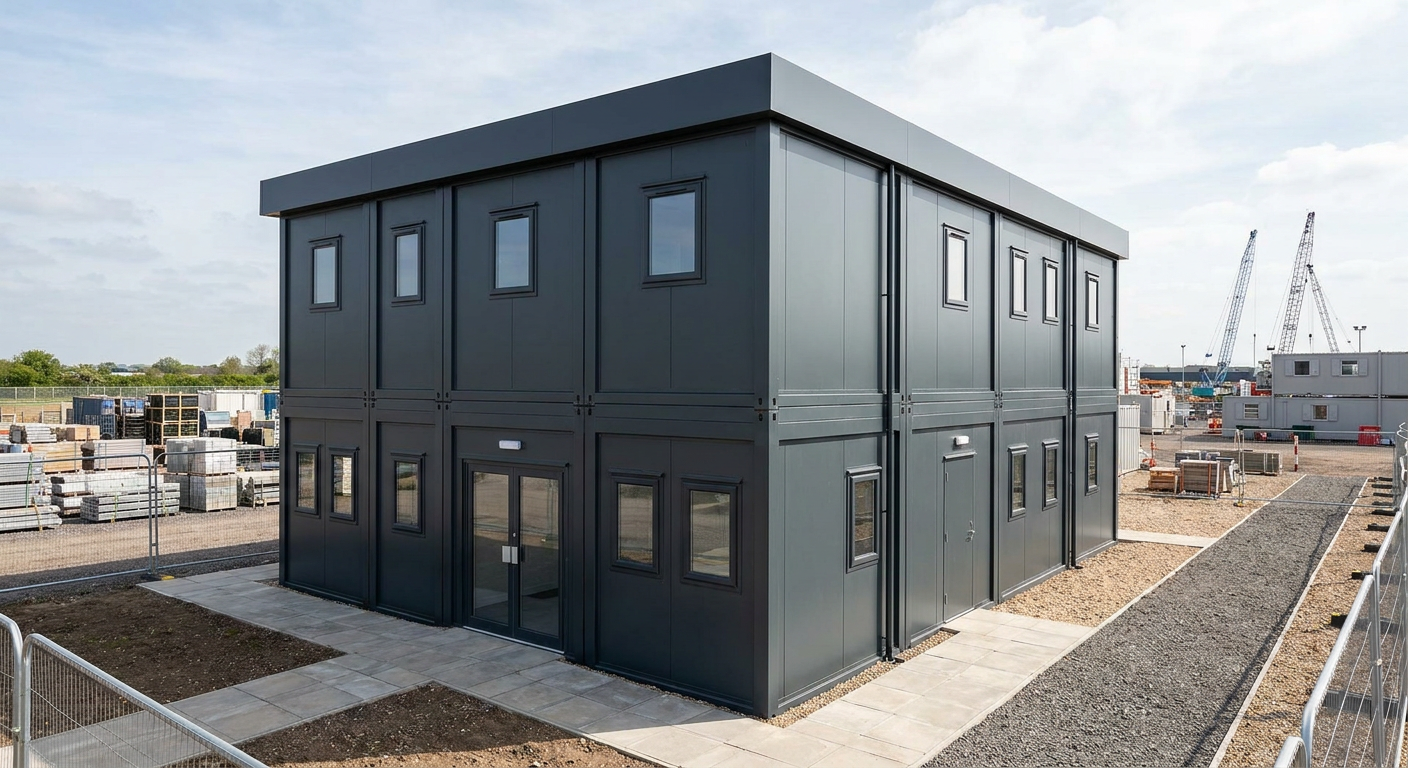

    8-module two-storey site welfare unit, Adacon modular building (illustrative)
    Eight-module, two-storey P600 site welfare unit for construction sites requiring canteen, drying, WC and shower facilities.

    Site Welfare Units

    8-Module Site Welfare Unit with Kitchenette and WC

    This two-storey site welfare unit combines eight P600 modules to provide approx. 91.20 m² usable internal area before partitions within an 11.8m x 4.4m footprint. It suits construction sites requiring practical canteen, drying room, WC and shower facilities in one fitted building.

    £103,200ex VAT

    £123,840 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.

    Made to order. Build and delivery timing will be confirmed with your quotation.

    Call about this item
    PLACE ORDER

    Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.

    WhatsApp

    Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.

    Change the layout in the configurator
    Modules
    8
    Storeys
    2
    Approx. usable internal area
    91.2 m² before partitions
    External dimensions
    11.8m x 4.4m footprint

    Design highlights

    • Eight P600 modules arranged over two storeys
    • approx. 91.20 m² usable internal area before partitions
    • Compact 11.8m x 4.4m footprint
    • Smooth Dark grey cladding with flat roof and slim fascia
    • Double-leaf glazed entrance door and small windows
    • Internal staircase between floors
    • Kitchenette, WC and shower included

    Two-storey welfare space for construction sites

    This configuration uses eight 5.9m x 2.2m P600 steel-framed modules, arranged as four modules on each of two floors. It provides approx. 91.20 m² usable internal area before partitions while keeping the overall footprint to 11.8m x 4.4m. The two floors are connected by an internal staircase, which is not visible from outside.

    Designed for the construction sector, the building provides space for canteen and drying room functions alongside a kitchenette, WC and shower. It is a substantial alternative to separate cabins where a site needs its main welfare facilities consolidated into one building. Further examples are available in Adacon’s site welfare units range.

    Module-by-module layout

    • Module 1, ground floor: the north side has a small window, a double-leaf glazed door and a second small window. The west end has two small windows.
    • Module 2, ground floor: the north side has three small windows, while the east end has two small windows.
    • Module 3, ground floor: the south side has three small windows and the west end has two small windows.
    • Module 4, ground floor: the east end has two small windows and the south side has three small windows.
    • Module 5, first floor: the north side has three small windows and the west end has two small windows.
    • Module 6, first floor: the north side has three small windows and the east end has two small windows.
    • Module 7, first floor: the south side has three small windows and the west end has two small windows.
    • Module 8, first floor: the east end has two small windows and the south side has three small windows.

    The glazed double door on Module 1 forms the external entrance. Small windows are distributed across every exposed elevation, giving the building consistent natural light without changing the compact, regular appearance of the P600 structure.

    Exterior finish and internal fit-out

    The exterior is finished in smooth Dark grey cladding, with a flat roof and slim fascia. The result is a straightforward, professional finish suited to active construction environments. Adacon designs, manufactures and delivers the P300/P400/P600 modular range, with buildings delivered and installed across the UK.

    The standard fitted specification for this configuration includes the internal staircase, kitchenette, WC and shower. The wider internal area can support canteen and drying room use according to the site’s operational requirements. Buyers can review the modular format and alternative arrangements through the P600 configurator.

    Price and typical lead time

    The indicative price is £103,200 excluding VAT, or £123,840 including VAT, for the standard fitted specification described here. This covers the eight-module, two-storey building with its stated exterior finish, doors, windows and internal welfare fit-out. Delivery, groundworks and any site-specific works are quoted separately once the location, access and installation requirements are known.

    A typical lead time is 8–12 weeks. The confirmed programme will depend on the final specification, current production schedule, site readiness and delivery arrangements.

    Siting requirements

    The site requires a suitable level base designed for the building loads and local ground conditions, together with safe delivery and installation access. Space must be available for vehicles and lifting operations. Utility connections, drainage, groundworks and other site-specific provisions should be planned before installation. The buyer is also responsible for confirming relevant planning, building control and site compliance requirements.

    Full specification

    8 P600 modules (two storeys), two-storey layout, 11.8m x 4.4m footprint, approx. 91.20 m² usable internal area before partitions.
Exterior: smooth cladding in Dark grey. Roof: flat roof with slim fascia.
Module 1 (ground floor) exposed walls — north (5.9m side): Small window + Glazed door (double) + Small window; west (2.2m end): Small window + Small window.
Module 2 (ground floor) exposed walls — north (5.9m side): Small window + Small window + Small window; east (2.2m end): Small window + Small window.
Module 3 (ground floor) exposed walls — south (5.9m side): Small window + Small window + Small window; west (2.2m end): Small window + Small window.
Module 4 (ground floor) exposed walls — east (2.2m end): Small window + Small window; south (5.9m side): Small window + Small window + Small window.
Module 5 (first floor) exposed walls — north (5.9m side): Small window + Small window + Small window; west (2.2m end): Small window + Small window.
Module 6 (first floor) exposed walls — north (5.9m side): Small window + Small window + Small window; east (2.2m end): Small window + Small window.
Module 7 (first floor) exposed walls — south (5.9m side): Small window + Small window + Small window; west (2.2m end): Small window + Small window.
Module 8 (first floor) exposed walls — east (2.2m end): Small window + Small window; south (5.9m side): Small window + Small window + Small window.
Internal staircase between the two floors (not visible outside).
Internal fit-out includes: kitchenette, WC, shower.
