Modular Offices

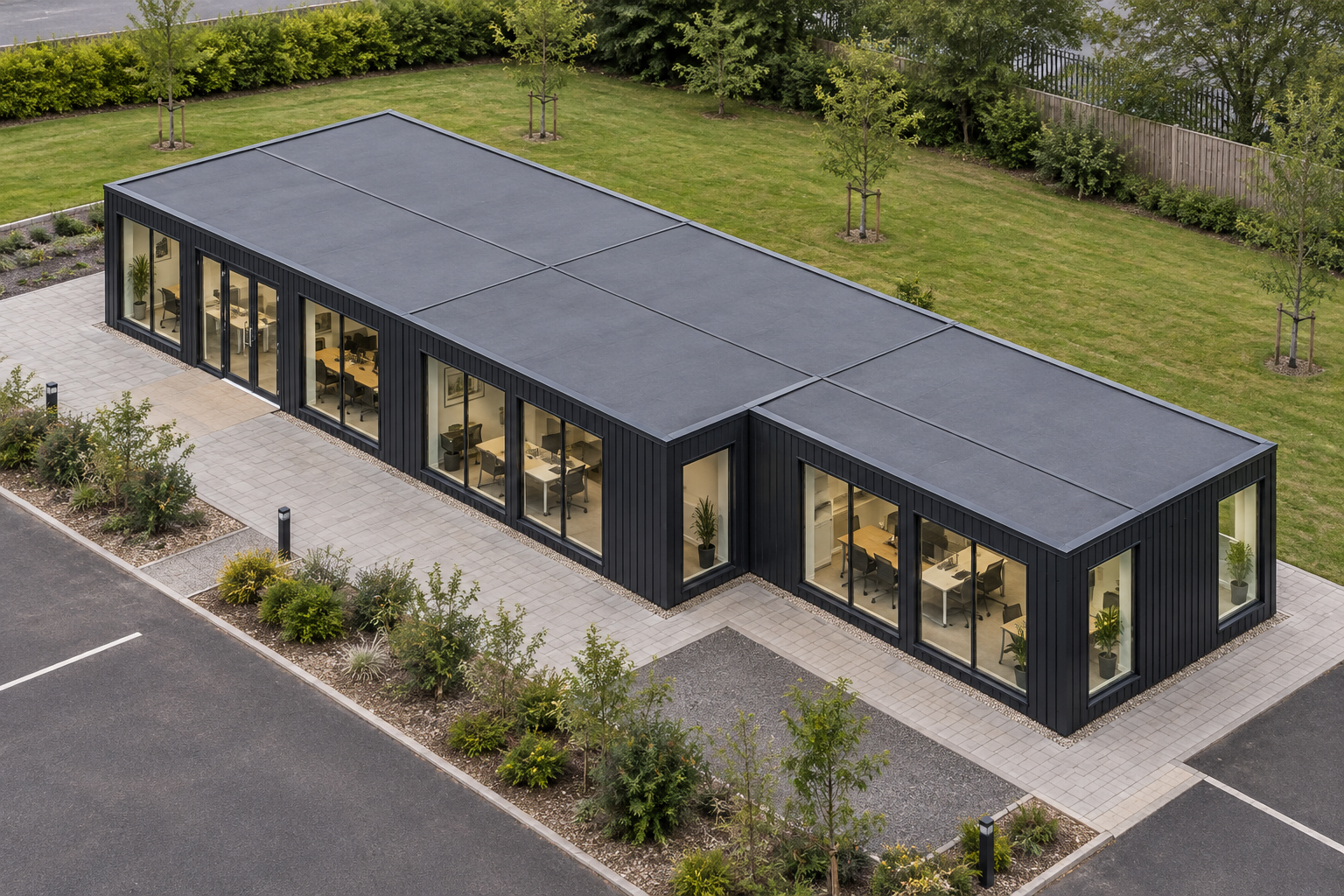

8-Module Single-Storey Modular Office
This single-storey modular office combines eight P600 modules in a 17.7m x 6.6m grid layout, providing approximately 91 m² of usable internal space. It suits growing businesses seeking permanent office accommodation without relying on a conventional building layout.
£106,800ex VAT
£128,160 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.
Made to order. Build and delivery timing will be confirmed with your quotation.
Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.
Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.
- Modules
- 8
- Storeys
- 1
- Floor area
- 91 m²
- Footprint
- 17.7m x 6.6m footprint
Design highlights
- Eight linked P600 modules over one storey
- 17.7m x 6.6m overall footprint
- Approximately 91 m² of usable internal space
- 18 large windows and one glazed double door
- Anthracite vertical ARLINE AR16016 grooved plank cladding
- Flat roof with approximately 120mm steel-frame fascia
- Requested WC to be confirmed in the final layout
Configuration overview
This configured modular office uses eight steel-framed P600 modules arranged over one storey in a grid layout. The completed footprint is 17.7m x 6.6m, with approximately 91 m² of usable internal floor area for the Offices & Commercial sector. Further information about this type of accommodation is available on the modular offices page.
Each module measures 5.9m x 2.2m and is 2.40m high externally. Its approximate usable interior is 5.7m x 2.0m, with a 2.16m internal ceiling height. Linking the eight modules creates a broader office floor plate rather than a series of isolated cabins.
The stored configuration is intended for growing businesses that need permanent office space. Internal room divisions and the final position of the requested WC remain subject to confirmation in the final layout.
External treatment and roof
All specified exposed walls are finished between the structural frame with Anthracite ARLINE AR16016 grooved plank cladding. The boards are installed vertically across the selected full-wall areas on Modules 1, 2, 3, 4, 6, 7 and 8. Module 5 has no exposed external wall or opening listed in this configuration.
The building has a flat roof with an approximately 120mm steel-frame fascia. No additional fascia is included in the stored design. Final details and finishes are confirmed by quotation.
Windows and entrance
The north-facing walls of Modules 1, 2 and 3 contain eight specified elements in total: six large windows, plus a glazed double door positioned between two of Module 1’s windows. These openings form the principal glazed entrance elevation within the configuration.
Further large windows are specified on the west ends of Modules 1, 4 and 7 and the east ends of Modules 3, 6 and 8. The south-facing walls of Modules 6, 7 and 8 each have two large windows. Across the complete design, this provides 18 large windows and one glazed double door, without implying a particular frame or glazing specification.
Requested internal fit-out
A WC is requested, with its final location and detailed arrangement to be confirmed as part of the completed plan. Toilet or shower rooms require hygienic wall panels and wet-room PVC flooring, so these treatments apply to the WC area rather than being described as a standard finish throughout the office.
Elsewhere, the included internal wall finish is white, lightly ribbed insulated sandwich panelling. Plasterboard and alternative hygienic-panel styles can be selected as upgrades or choices. Room-by-room flooring selections are also subject to confirmation and are not fixed by this stored configuration.
The internal arrangement can be reviewed through the building configurator, but the quotation confirms the final layout, fixtures and finishes.
Configured estimate and siting
The indicative configured estimate is £106,800 excluding VAT, or £128,160 including VAT. This figure is subject to quotation and reflects this eight-module office configuration without publicly itemising the selected cladding.
Transport is priced separately according to the delivery postcode and site access. Offloading or cranage, groundworks and other site-specific works are also separate. Siting is subject to survey, including access, ground conditions and the practical requirements of placing the linked modules on the proposed site.
Full specification
8 P600 modules (single storey), grid layout, 17.7m x 6.6m footprint, approx 91 m2 internal usable floor area. Each module is 2.40m externally with a 2.16m internal ceiling; its approximate usable interior is 5.7m x 2.0m. Exterior: ARLINE AR16016 grooved plank applied to exposed walls between the frame in Anthracite. Roof: flat roof with approximately 120mm steel-frame fascia (no extra fascia). Selected outside walls: Module 1 North wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 1 West wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 2 North wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 3 North wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 3 East wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 4 West wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 6 East wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 6 South wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 7 South wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 7 West wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 8 East wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 8 South wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards. Cladding prices are quote-only and must not be itemised in public copy. Module 1 P600 (ground floor) exposed walls — north (5.9m side): Large window + Glazed door (double) + Large window; west (2.2m end): Large window. Module 2 P600 (ground floor) exposed walls — north (5.9m side): Large window + Large window. Module 3 P600 (ground floor) exposed walls — north (5.9m side): Large window + Large window; east (2.2m end): Large window. Module 4 P600 (ground floor) exposed walls — west (2.2m end): Large window. Module 5 P600 (ground floor) exposed walls — . Module 6 P600 (ground floor) exposed walls — east (2.2m end): Large window; south (5.9m side): Large window + Large window. Module 7 P600 (ground floor) exposed walls — south (5.9m side): Large window + Large window; west (2.2m end): Large window. Module 8 P600 (ground floor) exposed walls — east (2.2m end): Large window; south (5.9m side): Large window + Large window. Requested fit-out to confirm in the final layout: WC. Toilet/shower rooms require hygienic wall panels and wet-room PVC flooring; elsewhere white lightly ribbed insulated sandwich panels are the included wall finish. Plasterboard, other hygienic-panel styles and room-by-room flooring are selectable upgrades/choices, not included claims unless specified.
