Modular Changing Rooms

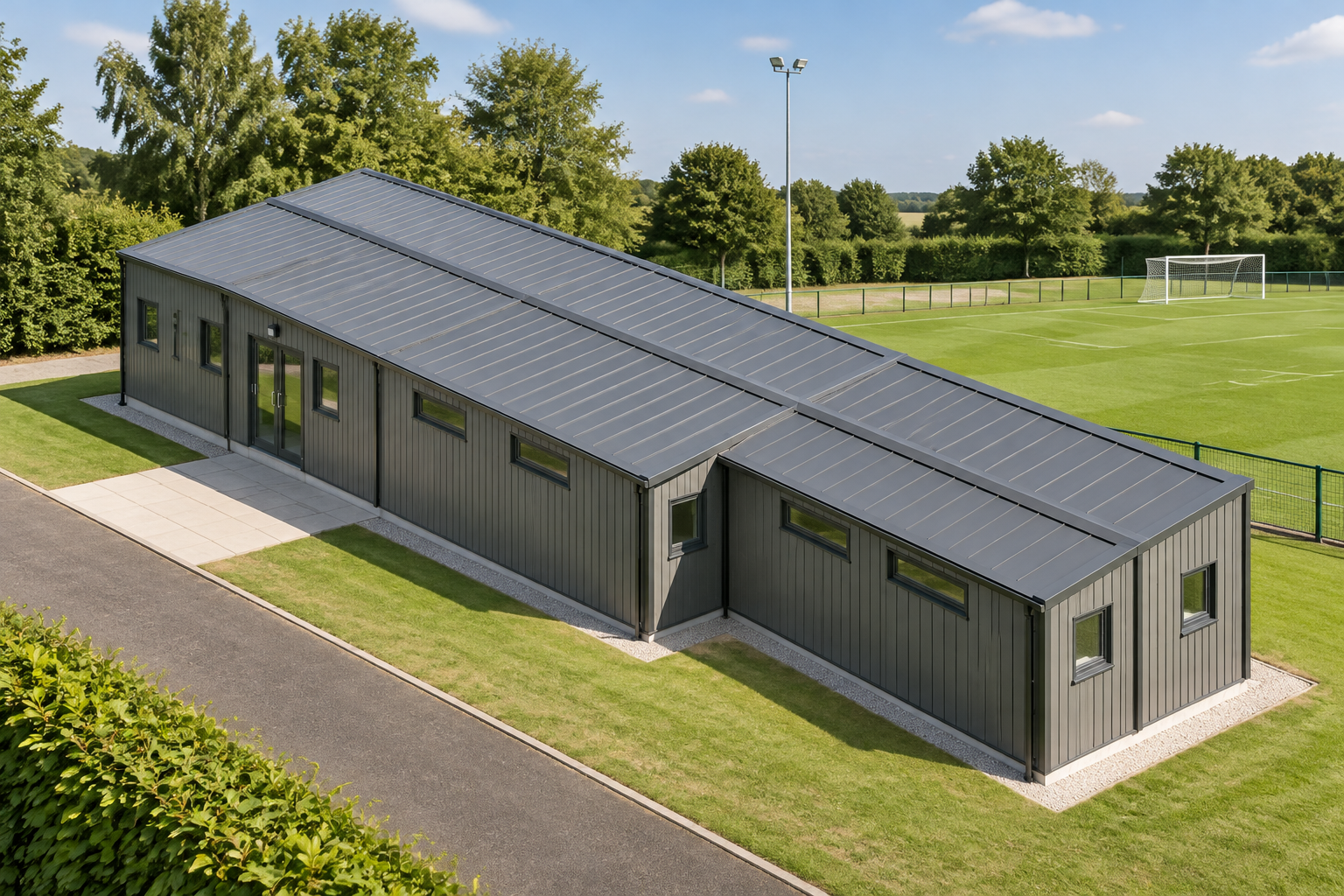

8-Module Changing Room Building with Apex Roof
This single-storey P600 modular changing room building combines eight steel-framed modules in a grid layout, with a WC and shower requested for the final plan. It is designed for football, rugby and cricket clubs seeking dedicated changing facilities.
£118,200ex VAT
£141,840 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.
Made to order. Build and delivery timing will be confirmed with your quotation.
Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.
Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.
- Modules
- 8
- Storeys
- 1
- Approx. usable internal area
- 91.2 m² before partitions
- External dimensions
- 17.7m x 6.6m footprint
Design highlights
- Eight P600 steel-framed modules in a single-storey grid
- 17.7m x 6.6m external footprint
- Approximately 91.2m2 usable internal area before partitions
- Grey ARLINE AR16016 vertical grooved plank cladding
- Dual-pitch apex roof
- Double glazed entrance doors with small and high-level windows
- WC and shower requested for the final layout
Configuration and scale
This single-storey building uses eight P600 steel-framed modules arranged in a grid, creating an external footprint of 17.7m x 6.6m. It is configured for the Sport & Leisure sector as a modular changing room building, suited to football, rugby and cricket clubs.
Each module measures 5.9m x 2.2m and is 2.40m externally, with an internal ceiling height of 2.16m. The approximate usable interior of each module is 5.7m x 2.0m. Across all eight modules, the conservative usable internal area is approximately 91.2m2 before partitions. Connected open layouts may provide more space, while the final WC, shower and room partitions will affect individual room sizes.
Perimeter openings
The stored design uses a combination of small windows, high-level top-only windows and one double glazed door set across the exposed perimeter walls.
- Module 1 has two small windows and a double glazed door on its north wall, plus two small windows on its west end.
- Modules 2 and 3 each have two high-level top-only windows on their north walls. Module 3 also has two small windows on its east end.
- Module 4 has two small windows on its west end.
- Module 6 has two small windows on its east end and two high-level top-only windows on its south wall.
- Module 7 has two high-level top-only windows on its south wall and two small windows on its west end.
- Module 8 has two small windows on its east end and two high-level top-only windows on its south wall.
Module 5 has no exposed perimeter wall or external opening recorded in this configuration.
External treatment and roof
The exposed perimeter walls are finished between the frame with Grey ARLINE AR16016 grooved plank cladding laid as vertical boards. The selected clad elevations are the north walls of Modules 1, 2 and 3; west ends of Modules 1, 4 and 7; east ends of Modules 3, 6 and 8; and south walls of Modules 6, 7 and 8.
A dual-pitch apex roof spans the single-storey configuration. Cladding is priced as part of the project quotation and is not separately itemised in public pricing.
Requested internal fit-out
A WC and shower are requested, with their positions and surrounding partitions to be confirmed in the final room layout. Bathroom walls use 40mm waterproof insulated sandwich panels as standard, with hygienic panels available as an optional selection. Shower rooms use wet-room PVC flooring.
Elsewhere, insulated sandwich panels are the included internal wall finish. Plaster can be applied outside bathroom walls when selected, while any other finishes depend on the final room arrangement and quotation. Illustrated fixtures and finishes should not be treated as guaranteed inclusions; final details are confirmed by quotation and through the configuration process.
Estimate and site considerations
The indicative configured estimate is £118,200 excluding VAT, or £141,840 including VAT, subject to quotation. Transport is priced separately according to postcode and site access. Offloading or cranage, groundworks and other site-specific works are also separate.
Siting remains subject to survey. Access, ground conditions, required site works and the practical positioning of the 17.7m x 6.6m building must be reviewed for the intended location before final details are agreed.
Full specification
8 P600 modules (single storey), grid layout, 17.7m x 6.6m footprint, approx 91.2 m2 usable internal area before partitions (conservative per-module allowance; connected open layouts may provide more space). Each module is 2.40m externally with a 2.16m internal ceiling; its approximate usable interior is 5.7m x 2.0m. Exterior: ARLINE AR16016 grooved plank applied to exposed walls between the frame in Grey. Roof: dual-pitch (apex) roof. Selected outside walls: Module 1 North wall: Full-wall cladding, Grey, ARLINE AR16016 grooved plank, vertical boards; Module 1 West wall: Full-wall cladding, Grey, ARLINE AR16016 grooved plank, vertical boards; Module 2 North wall: Full-wall cladding, Grey, ARLINE AR16016 grooved plank, vertical boards; Module 3 North wall: Full-wall cladding, Grey, ARLINE AR16016 grooved plank, vertical boards; Module 3 East wall: Full-wall cladding, Grey, ARLINE AR16016 grooved plank, vertical boards; Module 4 West wall: Full-wall cladding, Grey, ARLINE AR16016 grooved plank, vertical boards; Module 6 East wall: Full-wall cladding, Grey, ARLINE AR16016 grooved plank, vertical boards; Module 6 South wall: Full-wall cladding, Grey, ARLINE AR16016 grooved plank, vertical boards; Module 7 South wall: Full-wall cladding, Grey, ARLINE AR16016 grooved plank, vertical boards; Module 7 West wall: Full-wall cladding, Grey, ARLINE AR16016 grooved plank, vertical boards; Module 8 East wall: Full-wall cladding, Grey, ARLINE AR16016 grooved plank, vertical boards; Module 8 South wall: Full-wall cladding, Grey, ARLINE AR16016 grooved plank, vertical boards. Cladding prices are quote-only and must not be itemised in public copy. Module 1 P600 (ground floor) exposed walls — north (5.9m side): Small window + Glazed door (double) + Small window; west (2.2m end): Small window + Small window. Module 2 P600 (ground floor) exposed walls — north (5.9m side): Top-only window (high level) + Top-only window (high level). Module 3 P600 (ground floor) exposed walls — north (5.9m side): Top-only window (high level) + Top-only window (high level); east (2.2m end): Small window + Small window. Module 4 P600 (ground floor) exposed walls — west (2.2m end): Small window + Small window. Module 5 P600 (ground floor) exposed walls — . Module 6 P600 (ground floor) exposed walls — east (2.2m end): Small window + Small window; south (5.9m side): Top-only window (high level) + Top-only window (high level). Module 7 P600 (ground floor) exposed walls — south (5.9m side): Top-only window (high level) + Top-only window (high level); west (2.2m end): Small window + Small window. Module 8 P600 (ground floor) exposed walls — east (2.2m end): Small window + Small window; south (5.9m side): Top-only window (high level) + Top-only window (high level). Requested fit-out to confirm in the final layout: WC, shower. Bathroom walls use 40mm waterproof insulated sandwich panels as standard, with hygienic panels optional; shower rooms use wet-room PVC flooring. Plaster applies outside bathroom walls when selected. Elsewhere insulated sandwich panels are the included wall finish; other finishes are selected for the final room layout.
