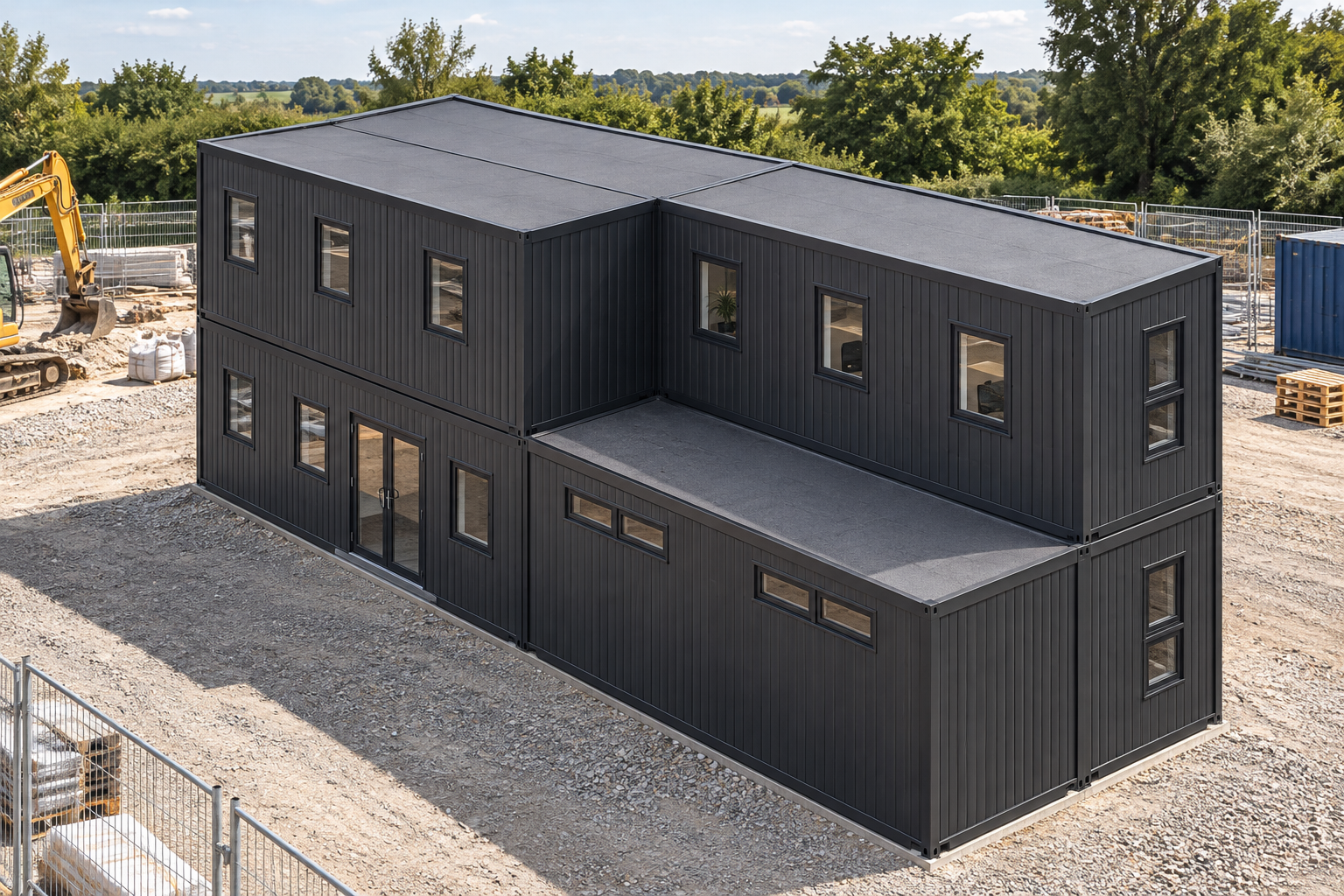

Two-storey anthracite-clad modular welfare building on a construction site — Seven-module, two-storey P600 site welfare unit configured for construction-sector use.

Site Welfare Units

7-Module Two-Storey Site Welfare Unit

This two-storey site welfare unit combines seven P600 modules within an 11.8m x 4.4m footprint, providing approximately 80 m² of internal usable floor area. It suits construction sites requiring space for canteen, drying and WC facilities, with a WC and shower requested for confirmation in the final layout.

£95,100ex VAT

£114,120 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.

Made to order. Build and delivery timing will be confirmed with your quotation.

Call about this item

PLACE ORDER

Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.

Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.

Change the layout in the configurator

Modules: 7
Storeys: 2
Floor area: 80 m²
Footprint: 11.8m x 4.4m footprint

Design highlights

Seven P600 modules arranged over two storeys
11.8m x 4.4m overall footprint
Approximately 80 m² internal usable floor area
Internal staircase between the two floors
Anthracite ARLINE AR16016 vertical grooved cladding
Flat roof with approximately 120mm steel-frame fascia
WC and shower requested for final layout confirmation

Seven-module, two-storey layout

This configuration uses seven steel-framed P600 modules arranged over two storeys: four modules on the ground floor and three on the first floor. The overall footprint is 11.8m x 4.4m, with approximately 80 m² of internal usable floor area. Each module measures 5.9m x 2.2m, is 2.40m externally and has a 2.16m internal ceiling. Its approximate usable interior is 5.7m x 2.0m. An internal staircase connects the floors and is not visible from outside.

Ground-floor openings

Module 1 has two small windows and a double-leaf glazed door on its north side, plus two small windows on its west end.
Module 2 has two high-level, top-only windows on its north side and two small windows on its east end.
Module 3 has two high-level, top-only windows on its south side and two small windows on its west end.
Module 4 has two small windows on its east end and two high-level, top-only windows on its south side.

First-floor openings

Module 5 has three small windows on its north side and two small windows on its west end.
Module 6 has three small windows on both its north and south sides, together with two small windows on its east end.
Module 7 has three small windows on its south side, with two small windows on each of its east and west ends.

Anthracite external finish

The exposed outside walls are finished between the frame with Anthracite ARLINE AR16016 grooved plank cladding, using vertical boards. The selected walls are the north and west walls of Module 1; north and east walls of Module 2; south and west walls of Module 3; east and south walls of Module 4; north and west walls of Module 5; north, east and south walls of Module 6; and east, south and west walls of Module 7. The building has a flat roof with an approximately 120mm steel-frame fascia and no additional fascia.

Requested welfare fit-out

A WC and shower have been requested, with their final positions and details to be confirmed in the completed layout and quotation. Toilet and shower rooms require hygienic wall panels and wet-room PVC flooring. Elsewhere, the included internal wall finish is white, lightly ribbed insulated sandwich panelling. Plasterboard, alternative hygienic-panel styles and room-by-room flooring selections are available as choices or upgrades rather than included features of this stored configuration. Further information about this application is available under site welfare units.

Estimate and site requirements

The indicative configured estimate is £95,100 excluding VAT, or £114,120 including VAT, subject to quotation and confirmation of the final specification. Transport is priced separately according to postcode and site access. Offloading or cranage, groundworks and other site-specific works are also separate. Siting is subject to survey, including access, ground conditions and project requirements. Any illustrated fixtures or finishes remain subject to the final quotation. The stored design can be reviewed through the building configurator.

Full specification

7 P600 modules (two storeys), two-storey layout, 11.8m x 4.4m footprint, approx 80 m2 internal usable floor area. Each module is 2.40m externally with a 2.16m internal ceiling; its approximate usable interior is 5.7m x 2.0m.
Exterior: ARLINE AR16016 grooved plank applied to exposed walls between the frame in Anthracite. Roof: flat roof with approximately 120mm steel-frame fascia (no extra fascia).
Selected outside walls: Module 1 North wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 1 West wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 2 North wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 2 East wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 3 South wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 3 West wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 4 East wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 4 South wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 5 North wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 5 West wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 6 North wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 6 East wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 6 South wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 7 East wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 7 South wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 7 West wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards. Cladding prices are quote-only and must not be itemised in public copy.
Module 1 P600 (ground floor) exposed walls — north (5.9m side): Small window + Glazed door (double) + Small window; west (2.2m end): Small window + Small window.
Module 2 P600 (ground floor) exposed walls — north (5.9m side): Top-only window (high level) + Top-only window (high level); east (2.2m end): Small window + Small window.
Module 3 P600 (ground floor) exposed walls — south (5.9m side): Top-only window (high level) + Top-only window (high level); west (2.2m end): Small window + Small window.
Module 4 P600 (ground floor) exposed walls — east (2.2m end): Small window + Small window; south (5.9m side): Top-only window (high level) + Top-only window (high level).
Module 5 P600 (first floor) exposed walls — north (5.9m side): Small window + Small window + Small window; west (2.2m end): Small window + Small window.
Module 6 P600 (first floor) exposed walls — north (5.9m side): Small window + Small window + Small window; east (2.2m end): Small window + Small window; south (5.9m side): Small window + Small window + Small window.
Module 7 P600 (first floor) exposed walls — east (2.2m end): Small window + Small window; south (5.9m side): Small window + Small window + Small window; west (2.2m end): Small window + Small window.
Internal staircase between the two floors (not visible outside).
Requested fit-out to confirm in the final layout: WC, shower. Toilet/shower rooms require hygienic wall panels and wet-room PVC flooring; elsewhere white lightly ribbed insulated sandwich panels are the included wall finish. Plasterboard, other hygienic-panel styles and room-by-room flooring are selectable upgrades/choices, not included claims unless specified.
