Modular Clubhouses

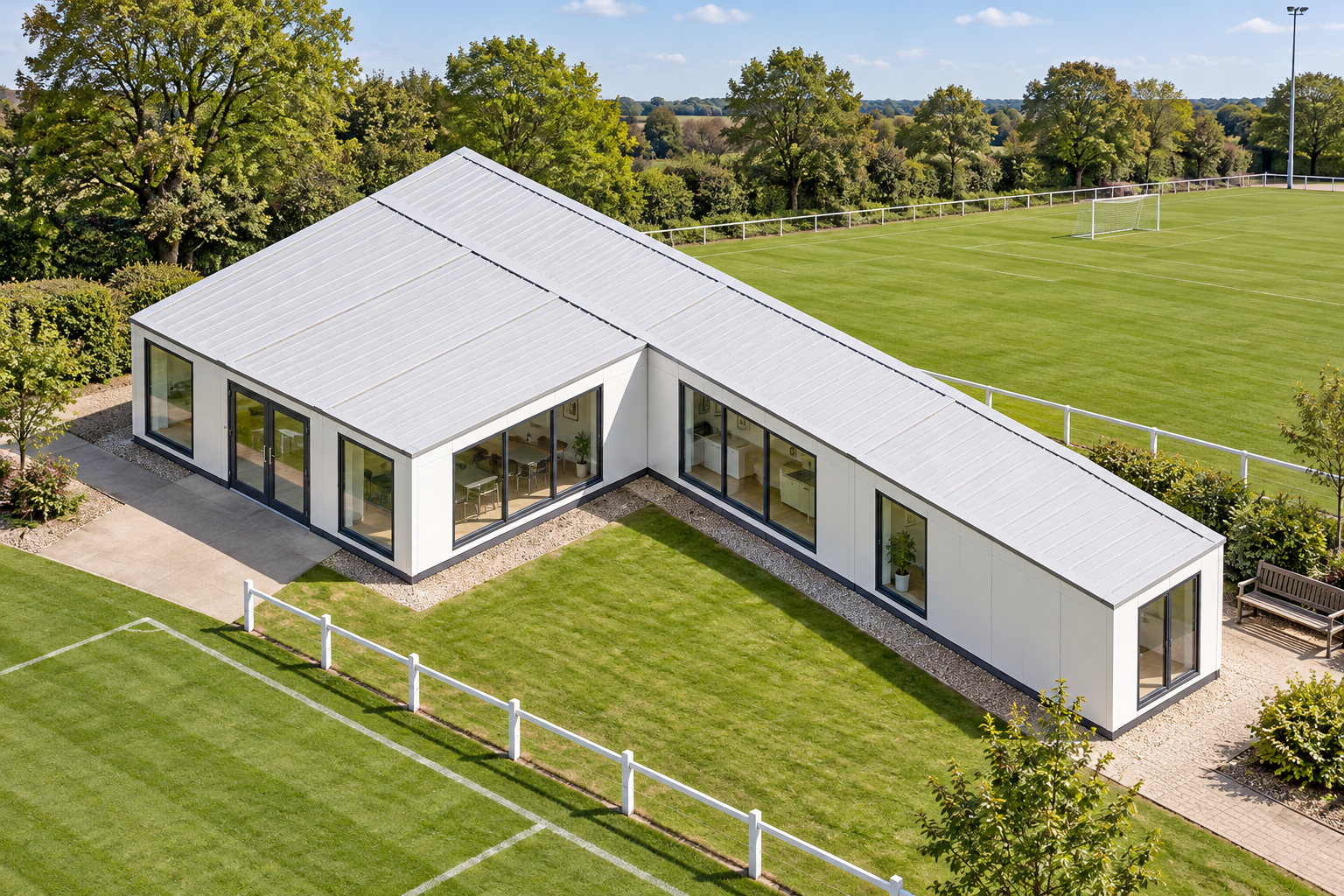

6-Module L-Shaped Modular Clubhouse
This single-storey modular clubhouse combines six P600 modules in an L-shaped layout with an indicative configured estimate of £86,400 ex VAT. It is designed for sports clubs and community organisations seeking clubhouse space with a requested kitchenette, WC and shower.
£86,400ex VAT
£103,680 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.
Made to order. Build and delivery timing will be confirmed with your quotation.
Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.
Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.
- Modules
- 6
- Storeys
- 1
- Approx. usable internal area
- 68.4 m² before partitions
- External dimensions
- 17.7m x 8.1m footprint
Design highlights
- Six P600 modules arranged over one storey
- L-shaped 17.7m x 8.1m external footprint
- Approximately 68.4m² usable internal area before partitions
- Pure White RAL 9010 vertical insulated exterior panels
- Dual-pitch apex roof
- Glazed double entrance door with multiple window openings
- Requested kitchenette, WC and shower fit-out
Configuration and scale
This Sport & Leisure configuration uses six steel-framed P600 modules linked at ground-floor level to create an L-shaped modular clubhouse. Its external footprint is 17.7m x 8.1m, with approximately 68.4m² of usable internal area before partitions. This figure uses a conservative per-module allowance; connected open layouts may provide more space.
Each module measures 5.9m x 2.2m and is 2.40m high externally. The internal ceiling height is 2.16m, while each module provides an approximate usable interior of 5.7m x 2.0m before the final room layout is formed.
Module arrangement and openings
The six modules are arranged across a single storey. The specified openings bring windows to the exposed elevations and place the main glazed entrance on Module 1.
- Module 1: north side with a large window, glazed double door and large window; west end with a full-size window.
- Module 2: north side with two large windows.
- Module 3: north side with two large windows, east end with a full-size window, and south side with two large windows.
- Module 4: south end with a full-size window and west side with two large windows.
- Module 5: south end with a full-size window.
- Module 6: east side with two large windows and south end with a full-size window.
The arrangement is intended for a modular clubhouse, giving sports clubs and community organisations a combination of connected social space and room for the requested facilities.
External finish and roof
The exterior uses included vertical insulated sandwich panels in Pure White (RAL 9010). Smooth standard insulated panels are selected for Module 1 north and west, Module 2 north, Module 3 north, east and south, Module 4 south and west, Module 5 south, and Module 6 east and south. The configuration is completed by a dual-pitch apex roof.
Requested internal fit-out
A kitchenette, WC and shower are requested, with their positions and surrounding partitions to be confirmed in the final layout. Bathroom walls use 40mm waterproof insulated sandwich panels as standard, while hygienic panels are available as an optional selection. The shower room uses wet-room PVC flooring.
Elsewhere, insulated sandwich panels are the included internal wall finish. Plaster applies to the outside faces of bathroom walls when that finish is selected, and any other wall or floor finishes are chosen to suit the confirmed room arrangement. These details can be reviewed through the building configuration process and confirmed by quotation.
Pricing and site considerations
The indicative configured estimate is £86,400 ex VAT, or £103,680 inc VAT, subject to quotation and confirmation of the final fit-out. Transport is priced separately according to postcode and site access. Offloading or cranage, groundworks and other site-specific works are separate. Siting, access requirements and the suitability of the proposed location remain subject to survey.
Full specification
6 P600 modules (single storey), l-shape layout, 17.7m x 8.1m footprint, approx 68.4 m2 usable internal area before partitions (conservative per-module allowance; connected open layouts may provide more space). Each module is 2.40m externally with a 2.16m internal ceiling; its approximate usable interior is 5.7m x 2.0m. Exterior: included vertical insulated sandwich panels in Pure White (RAL 9010). Roof: dual-pitch (apex) roof. Selected outside walls: Module 1 North wall: Standard insulated panel, Pure White (RAL 9010), Smooth; Module 1 West wall: Standard insulated panel, Pure White (RAL 9010), Smooth; Module 2 North wall: Standard insulated panel, Pure White (RAL 9010), Smooth; Module 3 North wall: Standard insulated panel, Pure White (RAL 9010), Smooth; Module 3 East wall: Standard insulated panel, Pure White (RAL 9010), Smooth; Module 3 South wall: Standard insulated panel, Pure White (RAL 9010), Smooth; Module 4 South wall: Standard insulated panel, Pure White (RAL 9010), Smooth; Module 4 West wall: Standard insulated panel, Pure White (RAL 9010), Smooth; Module 5 South wall: Standard insulated panel, Pure White (RAL 9010), Smooth; Module 6 East wall: Standard insulated panel, Pure White (RAL 9010), Smooth; Module 6 South wall: Standard insulated panel, Pure White (RAL 9010), Smooth. Cladding prices are quote-only and must not be itemised in public copy. Module 1 P600 (ground floor) exposed walls — north (5.9m side): Large window + Glazed door (double) + Large window; west (2.2m end): Full-size window. Module 2 P600 (ground floor) exposed walls — north (5.9m side): Large window + Large window. Module 3 P600 (ground floor) exposed walls — north (5.9m side): Large window + Large window; east (2.2m end): Full-size window; south (5.9m side): Large window + Large window. Module 4 P600 (ground floor) exposed walls — south (2.2m end): Full-size window; west (5.9m side): Large window + Large window. Module 5 P600 (ground floor) exposed walls — south (2.2m end): Full-size window. Module 6 P600 (ground floor) exposed walls — east (5.9m side): Large window + Large window; south (2.2m end): Full-size window. Requested fit-out to confirm in the final layout: kitchenette, WC, shower. Bathroom walls use 40mm waterproof insulated sandwich panels as standard, with hygienic panels optional; shower rooms use wet-room PVC flooring. Plaster applies outside bathroom walls when selected. Elsewhere insulated sandwich panels are the included wall finish; other finishes are selected for the final room layout.
