Modular Clubhouses

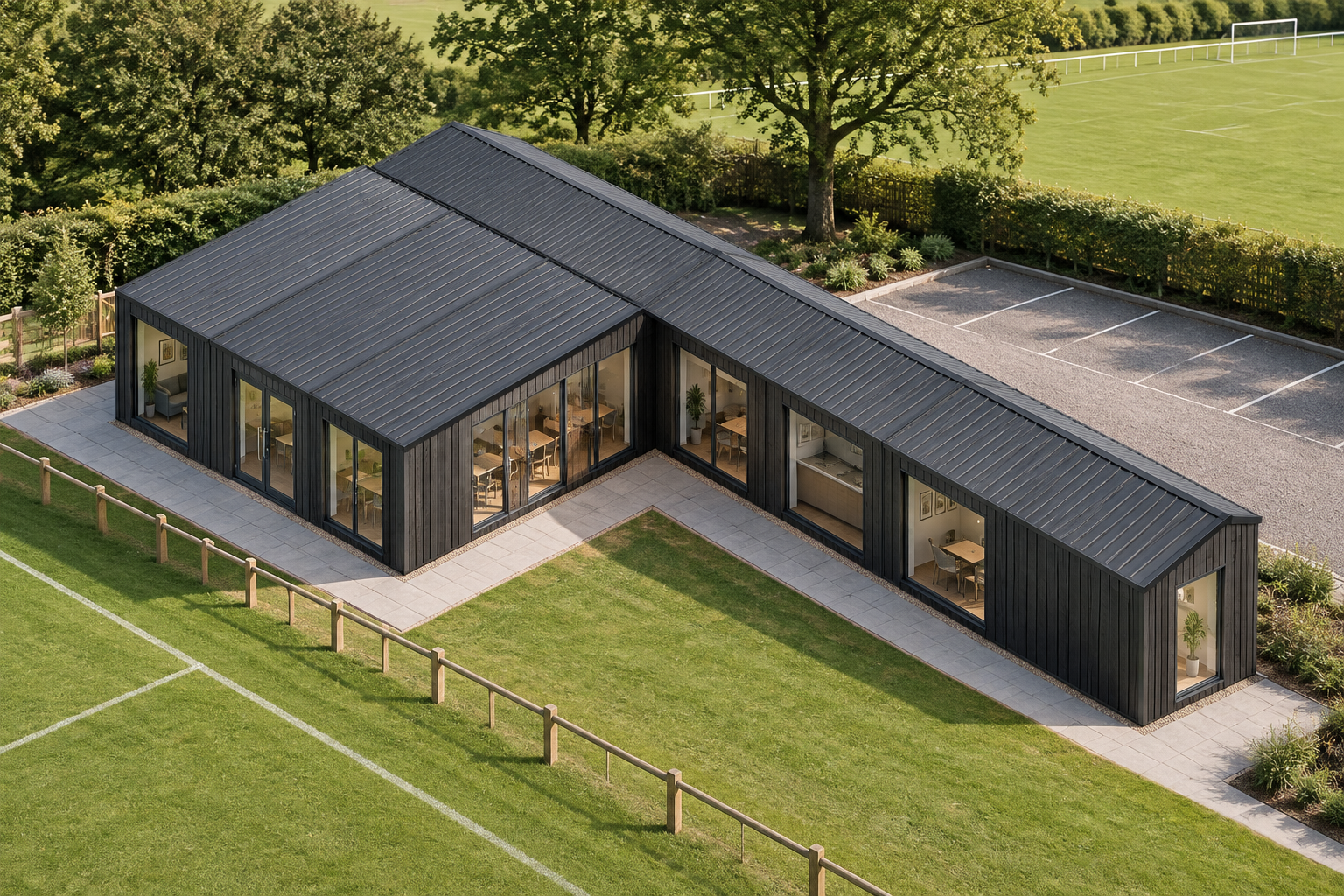

6-Module L-Shaped Modular Clubhouse
This single-storey modular clubhouse combines six P600 modules in an L-shaped layout with an approximate internal usable area of 68 m². It is configured for sports clubs and community organisations requiring a clubhouse with generous glazing and requested kitchenette, WC and shower facilities.
£89,800ex VAT
£107,760 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.
Made to order. Build and delivery timing will be confirmed with your quotation.
Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.
Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.
- Modules
- 6
- Storeys
- 1
- Floor area
- 68 m²
- Footprint
- 17.7m x 8.1m footprint
Design highlights
- Six linked P600 modules over one storey
- L-shaped 17.7m x 8.1m footprint
- Approximately 68 m² of usable internal floor area
- Double glazed entrance door with extensive configured glazing
- Anthracite ARLINE 24136 vertical slatted cladding
- Dual-pitch apex roof
- Requested kitchenette, WC and shower fit-out
Six-module L-shaped layout
This modular clubhouse is formed from six linked, steel-framed P600 modules arranged over one storey. The completed configuration has a 17.7m x 8.1m footprint and provides approximately 68 m² of internal usable floor area. Each module measures 5.9m x 2.2m, with an approximate usable interior of 5.7m x 2.0m. The external module height is 2.40m, while the internal ceiling height is 2.16m.
The L-shaped arrangement creates two connected wings, allowing the requested clubhouse accommodation to be organised across a broad single-storey plan. This stored design is intended for the Sport & Leisure sector and is suited to sports clubs and community organisations. Further information about this application is available on the modular clubhouses page.
Configured windows and entrance
Module 1 forms the principal glazed entrance elevation. Its exposed north side has a large window, a double glazed door and a second large window. The exposed west end has one full-size window. Module 2 has two large windows on its exposed north side.
Module 3 has two large windows on the north side, one full-size window on the east end and two large windows on the south side. Module 4 has one full-size window on its south end and two large windows along its west side. Module 5 has one full-size window on its south end. Module 6 completes the arrangement with two large windows on its east side and one full-size window on its south end.
Anthracite slatted exterior and apex roof
The exposed walls selected in this configuration receive Anthracite ARLINE 24136 slatted cladding, with vertical boards applied between the structural frame and around the configured openings. The selected elevations are the north and west walls of Module 1; the north wall of Module 2; the north, east and south walls of Module 3; the south and west walls of Module 4; the south wall of Module 5; and the east and south walls of Module 6.
A dual-pitch apex roof spans the single-storey configuration. Cladding is priced by quotation and is not separately itemised in public pricing. Final external details, interfaces and finishes are confirmed as part of the project quotation.
Requested clubhouse fit-out
The requested fit-out comprises a kitchenette, WC and shower, with their precise positions to be confirmed in the final internal layout. Toilet and shower rooms require hygienic wall panels and wet-room PVC flooring. Elsewhere, the included internal wall finish is white, lightly ribbed insulated sandwich panels.
Plasterboard and alternative hygienic-panel styles are selectable upgrades or choices rather than included finishes in this configuration. Flooring outside the toilet and shower areas has not been fixed room by room and must be selected and confirmed through the quotation. The internal arrangement can be reviewed using the building configurator.
Price and site requirements
The indicative configured estimate is £89,800 excluding VAT, or £107,760 including VAT, subject to quotation. Transport is priced separately according to the delivery postcode and site access. Offloading or cranage, groundworks and other site-specific works are also separate.
Final siting is subject to a site survey and assessment of access, levels and project requirements. The quotation will confirm the final layout, selected finishes, transport requirements and any site-specific provisions before the project proceeds.
Full specification
6 P600 modules (single storey), l-shape layout, 17.7m x 8.1m footprint, approx 68 m2 internal usable floor area. Each module is 2.40m externally with a 2.16m internal ceiling; its approximate usable interior is 5.7m x 2.0m. Exterior: ARLINE 24136 slatted applied to exposed walls between the frame in Anthracite. Roof: dual-pitch (apex) roof. Selected outside walls: Module 1 North wall: Full-wall cladding, Anthracite, ARLINE 24136 slatted, vertical boards; Module 1 West wall: Full-wall cladding, Anthracite, ARLINE 24136 slatted, vertical boards; Module 2 North wall: Full-wall cladding, Anthracite, ARLINE 24136 slatted, vertical boards; Module 3 North wall: Full-wall cladding, Anthracite, ARLINE 24136 slatted, vertical boards; Module 3 East wall: Full-wall cladding, Anthracite, ARLINE 24136 slatted, vertical boards; Module 3 South wall: Full-wall cladding, Anthracite, ARLINE 24136 slatted, vertical boards; Module 4 South wall: Full-wall cladding, Anthracite, ARLINE 24136 slatted, vertical boards; Module 4 West wall: Full-wall cladding, Anthracite, ARLINE 24136 slatted, vertical boards; Module 5 South wall: Full-wall cladding, Anthracite, ARLINE 24136 slatted, vertical boards; Module 6 East wall: Full-wall cladding, Anthracite, ARLINE 24136 slatted, vertical boards; Module 6 South wall: Full-wall cladding, Anthracite, ARLINE 24136 slatted, vertical boards. Cladding prices are quote-only and must not be itemised in public copy. Module 1 P600 (ground floor) exposed walls — north (5.9m side): Large window + Glazed door (double) + Large window; west (2.2m end): Full-size window. Module 2 P600 (ground floor) exposed walls — north (5.9m side): Large window + Large window. Module 3 P600 (ground floor) exposed walls — north (5.9m side): Large window + Large window; east (2.2m end): Full-size window; south (5.9m side): Large window + Large window. Module 4 P600 (ground floor) exposed walls — south (2.2m end): Full-size window; west (5.9m side): Large window + Large window. Module 5 P600 (ground floor) exposed walls — south (2.2m end): Full-size window. Module 6 P600 (ground floor) exposed walls — east (5.9m side): Large window + Large window; south (2.2m end): Full-size window. Requested fit-out to confirm in the final layout: kitchenette, WC, shower. Toilet/shower rooms require hygienic wall panels and wet-room PVC flooring; elsewhere white lightly ribbed insulated sandwich panels are the included wall finish. Plasterboard, other hygienic-panel styles and room-by-room flooring are selectable upgrades/choices, not included claims unless specified.
