4-Module Wide-Layout Modular Clubhouse

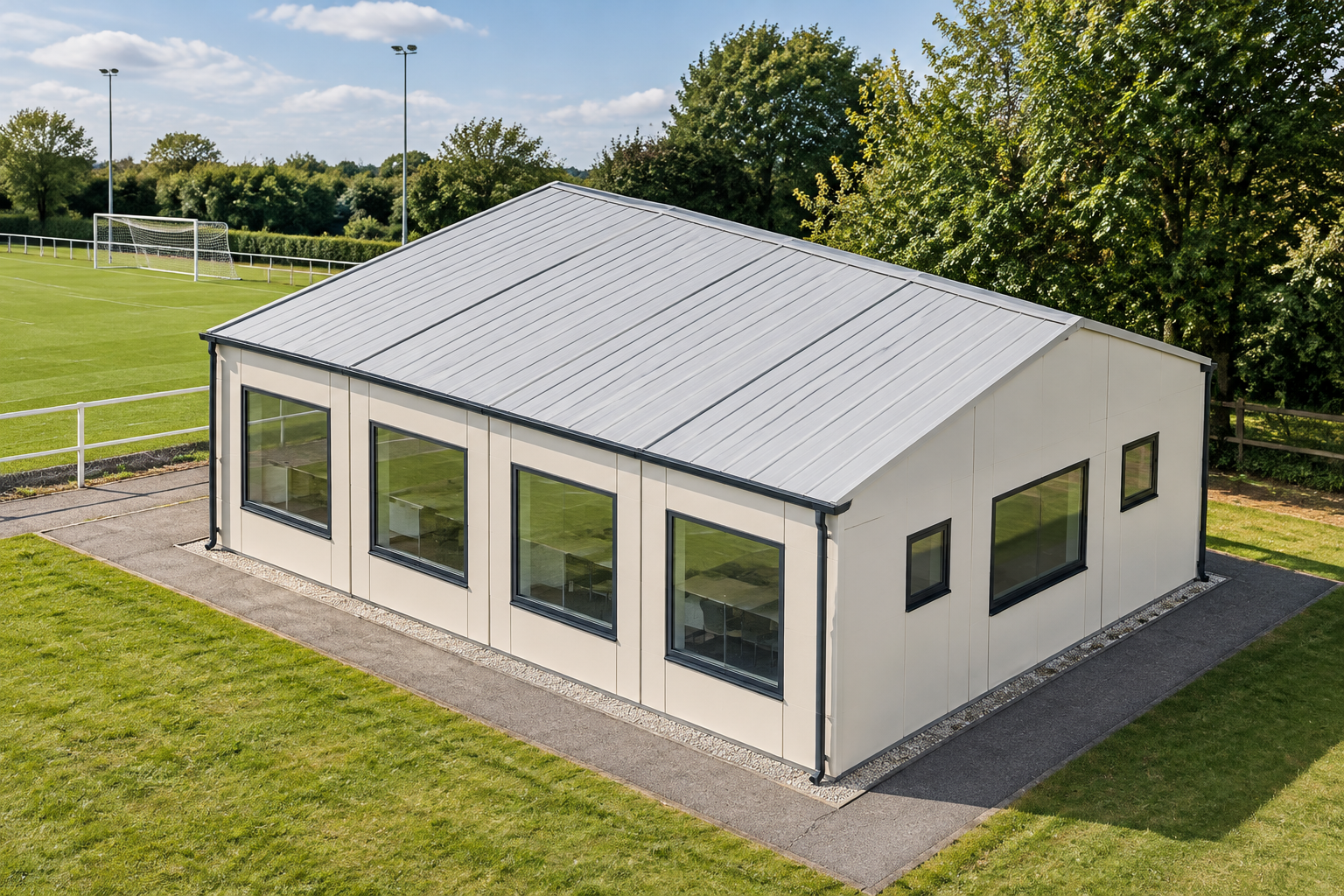

This four-module P600 configuration creates a single-storey modular clubhouse with a requested kitchenette, WC and shower. It is designed for sports clubs and community organisations seeking a wide, well-lit facility for the Sport & Leisure sector.
£58,200ex VAT
£69,840 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.
Made to order. Build and delivery timing will be confirmed with your quotation.
Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.
Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.
- Modules
- 4
- Storeys
- 1
- Approx. usable internal area
- 45.6 m² before partitions
- External dimensions
- 5.9m x 8.8m footprint
Design highlights
- Four linked P600 modules in a single-storey wide layout
- 5.9m x 8.8m external footprint
- Approximately 45.6 m² usable internal area before partitions
- Cream RAL 9001 vertical insulated sandwich panels
- Dual-pitch apex roof
- Double-leaf glazed entrance with multiple large windows
- Requested kitchenette, WC and shower fit-out
Configuration and dimensions
This single-storey modular clubhouse links four P600 steel-framed modules side by side in a wide arrangement. Its external footprint is 5.9m x 8.8m, with an approximate usable internal area of 45.6 m² before partitions. This is a conservative allowance based on an approximate usable interior of 5.7m x 2.0m per module; connected open layouts may provide more space.
Each module measures 5.9m x 2.2m, with an external height of 2.40m and a 2.16m internal ceiling. The configuration is intended for sports clubs and community organisations requiring a practical modular clubhouse.
Windows and entrance
The stored design distributes windows across the exposed elevations, with the main entrance positioned on Module 1’s north wall:
- Module 1: two large north-facing windows with a double-leaf glazed door between them, plus one large window on each of the east and west ends.
- Module 2: one large window on the east end and one on the west end.
- Module 3: one large window on the east end and one on the west end.
- Module 4: one large window on each end, plus a small window, large window and second small window across the south wall.
External panels and roof
The exterior uses included vertical insulated sandwich panels in Cream, RAL 9001. The stored selection specifies smooth, standard insulated panels on Module 1’s north, east and west walls; the east and west walls of Modules 2 and 3; and Module 4’s east, south and west walls. A dual-pitch apex roof completes the selected external form.
Requested internal fit-out
The requested fit-out comprises a kitchenette, WC and shower, with their positions and the final partition arrangement to be confirmed. Bathroom walls use 40mm waterproof insulated sandwich panels as standard, while hygienic panels are available as an option. The shower room uses wet-room PVC flooring.
Elsewhere, insulated sandwich panels are the included internal wall finish. Plaster can be selected outside bathroom walls, while other finishes are chosen to suit the confirmed room layout. The stored arrangement can be reviewed through the building configurator, but final fixtures, finishes and partition details are confirmed by quotation rather than guaranteed from illustrations.
Price and site considerations
The indicative configured estimate is £58,200 excluding VAT, or £69,840 including VAT, subject to quotation. Transport is priced separately according to postcode and access. Offloading or cranage, groundworks and any other site-specific works are also separate from this estimate.
Siting remains subject to survey, including confirmation of access, ground conditions and the requirements of the chosen location. The final quotation records the agreed configuration, fit-out and finish selections.
Full specification
4 P600 modules (single storey), wide layout, 5.9m x 8.8m footprint, approx 45.6 m2 usable internal area before partitions (conservative per-module allowance; connected open layouts may provide more space). Each module is 2.40m externally with a 2.16m internal ceiling; its approximate usable interior is 5.7m x 2.0m. Exterior: included vertical insulated sandwich panels in Cream (RAL 9001). Roof: dual-pitch (apex) roof. Selected outside walls: Module 1 North wall: Standard insulated panel, Cream (RAL 9001), Smooth; Module 1 East wall: Standard insulated panel, Cream (RAL 9001), Smooth; Module 1 West wall: Standard insulated panel, Cream (RAL 9001), Smooth; Module 2 East wall: Standard insulated panel, Cream (RAL 9001), Smooth; Module 2 West wall: Standard insulated panel, Cream (RAL 9001), Smooth; Module 3 East wall: Standard insulated panel, Cream (RAL 9001), Smooth; Module 3 West wall: Standard insulated panel, Cream (RAL 9001), Smooth; Module 4 East wall: Standard insulated panel, Cream (RAL 9001), Smooth; Module 4 South wall: Standard insulated panel, Cream (RAL 9001), Smooth; Module 4 West wall: Standard insulated panel, Cream (RAL 9001), Smooth. Cladding prices are quote-only and must not be itemised in public copy. Module 1 P600 (ground floor) exposed walls — north (5.9m side): Large window + Glazed door (double) + Large window; east (2.2m end): Large window; west (2.2m end): Large window. Module 2 P600 (ground floor) exposed walls — east (2.2m end): Large window; west (2.2m end): Large window. Module 3 P600 (ground floor) exposed walls — east (2.2m end): Large window; west (2.2m end): Large window. Module 4 P600 (ground floor) exposed walls — east (2.2m end): Large window; south (5.9m side): Small window + Large window + Small window; west (2.2m end): Large window. Requested fit-out to confirm in the final layout: kitchenette, WC, shower. Bathroom walls use 40mm waterproof insulated sandwich panels as standard, with hygienic panels optional; shower rooms use wet-room PVC flooring. Plaster applies outside bathroom walls when selected. Elsewhere insulated sandwich panels are the included wall finish; other finishes are selected for the final room layout.
