Modular Changing Rooms
4-Module P600 Changing Room Configuration

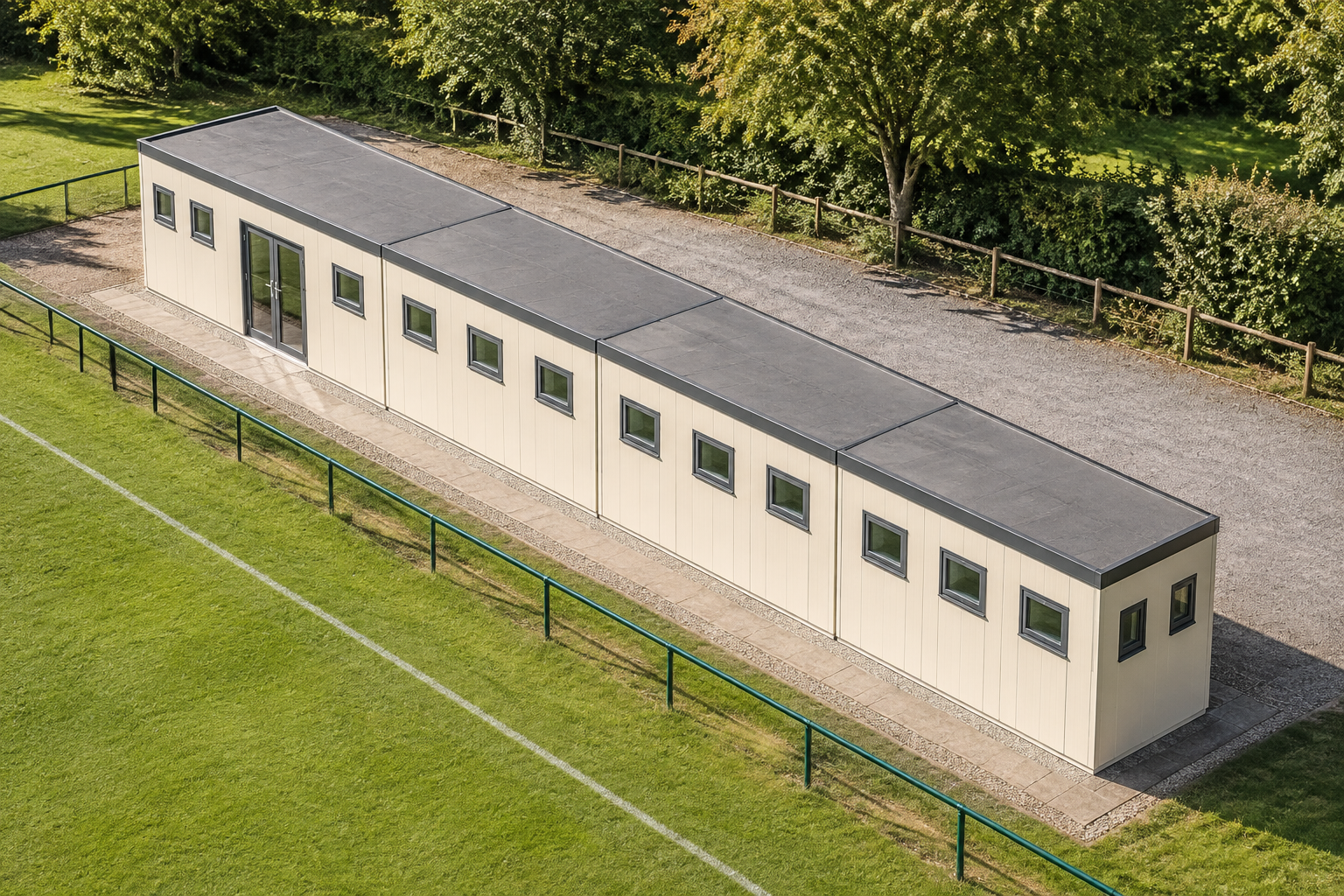

This single-storey modular changing room combines four P600 modules in a straight 23.6m run, providing approximately 46 m² of usable internal space. It is configured for football, rugby and cricket clubs requiring dedicated changing facilities with a requested WC and shower fit-out.
£51,600ex VAT
£61,920 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.
Made to order. Build and delivery timing will be confirmed with your quotation.
Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.
Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.
- Modules
- 4
- Storeys
- 1
- Floor area
- 46 m²
- Footprint
- 23.6m x 2.2m footprint
Design highlights
- Four P600 modules in a straight single-storey run
- 23.6m x 2.2m footprint
- Approximately 46 m² usable internal floor area
- 27 small windows and one glazed double door
- Smooth Cream RAL 9001 insulated external panels
- Flat roof with approximately 120mm steel-frame fascia
- WC and shower fit-out requested, subject to final layout
Configuration and scale
Designed for the Sport & Leisure sector, this stored modular changing room configuration uses four P600 steel-framed modules in a single-storey run. The overall footprint is 23.6m x 2.2m, with approximately 46 m² of usable internal floor area. Each module measures 5.9m x 2.2m externally and is 2.40m high, with a 2.16m internal ceiling. Its approximate usable interior is 5.7m x 2.0m.
Linear module arrangement
The four modules are arranged end to end to form one long, narrow building. Module 1 forms the western end, Modules 2 and 3 occupy the centre of the run, and Module 4 forms the eastern end. This configuration is intended for use by sports clubs, including football, rugby and cricket organisations. The final internal division for changing, WC and shower spaces is confirmed through the quotation and layout process.
Windows and external access
Module 1 has three small windows on its north wall. Its south wall has a small window, one glazed double door and a further small window, while the exposed west end has two small windows.
Modules 2 and 3 each have three small windows on the north wall and three on the south wall. Module 4 also has three small windows on its north wall and three on its south wall, together with two small windows on the exposed east end. Across the complete run, the stored design therefore contains 27 small windows and one glazed double door.
External panels and roof
The included exterior uses vertical insulated sandwich panels in Cream, RAL 9001. The selected exposed walls have a smooth standard insulated-panel finish: the north and south walls of all four modules, the west wall of Module 1 and the east wall of Module 4. The building has a flat roof with an approximately 120mm steel-frame fascia and no additional fascia.
Requested internal fit-out
A WC and shower are requested, with their positions and final arrangement to be confirmed in the completed layout. Toilet and shower rooms require hygienic wall panels and wet-room PVC flooring. Elsewhere, the included internal wall finish is white, lightly ribbed insulated sandwich panel.
Plasterboard, alternative hygienic-panel styles and room-by-room flooring selections remain selectable choices or upgrades rather than included elements in this stored configuration. Fixtures, finishes and fit-out details shown in supporting imagery are not guaranteed unless they are confirmed in the final quotation. The configuration can be reviewed through the building configurator.
Estimate, transport and siting
The indicative configured estimate is £51,600 ex VAT, or £61,920 including VAT, subject to quotation. Transport is priced according to the delivery postcode and site access; it is not included in the stated estimate. Offloading or cranage, groundworks and other site-specific works are also separate. Siting remains subject to a site survey, with access requirements and the site-specific scope established before the final quotation is agreed.
Full specification
4 P600 modules (single storey), run layout, 23.6m x 2.2m footprint, approx 46 m2 internal usable floor area. Each module is 2.40m externally with a 2.16m internal ceiling; its approximate usable interior is 5.7m x 2.0m. Exterior: included vertical insulated sandwich panels in Cream (RAL 9001). Roof: flat roof with approximately 120mm steel-frame fascia (no extra fascia). Selected outside walls: Module 1 North wall: Standard insulated panel, Cream (RAL 9001), Smooth; Module 1 South wall: Standard insulated panel, Cream (RAL 9001), Smooth; Module 1 West wall: Standard insulated panel, Cream (RAL 9001), Smooth; Module 2 North wall: Standard insulated panel, Cream (RAL 9001), Smooth; Module 2 South wall: Standard insulated panel, Cream (RAL 9001), Smooth; Module 3 North wall: Standard insulated panel, Cream (RAL 9001), Smooth; Module 3 South wall: Standard insulated panel, Cream (RAL 9001), Smooth; Module 4 North wall: Standard insulated panel, Cream (RAL 9001), Smooth; Module 4 East wall: Standard insulated panel, Cream (RAL 9001), Smooth; Module 4 South wall: Standard insulated panel, Cream (RAL 9001), Smooth. Cladding prices are quote-only and must not be itemised in public copy. Module 1 P600 (ground floor) exposed walls — north (5.9m side): Small window + Small window + Small window; south (5.9m side): Small window + Glazed door (double) + Small window; west (2.2m end): Small window + Small window. Module 2 P600 (ground floor) exposed walls — north (5.9m side): Small window + Small window + Small window; south (5.9m side): Small window + Small window + Small window. Module 3 P600 (ground floor) exposed walls — north (5.9m side): Small window + Small window + Small window; south (5.9m side): Small window + Small window + Small window. Module 4 P600 (ground floor) exposed walls — north (5.9m side): Small window + Small window + Small window; east (2.2m end): Small window + Small window; south (5.9m side): Small window + Small window + Small window. Requested fit-out to confirm in the final layout: WC, shower. Toilet/shower rooms require hygienic wall panels and wet-room PVC flooring; elsewhere white lightly ribbed insulated sandwich panels are the included wall finish. Plasterboard, other hygienic-panel styles and room-by-room flooring are selectable upgrades/choices, not included claims unless specified.
