Modular Changing Rooms
4-Module Modular Changing Rooms
A single-storey modular changing room formed from four P600 modules in a straight 23.6m run, with a WC and shower requested for the final layout. It is designed for football, rugby and cricket clubs in the Sport & Leisure sector.
£61,800ex VAT
£74,160 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.
Made to order. Build and delivery timing will be confirmed with your quotation.
Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.
Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.
- Modules
- 4
- Storeys
- 1
- Floor area
- 46 m²
- Footprint
- 23.6m x 2.2m footprint
Design highlights
- Four P600 modules in a single-storey run
- 23.6m x 2.2m overall footprint
- Approximately 46m² usable internal floor area
- Anthracite Smooth plank AR16016 external cladding
- Dual-pitch apex roof
- Double-leaf glazed entrance with multiple windows
- WC and shower requested for the final layout
Layout and scale

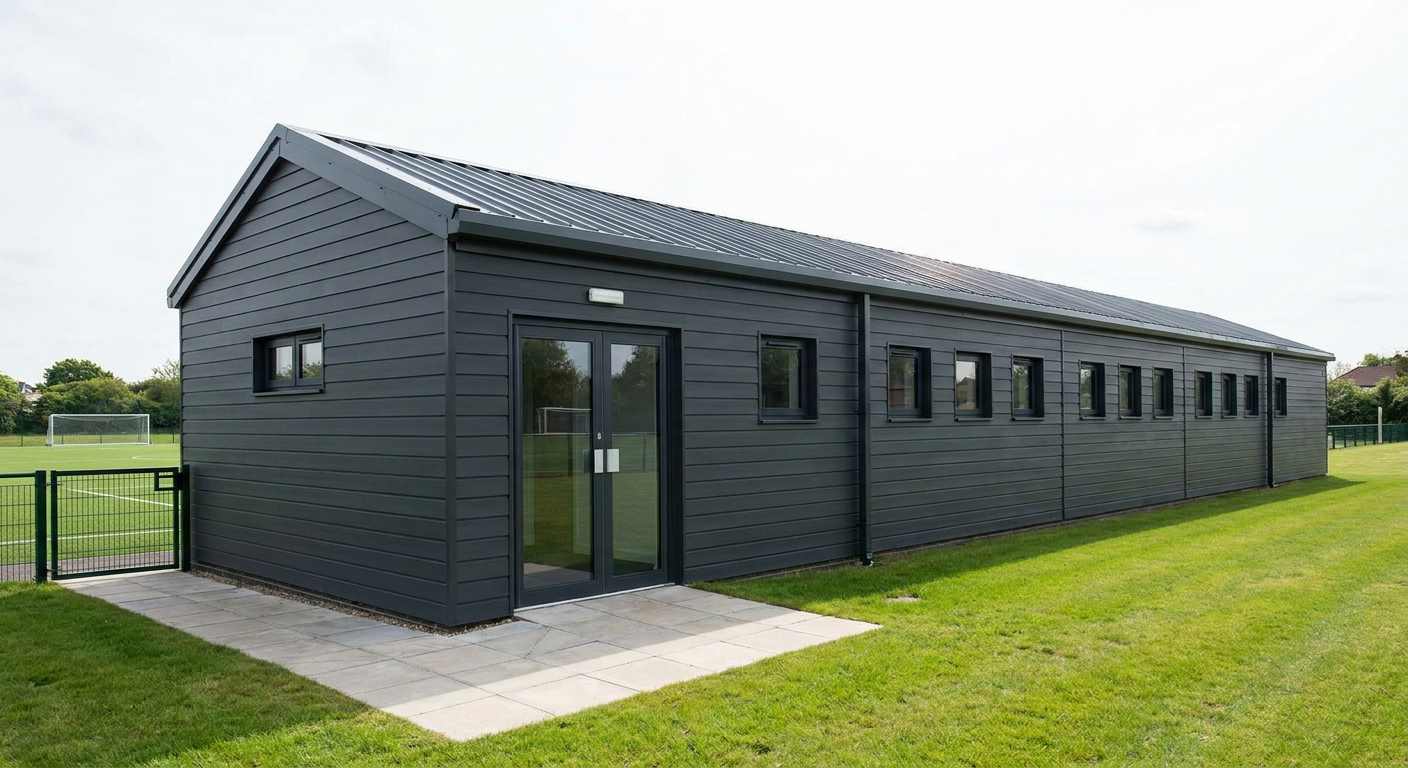

This single-storey modular changing room uses four P600 modules linked end to end in a straight run. The resulting footprint is 23.6m x 2.2m, with approximately 46m² of internal usable floor area. It is configured for Sport & Leisure use and suits football, rugby and cricket clubs seeking a long, space-efficient changing facility.
Each steel-framed module measures 5.9m x 2.2m and is 2.40m externally, with a 2.16m internal ceiling. Its approximate usable interior is 5.7m x 2.0m. The stored design places all four modules at ground-floor level; it is not a stacked arrangement.
Windows and entrance
Module 1 forms the west end of the run. Its exposed north wall has three small windows, while the south wall has a small window, a double-leaf glazed door and a further small window. A high-level, top-only window is positioned in the exposed west end wall.
Modules 2 and 3 each have three small windows on their exposed north walls and three on their exposed south walls. Module 4 also has three small windows to the north and three to the south, together with a high-level, top-only window in its exposed east end wall.
External appearance
All exposed outside walls are specified with Smooth plank AR16016 cladding between the frame, finished in Antrasit (Anthracite). This covers the north and south elevations across all four modules, the west end of Module 1 and the east end of Module 4. A dual-pitch apex roof completes the selected exterior. Final fixture, colour and finish details are confirmed by quotation.
Requested changing-room fit-out
A WC and shower are requested, with their positions and room arrangement to be confirmed in the final layout. Toilet and shower rooms require hygienic wall panels and wet-room PVC flooring. The quotation will confirm the detailed sanitary fit-out and the precise allocation of space within the four-module run.
Elsewhere, the included internal wall finish is white, lightly ribbed insulated sandwich panelling. Plasterboard and other hygienic-panel styles are selectable upgrades or choices rather than included features of this stored design. Room-by-room flooring selections outside the wet areas also remain to be confirmed and should not be assumed from illustrations.
Indicative configured estimate
The indicative estimate for this configuration is £61,800 excluding VAT, or £74,160 including VAT, subject to quotation. Changes made through the building configurator, including revised openings, finishes or room arrangements, may alter the final price. Cladding costs are incorporated at quotation stage and are not itemised publicly.
Siting and separate site costs
Transport is priced separately according to the delivery postcode and site access. Offloading or cranage, groundworks and other site-specific works are also separate from the configured estimate. Final siting is subject to survey, including access, ground conditions, available working space and the requirements of the confirmed layout.
Full specification
4 P600 modules (single storey), run layout, 23.6m x 2.2m footprint, approx 46 m2 internal usable floor area. Each module is 2.40m externally with a 2.16m internal ceiling; its approximate usable interior is 5.7m x 2.0m. Exterior: Smooth plank (AR16016) applied to exposed walls between the frame in Antrasit (Anthracite). Roof: dual-pitch (apex) roof. Selected outside walls: Module 1 North wall: Full-wall cladding, Antrasit (Anthracite), Smooth plank (AR16016); Module 1 South wall: Full-wall cladding, Antrasit (Anthracite), Smooth plank (AR16016); Module 1 West wall: Full-wall cladding, Antrasit (Anthracite), Smooth plank (AR16016); Module 2 North wall: Full-wall cladding, Antrasit (Anthracite), Smooth plank (AR16016); Module 2 South wall: Full-wall cladding, Antrasit (Anthracite), Smooth plank (AR16016); Module 3 North wall: Full-wall cladding, Antrasit (Anthracite), Smooth plank (AR16016); Module 3 South wall: Full-wall cladding, Antrasit (Anthracite), Smooth plank (AR16016); Module 4 North wall: Full-wall cladding, Antrasit (Anthracite), Smooth plank (AR16016); Module 4 East wall: Full-wall cladding, Antrasit (Anthracite), Smooth plank (AR16016); Module 4 South wall: Full-wall cladding, Antrasit (Anthracite), Smooth plank (AR16016). Cladding prices are quote-only and must not be itemised in public copy. Module 1 P600 (ground floor) exposed walls — north (5.9m side): Small window + Small window + Small window; south (5.9m side): Small window + Glazed door (double) + Small window; west (2.2m end): Top-only window (high level). Module 2 P600 (ground floor) exposed walls — north (5.9m side): Small window + Small window + Small window; south (5.9m side): Small window + Small window + Small window. Module 3 P600 (ground floor) exposed walls — north (5.9m side): Small window + Small window + Small window; south (5.9m side): Small window + Small window + Small window. Module 4 P600 (ground floor) exposed walls — north (5.9m side): Small window + Small window + Small window; east (2.2m end): Top-only window (high level); south (5.9m side): Small window + Small window + Small window. Requested fit-out to confirm in the final layout: WC, shower. Toilet/shower rooms require hygienic wall panels and wet-room PVC flooring; elsewhere white lightly ribbed insulated sandwich panels are the included wall finish. Plasterboard, other hygienic-panel styles and room-by-room flooring are selectable upgrades/choices, not included claims unless specified.
