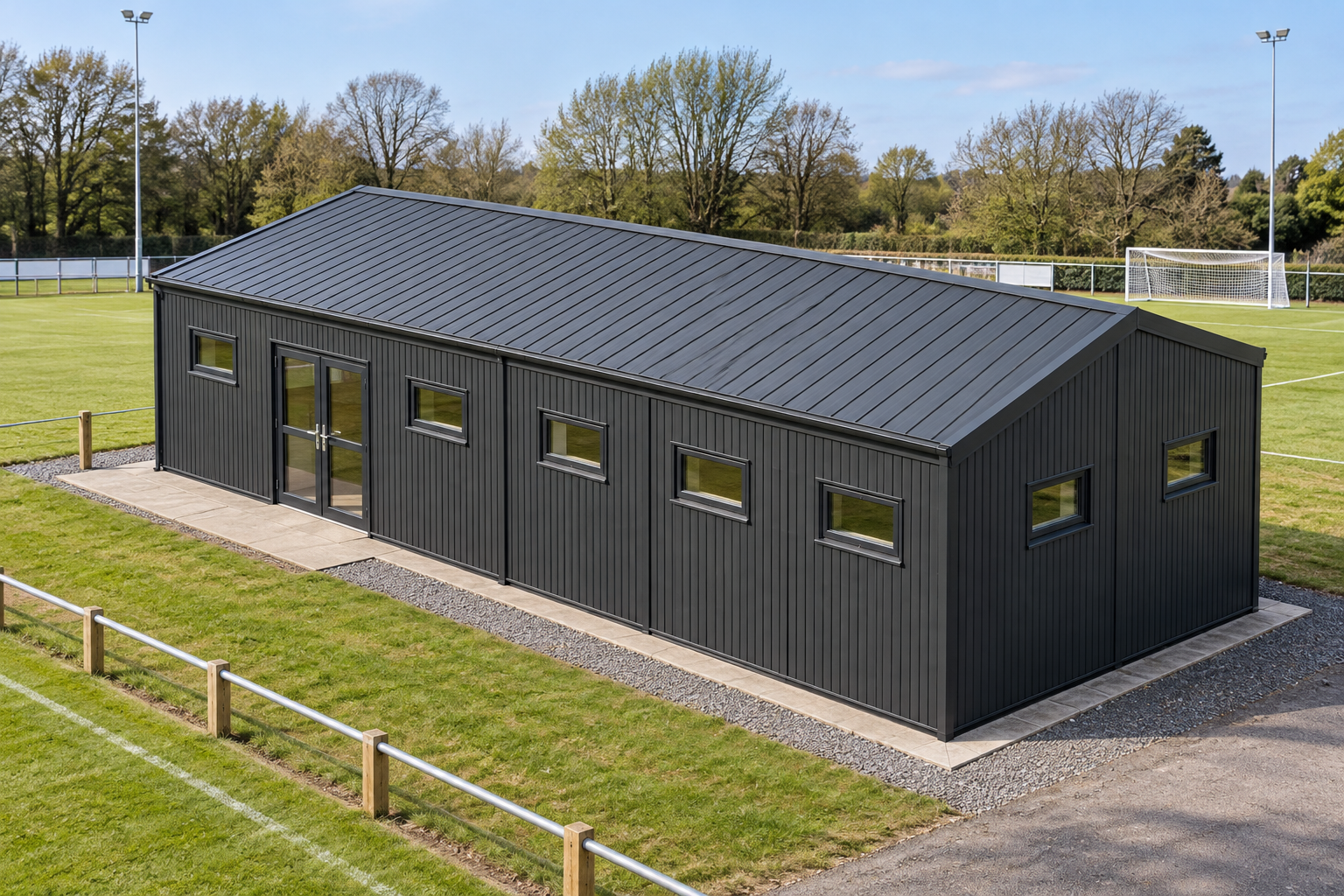

Single-storey modular changing room building beside a sports pitch — Four-module P600 configuration designed as a modular changing room for football, rugby and cricket clubs.

Modular Changing Rooms

4-Module Modular Changing Room Configuration

This single-storey modular changing room combines four P600 modules in an 11.8m x 4.4m grid layout, with a requested WC and shower fit-out. It is configured for football, rugby and cricket clubs in the Sport & Leisure sector.

£60,600ex VAT

£72,720 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.

Made to order. Build and delivery timing will be confirmed with your quotation.

Call about this item

PLACE ORDER

Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.

Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.

Change the layout in the configurator

Modules: 4
Storeys: 1
Approx. usable internal area: 45.6 m² before partitions
External dimensions: 11.8m x 4.4m footprint

Design highlights

Four P600 modules in a single-storey grid layout
11.8m x 4.4m external footprint
Approx. 45.6 m² usable internal area before partitions
Anthracite ARLINE AR14514 fine-ribbed vertical cladding
Apex roof and glazed double-door entrance
Nineteen small windows across the exposed elevations
Requested WC and shower fit-out, subject to final layout

Scale and arrangement

This single-storey configuration uses four steel-framed P600 modules arranged in a grid, creating an external footprint of 11.8m x 4.4m. Each module measures 5.9m x 2.2m and is 2.40m externally, with an internal ceiling height of 2.16m. The approximate usable interior of each module is 5.7m x 2.0m.

Using a conservative per-module allowance, the building provides approximately 45.6 m² of usable internal area before partitions. Connected open layouts may provide more space, while the final WC, shower and changing-room partitions will affect the completed room areas. The design is intended as a modular changing room for football, rugby and cricket clubs.

External finish and roof

The selected exposed outside walls are finished with Anthracite ARLINE AR14514 fine-ribbed full-wall cladding, applied between the frame with the boards set vertically. This treatment is specified on the north and west walls of Module 1, north and east walls of Module 2, south and west walls of Module 3, and east and south walls of Module 4.

An apex roof spans the single-storey configuration. Cladding and final external details remain subject to quotation and confirmation; individual cladding prices are not itemised publicly.

Windows and entrance

The stored design distributes small windows around every exposed elevation, with the glazed entrance positioned on the north side of Module 1:

Module 1 north wall: two small windows with a glazed double-door set between them.
Module 1 west end wall: two small windows.
Module 2 north wall: three small windows.
Module 2 east end wall: two small windows.
Module 3 south wall: three small windows.
Module 3 west end wall: two small windows.
Module 4 east end wall: two small windows.
Module 4 south wall: three small windows.

This gives the configuration one glazed double-door entrance and 19 small windows across the exposed outside walls. Their final specification and associated details are confirmed by quotation.

Requested changing and washroom fit-out

A WC and shower are requested for the completed layout, but their positions and the resulting room arrangement must be confirmed as part of the final design. Bathroom walls use 40mm waterproof insulated sandwich panels as standard, with hygienic panels available as an optional selection. Shower rooms use wet-room PVC flooring.

Elsewhere, insulated sandwich panels are the included internal wall finish. Other finishes are selected to suit the confirmed room layout. Where plaster is selected, it applies outside the bathroom walls rather than replacing the specified waterproof bathroom construction. Fixtures, finishes and room details shown in supporting illustrations are not guaranteed unless included in the final quotation.

Quotation and site requirements

The indicative configured estimate is £60,600 ex VAT, or £72,720 including VAT, subject to quotation. The stored arrangement can be reviewed through the building configurator, with final partitioning and selected finishes confirmed against the club’s requirements.

Transport is priced separately according to postcode and site access. Offloading or cranage, groundworks and other site-specific works are also separate. Siting is subject to survey, including confirmation of access, ground conditions and the requirements for placing the four-module grid layout.

Full specification

4 P600 modules (single storey), grid layout, 11.8m x 4.4m footprint, approx 45.6 m2 usable internal area before partitions (conservative per-module allowance; connected open layouts may provide more space). Each module is 2.40m externally with a 2.16m internal ceiling; its approximate usable interior is 5.7m x 2.0m.
Exterior: ARLINE AR14514 fine-ribbed applied to exposed walls between the frame in Anthracite. Roof: dual-pitch (apex) roof.
Selected outside walls: Module 1 North wall: Full-wall cladding, Anthracite, ARLINE AR14514 fine-ribbed, vertical boards; Module 1 West wall: Full-wall cladding, Anthracite, ARLINE AR14514 fine-ribbed, vertical boards; Module 2 North wall: Full-wall cladding, Anthracite, ARLINE AR14514 fine-ribbed, vertical boards; Module 2 East wall: Full-wall cladding, Anthracite, ARLINE AR14514 fine-ribbed, vertical boards; Module 3 South wall: Full-wall cladding, Anthracite, ARLINE AR14514 fine-ribbed, vertical boards; Module 3 West wall: Full-wall cladding, Anthracite, ARLINE AR14514 fine-ribbed, vertical boards; Module 4 East wall: Full-wall cladding, Anthracite, ARLINE AR14514 fine-ribbed, vertical boards; Module 4 South wall: Full-wall cladding, Anthracite, ARLINE AR14514 fine-ribbed, vertical boards. Cladding prices are quote-only and must not be itemised in public copy.
Module 1 P600 (ground floor) exposed walls — north (5.9m side): Small window + Glazed door (double) + Small window; west (2.2m end): Small window + Small window.
Module 2 P600 (ground floor) exposed walls — north (5.9m side): Small window + Small window + Small window; east (2.2m end): Small window + Small window.
Module 3 P600 (ground floor) exposed walls — south (5.9m side): Small window + Small window + Small window; west (2.2m end): Small window + Small window.
Module 4 P600 (ground floor) exposed walls — east (2.2m end): Small window + Small window; south (5.9m side): Small window + Small window + Small window.
Requested fit-out to confirm in the final layout: WC, shower. Bathroom walls use 40mm waterproof insulated sandwich panels as standard, with hygienic panels optional; shower rooms use wet-room PVC flooring. Plaster applies outside bathroom walls when selected. Elsewhere insulated sandwich panels are the included wall finish; other finishes are selected for the final room layout.
