Modular Changing Rooms
4-Module Modular Changing Room Building

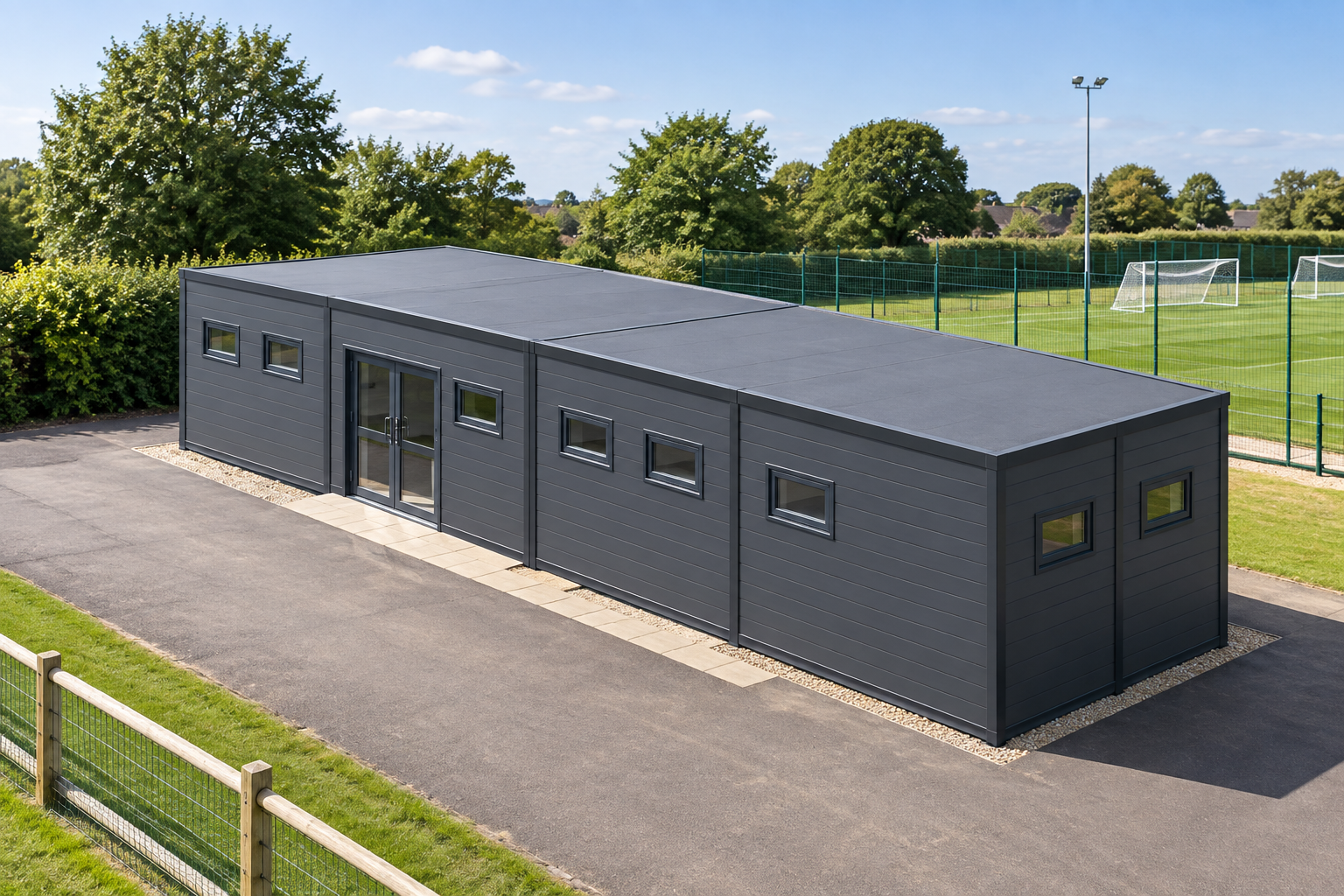

This single-storey modular changing room building combines four P600 modules in an 11.8m x 4.4m grid layout. It is configured for football, rugby and cricket clubs seeking approximately 46m² of usable internal space.
£54,000ex VAT
£64,800 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.
Made to order. Build and delivery timing will be confirmed with your quotation.
Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.
Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.
- Modules
- 4
- Storeys
- 1
- Floor area
- 46 m²
- Footprint
- 11.8m x 4.4m footprint
Design highlights
- Four P600 modules in a single-storey grid
- 11.8m x 4.4m overall footprint
- Approximately 46m² usable internal floor area
- One glazed double entrance and 19 small windows
- Anthracite AR16016 Smooth plank cladding
- Flat roof with approximately 120mm steel-frame fascia
- Requested WC and shower fit-out
Four-module grid layout
This configuration uses four steel-framed P600 modules arranged as a single-storey grid, creating an overall footprint of 11.8m x 4.4m. The combined building provides approximately 46m² of usable internal floor area for a modular changing room layout serving the Sport & Leisure sector.
Each module measures 5.9m x 2.2m externally and is 2.40m high externally, with a 2.16m internal ceiling. The approximate usable interior of each module is 5.7m x 2.0m. The joined grid format provides a wider internal plan than a single linear row, allowing the changing accommodation and requested sanitary spaces to be developed within the final agreed layout. Further information about this application is available on the modular changing rooms page.
Windows and entrance
The exposed north wall of Module 1 has a small window, a glazed double door and a second small window. Its west end wall has two small windows. Module 2 has three small windows on its exposed north wall and two small windows on its east end wall.
On the opposite side of the building, Module 3 has three small windows on its exposed south wall and two small windows on its west end wall. Module 4 has two small windows on its east end wall and three small windows on its exposed south wall. Together, these stored elevations provide the configuration with one glazed double entrance and 19 small windows across the exposed outside walls.
Anthracite external finish
All selected exposed walls have full-wall Smooth plank cladding in AR16016 Antrasit, also described as Anthracite. The finish is applied between the Anthracite frame on the north and west walls of Module 1, the north and east walls of Module 2, the south and west walls of Module 3, and the east and south walls of Module 4.
The building has a flat roof with an approximately 120mm steel-frame fascia. No additional fascia is included in this stored design. Cladding is priced by quotation and is not separately itemised in the public configuration price.
Requested internal fit-out
A WC and shower have been requested, with their positions and final arrangement to be confirmed as part of the completed internal layout. Toilet and shower rooms require hygienic wall panels and wet-room PVC flooring. Elsewhere, the included internal wall finish is white, lightly ribbed insulated sandwich panelling.
Plasterboard, alternative hygienic-panel styles and room-by-room flooring selections remain optional choices or upgrades rather than included specifications. Final fixtures, finishes and sanitary details are confirmed by quotation. The stored arrangement can be reviewed through the building configurator.
Estimate, transport and siting
The indicative configured estimate is £54,000 excluding VAT, or £64,800 including VAT, subject to quotation. Transport is priced separately according to the delivery postcode and site access. Offloading or cranage, groundworks and other site-specific works are also separate.
Positioning and site requirements are subject to survey. Access, ground conditions, levels, service connections and any site-specific constraints must be assessed before the installation arrangements and associated costs can be confirmed.
Full specification
4 P600 modules (single storey), grid layout, 11.8m x 4.4m footprint, approx 46 m2 internal usable floor area. Each module is 2.40m externally with a 2.16m internal ceiling; its approximate usable interior is 5.7m x 2.0m. Exterior: Smooth plank (AR16016) applied to exposed walls between the frame in Antrasit (Anthracite). Roof: flat roof with approximately 120mm steel-frame fascia (no extra fascia). Selected outside walls: Module 1 North wall: Full-wall cladding, Antrasit (Anthracite), Smooth plank (AR16016); Module 1 West wall: Full-wall cladding, Antrasit (Anthracite), Smooth plank (AR16016); Module 2 North wall: Full-wall cladding, Antrasit (Anthracite), Smooth plank (AR16016); Module 2 East wall: Full-wall cladding, Antrasit (Anthracite), Smooth plank (AR16016); Module 3 South wall: Full-wall cladding, Antrasit (Anthracite), Smooth plank (AR16016); Module 3 West wall: Full-wall cladding, Antrasit (Anthracite), Smooth plank (AR16016); Module 4 East wall: Full-wall cladding, Antrasit (Anthracite), Smooth plank (AR16016); Module 4 South wall: Full-wall cladding, Antrasit (Anthracite), Smooth plank (AR16016). Cladding prices are quote-only and must not be itemised in public copy. Module 1 P600 (ground floor) exposed walls — north (5.9m side): Small window + Glazed door (double) + Small window; west (2.2m end): Small window + Small window. Module 2 P600 (ground floor) exposed walls — north (5.9m side): Small window + Small window + Small window; east (2.2m end): Small window + Small window. Module 3 P600 (ground floor) exposed walls — south (5.9m side): Small window + Small window + Small window; west (2.2m end): Small window + Small window. Module 4 P600 (ground floor) exposed walls — east (2.2m end): Small window + Small window; south (5.9m side): Small window + Small window + Small window. Requested fit-out to confirm in the final layout: WC, shower. Toilet/shower rooms require hygienic wall panels and wet-room PVC flooring; elsewhere white lightly ribbed insulated sandwich panels are the included wall finish. Plasterboard, other hygienic-panel styles and room-by-room flooring are selectable upgrades/choices, not included claims unless specified.
