4-Module Modular Changing Room, 46 m²
This single-storey modular changing room combines four P600 modules in a 23.6m-long run, providing approximately 46 m² of usable internal floor area. It is configured for football, rugby and cricket clubs, with a requested WC and shower fit-out to be confirmed in the final layout.
£55,200ex VAT
£66,240 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.
Made to order. Build and delivery timing will be confirmed with your quotation.
Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.
Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.
- Modules
- 4
- Storeys
- 1
- Floor area
- 46 m²
- Footprint
- 23.6m x 2.2m footprint
Design highlights
- Four linked P600 modules in a single-storey run
- 23.6m x 2.2m footprint
- Approximately 46 m² usable internal floor area
- Single glazed entrance with small windows to Module 1
- High-level, top-only windows across the exposed elevations
- Vertical ARLINE AR16016 grooved plank cladding in Venge
- Requested WC and shower fit-out subject to final layout

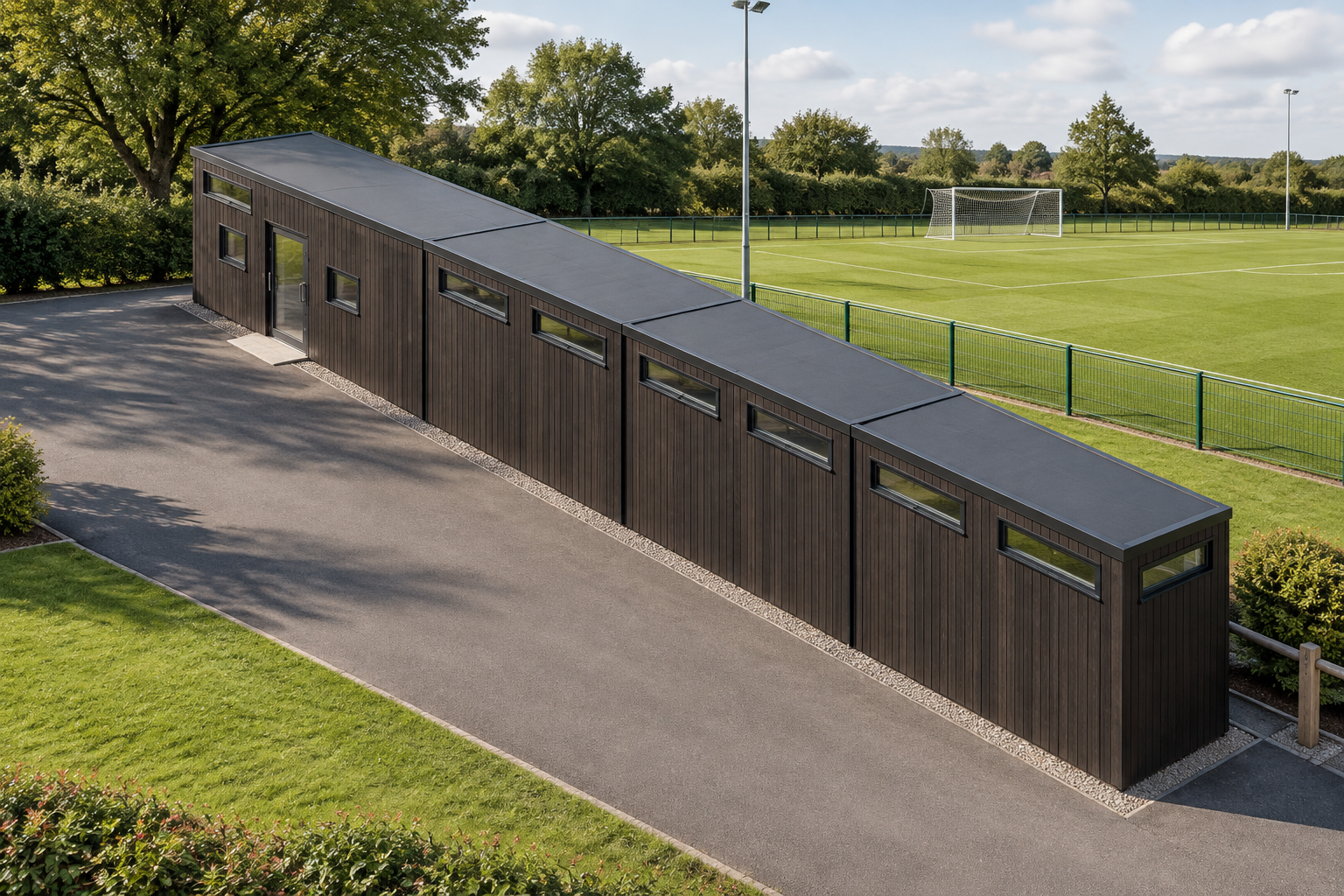

Four-module run layout
This configuration links four steel-framed P600 modules in a straight, single-storey run. The completed building has a 23.6m x 2.2m footprint and provides approximately 46 m² of usable internal floor area. Each module measures 5.9m x 2.2m externally, with an external height of 2.40m and a 2.16m internal ceiling. The approximate usable interior of each module is 5.7m x 2.0m.
The arrangement is intended as a modular changing room for the Sport & Leisure sector. Its long, linear format is suited to clubs seeking changing accommodation across one level, including football, rugby and cricket organisations.
Windows and external access
Module 1 forms the western end of the run. Its north wall has two high-level, top-only windows. The south wall includes a small window, a single glazed door and a second small window, while the exposed west end has one high-level, top-only window.
- Module 2: two high-level, top-only windows on both the north and south walls.
- Module 3: two high-level, top-only windows on both the north and south walls.
- Module 4: two high-level, top-only windows on both the north and south walls, plus one high-level, top-only window on the exposed east end.
This produces repeated high-level glazing along the north and south elevations, with the single glazed entrance positioned on the south wall of Module 1. The final arrangement should be checked alongside the internal room plan before quotation.
Selected exterior treatment
All exposed outside walls are specified with ARLINE AR16016 grooved plank cladding in Venge, applied between the frame. The boards run vertically across the north and south walls of all four modules, the west end of Module 1 and the east end of Module 4. Cladding is priced as part of the project quotation rather than itemised publicly.
The building has a flat roof with an approximately 120mm steel-frame fascia. No additional fascia is selected for this configuration.
Requested changing-room fit-out
A WC and shower are requested, with their exact positions and room divisions to be confirmed in the final layout. Toilet and shower rooms require hygienic wall panels and wet-room PVC flooring. These wet-area finishes should therefore be confirmed together with the sanitary arrangement during quotation.
Elsewhere, the included internal wall finish is white, lightly ribbed insulated sandwich panelling. Plasterboard and other hygienic-panel styles remain selectable upgrades or choices. Room-by-room flooring outside the toilet and shower areas is not fixed in this stored design and must also be selected and confirmed. These details can be reviewed through the configuration process.
Estimate and site requirements
The indicative configured estimate is £55,200 excluding VAT, or £66,240 including VAT, subject to quotation and confirmation of the final fit-out. Transport is priced separately according to the delivery postcode and site access. Offloading or cranage, groundworks and other site-specific works are also separate.
Siting is subject to survey. Access, levels, ground conditions, service requirements and the proposed position should be assessed before the order is finalised, allowing the quotation to reflect the actual site and confirmed changing-room layout.
Full specification
4 P600 modules (single storey), run layout, 23.6m x 2.2m footprint, approx 46 m2 internal usable floor area. Each module is 2.40m externally with a 2.16m internal ceiling; its approximate usable interior is 5.7m x 2.0m. Exterior: ARLINE AR16016 grooved plank applied to exposed walls between the frame in Venge. Roof: flat roof with approximately 120mm steel-frame fascia (no extra fascia). Selected outside walls: Module 1 North wall: Full-wall cladding, Venge, ARLINE AR16016 grooved plank, vertical boards; Module 1 South wall: Full-wall cladding, Venge, ARLINE AR16016 grooved plank, vertical boards; Module 1 West wall: Full-wall cladding, Venge, ARLINE AR16016 grooved plank, vertical boards; Module 2 North wall: Full-wall cladding, Venge, ARLINE AR16016 grooved plank, vertical boards; Module 2 South wall: Full-wall cladding, Venge, ARLINE AR16016 grooved plank, vertical boards; Module 3 North wall: Full-wall cladding, Venge, ARLINE AR16016 grooved plank, vertical boards; Module 3 South wall: Full-wall cladding, Venge, ARLINE AR16016 grooved plank, vertical boards; Module 4 North wall: Full-wall cladding, Venge, ARLINE AR16016 grooved plank, vertical boards; Module 4 East wall: Full-wall cladding, Venge, ARLINE AR16016 grooved plank, vertical boards; Module 4 South wall: Full-wall cladding, Venge, ARLINE AR16016 grooved plank, vertical boards. Cladding prices are quote-only and must not be itemised in public copy. Module 1 P600 (ground floor) exposed walls — north (5.9m side): Top-only window (high level) + Top-only window (high level); south (5.9m side): Small window + Glazed door (single) + Small window; west (2.2m end): Top-only window (high level). Module 2 P600 (ground floor) exposed walls — north (5.9m side): Top-only window (high level) + Top-only window (high level); south (5.9m side): Top-only window (high level) + Top-only window (high level). Module 3 P600 (ground floor) exposed walls — north (5.9m side): Top-only window (high level) + Top-only window (high level); south (5.9m side): Top-only window (high level) + Top-only window (high level). Module 4 P600 (ground floor) exposed walls — north (5.9m side): Top-only window (high level) + Top-only window (high level); east (2.2m end): Top-only window (high level); south (5.9m side): Top-only window (high level) + Top-only window (high level). Requested fit-out to confirm in the final layout: WC, shower. Toilet/shower rooms require hygienic wall panels and wet-room PVC flooring; elsewhere white lightly ribbed insulated sandwich panels are the included wall finish. Plasterboard, other hygienic-panel styles and room-by-room flooring are selectable upgrades/choices, not included claims unless specified.
