Modular Changing Rooms
4-Module Changing Room with WC and Shower
This single-storey modular changing room combines four P600 modules in a 23.6m run, with WC and shower facilities requested for the final layout. It suits football, rugby and cricket clubs seeking dedicated changing accommodation for their Sport & Leisure site.
£55,200ex VAT
£66,240 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.
Made to order. Build and delivery timing will be confirmed with your quotation.
Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.
Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.
- Modules
- 4
- Storeys
- 1
- Approx. usable internal area
- 45.6 m² before partitions
- External dimensions
- 23.6m x 2.2m footprint
Design highlights
- Four linked P600 modules in a single-storey run
- 23.6m x 2.2m external footprint
- Approximately 45.6m² usable internal area before partitions
- Anthracite ARLINE AR16016 vertical grooved plank cladding
- Single glazed door with multiple small and high-level windows
- WC and shower fit-out requested for final layout
- Flat roof with approximately 120mm steel-frame fascia

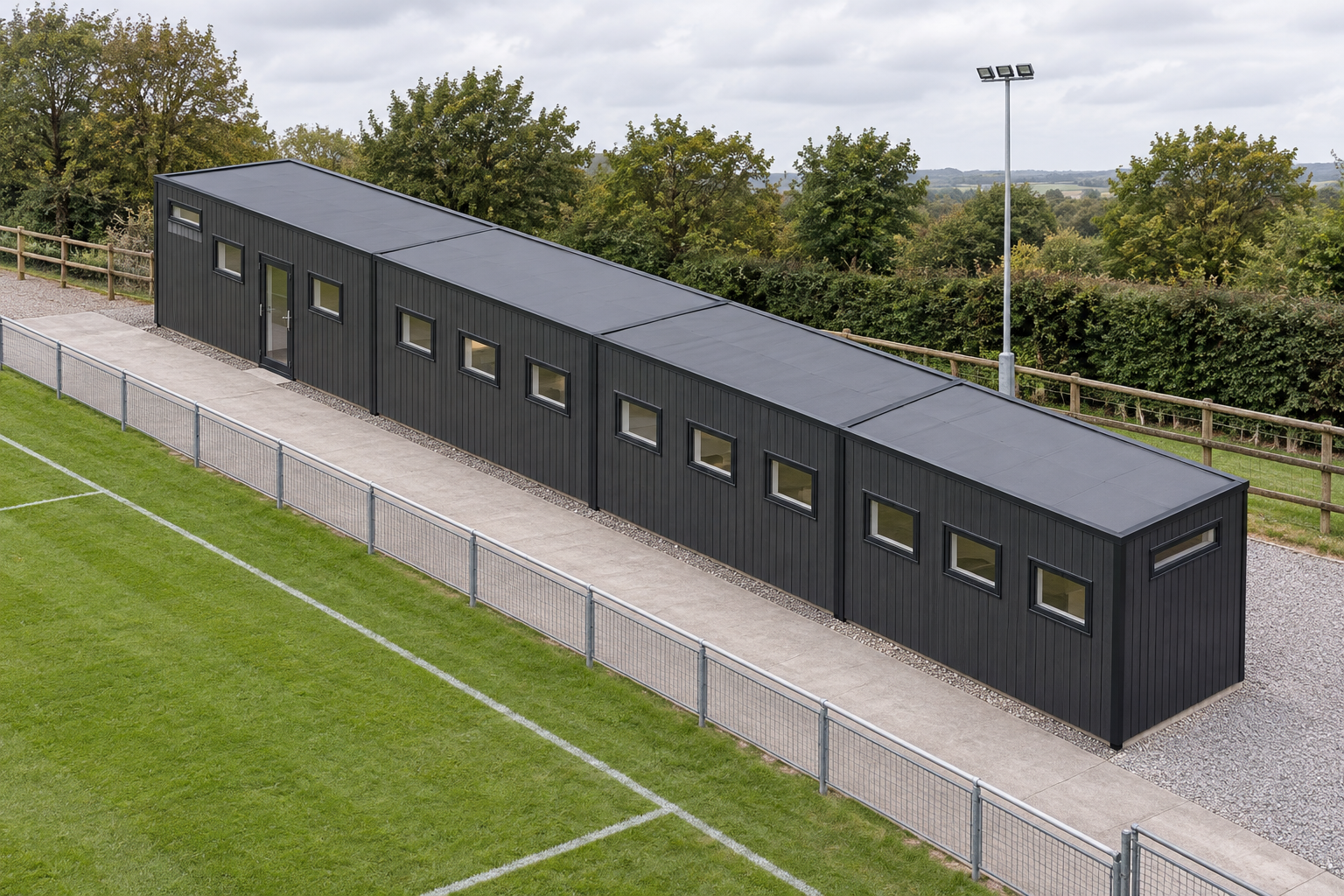

Single-storey four-module run
This stored P600 configuration links four steel-framed modules in a straight, single-storey run. The external footprint is 23.6m long by 2.2m wide, creating approximately 45.6m² of usable internal area before partitions. This is a conservative allowance based on the individual modules; a connected open layout may provide more usable space where the final room arrangement allows.
Each module measures 5.9m by 2.2m externally and is approximately 2.40m high. Its usable interior is approximately 5.7m by 2.0m, with a 2.16m internal ceiling. The long, narrow arrangement is intended as a modular changing room for football, rugby and cricket clubs.
Openings across the exposed elevations
The north elevation has three small windows in each of the four modules, giving 12 small windows across that side of the run. On the south elevation, Module 1 has two small windows and one single glazed door. Modules 2, 3 and 4 each have three small windows on their south walls, giving a further nine small windows alongside the two in Module 1.
- Module 1 has a high-level, top-only window in its exposed west end wall.
- Module 4 has a high-level, top-only window in its exposed east end wall.
- The single glazed external door is positioned on the south wall of Module 1.
- The linked internal ends form the continuous four-module run.
Anthracite external treatment
All exposed outside walls are selected with Anthracite ARLINE AR16016 grooved plank cladding between the frame. The boards run vertically across the north and south walls of all four modules, the west end of Module 1 and the east end of Module 4. This selection applies to the full exposed wall areas identified in the configuration. Cladding is priced as part of the final quotation and is not itemised publicly.
The building has a flat roof with an approximately 120mm steel-frame fascia. No additional fascia is selected for this configuration. Final illustrated details, fixtures and finish samples remain subject to confirmation in the quotation.
Changing and washroom fit-out
A WC and shower have been requested, with their positions and associated partitions to be confirmed in the final internal layout. Bathroom walls use 40mm waterproof insulated sandwich panels as standard, while hygienic panels are available as an optional selection. Shower-room areas use wet-room PVC flooring. Where selected, plaster applies to the outside faces of bathroom walls.
Elsewhere, insulated sandwich panels are the included internal wall finish. Any alternative finishes are selected to suit the agreed changing, circulation and washroom arrangement rather than assumed across the complete building. The final layout can be reviewed through the stored configuration and quotation process using the building configurator.
Estimate, transport and siting
The indicative configured estimate is £55,200 excluding VAT, or £66,240 including VAT, subject to quotation. Transport is priced separately according to the delivery postcode and site access. Offloading or cranage, groundworks and other site-specific works are also separate. Siting remains subject to survey so that the proposed location, access and required site works can be assessed before the order details are finalised.
Full specification
4 P600 modules (single storey), run layout, 23.6m x 2.2m footprint, approx 45.6 m2 usable internal area before partitions (conservative per-module allowance; connected open layouts may provide more space). Each module is 2.40m externally with a 2.16m internal ceiling; its approximate usable interior is 5.7m x 2.0m. Exterior: ARLINE AR16016 grooved plank applied to exposed walls between the frame in Anthracite. Roof: flat roof with approximately 120mm steel-frame fascia (no extra fascia). Selected outside walls: Module 1 North wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 1 South wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 1 West wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 2 North wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 2 South wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 3 North wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 3 South wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 4 North wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 4 East wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 4 South wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards. Cladding prices are quote-only and must not be itemised in public copy. Module 1 P600 (ground floor) exposed walls — north (5.9m side): Small window + Small window + Small window; south (5.9m side): Small window + Glazed door (single) + Small window; west (2.2m end): Top-only window (high level). Module 2 P600 (ground floor) exposed walls — north (5.9m side): Small window + Small window + Small window; south (5.9m side): Small window + Small window + Small window. Module 3 P600 (ground floor) exposed walls — north (5.9m side): Small window + Small window + Small window; south (5.9m side): Small window + Small window + Small window. Module 4 P600 (ground floor) exposed walls — north (5.9m side): Small window + Small window + Small window; east (2.2m end): Top-only window (high level); south (5.9m side): Small window + Small window + Small window. Requested fit-out to confirm in the final layout: WC, shower. Bathroom walls use 40mm waterproof insulated sandwich panels as standard, with hygienic panels optional; shower rooms use wet-room PVC flooring. Plaster applies outside bathroom walls when selected. Elsewhere insulated sandwich panels are the included wall finish; other finishes are selected for the final room layout.
