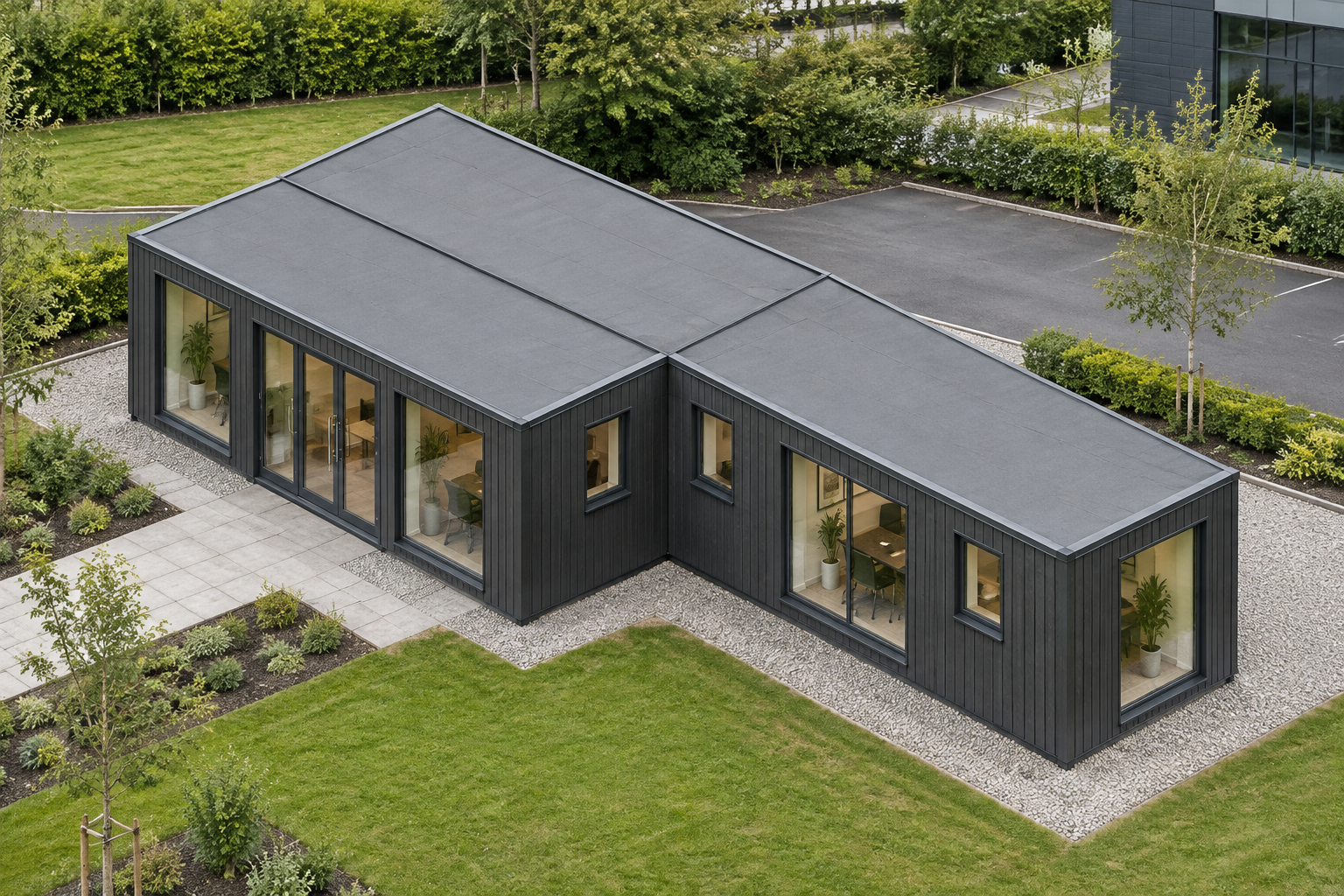

3-Module Single-Storey Modular Office
This single-storey P600 configuration combines three modules to create a spacious modular office with a requested WC. It suits growing businesses needing permanent office space quickly within a defined 11.8m x 4.4m external footprint.
£41,100ex VAT
£49,320 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.
Made to order. Build and delivery timing will be confirmed with your quotation.
Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.
Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.
- Modules
- 3
- Storeys
- 1
- Approx. usable internal area
- 34.2 m² before partitions
- External dimensions
- 11.8m x 4.4m footprint
Design highlights
- Three P600 modules in a single-storey grid layout
- 11.8m x 4.4m external footprint
- Approx. 34.2 m² usable internal area before partitions
- Multiple large and small windows with a double glazed entrance door
- Vertical Anthracite ARLINE AR16016 grooved plank cladding
- Flat roof with approximately 120mm steel-frame fascia
- Requested WC layout to be confirmed
Layout and working space
Three P600 steel-framed modules are arranged in a single-storey grid layout, occupying an external footprint of 11.8m x 4.4m. The configuration provides approximately 34.2 m² of usable internal area before partitions, based on a conservative per-module allowance. Connected open layouts may provide more usable space, depending on the final partition and linking arrangement.
Each module measures 5.9m x 2.2m, with an external height of 2.40m and an internal ceiling height of 2.16m. Its approximate usable interior is 5.7m x 2.0m. The resulting configuration is suited to general work areas, meeting space or a combination of office functions agreed through the final room plan. It forms part of Adacon’s range for modular offices.
Windows and entrance
Module 1 has two large windows and a double glazed door along its exposed north wall, plus one large window in the exposed west end wall. This creates the principal glazed entrance within the stored configuration.
Module 2 has a small window, large window and small window across both its north and south walls. Its exposed east end wall contains one large window.
Module 3 repeats the small, large and small window arrangement on its exposed south wall. Both its exposed east and west end walls contain one large window. Window and door details remain subject to the final quotation.
Anthracite external finish
The exposed walls use Anthracite ARLINE AR16016 grooved plank cladding, applied vertically between the steel frame. The selected walls are Module 1 north and west; Module 2 north, east and south; and Module 3 east, south and west. The cladding forms the specified finish around the configured openings. Final details and costs are confirmed by quotation.
A flat roof completes the building. Its edge is finished with the approximately 120mm steel-frame fascia, with no additional fascia selected.
Requested WC and internal finishes
A WC is requested, with its position, partitions and associated room layout to be confirmed before quotation. Bathroom walls use 40mm waterproof insulated sandwich panels as standard, while hygienic panels are available as an optional finish. Plaster can be selected outside bathroom walls where required.
Elsewhere, insulated sandwich panels are the included internal wall finish. Other finishes depend on the agreed room layout and quotation. Wet-room PVC flooring applies to shower rooms, but no shower room is specified in this stored design. Fixtures and finishes shown in supporting imagery should not be treated as guaranteed inclusions.
Estimate and site requirements
The indicative configured estimate is £41,100 excluding VAT, or £49,320 including VAT, subject to quotation. The stored design can be reviewed through the building configurator, but the quoted specification will determine the final scope.
Transport is priced separately according to the delivery postcode and site access. Offloading or cranage, groundworks and other site-specific works are also separate. Siting is subject to survey, including confirmation of access, ground conditions and the works needed to receive the modules safely.
Full specification
3 P600 modules (single storey), grid layout, 11.8m x 4.4m footprint, approx 34.2 m2 usable internal area before partitions (conservative per-module allowance; connected open layouts may provide more space). Each module is 2.40m externally with a 2.16m internal ceiling; its approximate usable interior is 5.7m x 2.0m. Exterior: ARLINE AR16016 grooved plank applied to exposed walls between the frame in Anthracite. Roof: flat roof with approximately 120mm steel-frame fascia (no extra fascia). Selected outside walls: Module 1 North wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 1 West wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 2 North wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 2 East wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 2 South wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 3 East wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 3 South wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 3 West wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards. Cladding prices are quote-only and must not be itemised in public copy. Module 1 P600 (ground floor) exposed walls — north (5.9m side): Large window + Glazed door (double) + Large window; west (2.2m end): Large window. Module 2 P600 (ground floor) exposed walls — north (5.9m side): Small window + Large window + Small window; east (2.2m end): Large window; south (5.9m side): Small window + Large window + Small window. Module 3 P600 (ground floor) exposed walls — east (2.2m end): Large window; south (5.9m side): Small window + Large window + Small window; west (2.2m end): Large window. Requested fit-out to confirm in the final layout: WC. Bathroom walls use 40mm waterproof insulated sandwich panels as standard, with hygienic panels optional; shower rooms use wet-room PVC flooring. Plaster applies outside bathroom walls when selected. Elsewhere insulated sandwich panels are the included wall finish; other finishes are selected for the final room layout.
