Modular Offices
3-Module Grey Modular Office, 34.2 m²
This single-storey P600 modular office combines three steel-framed modules in a grid layout, providing approximately 34.2 m² of usable internal area before partitions. It suits growing businesses seeking permanent office space quickly, with a requested kitchenette and WC to be confirmed in the final layout.
£41,100ex VAT
£49,320 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.
Made to order. Build and delivery timing will be confirmed with your quotation.
Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.
Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.
- Modules
- 3
- Storeys
- 1
- Approx. usable internal area
- 34.2 m² before partitions
- External dimensions
- 11.8m x 4.4m footprint
Design highlights
- Three P600 modules in a single-storey grid layout
- Approximately 34.2 m² usable internal area before partitions
- 11.8m x 4.4m external footprint
- Grey ARLINE AR16016 vertical grooved-plank cladding
- Single glazed entrance door with multiple window sizes
- Flat roof with approximately 120mm steel-frame fascia
- Requested kitchenette and WC, subject to final layout

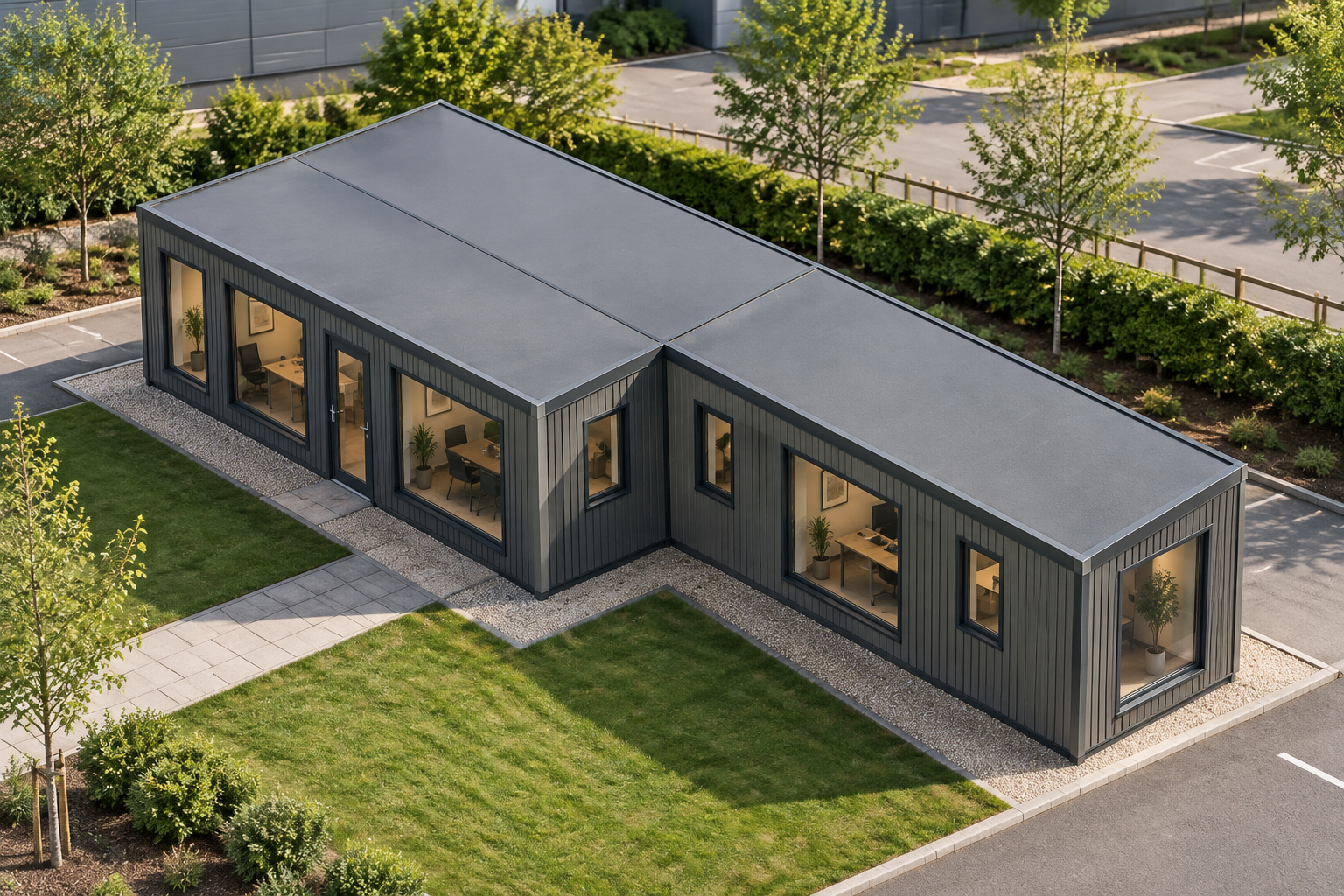

Three-module office arrangement
This configuration uses three P600 steel-framed modules in a single-storey grid layout, with an external footprint of 11.8m x 4.4m. Each module measures 5.9m x 2.2m and is 2.40m externally, with an internal ceiling height of 2.16m. The approximate usable interior of each module is 5.7m x 2.0m, giving a conservative combined allowance of approximately 34.2 m² of usable internal area before partitions. Connected open layouts may provide more usable space, depending on the final room arrangement.
Designed for the Offices & Commercial sector, this building is configured as a modular office. The indicative configured estimate is £41,100 ex VAT (£49,320 inc VAT), subject to quotation and confirmation of the final specification.
Windows and entrance
The openings are distributed across the exposed external walls to bring natural light into each part of the office. Their stored positions are defined by module and orientation:
- Module 1: the north 5.9m wall has a large window, a single glazed door and a second large window in sequence. The west 2.2m end wall has a full-size window.
- Module 2: the north 5.9m wall has a small window, large window and small window. The east 2.2m end has a full-size window, while the south wall repeats the small, large and small window arrangement.
- Module 3: the east and west 2.2m end walls each have a full-size window. The south 5.9m wall has a small window, large window and small window.
These openings form part of this specific stored design. Any relationship between the internal rooms, kitchenette, WC and windows will be resolved when the final partition layout is confirmed.
Grey grooved-plank exterior
Grey ARLINE AR16016 grooved-plank cladding is selected for the exposed walls between the frame, with the boards installed vertically. It is specified on Module 1’s north and west walls, Module 2’s north, east and south walls, and Module 3’s east, south and west walls. Final fixture and finish details remain subject to quotation.
The building has a flat roof with an approximately 120mm steel-frame fascia. No additional fascia is included in the stored configuration.
Requested internal fit-out
A kitchenette and WC are requested, but their exact positions and specifications must be confirmed as part of the final room layout. Elsewhere, insulated sandwich panels are the included internal wall finish. Other finishes can be selected to suit the agreed office arrangement through the building configurator.
Bathroom walls use 40mm waterproof insulated sandwich panels as standard, with hygienic panels available as an optional finish. Where plaster is selected, it applies outside bathroom walls. If the final design includes a shower room, wet-room PVC flooring is used within that space; a shower room is not specified in the current brief.
Quotation, transport and siting
The £41,100 ex VAT estimate reflects this configured building and remains subject to quotation. Transport is priced separately according to the destination postcode and site access. Offloading or cranage, groundworks and other site-specific works are separate. The proposed position, access route and site conditions must be assessed, and final siting remains subject to survey.
Full specification
3 P600 modules (single storey), grid layout, 11.8m x 4.4m footprint, approx 34.2 m2 usable internal area before partitions (conservative per-module allowance; connected open layouts may provide more space). Each module is 2.40m externally with a 2.16m internal ceiling; its approximate usable interior is 5.7m x 2.0m. Exterior: ARLINE AR16016 grooved plank applied to exposed walls between the frame in Grey. Roof: flat roof with approximately 120mm steel-frame fascia (no extra fascia). Selected outside walls: Module 1 North wall: Full-wall cladding, Grey, ARLINE AR16016 grooved plank, vertical boards; Module 1 West wall: Full-wall cladding, Grey, ARLINE AR16016 grooved plank, vertical boards; Module 2 North wall: Full-wall cladding, Grey, ARLINE AR16016 grooved plank, vertical boards; Module 2 East wall: Full-wall cladding, Grey, ARLINE AR16016 grooved plank, vertical boards; Module 2 South wall: Full-wall cladding, Grey, ARLINE AR16016 grooved plank, vertical boards; Module 3 East wall: Full-wall cladding, Grey, ARLINE AR16016 grooved plank, vertical boards; Module 3 South wall: Full-wall cladding, Grey, ARLINE AR16016 grooved plank, vertical boards; Module 3 West wall: Full-wall cladding, Grey, ARLINE AR16016 grooved plank, vertical boards. Cladding prices are quote-only and must not be itemised in public copy. Module 1 P600 (ground floor) exposed walls — north (5.9m side): Large window + Glazed door (single) + Large window; west (2.2m end): Full-size window. Module 2 P600 (ground floor) exposed walls — north (5.9m side): Small window + Large window + Small window; east (2.2m end): Full-size window; south (5.9m side): Small window + Large window + Small window. Module 3 P600 (ground floor) exposed walls — east (2.2m end): Full-size window; south (5.9m side): Small window + Large window + Small window; west (2.2m end): Full-size window. Requested fit-out to confirm in the final layout: kitchenette, WC. Bathroom walls use 40mm waterproof insulated sandwich panels as standard, with hygienic panels optional; shower rooms use wet-room PVC flooring. Plaster applies outside bathroom walls when selected. Elsewhere insulated sandwich panels are the included wall finish; other finishes are selected for the final room layout.
