Security Cabins
2-Module Security Cabin with WC

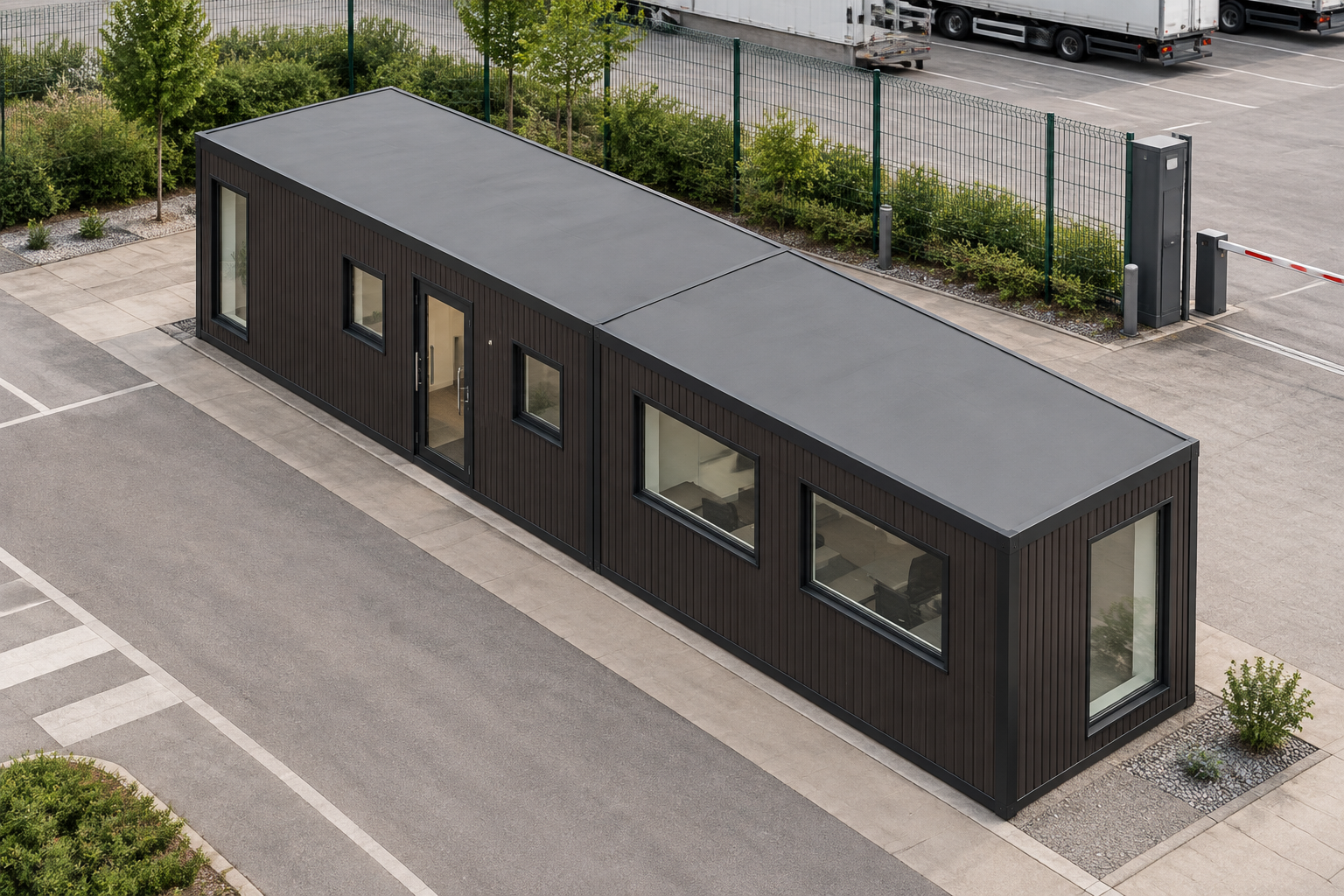

This single-storey security cabin combines two P600 modules in a run layout, providing approximately 22.8 m² of usable internal area before partitions. It suits sites, car parks and distribution centres that require a practical base for access control and security staff.
£27,800ex VAT
£33,360 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.
Made to order. Build and delivery timing will be confirmed with your quotation.
Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.
Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.
- Modules
- 2
- Storeys
- 1
- Approx. usable internal area
- 22.8 m² before partitions
- External dimensions
- 11.8m x 2.2m footprint
Design highlights
- Two P600 modules in a single-storey run layout
- 11.8m x 2.2m external footprint
- Approximately 22.8 m² usable internal area before partitions
- Multiple large, small and full-size windows
- Single glazed entrance door
- Venge ARLINE AR14514 fine-ribbed external cladding
- Requested WC for confirmation in the final layout
Two-module run layout
This configuration uses two steel-framed P600 modules linked end to end in a single-storey run. Its external footprint is 11.8m long by 2.2m wide. Each module is 5.9m by 2.2m externally and 2.40m high, with an internal ceiling height of 2.16m.
Using a conservative per-module allowance, the building provides approximately 22.8 m² of usable internal area before partitions. Each module has an approximate usable interior of 5.7m by 2.0m. A connected open arrangement may provide more usable space, depending on the final internal layout and the partitioning required for the requested WC.
Designed as a security cabin, the building is suited to entrance points where staff monitor visitors, vehicles and deliveries. Typical settings include operational sites, car parks and distribution centres controlling access.
Windows and entrance arrangement
Module 1 has two large windows on its exposed north wall. Its south wall contains two small windows with a single glazed door positioned between them, while the exposed west end has a full-size window.
Module 2 also has two large windows on its exposed north wall. Two further large windows are positioned on the exposed south wall, and the east end has a full-size window. Together, these openings support outward visibility around the exposed sides and both ends of the run configuration.
Venge external finish and flat roof
The exposed walls are finished between the frame with vertically installed ARLINE AR14514 fine-ribbed cladding in Venge. This selected finish covers the north, south and west walls of Module 1 and the north, east and south walls of Module 2. Cladding costs are confirmed as part of the project quotation and are not itemised publicly.
The building has a flat roof with an approximately 120mm steel-frame fascia. No additional fascia is specified for this configuration. Final visible details and finishes are confirmed by quotation rather than guaranteed from illustrations alone.
Requested WC and internal finishes
A WC has been requested, with its position, dimensions and associated partitioning to be confirmed in the final room layout. Bathroom walls use 40mm waterproof insulated sandwich panels as standard. Hygienic wall panels are optional, while plaster applies outside bathroom walls when that finish is selected.
Wet-room PVC flooring is used for shower rooms; no shower room is specified in this stored configuration. Elsewhere, insulated sandwich panels are the included internal wall finish. Any alternative wall or flooring finishes depend on the final room arrangement and selections confirmed in the quotation.
Estimate, transport and siting
The indicative configured estimate is £27,800 excluding VAT, or £33,360 including VAT, subject to quotation. Transport is priced separately according to the destination postcode and site access. Offloading or cranage, groundworks and other site-specific works are separate.
Final siting is subject to a site survey covering access, positioning and relevant site conditions. The confirmed room arrangement, WC details, finishes and project requirements will be recorded in the quotation following configuration through the building configurator.
Full specification
2 P600 modules (single storey), run layout, 11.8m x 2.2m footprint, approx 22.8 m2 usable internal area before partitions (conservative per-module allowance; connected open layouts may provide more space). Each module is 2.40m externally with a 2.16m internal ceiling; its approximate usable interior is 5.7m x 2.0m. Exterior: ARLINE AR14514 fine-ribbed applied to exposed walls between the frame in Venge. Roof: flat roof with approximately 120mm steel-frame fascia (no extra fascia). Selected outside walls: Module 1 North wall: Full-wall cladding, Venge, ARLINE AR14514 fine-ribbed, vertical boards; Module 1 South wall: Full-wall cladding, Venge, ARLINE AR14514 fine-ribbed, vertical boards; Module 1 West wall: Full-wall cladding, Venge, ARLINE AR14514 fine-ribbed, vertical boards; Module 2 North wall: Full-wall cladding, Venge, ARLINE AR14514 fine-ribbed, vertical boards; Module 2 East wall: Full-wall cladding, Venge, ARLINE AR14514 fine-ribbed, vertical boards; Module 2 South wall: Full-wall cladding, Venge, ARLINE AR14514 fine-ribbed, vertical boards. Cladding prices are quote-only and must not be itemised in public copy. Module 1 P600 (ground floor) exposed walls — north (5.9m side): Large window + Large window; south (5.9m side): Small window + Glazed door (single) + Small window; west (2.2m end): Full-size window. Module 2 P600 (ground floor) exposed walls — north (5.9m side): Large window + Large window; east (2.2m end): Full-size window; south (5.9m side): Large window + Large window. Requested fit-out to confirm in the final layout: WC. Bathroom walls use 40mm waterproof insulated sandwich panels as standard, with hygienic panels optional; shower rooms use wet-room PVC flooring. Plaster applies outside bathroom walls when selected. Elsewhere insulated sandwich panels are the included wall finish; other finishes are selected for the final room layout.
