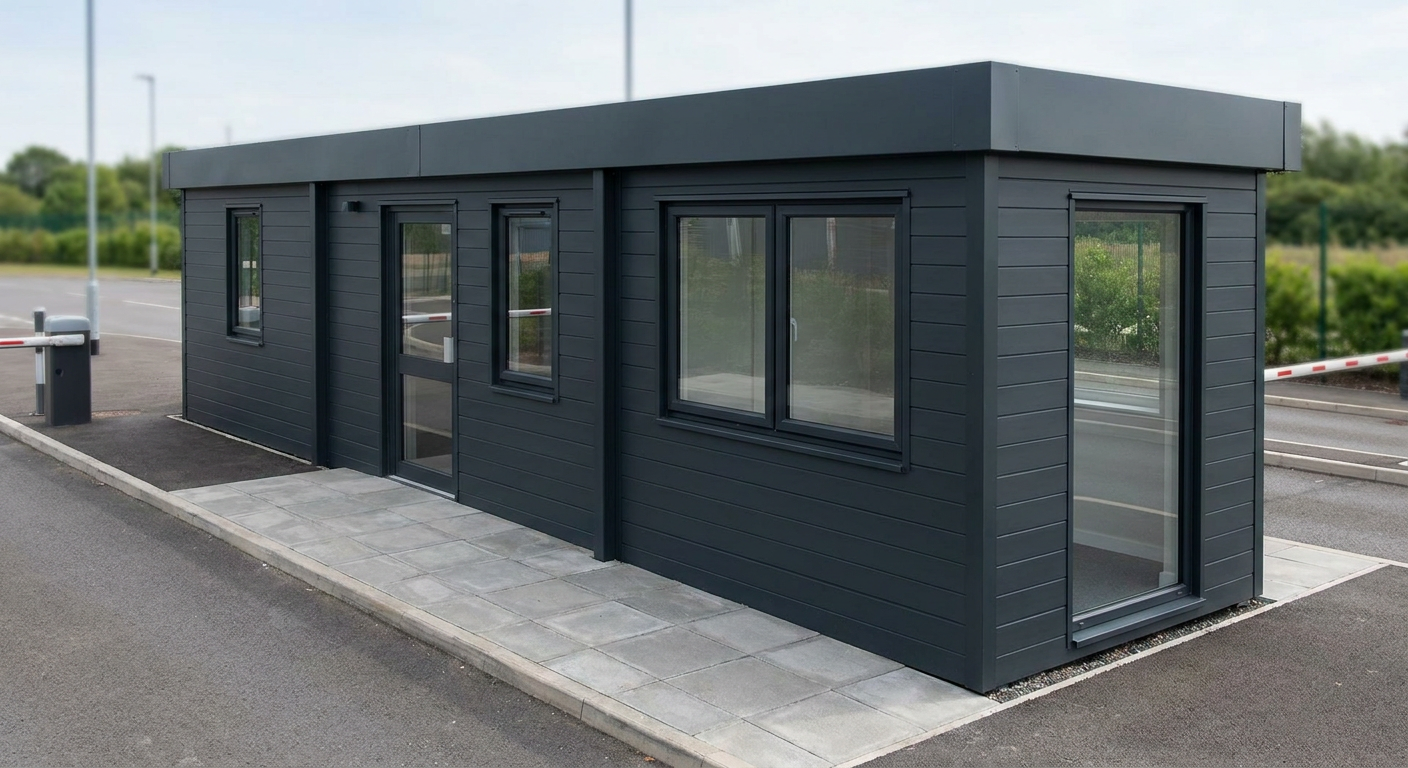

2-Module P600 Gatehouse with WC Provision
This single-storey gatehouse combines two linked P600 modules in a straight run, providing approximately 23 m² of usable internal space. It suits security and site control applications at logistics parks, schools and gated developments.
£27,800ex VAT
£33,360 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.
Made to order. Build and delivery timing will be confirmed with your quotation.
Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.
Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.
- Modules
- 2
- Storeys
- 1
- Floor area
- 23 m²
- Footprint
- 11.8m x 2.2m footprint
Design highlights
- Two linked P600 modules in a single-storey run
- 11.8m x 2.2m overall footprint
- Approximately 23 m² usable internal floor area
- Glazed entrance door with windows across exposed elevations
- Anthracite Smooth plank AR16016 external cladding
- Flat roof with approximately 120mm steel-frame fascia
- Requested WC layout subject to final confirmation
Linked P600 layout
This configuration places two steel-framed P600 modules side by side in a straight run, creating a single-storey gatehouse with an overall footprint of 11.8m x 2.2m. The combined usable internal floor area is approximately 23 m². Each module measures 5.9m x 2.2m externally, with an approximate usable interior of 5.7m x 2.0m.
Both modules have an external height of 2.40m and an internal ceiling height of 2.16m. The joined arrangement provides a longer internal plan suited to a staffed security point, access monitoring or day-to-day site control. It is configured specifically for the gatehouse use case rather than as a generic office or welfare building.
Windows and entrance
Module 1 forms the western end of the run. Its exposed north wall has two large windows, while the south wall has a single glazed door positioned with one small window on either side. The exposed west end has one full-size window.
Module 2 continues the building to the east. Its exposed north wall has two large windows, and its south wall also has two large windows. The exposed east end has one full-size window. These are the selected openings for this stored configuration; final fixture details and finishes are confirmed through the project quotation.
Anthracite external finish
All exposed walls are specified with Smooth plank cladding, reference AR16016, fitted between the frame in Antrasit (Anthracite). This applies to the north, south and west elevations of Module 1 and the north, south and east elevations of Module 2. Cladding is treated as part of the configured quotation and is not separately itemised in public pricing.
The building has a flat roof with an approximately 120mm steel-frame fascia. No additional fascia is selected for this design.
Requested internal fit-out
A WC has been requested, with its position and final arrangement to be confirmed in the completed internal layout. Any toilet or shower room requires hygienic wall panels and wet-room PVC flooring. These requirements apply to the relevant wet-room area and should not be read as a confirmed room location or as a building-wide floor specification.
Elsewhere, the included internal wall finish is white, lightly ribbed insulated sandwich panelling. Plasterboard and other hygienic-panel styles are selectable alternatives or upgrades. Room-by-room flooring choices can also be selected, but no additional flooring type is claimed as included in this stored design.
Price, transport and siting
The indicative configured estimate is £27,800 excluding VAT, or £33,360 including VAT, subject to quotation. Transport is priced according to the delivery postcode and site access. Offloading or cranage, groundworks and other site-specific works are separate.
Final siting is subject to survey, including confirmation of access, ground conditions and the works needed for the proposed location. Project details, internal arrangement and selectable finishes can be reviewed through the building configurator before the quotation is finalised.
Full specification
2 P600 modules (single storey), run layout, 11.8m x 2.2m footprint, approx 23 m2 internal usable floor area. Each module is 2.40m externally with a 2.16m internal ceiling; its approximate usable interior is 5.7m x 2.0m. Exterior: Smooth plank (AR16016) applied to exposed walls between the frame in Antrasit (Anthracite). Roof: flat roof with approximately 120mm steel-frame fascia (no extra fascia). Selected outside walls: Module 1 North wall: Full-wall cladding, Antrasit (Anthracite), Smooth plank (AR16016); Module 1 South wall: Full-wall cladding, Antrasit (Anthracite), Smooth plank (AR16016); Module 1 West wall: Full-wall cladding, Antrasit (Anthracite), Smooth plank (AR16016); Module 2 North wall: Full-wall cladding, Antrasit (Anthracite), Smooth plank (AR16016); Module 2 East wall: Full-wall cladding, Antrasit (Anthracite), Smooth plank (AR16016); Module 2 South wall: Full-wall cladding, Antrasit (Anthracite), Smooth plank (AR16016). Cladding prices are quote-only and must not be itemised in public copy. Module 1 P600 (ground floor) exposed walls — north (5.9m side): Large window + Large window; south (5.9m side): Small window + Glazed door (single) + Small window; west (2.2m end): Full-size window. Module 2 P600 (ground floor) exposed walls — north (5.9m side): Large window + Large window; east (2.2m end): Full-size window; south (5.9m side): Large window + Large window. Requested fit-out to confirm in the final layout: WC. Toilet/shower rooms require hygienic wall panels and wet-room PVC flooring; elsewhere white lightly ribbed insulated sandwich panels are the included wall finish. Plasterboard, other hygienic-panel styles and room-by-room flooring are selectable upgrades/choices, not included claims unless specified.
