Modular Offices

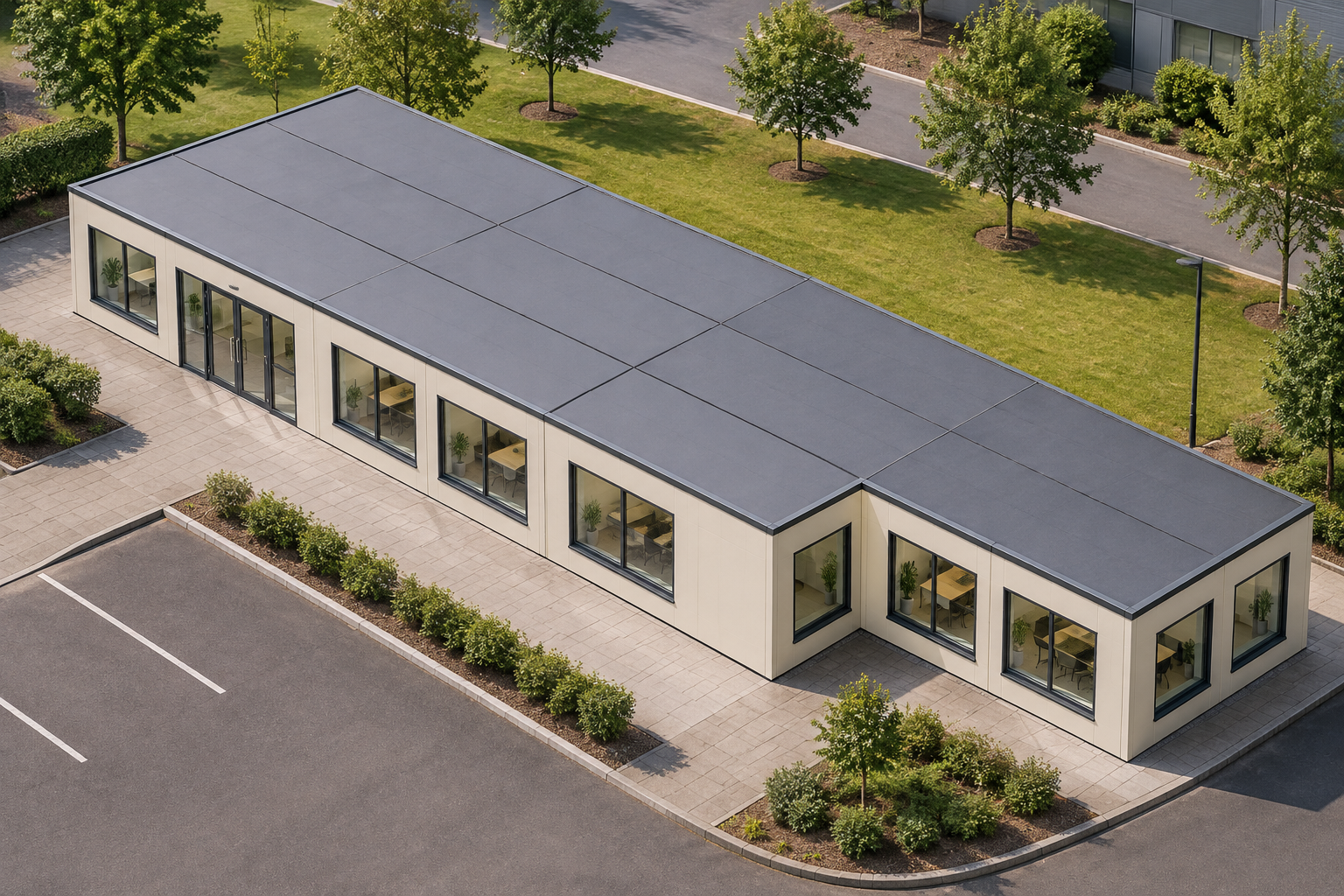

11-Module Single-Storey Modular Office
This single-storey modular office combines 11 P600 modules in a grid layout, providing approx. 125.40 m² usable internal area before partitions. It suits growing businesses seeking permanent office space quickly within the Offices & Commercial sector.
£141,900ex VAT
£170,280 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.
Made to order. Build and delivery timing will be confirmed with your quotation.
Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.
Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.
- Modules
- 11
- Storeys
- 1
- Approx. usable internal area
- 125.4 m² before partitions
- External dimensions
- 23.6m x 6.6m footprint
Design highlights
- 11 linked P600 modules in a single-storey grid
- 23.6m x 6.6m overall footprint
- approx. 125.40 m² usable internal area before partitions
- 22 large windows and one double entrance door with glazing
- Cream RAL 9001 vertical insulated exterior panels
- Flat roof with approximately 120mm steel-frame fascia
- Requested kitchenette and WC for final layout confirmation
Single-storey P600 office layout
This modular office is formed from 11 steel-framed P600 modules arranged as a single-storey grid. The complete configuration has a footprint of 23.6m x 6.6m and provides approx. 125.40 m² usable internal area before partitions. Each module measures 5.9m x 2.2m, with an external height of 2.40m, an internal ceiling height of 2.16m and an approximate usable interior of 5.7m x 2.0m.
The linked arrangement creates a substantial office building for growing organisations that need additional permanent workspace. Its scale makes it suitable for open working areas, cellular offices and shared facilities, subject to the final internal plan. This configuration is intended for the Offices & Commercial sector and can be viewed alongside other modular office buildings.
Windows and entrance arrangement
The north elevation has two large windows on each of Modules 1, 2, 3 and 4. Module 1 also contains the building’s double entrance door with glazing, positioned between its two north-facing windows. Additional large windows are specified on the west end of Module 1, the east end of Module 4 and the west end of Module 5.
On the opposite elevation, Modules 8, 9, 10 and 11 each have two large south-facing windows. Modules 8 and 11 also have a large window on their east ends, while Module 9 has a large window on its west end. No exposed-wall openings are specified for Modules 6 and 7 in the stored design. In total, the configuration records 22 large windows and one double entrance door with glazing.
Selected external treatment
The exterior uses included vertical insulated sandwich panels in Cream, RAL 9001. The selected exposed walls use standard insulated panels with a smooth Cream finish: the north and west walls of Module 1; north walls of Modules 2 and 3; north and east walls of Module 4; west wall of Module 5; east and south walls of Module 8; south and west walls of Module 9; south wall of Module 10; and east and south walls of Module 11.
A flat roof is specified, finished with the approximately 120mm steel-frame fascia rather than an additional fascia treatment. Final colours, interfaces and visible finishing details are confirmed through the project quotation.
Requested internal fit-out
A kitchenette and WC are requested for confirmation within the final layout. Elsewhere, the included internal wall finish is formed from white, lightly ribbed insulated sandwich panels. Toilet or shower rooms require hygienic wall panels and wet-room PVC flooring, so the treatment of the requested WC must be confirmed as part of the room design.
Plasterboard, alternative hygienic-panel styles and room-by-room flooring selections remain selectable choices or upgrades rather than included features of this stored configuration. The internal arrangement, kitchenette details, sanitary fittings and final finishes will therefore be defined by quotation. The design can be reviewed through the building configuration service.
Price, transport and siting
The indicative configured estimate is £141,900 excluding VAT, or £170,280 including VAT, subject to quotation. Transport is priced according to the delivery postcode and site access. Offloading or cranage, groundworks and other site-specific works are separate. Final siting, access requirements, levels, foundations and connections remain subject to a site survey and project-specific assessment.
Full specification
11 P600 modules (single storey), grid layout, 23.6m x 6.6m footprint, approx. 125.40 m² usable internal area before partitions. Each module is 2.40m externally with a 2.16m internal ceiling; its approximate usable interior is 5.7m x 2.0m. Exterior: included vertical insulated sandwich panels in Cream (RAL 9001). Roof: flat roof with approximately 120mm steel-frame fascia (no extra fascia). Selected outside walls: Module 1 North wall: Standard insulated panel, Cream (RAL 9001), Smooth; Module 1 West wall: Standard insulated panel, Cream (RAL 9001), Smooth; Module 2 North wall: Standard insulated panel, Cream (RAL 9001), Smooth; Module 3 North wall: Standard insulated panel, Cream (RAL 9001), Smooth; Module 4 North wall: Standard insulated panel, Cream (RAL 9001), Smooth; Module 4 East wall: Standard insulated panel, Cream (RAL 9001), Smooth; Module 5 West wall: Standard insulated panel, Cream (RAL 9001), Smooth; Module 8 East wall: Standard insulated panel, Cream (RAL 9001), Smooth; Module 8 South wall: Standard insulated panel, Cream (RAL 9001), Smooth; Module 9 South wall: Standard insulated panel, Cream (RAL 9001), Smooth; Module 9 West wall: Standard insulated panel, Cream (RAL 9001), Smooth; Module 10 South wall: Standard insulated panel, Cream (RAL 9001), Smooth; Module 11 East wall: Standard insulated panel, Cream (RAL 9001), Smooth; Module 11 South wall: Standard insulated panel, Cream (RAL 9001), Smooth. Cladding prices are quote-only and must not be itemised in public copy. Module 1 P600 (ground floor) exposed walls — north (5.9m side): Large window + Glazed door (double) + Large window; west (2.2m end): Large window. Module 2 P600 (ground floor) exposed walls — north (5.9m side): Large window + Large window. Module 3 P600 (ground floor) exposed walls — north (5.9m side): Large window + Large window. Module 4 P600 (ground floor) exposed walls — north (5.9m side): Large window + Large window; east (2.2m end): Large window. Module 5 P600 (ground floor) exposed walls — west (2.2m end): Large window. Module 6 P600 (ground floor) exposed walls — . Module 7 P600 (ground floor) exposed walls — . Module 8 P600 (ground floor) exposed walls — east (2.2m end): Large window; south (5.9m side): Large window + Large window. Module 9 P600 (ground floor) exposed walls — south (5.9m side): Large window + Large window; west (2.2m end): Large window. Module 10 P600 (ground floor) exposed walls — south (5.9m side): Large window + Large window. Module 11 P600 (ground floor) exposed walls — east (2.2m end): Large window; south (5.9m side): Large window + Large window. Requested fit-out to confirm in the final layout: kitchenette, WC. Toilet/shower rooms require hygienic wall panels and wet-room PVC flooring; elsewhere white lightly ribbed insulated sandwich panels are the included wall finish. Plasterboard, other hygienic-panel styles and room-by-room flooring are selectable upgrades/choices, not included claims unless specified.
