Modular Clubhouses

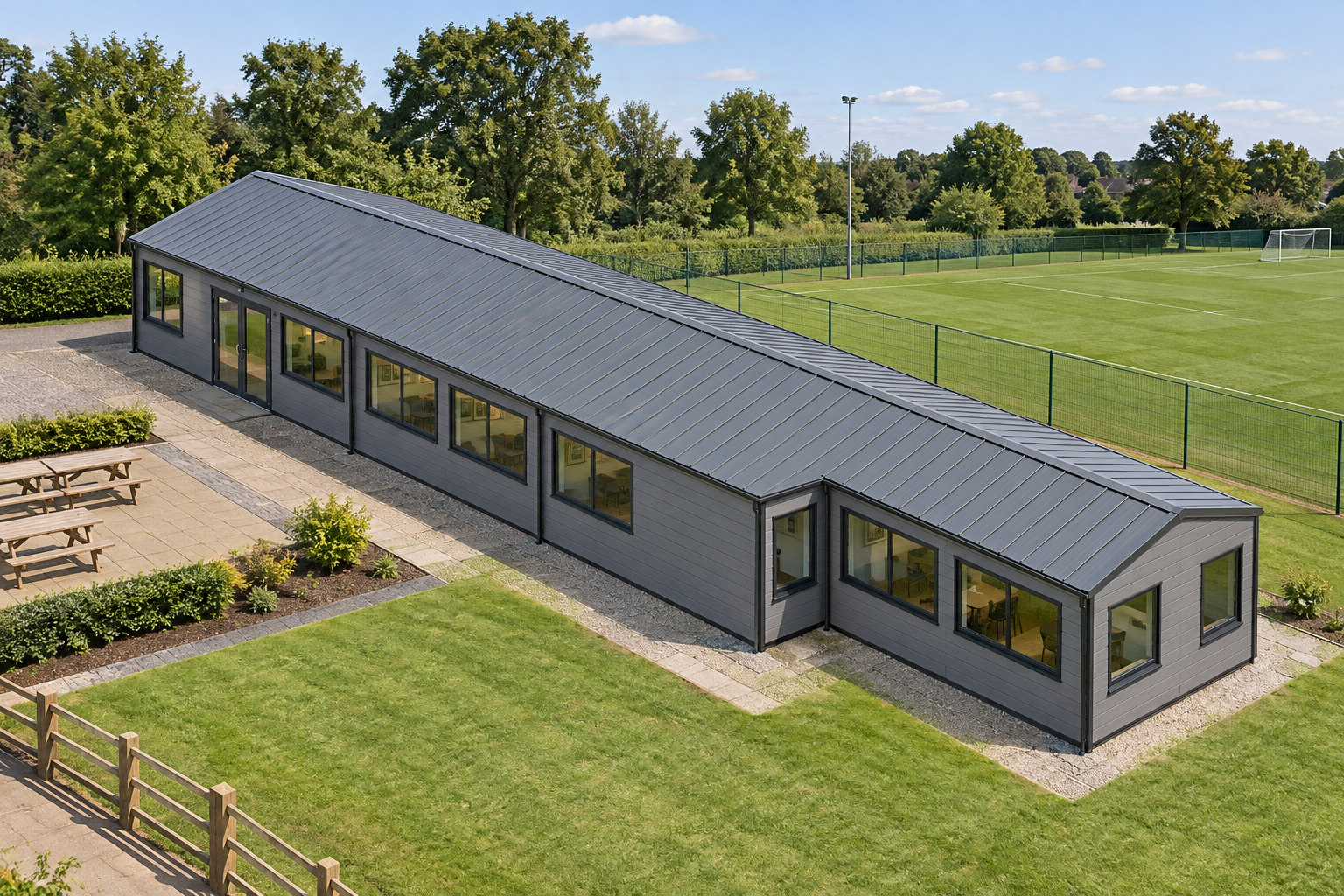

11-Module Single-Storey Modular Clubhouse
This single-storey modular clubhouse combines 11 P600 modules to provide approximately 125 m² of usable internal space. It is configured for sports clubs and community organisations requiring a spacious Sport & Leisure facility with WC and shower provision requested.
£161,300ex VAT
£193,560 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.
Made to order. Build and delivery timing will be confirmed with your quotation.
Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.
Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.
- Modules
- 11
- Storeys
- 1
- Floor area
- 125 m²
- Footprint
- 23.6m x 6.6m footprint
Design highlights
- 11 linked P600 modules in a single-storey grid
- 23.6m x 6.6m overall footprint
- Approximately 125 m² usable internal floor area
- Dual-pitch apex roof
- Grey Smooth plank AR16016 finish on exposed walls
- Large perimeter windows and a glazed double-door entrance
- WC and shower requested, subject to final layout confirmation
Single-storey grid configuration
This modular clubhouse uses 11 steel-framed P600 modules arranged in a single-storey grid layout. The complete configuration has a footprint of 23.6m x 6.6m and provides approximately 125 m² of usable internal floor area. Each module measures 5.9m x 2.2m, with an external height of 2.40m, an internal ceiling height of 2.16m and an approximate usable interior of 5.7m x 2.0m.
The linked arrangement creates a broad clubhouse format suited to sports clubs and community organisations. The final internal plan, including circulation and room divisions, remains subject to confirmation. Further context for this type of building is available on the modular clubhouses page.
Windows and entrance arrangement
The north elevation spans Modules 1 to 4. Module 1 has two large windows with a double-door glazed entrance between them, while Modules 2, 3 and 4 each have two large windows. Full-size end windows are specified on the west wall of Module 1 and the east wall of Module 4.
On the south elevation, Modules 8, 9, 10 and 11 each have two large windows. Additional full-size end windows are positioned on the east wall of Module 8, west wall of Module 9 and east wall of Module 11. Module 5 also has a full-size window on its exposed west end. Together, these selected openings serve the exposed perimeter of the stored grid design.
External finish and roof
The exposed external walls are finished between the frame with Smooth plank cladding, reference AR16016, in Gri (Grey). This finish is selected for the north walls of Modules 1 to 4, the south walls of Modules 8 to 11 and the relevant exposed end walls of Modules 1, 4, 5, 8, 9 and 11. The building is completed with a dual-pitch apex roof. Final fixture and finish details are confirmed by quotation.
Requested clubhouse facilities
A WC and shower have been requested for the final internal layout. Their positions and detailed room arrangement still require confirmation. Toilet and shower rooms require hygienic wall panels and wet-room PVC flooring, reflecting the demands of these wet areas. These provisions should therefore be read as requested fit-out requirements rather than a confirmed room plan.
Elsewhere, the included internal wall finish is formed from white, lightly ribbed insulated sandwich panels. Plasterboard and other hygienic-panel styles are selectable alternatives or upgrades. Room-by-room flooring choices have not been fixed in the stored design and must be agreed as part of the final specification. Configuration details can be reviewed through the building configurator.
Estimate and site requirements
The indicative configured estimate is £161,300 excluding VAT, or £193,560 including VAT, and is subject to quotation. Transport is priced separately according to the delivery postcode and site access. Offloading or cranage, groundworks and other site-specific works are also separate from this estimate.
Placement and access are subject to site survey and the requirements of the final location. The survey and quotation process will establish transport access, offloading needs, ground conditions, site works and the final scope of the WC, shower, finishes and internal layout.
Full specification
11 P600 modules (single storey), grid layout, 23.6m x 6.6m footprint, approx 125 m2 internal usable floor area. Each module is 2.40m externally with a 2.16m internal ceiling; its approximate usable interior is 5.7m x 2.0m. Exterior: Smooth plank (AR16016) applied to exposed walls between the frame in Gri (Grey). Roof: dual-pitch (apex) roof. Selected outside walls: Module 1 North wall: Full-wall cladding, Gri (Grey), Smooth plank (AR16016); Module 1 West wall: Full-wall cladding, Gri (Grey), Smooth plank (AR16016); Module 2 North wall: Full-wall cladding, Gri (Grey), Smooth plank (AR16016); Module 3 North wall: Full-wall cladding, Gri (Grey), Smooth plank (AR16016); Module 4 North wall: Full-wall cladding, Gri (Grey), Smooth plank (AR16016); Module 4 East wall: Full-wall cladding, Gri (Grey), Smooth plank (AR16016); Module 5 West wall: Full-wall cladding, Gri (Grey), Smooth plank (AR16016); Module 8 East wall: Full-wall cladding, Gri (Grey), Smooth plank (AR16016); Module 8 South wall: Full-wall cladding, Gri (Grey), Smooth plank (AR16016); Module 9 South wall: Full-wall cladding, Gri (Grey), Smooth plank (AR16016); Module 9 West wall: Full-wall cladding, Gri (Grey), Smooth plank (AR16016); Module 10 South wall: Full-wall cladding, Gri (Grey), Smooth plank (AR16016); Module 11 East wall: Full-wall cladding, Gri (Grey), Smooth plank (AR16016); Module 11 South wall: Full-wall cladding, Gri (Grey), Smooth plank (AR16016). Cladding prices are quote-only and must not be itemised in public copy. Module 1 P600 (ground floor) exposed walls — north (5.9m side): Large window + Glazed door (double) + Large window; west (2.2m end): Full-size window. Module 2 P600 (ground floor) exposed walls — north (5.9m side): Large window + Large window. Module 3 P600 (ground floor) exposed walls — north (5.9m side): Large window + Large window. Module 4 P600 (ground floor) exposed walls — north (5.9m side): Large window + Large window; east (2.2m end): Full-size window. Module 5 P600 (ground floor) exposed walls — west (2.2m end): Full-size window. Module 6 P600 (ground floor) exposed walls — . Module 7 P600 (ground floor) exposed walls — . Module 8 P600 (ground floor) exposed walls — east (2.2m end): Full-size window; south (5.9m side): Large window + Large window. Module 9 P600 (ground floor) exposed walls — south (5.9m side): Large window + Large window; west (2.2m end): Full-size window. Module 10 P600 (ground floor) exposed walls — south (5.9m side): Large window + Large window. Module 11 P600 (ground floor) exposed walls — east (2.2m end): Full-size window; south (5.9m side): Large window + Large window. Requested fit-out to confirm in the final layout: WC, shower. Toilet/shower rooms require hygienic wall panels and wet-room PVC flooring; elsewhere white lightly ribbed insulated sandwich panels are the included wall finish. Plasterboard, other hygienic-panel styles and room-by-room flooring are selectable upgrades/choices, not included claims unless specified.
