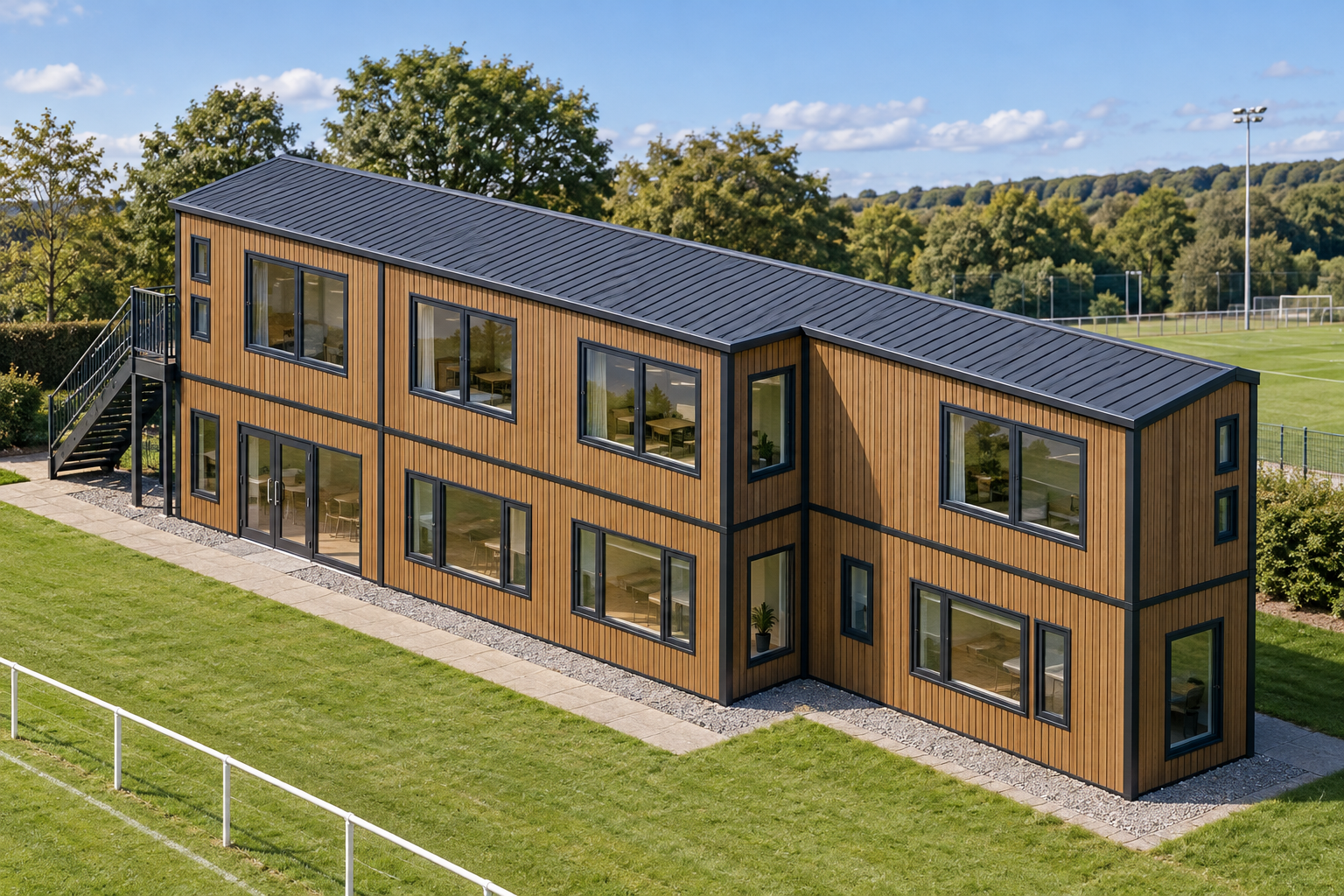

Two-storey modular clubhouse beside a community sports ground. — The ten-module, two-storey P600 clubhouse is configured for sports clubs and community organisations.

Modular Clubhouses

10-Module Two-Storey Clubhouse with External Staircase

This two-storey modular clubhouse combines ten P600 modules with an external steel staircase and approximately 114 m² of usable internal area before partitions. It is configured for sports clubs and community organisations seeking substantial clubhouse accommodation across two levels.

£143,200ex VAT

£171,840 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.

Made to order. Build and delivery timing will be confirmed with your quotation.

Call about this item

PLACE ORDER

Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.

Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.

Change the layout in the configurator

Modules: 10
Storeys: 2
Approx. usable internal area: 114 m² before partitions
External dimensions: 17.7m x 4.4m footprint

Design highlights

Ten P600 steel-framed modules across two storeys
17.7m x 4.4m external footprint
Approximately 114 m² usable internal area before partitions
Vertical ARLINE AR16016 grooved plank cladding in Teak
Dual-pitch apex roof
External steel staircase to the first floor
Requested kitchenette, WC and shower fit-out

Ten-module, two-storey configuration

This modular clubhouse uses ten steel-framed P600 modules arranged across two storeys, with five modules on the ground floor and five on the first floor. The two-storey-terrace layout has an external footprint of 17.7m x 4.4m and provides approximately 114 m² of usable internal area before partitions, based on a conservative per-module allowance. Connected open layouts may provide more usable space.

Each P600 module measures 5.9m x 2.2m. Its approximate usable interior is 5.7m x 2.0m, with an external module height of 2.40m and an internal ceiling height of 2.16m. An external steel staircase provides access to the first floor. The final circulation and room arrangement will be confirmed as part of the detailed layout.

Windows and entrance arrangement

The ground-floor north elevation includes a double glazed door positioned between two large windows in Module 1. Module 2 has one large window between two small windows, while Module 3 repeats this arrangement on both its north and south sides. Modules 4 and 5 also use the small-window, large-window and small-window pattern on their exposed south walls.

Large windows are fitted to the exposed ground-floor end walls of Modules 1, 3, 4 and 5. On the first floor, the exposed north and south 5.9m walls each have two large windows. Exposed first-floor end walls use pairs of small windows. This extensive arrangement of openings serves both levels of the stored configuration, although final fixture details are confirmed by quotation.

Teak exterior and apex roof

All selected exposed outside walls are finished between the structural frame with full-wall ARLINE AR16016 grooved plank cladding in Teak. The boards are arranged vertically across the specified north, south, east and west elevations. The clubhouse is topped by a dual-pitch apex roof, giving the two-storey structure a clearly defined roofline.

This configuration is intended for the Sport & Leisure sector and can support the day-to-day needs of clubs and community groups. Further information about this application is available on the modular clubhouses page.

Requested internal fit-out

The requested fit-out includes a kitchenette, WC and shower, with their exact positions to be confirmed in the final room layout. Bathroom walls use 40mm waterproof insulated sandwich panels as standard, with hygienic panels available as an option. Shower rooms use wet-room PVC flooring. Where selected, plaster is applied outside the bathroom walls.

Elsewhere, insulated sandwich panels are the included internal wall finish. Other wall and floor finishes depend on the final room arrangement and selections recorded in the quotation. Illustrated fixtures, finishes and furniture should not be treated as guaranteed inclusions. Layout and finish selections can be developed through the building configurator.

Estimate, transport and siting

The indicative configured estimate is £143,200 excluding VAT, or £171,840 including VAT, subject to quotation. Transport is priced separately according to the delivery postcode and site access. Offloading or cranage, groundworks and other site-specific works are also separate.

Siting remains subject to a site survey and confirmation of access, ground conditions and project-specific requirements. The quotation will confirm the final layout, openings, fit-out details, finishes and associated site costs for this exact clubhouse configuration.

Full specification

10 P600 modules (two storeys), two-storey-terrace layout, 17.7m x 4.4m footprint, approx 114 m2 usable internal area before partitions (conservative per-module allowance; connected open layouts may provide more space). Each module is 2.40m externally with a 2.16m internal ceiling; its approximate usable interior is 5.7m x 2.0m.
Exterior: ARLINE AR16016 grooved plank applied to exposed walls between the frame in Teak. Roof: dual-pitch (apex) roof.
Selected outside walls: Module 1 North wall: Full-wall cladding, Teak, ARLINE AR16016 grooved plank, vertical boards; Module 1 West wall: Full-wall cladding, Teak, ARLINE AR16016 grooved plank, vertical boards; Module 2 North wall: Full-wall cladding, Teak, ARLINE AR16016 grooved plank, vertical boards; Module 3 North wall: Full-wall cladding, Teak, ARLINE AR16016 grooved plank, vertical boards; Module 3 East wall: Full-wall cladding, Teak, ARLINE AR16016 grooved plank, vertical boards; Module 3 South wall: Full-wall cladding, Teak, ARLINE AR16016 grooved plank, vertical boards; Module 4 South wall: Full-wall cladding, Teak, ARLINE AR16016 grooved plank, vertical boards; Module 4 West wall: Full-wall cladding, Teak, ARLINE AR16016 grooved plank, vertical boards; Module 5 East wall: Full-wall cladding, Teak, ARLINE AR16016 grooved plank, vertical boards; Module 5 South wall: Full-wall cladding, Teak, ARLINE AR16016 grooved plank, vertical boards; Module 6 North wall: Full-wall cladding, Teak, ARLINE AR16016 grooved plank, vertical boards; Module 6 West wall: Full-wall cladding, Teak, ARLINE AR16016 grooved plank, vertical boards; Module 7 North wall: Full-wall cladding, Teak, ARLINE AR16016 grooved plank, vertical boards; Module 8 North wall: Full-wall cladding, Teak, ARLINE AR16016 grooved plank, vertical boards; Module 8 East wall: Full-wall cladding, Teak, ARLINE AR16016 grooved plank, vertical boards; Module 8 South wall: Full-wall cladding, Teak, ARLINE AR16016 grooved plank, vertical boards; Module 9 South wall: Full-wall cladding, Teak, ARLINE AR16016 grooved plank, vertical boards; Module 9 West wall: Full-wall cladding, Teak, ARLINE AR16016 grooved plank, vertical boards; Module 10 East wall: Full-wall cladding, Teak, ARLINE AR16016 grooved plank, vertical boards; Module 10 South wall: Full-wall cladding, Teak, ARLINE AR16016 grooved plank, vertical boards. Cladding prices are quote-only and must not be itemised in public copy.
Module 1 P600 (ground floor) exposed walls — north (5.9m side): Large window + Glazed door (double) + Large window; west (2.2m end): Large window.
Module 2 P600 (ground floor) exposed walls — north (5.9m side): Small window + Large window + Small window.
Module 3 P600 (ground floor) exposed walls — north (5.9m side): Small window + Large window + Small window; east (2.2m end): Large window; south (5.9m side): Small window + Large window + Small window.
Module 4 P600 (ground floor) exposed walls — south (5.9m side): Small window + Large window + Small window; west (2.2m end): Large window.
Module 5 P600 (ground floor) exposed walls — east (2.2m end): Large window; south (5.9m side): Small window + Large window + Small window.
Module 6 P600 (first floor) exposed walls — north (5.9m side): Large window + Large window; west (2.2m end): Small window + Small window.
Module 7 P600 (first floor) exposed walls — north (5.9m side): Large window + Large window.
Module 8 P600 (first floor) exposed walls — north (5.9m side): Large window + Large window; east (2.2m end): Small window + Small window; south (5.9m side): Large window + Large window.
Module 9 P600 (first floor) exposed walls — south (5.9m side): Large window + Large window; west (2.2m end): Small window + Small window.
Module 10 P600 (first floor) exposed walls — east (2.2m end): Small window + Small window; south (5.9m side): Large window + Large window.
External steel staircase up the outside of the building.
Requested fit-out to confirm in the final layout: kitchenette, WC, shower. Bathroom walls use 40mm waterproof insulated sandwich panels as standard, with hygienic panels optional; shower rooms use wet-room PVC flooring. Plaster applies outside bathroom walls when selected. Elsewhere insulated sandwich panels are the included wall finish; other finishes are selected for the final room layout.
