Modular Gyms
Wide 4-Module P600 Modular Gym

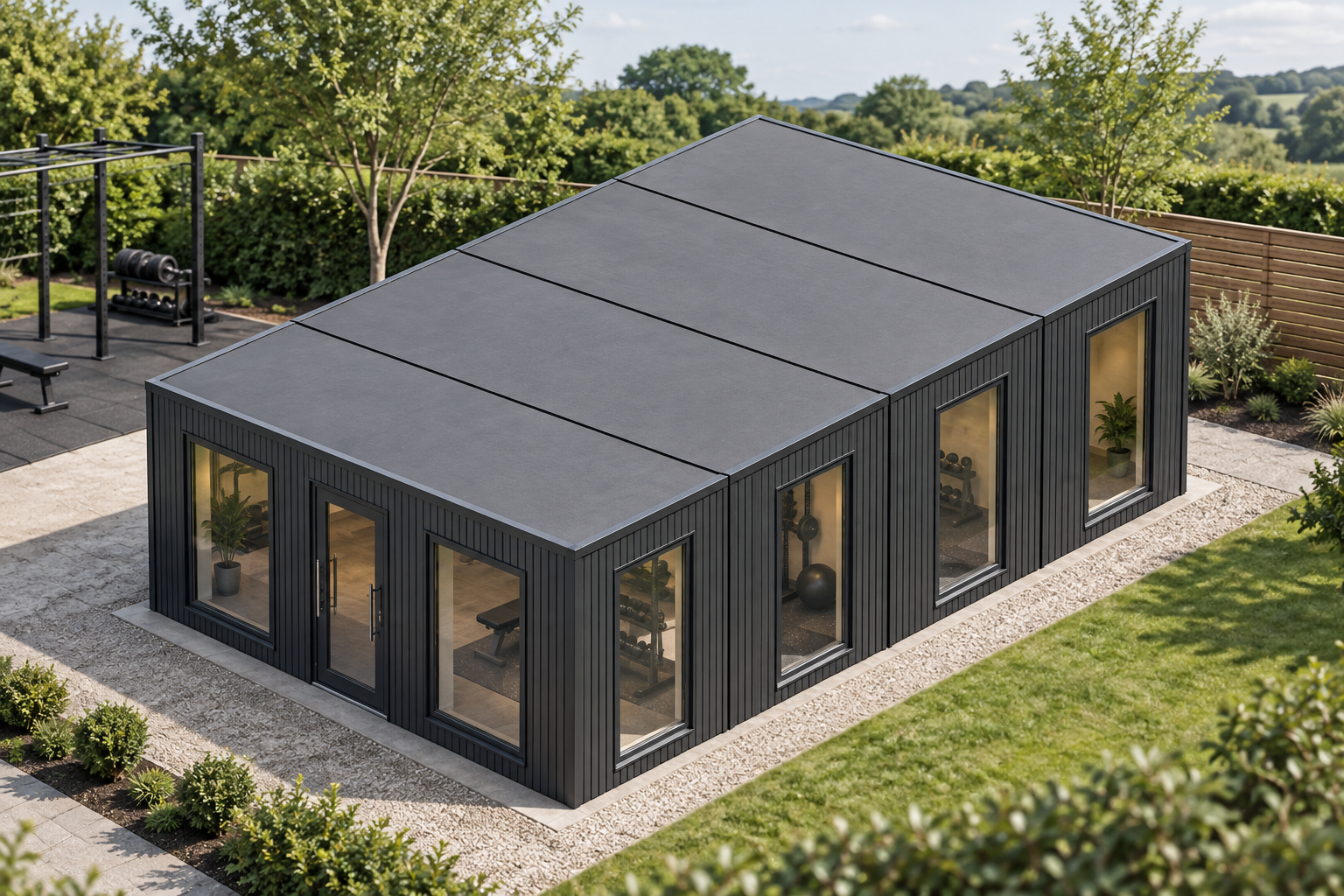

This single-storey modular gym combines four P600 modules in a wide 5.9m x 8.8m configuration, with a requested WC and shower. It suits home gym owners and small personal-training studios seeking a generous, well-glazed training space.
£54,000ex VAT
£64,800 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.
Made to order. Build and delivery timing will be confirmed with your quotation.
Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.
Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.
- Modules
- 4
- Storeys
- 1
- Approx. usable internal area
- 45.6 m² before partitions
- External dimensions
- 5.9m x 8.8m footprint
Design highlights
- Four P600 modules in a single-storey wide layout
- 5.9m x 8.8m external footprint
- Approx. 45.6 m² usable internal area before partitions
- Single glazed door with large windows to Module 1
- Full-size windows at every east and west module end
- Anthracite ARLINE 24136 vertical slatted cladding
- Requested WC and shower, subject to final layout
Four-module configuration
This stored design uses four P600 steel-framed modules arranged side by side on one storey. Each module measures 5.9m x 2.2m externally, creating an overall external footprint of 5.9m x 8.8m. The configuration provides approximately 45.6 m² of usable internal area before partitions, based on a conservative per-module allowance. Connected open layouts may provide more space.
Each module is 2.40m high externally, with a 2.16m internal ceiling. The approximate usable interior of each individual module is 5.7m x 2.0m. The wide arrangement is intended for a practical gym layout, while the final position of internal connections, partitions, equipment and service areas is confirmed during quotation. This configuration is designed for the Sport & Leisure sector and can be viewed alongside other modular gyms.
Windows and glazed access
Module 1 forms the north side of the building. Its exposed 5.9m north wall has a large window, a single glazed door and a second large window. Its east and west 2.2m ends each have a full-size window.
Modules 2 and 3 each have a full-size window in both their east and west ends. Module 4 forms the south side and also has full-size windows in its east and west ends. Its exposed 5.9m south wall has a small window, a large window and a second small window. These openings are specific to this stored P600 configuration.
Anthracite slatted exterior
The selected exposed walls are finished with Anthracite ARLINE 24136 slatted cladding, using vertical boards applied between the frame. The clad walls comprise the north wall of Module 1, the south wall of Module 4, and the east and west ends of all four modules. Cladding is priced as part of the final quotation and is not itemised publicly.
The building has a flat roof with an approximately 120mm steel-frame fascia. No additional fascia is specified in this design.
Requested WC and shower
A WC and shower have been requested, with their positions and the resulting partitions to be confirmed in the final room layout. Bathroom walls use 40mm waterproof insulated sandwich panels as standard, while hygienic panels are available as an optional selection. The shower room uses wet-room PVC flooring.
Outside the bathroom, plaster applies where that finish is selected. Elsewhere, insulated sandwich panels are the included wall finish, with any alternative wall or floor finishes chosen to suit the confirmed room arrangement. Illustrated fixtures and finishes should be treated as indicative until the quotation records the final specification.
Estimate and site requirements
The indicative configured estimate is £54,000 excluding VAT, or £64,800 including VAT, subject to quotation. Transport is priced separately according to the delivery postcode and site access. Offloading or cranage, groundworks and other site-specific works are also separate.
Siting remains subject to a site survey, including access, levels, ground conditions and the requirements of the selected location. Final dimensions, fit-out details, finishes, logistics and costs are confirmed in the project quotation.
Full specification
4 P600 modules (single storey), wide layout, 5.9m x 8.8m footprint, approx 45.6 m2 usable internal area before partitions (conservative per-module allowance; connected open layouts may provide more space). Each module is 2.40m externally with a 2.16m internal ceiling; its approximate usable interior is 5.7m x 2.0m. Exterior: ARLINE 24136 slatted applied to exposed walls between the frame in Anthracite. Roof: flat roof with approximately 120mm steel-frame fascia (no extra fascia). Selected outside walls: Module 1 North wall: Full-wall cladding, Anthracite, ARLINE 24136 slatted, vertical boards; Module 1 East wall: Full-wall cladding, Anthracite, ARLINE 24136 slatted, vertical boards; Module 1 West wall: Full-wall cladding, Anthracite, ARLINE 24136 slatted, vertical boards; Module 2 East wall: Full-wall cladding, Anthracite, ARLINE 24136 slatted, vertical boards; Module 2 West wall: Full-wall cladding, Anthracite, ARLINE 24136 slatted, vertical boards; Module 3 East wall: Full-wall cladding, Anthracite, ARLINE 24136 slatted, vertical boards; Module 3 West wall: Full-wall cladding, Anthracite, ARLINE 24136 slatted, vertical boards; Module 4 East wall: Full-wall cladding, Anthracite, ARLINE 24136 slatted, vertical boards; Module 4 South wall: Full-wall cladding, Anthracite, ARLINE 24136 slatted, vertical boards; Module 4 West wall: Full-wall cladding, Anthracite, ARLINE 24136 slatted, vertical boards. Cladding prices are quote-only and must not be itemised in public copy. Module 1 P600 (ground floor) exposed walls — north (5.9m side): Large window + Glazed door (single) + Large window; east (2.2m end): Full-size window; west (2.2m end): Full-size window. Module 2 P600 (ground floor) exposed walls — east (2.2m end): Full-size window; west (2.2m end): Full-size window. Module 3 P600 (ground floor) exposed walls — east (2.2m end): Full-size window; west (2.2m end): Full-size window. Module 4 P600 (ground floor) exposed walls — east (2.2m end): Full-size window; south (5.9m side): Small window + Large window + Small window; west (2.2m end): Full-size window. Requested fit-out to confirm in the final layout: WC, shower. Bathroom walls use 40mm waterproof insulated sandwich panels as standard, with hygienic panels optional; shower rooms use wet-room PVC flooring. Plaster applies outside bathroom walls when selected. Elsewhere insulated sandwich panels are the included wall finish; other finishes are selected for the final room layout.
Frequently asked questions
Make it yours
Change the module count, layout, windows, doors and finish — then get an instant estimate.
Get a price for Wide 4-Module P600 Modular Gym
Tell us what you need and we'll come back with pricing and lead times — usually within one working day.
