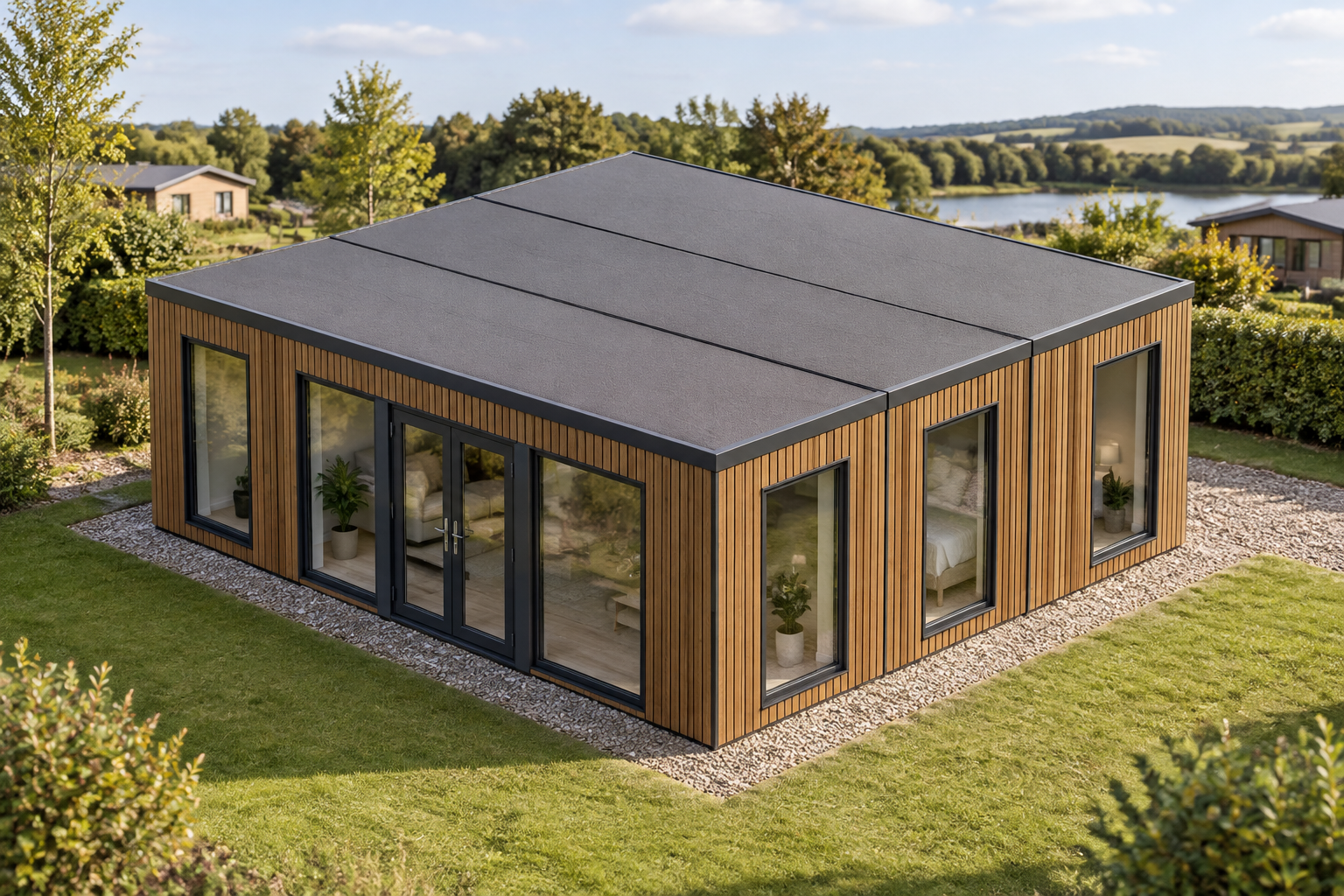

Single-storey modular holiday lodge in a landscaped holiday park setting — Wide three-module P600 configuration designed as a holiday lodge for parks, glamping sites and short-let accommodation.

Holiday Lodges

Wide 3-Module P600 Holiday Lodge

This single-storey holiday lodge combines three P600 modules in a wide 5.9m x 6.6m configuration. It is suited to holiday parks, glamping sites and short-let operators seeking flexible guest accommodation.

£40,700ex VAT

£48,840 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.

Made to order. Build and delivery timing will be confirmed with your quotation.

Call about this item

PLACE ORDER

Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.

Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.

Change the layout in the configurator

Modules: 3
Storeys: 1
Approx. usable internal area: 34.2 m² before partitions
External dimensions: 5.9m x 6.6m footprint

Design highlights

Three P600 modules in a wide single-storey layout
5.9m x 6.6m external footprint
Approx. 34.2 m2 usable internal area before partitions
Vertical ARLINE 24136 slatted cladding in Teak
Large glazed entrance and multiple window openings
Requested kitchenette, WC and shower fit-out
Flat roof with approximately 120mm steel-frame fascia

Wide single-storey configuration

This P600 holiday lodge uses three steel-framed modules arranged as a single-storey, wide-format building. The external footprint is 5.9m x 6.6m, with approximately 34.2 m2 of usable internal area before partitions. This is based on a conservative per-module allowance; a connected open layout may provide more usable space, depending on the final room arrangement.

Each module measures 5.9m x 2.2m externally and has an approximate usable interior of 5.7m x 2.0m. External module height is 2.40m, with a 2.16m internal ceiling. The three-module width provides scope to organise sleeping, living and washing areas across a broader plan than a single linear unit.

Three P600 modules on one storey
5.9m x 6.6m external footprint
Approximately 34.2 m2 usable internal area before partitions
Requested kitchenette, WC and shower provision

Windows, entrance and external finish

Module 1 forms the north side of the layout. Its north elevation has a large window, a pair of glazed doors and a second large window. Full-size windows are positioned in both exposed end walls. The central Module 2 has a full-size window in each exposed end wall, helping bring daylight into the middle section of the lodge.

Module 3 forms the south side. Its south elevation has a small window, a large window and a second small window, while each exposed end wall has a full-size window. Final opening details and their relationship to the internal rooms are confirmed as part of the quoted layout.

All selected exposed external walls use ARLINE 24136 slatted cladding in Teak, applied vertically between the visible frame. This finish covers the north, east and west walls of Module 1; the east and west walls of Module 2; and the east, south and west walls of Module 3. The building has a flat roof with an approximately 120mm steel-frame fascia and no additional fascia.

Requested internal fit-out

The requested fit-out includes a kitchenette, WC and shower, with their exact positions to be confirmed in the final layout. Insulated sandwich panels are the included wall finish outside the specified bathroom construction, while other finishes are selected to suit the agreed room arrangement.

Bathroom walls use 40mm waterproof insulated sandwich panels as standard, with hygienic panels available as an option. The shower room uses wet-room PVC flooring. Where plaster is selected, it applies to wall faces outside the bathroom. Fixtures, finishes and room details shown in supporting imagery remain subject to the final quotation rather than being guaranteed inclusions.

This configuration is intended for the holiday lodge use case within the holiday parks and accommodation sector. The indicative configured estimate is £40,700 ex VAT (£48,840 inc VAT), subject to quotation and final specification. Configuration details can be reviewed through the building configurator.

Transport and siting

Transport is priced separately according to the delivery postcode and site access. Offloading or cranage, groundworks and other site-specific works are also separate. Siting is subject to survey, including access conditions and the requirements of the chosen plot. The final quotation confirms the building specification, internal arrangement, finishes and associated site considerations.

Full specification

3 P600 modules (single storey), wide layout, 5.9m x 6.6m footprint, approx 34.2 m2 usable internal area before partitions (conservative per-module allowance; connected open layouts may provide more space). Each module is 2.40m externally with a 2.16m internal ceiling; its approximate usable interior is 5.7m x 2.0m.
Exterior: ARLINE 24136 slatted applied to exposed walls between the frame in Teak. Roof: flat roof with approximately 120mm steel-frame fascia (no extra fascia).
Selected outside walls: Module 1 North wall: Full-wall cladding, Teak, ARLINE 24136 slatted, vertical boards; Module 1 East wall: Full-wall cladding, Teak, ARLINE 24136 slatted, vertical boards; Module 1 West wall: Full-wall cladding, Teak, ARLINE 24136 slatted, vertical boards; Module 2 East wall: Full-wall cladding, Teak, ARLINE 24136 slatted, vertical boards; Module 2 West wall: Full-wall cladding, Teak, ARLINE 24136 slatted, vertical boards; Module 3 East wall: Full-wall cladding, Teak, ARLINE 24136 slatted, vertical boards; Module 3 South wall: Full-wall cladding, Teak, ARLINE 24136 slatted, vertical boards; Module 3 West wall: Full-wall cladding, Teak, ARLINE 24136 slatted, vertical boards. Cladding prices are quote-only and must not be itemised in public copy.
Module 1 P600 (ground floor) exposed walls — north (5.9m side): Large window + Glazed door (double) + Large window; east (2.2m end): Full-size window; west (2.2m end): Full-size window.
Module 2 P600 (ground floor) exposed walls — east (2.2m end): Full-size window; west (2.2m end): Full-size window.
Module 3 P600 (ground floor) exposed walls — east (2.2m end): Full-size window; south (5.9m side): Small window + Large window + Small window; west (2.2m end): Full-size window.
Requested fit-out to confirm in the final layout: kitchenette, WC, shower. Bathroom walls use 40mm waterproof insulated sandwich panels as standard, with hygienic panels optional; shower rooms use wet-room PVC flooring. Plaster applies outside bathroom walls when selected. Elsewhere insulated sandwich panels are the included wall finish; other finishes are selected for the final room layout.
