Modular Shower Blocks
Single-Module Shower Block with WC
This single-storey P600 modular shower block combines a requested shower and WC within one compact module. It is suited to construction sites, campsites and sports clubs requiring dedicated washing and toilet facilities.
£14,100ex VAT
£16,920 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.
Made to order. Build and delivery timing will be confirmed with your quotation.
Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.
Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.
- Modules
- 1
- Storeys
- 1
- Approx. usable internal area
- 11.4 m² before partitions
- External dimensions
- 5.9m x 2.2m footprint
Design highlights
- One P600 module arranged over a single storey
- 5.9m x 2.2m external footprint
- Approximately 11.4 m2 usable internal area before partitions
- Requested WC and shower fit-out
- High-level windows on three exposed walls
- Single glazed door with two small windows on the south wall
- Anthracite vertical ARLINE AR16016 grooved plank cladding
Compact single-module layout
This configuration uses one P600 module arranged over a single storey. Its external footprint is 5.9m x 2.2m, with an external module height of 2.40m and an internal ceiling height of 2.16m. Before internal partitions are added, the module provides approximately 11.4 m2 of usable internal area, based on a conservative allowance. The approximate usable interior measures 5.7m x 2.0m.
The stored design is intended as a modular shower block for the construction sector, with potential applications at construction sites, campsites and sports clubs. It uses a single-module layout rather than a linked or stacked arrangement, keeping the building compact where available site space is limited.
Openings and external treatment

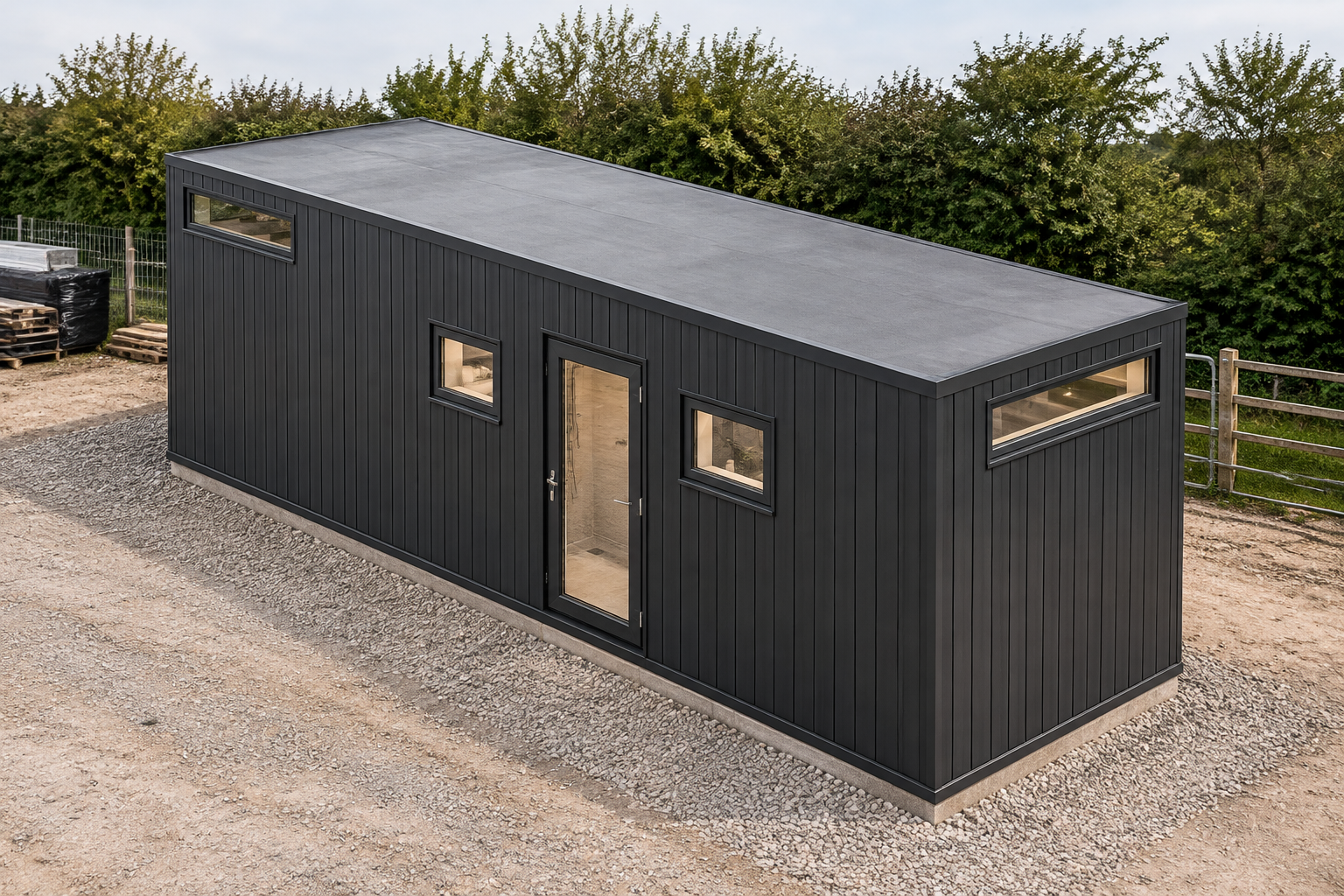

The north wall, on one 5.9m side, has a high-level top-only window. The east 2.2m end and west 2.2m end each have a high-level top-only window. The south 5.9m wall contains a single glazed door positioned with a small window on either side. These openings form part of this specific stored configuration and support privacy while allowing daylight into the building.
All four exposed outside walls are finished with full-wall ARLINE AR16016 grooved plank cladding. The vertical boards are selected in Anthracite and sit between the steel frame. The building has a flat roof with an approximately 120mm steel-frame fascia and no additional fascia treatment.
Requested shower and WC fit-out
A WC and shower have been requested for the internal fit-out, with their final positions and partition arrangement to be confirmed in the completed room layout and quotation. Bathroom walls use 40mm waterproof insulated sandwich panels as standard. Hygienic wall panels are available as an optional selection, while plaster can be applied outside bathroom walls when that finish is selected.
The shower room uses wet-room PVC flooring. Elsewhere in the module, insulated sandwich panels are the included internal wall finish. Any other wall treatments, room finishes or flooring selections depend on the final layout and quotation. Illustrated fixtures and finishes should therefore be treated as representative until the specification has been confirmed.
Price and site requirements
The indicative configured estimate for this one-module building is £14,100 excluding VAT, or £16,920 including VAT. This estimate is subject to quotation and confirmation of the requested WC, shower, partitions, finishes and site requirements. External cladding is priced as part of the quotation and is not separately itemised in public pricing.
- Transport is priced according to the delivery postcode and site access.
- Offloading or cranage is separate from the configured estimate.
- Groundworks and site-specific works are separate.
- Access, positioning and site conditions remain subject to survey.
The final arrangement can be reviewed through the building configurator. Quotation confirms the room layout, selected finishes and transport requirements, while the site survey determines practical access, siting and any additional work needed before installation.
Full specification
1 P600 module (single storey), single layout, 5.9m x 2.2m footprint, approx 11.4 m2 usable internal area before partitions (conservative per-module allowance; connected open layouts may provide more space). Each module is 2.40m externally with a 2.16m internal ceiling; its approximate usable interior is 5.7m x 2.0m. Exterior: ARLINE AR16016 grooved plank applied to exposed walls between the frame in Anthracite. Roof: flat roof with approximately 120mm steel-frame fascia (no extra fascia). Selected outside walls: Module 1 North wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 1 East wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 1 South wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 1 West wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards. Cladding prices are quote-only and must not be itemised in public copy. Module 1 P600 (ground floor) exposed walls — north (5.9m side): Top-only window (high level); east (2.2m end): Top-only window (high level); south (5.9m side): Small window + Glazed door (single) + Small window; west (2.2m end): Top-only window (high level). Requested fit-out to confirm in the final layout: WC, shower. Bathroom walls use 40mm waterproof insulated sandwich panels as standard, with hygienic panels optional; shower rooms use wet-room PVC flooring. Plaster applies outside bathroom walls when selected. Elsewhere insulated sandwich panels are the included wall finish; other finishes are selected for the final room layout.
Frequently asked questions
Make it yours
Change the module count, layout, windows, doors and finish — then get an instant estimate.
Get a price for Single-Module Shower Block with WC
Tell us what you need and we'll come back with pricing and lead times — usually within one working day.
