Modular Shower Blocks

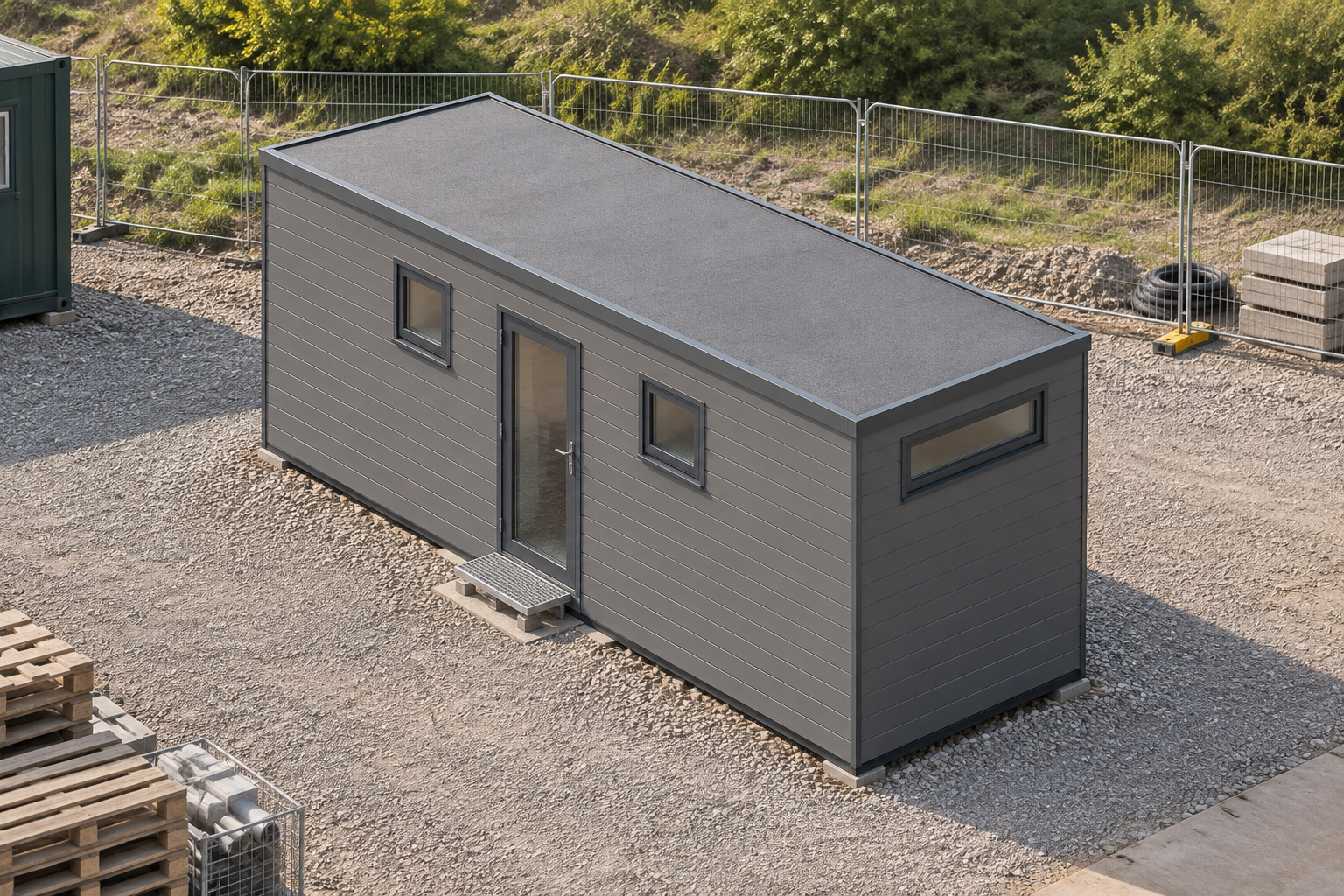

Single-Module Shower Block with WC
This single-storey P600 modular shower block combines a requested shower and WC within one compact steel-framed module. It suits construction sites, campsites and sports clubs needing a dedicated washroom facility.
£14,100ex VAT
£16,920 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.
Made to order. Build and delivery timing will be confirmed with your quotation.
Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.
Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.
- Modules
- 1
- Storeys
- 1
- Floor area
- 11 m²
- Footprint
- 5.9m x 2.2m footprint
Design highlights
- One single-storey P600 steel-framed module
- 5.9m x 2.2m external footprint
- Approximately 11m² usable internal floor area
- Grey Smooth plank cladding on all four walls
- Single glazed door with two small south-facing windows
- Three top-only high-level windows
- Requested WC and shower fit-out
Configuration and scale
This modular shower block uses one P600 steel-framed module in a single-storey run layout. Its external footprint is 5.9m x 2.2m, providing approximately 11m² of usable internal floor area. The approximate usable interior measures 5.7m x 2.0m.
The module is 2.40m high externally and has a 2.16m internal ceiling. This compact format is intended to provide a dedicated WC and shower facility without introducing additional linked or stacked modules.
Selected exterior
All four exposed walls are finished with Smooth plank cladding in Gri (Grey), reference AR16016. The cladding is applied between the visible structural frame across the north and south 5.9m sides and the east and west 2.2m ends, giving the complete module a consistent selected finish.
The building has a flat roof with an approximately 120mm steel-frame fascia. No additional fascia is specified in this stored configuration. Final fixture, colour and finish details remain subject to confirmation in the quotation.
Doors and windows
The north wall has one top-only high-level window. Matching top-only high-level windows are specified on the east and west end walls. The south wall provides the principal access and has a single glazed door positioned between two small windows.
- North: top-only high-level window
- East: top-only high-level window
- South: small window, single glazed door and small window
- West: top-only high-level window
This opening arrangement provides controlled daylight from each elevation while retaining the selected access arrangement on the long south side.
Requested internal fit-out
The requested fit-out comprises a WC and shower, with their final positions and room arrangement to be confirmed in the completed layout and quotation. Toilet and shower rooms require hygienic wall panels together with wet-room PVC flooring, reflecting the needs of these wet-use spaces.
Elsewhere, the included internal wall finish is formed from white, lightly ribbed insulated sandwich panels. Plasterboard and other hygienic-panel styles are selectable upgrades or choices rather than included features of this configuration. Room-by-room flooring selections must also be confirmed, and no unlisted flooring finish is assumed.
Use and indicative price
This configuration is designed as a modular shower block for the construction sector. Its single-module scale may also suit campsites and sports clubs where a compact, self-contained shower and toilet provision is required.
The indicative configured estimate is £14,100 excluding VAT, or £16,920 including VAT. This estimate is subject to quotation and confirmation of the final layout, fixtures and finishes. The stored arrangement can be reviewed through the building configurator, but illustrated details should not be treated as guaranteed until they appear in the quotation.
Siting and transport
Proposed siting is subject to a site survey and consideration of access, levels and site-specific requirements. Transport is priced separately according to postcode and access conditions. Offloading or cranage, groundworks and any other site-specific works are also separate from the indicative configured estimate.
Full specification
1 P600 module (single storey), run layout, 5.9m x 2.2m footprint, approx 11 m2 internal usable floor area. Each module is 2.40m externally with a 2.16m internal ceiling; its approximate usable interior is 5.7m x 2.0m. Exterior: Smooth plank (AR16016) applied to exposed walls between the frame in Gri (Grey). Roof: flat roof with approximately 120mm steel-frame fascia (no extra fascia). Selected outside walls: Module 1 North wall: Full-wall cladding, Gri (Grey), Smooth plank (AR16016); Module 1 East wall: Full-wall cladding, Gri (Grey), Smooth plank (AR16016); Module 1 South wall: Full-wall cladding, Gri (Grey), Smooth plank (AR16016); Module 1 West wall: Full-wall cladding, Gri (Grey), Smooth plank (AR16016). Cladding prices are quote-only and must not be itemised in public copy. Module 1 P600 (ground floor) exposed walls — north (5.9m side): Top-only window (high level); east (2.2m end): Top-only window (high level); south (5.9m side): Small window + Glazed door (single) + Small window; west (2.2m end): Top-only window (high level). Requested fit-out to confirm in the final layout: WC, shower. Toilet/shower rooms require hygienic wall panels and wet-room PVC flooring; elsewhere white lightly ribbed insulated sandwich panels are the included wall finish. Plasterboard, other hygienic-panel styles and room-by-room flooring are selectable upgrades/choices, not included claims unless specified.
