Modular Shower Blocks
Single-Module P600 Shower Block with WC
This single-storey P600 modular shower block combines a requested WC and shower fit-out within one compact steel-framed module. It suits construction sites, campsites and sports clubs requiring a self-contained washroom facility.
£12,900ex VAT
£15,480 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.
Made to order. Build and delivery timing will be confirmed with your quotation.
Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.
Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.
- Modules
- 1
- Storeys
- 1
- Floor area
- 11 m²
- Footprint
- 5.9m x 2.2m footprint
Design highlights
- One P600 module over a single storey
- 5.9m x 2.2m external footprint
- Approximately 11m² usable internal floor area
- Requested WC and shower fit-out
- Black Grey RAL 7021 smooth external panels
- Single glazed door with small and high-level windows
- Flat roof with approximately 120mm steel-frame fascia

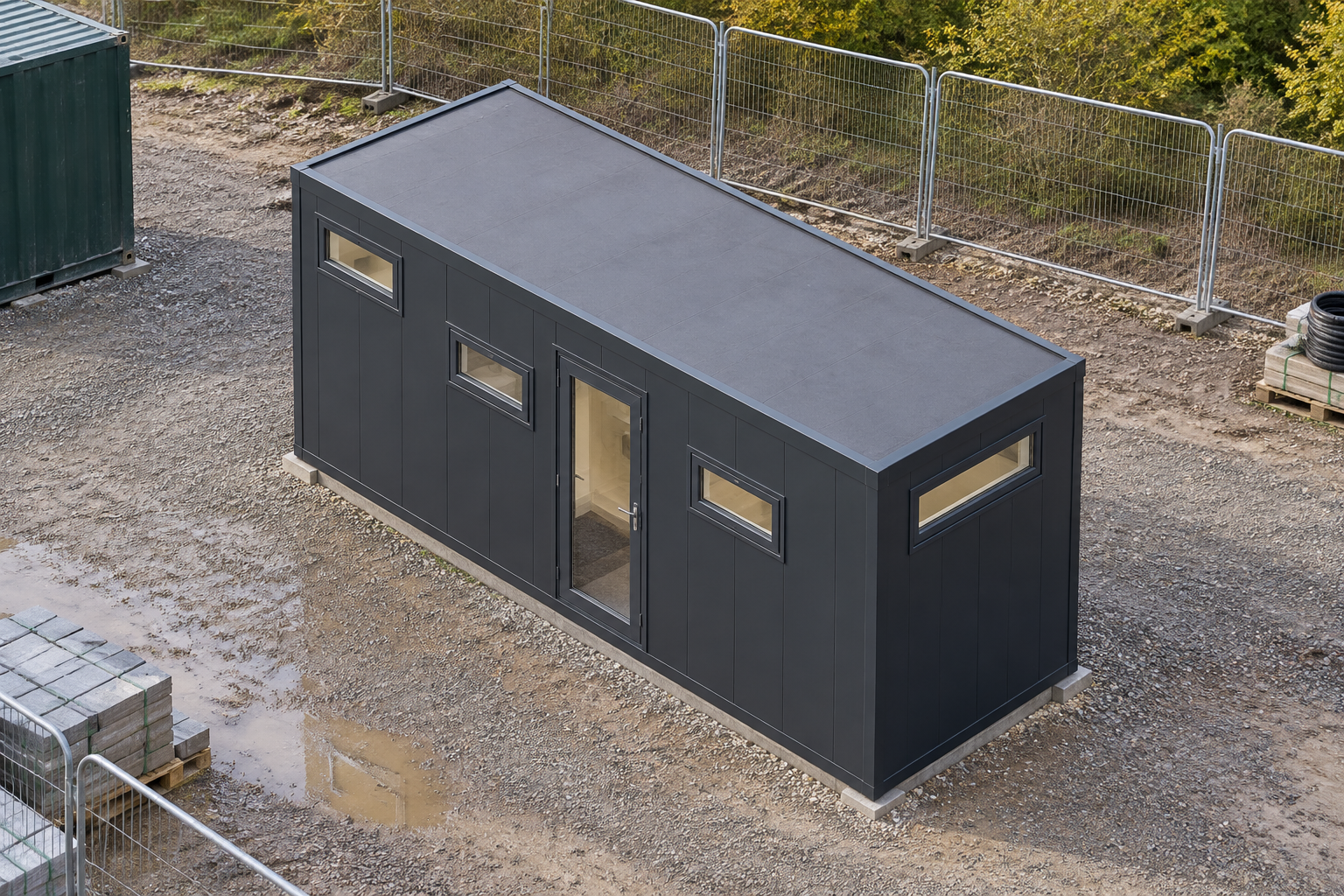

Compact single-module layout
This configuration uses one P600 steel-framed module arranged over a single storey. Its external footprint is 5.9m x 2.2m, providing approximately 11m² of usable internal floor area. The approximate usable interior measures 5.7m x 2.0m, while the module is approximately 2.40m high externally with a 2.16m internal ceiling. As a standalone unit, it provides a focused layout for a requested WC and shower without linked or stacked modules.
Designed as a modular shower block for the construction sector, this configuration can also suit campsites and sports clubs. The final positioning of the WC, shower, partitions and associated room arrangement remains subject to confirmation through the final layout and quotation.
Windows and entrance
The north-facing 5.9m wall has a top-only high-level window. The opposite south-facing 5.9m wall is configured with a single glazed door and a small window on either side. Both 2.2m end walls, east and west, each have a top-only high-level window. These are the selected openings for this stored configuration; their final detailing is confirmed as part of the quoted specification.
Black Grey external finish
All four outside walls use vertical insulated sandwich panels in Black Grey, RAL 7021, with a smooth finish. This selection applies to the north, east, south and west walls of the module. The module has a flat roof with an approximately 120mm steel-frame fascia, with no additional fascia selected. External finish details and associated costs are confirmed by quotation rather than itemised separately in public pricing.
Requested washroom fit-out
The requested internal fit-out comprises a WC and shower, subject to confirmation in the final plan. Toilet and shower rooms require hygienic wall panels together with wet-room PVC flooring. The exact hygienic panel selection, sanitary arrangement and room-specific floor treatment must therefore be agreed in the quotation. No alternative hygienic-panel style or additional room-by-room flooring specification is assumed.
Outside the toilet and shower areas, the included internal wall finish is white, lightly ribbed insulated sandwich panelling. Plasterboard, alternative hygienic wall-panel styles and other selectable flooring treatments are choices or upgrades rather than included features of this configuration. Illustrated fixtures, finishes and accessories remain subject to the final quotation.
Configured estimate and siting
The indicative configured estimate is £12,900 excluding VAT, or £15,480 including VAT, subject to quotation. Transport is priced separately according to the delivery postcode and site access. Offloading or cranage, groundworks and other site-specific works are also separate and are not included in the configured estimate.
Final siting is subject to a site survey and confirmation of access, levels, ground conditions and any project-specific requirements. These factors may affect transport, offloading and preparatory works. The configuration can be reviewed through the building configurator, with final dimensions, openings, finishes and washroom details confirmed in the project quotation.
Full specification
1 P600 module (single storey), single layout, 5.9m x 2.2m footprint, approx 11 m2 internal usable floor area. Each module is 2.40m externally with a 2.16m internal ceiling; its approximate usable interior is 5.7m x 2.0m. Exterior: included vertical insulated sandwich panels in Black Grey (RAL 7021). Roof: flat roof with approximately 120mm steel-frame fascia (no extra fascia). Selected outside walls: Module 1 North wall: Standard insulated panel, Black Grey (RAL 7021), Smooth; Module 1 East wall: Standard insulated panel, Black Grey (RAL 7021), Smooth; Module 1 South wall: Standard insulated panel, Black Grey (RAL 7021), Smooth; Module 1 West wall: Standard insulated panel, Black Grey (RAL 7021), Smooth. Cladding prices are quote-only and must not be itemised in public copy. Module 1 P600 (ground floor) exposed walls — north (5.9m side): Top-only window (high level); east (2.2m end): Top-only window (high level); south (5.9m side): Small window + Glazed door (single) + Small window; west (2.2m end): Top-only window (high level). Requested fit-out to confirm in the final layout: WC, shower. Toilet/shower rooms require hygienic wall panels and wet-room PVC flooring; elsewhere white lightly ribbed insulated sandwich panels are the included wall finish. Plasterboard, other hygienic-panel styles and room-by-room flooring are selectable upgrades/choices, not included claims unless specified.
