Modular Cafés

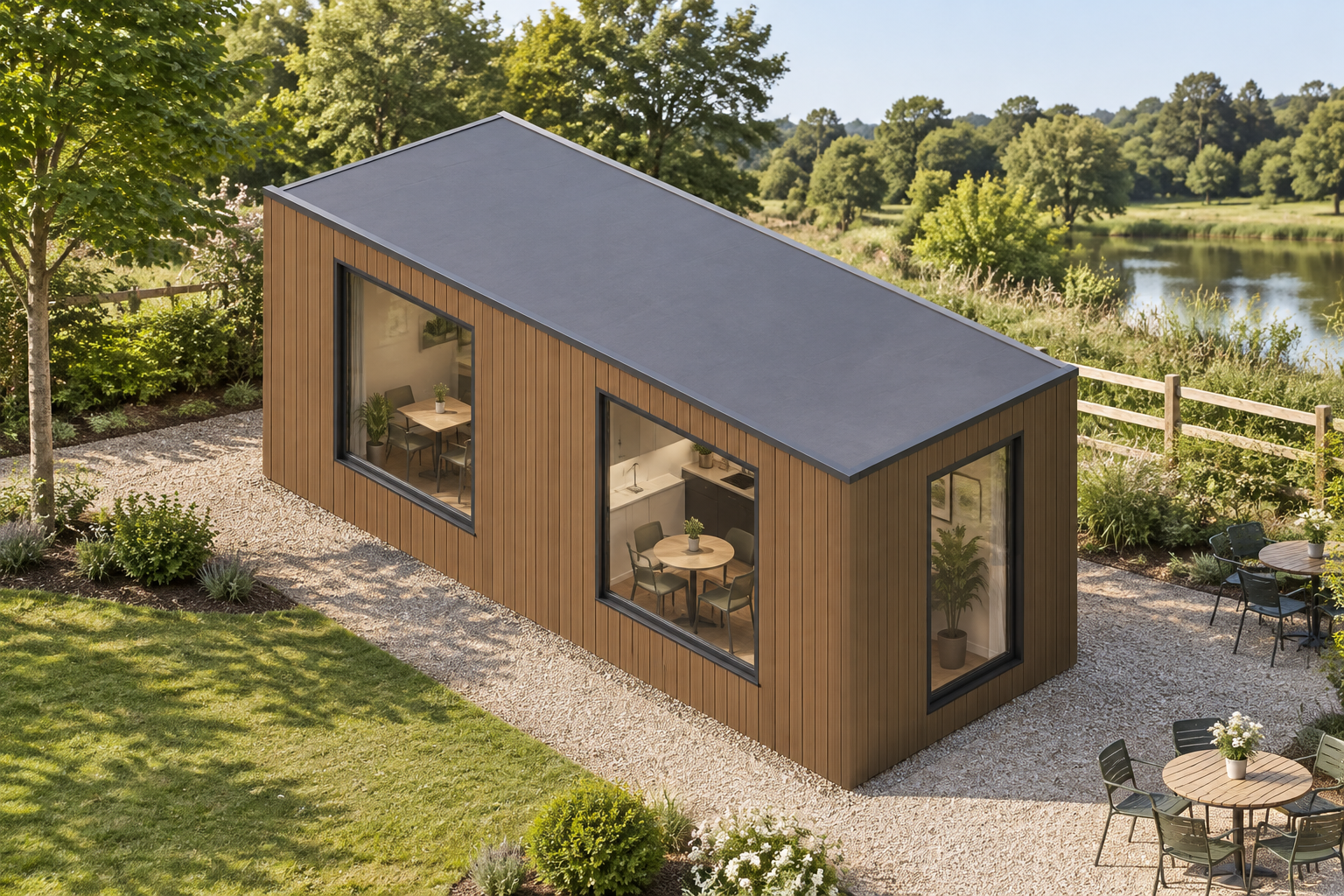

Single-Module P600 Modular Café with WC
This single-storey P600 configuration creates a compact modular café with extensive glazing, a requested kitchenette and a WC. It suits coffee operators, parks and visitor attractions seeking a defined 5.9m x 2.2m hospitality space.
£14,100ex VAT
£16,920 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.
Made to order. Build and delivery timing will be confirmed with your quotation.
Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.
Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.
- Modules
- 1
- Storeys
- 1
- Approx. usable internal area
- 11.4 m² before partitions
- External dimensions
- 5.9m x 2.2m footprint
Design highlights
- One P600 module over a single storey
- 5.9m x 2.2m external footprint
- Approximately 11.4m² usable internal area before partitions
- Two large windows and two full-size end windows
- Double-leaf glazed door on the south wall
- Vertical ARLINE AR14514 fine-ribbed cladding in Teak
- Requested kitchenette and WC, subject to final layout
Compact café configuration
This P600 modular café uses one steel-framed module arranged over a single storey. Its external footprint is 5.9m x 2.2m, with an approximate usable interior of 5.7m x 2.0m. That provides approximately 11.4m² of usable internal area before partitions, using a conservative per-module allowance. The module is 2.40m externally and has a 2.16m internal ceiling.
The single-module format gives coffee operators, parks and visitor attractions a clearly defined space for planning a compact service environment. The requested kitchenette and WC must be confirmed within the final layout, so their partitions and effect on the available open area will be established at quotation stage.
Windows and entrance
The north-facing 5.9m wall contains two large windows. A full-size window is positioned in each 2.2m end wall, covering the east and west elevations. The south-facing 5.9m wall has a double-leaf glazed door. Together, these specified openings form the stored arrangement for this configuration; changes would require an updated design and quotation.
Teak external finish
All exposed wall areas are selected with ARLINE AR14514 fine-ribbed cladding in Teak, applied between the steel frame. The north, east, south and west walls use the same full-wall cladding selection, with the boards arranged vertically around the specified openings. This creates a consistent finish across every elevation without introducing a separate cladding treatment.
The module has a flat roof with an approximately 120mm steel-frame fascia. No additional fascia is selected. Final colours, interfaces and detailed finish arrangements are confirmed by quotation.
Requested internal fit-out
The stored request includes a kitchenette and WC, both subject to confirmation in the final room layout. No specific kitchenette appliances, sanitary fittings or furniture are defined in this configuration. Their exact selection and positioning should therefore be recorded in the final quotation rather than assumed from illustrations.
Insulated sandwich panels are the included wall finish outside the bathroom or WC enclosure unless another finish is selected for the final room arrangement. Bathroom walls use 40mm waterproof insulated sandwich panels as standard, with hygienic panels available as an option. Plaster can be applied outside bathroom walls when selected. Wet-room PVC flooring applies to shower rooms; a shower room is not specified in this stored café request. Other finishes remain subject to the confirmed room layout.
Estimate and site considerations
The indicative configured estimate is £14,100 excluding VAT, or £16,920 including VAT, subject to quotation. Transport is priced separately according to the delivery postcode and site access. Offloading or cranage, groundworks and other site-specific works are also separate.
Positioning and site requirements are subject to survey, including access, levels and the conditions affecting transport and offloading. The final specification can be reviewed through the building configurator, with all selected details confirmed in the resulting quotation.
Full specification
1 P600 module (single storey), single layout, 5.9m x 2.2m footprint, approx 11.4 m2 usable internal area before partitions (conservative per-module allowance; connected open layouts may provide more space). Each module is 2.40m externally with a 2.16m internal ceiling; its approximate usable interior is 5.7m x 2.0m. Exterior: ARLINE AR14514 fine-ribbed applied to exposed walls between the frame in Teak. Roof: flat roof with approximately 120mm steel-frame fascia (no extra fascia). Selected outside walls: Module 1 North wall: Full-wall cladding, Teak, ARLINE AR14514 fine-ribbed, vertical boards; Module 1 East wall: Full-wall cladding, Teak, ARLINE AR14514 fine-ribbed, vertical boards; Module 1 South wall: Full-wall cladding, Teak, ARLINE AR14514 fine-ribbed, vertical boards; Module 1 West wall: Full-wall cladding, Teak, ARLINE AR14514 fine-ribbed, vertical boards. Cladding prices are quote-only and must not be itemised in public copy. Module 1 P600 (ground floor) exposed walls — north (5.9m side): Large window + Large window; east (2.2m end): Full-size window; south (5.9m side): Glazed door (double); west (2.2m end): Full-size window. Requested fit-out to confirm in the final layout: kitchenette, WC. Bathroom walls use 40mm waterproof insulated sandwich panels as standard, with hygienic panels optional; shower rooms use wet-room PVC flooring. Plaster applies outside bathroom walls when selected. Elsewhere insulated sandwich panels are the included wall finish; other finishes are selected for the final room layout.
