Modular Gyms

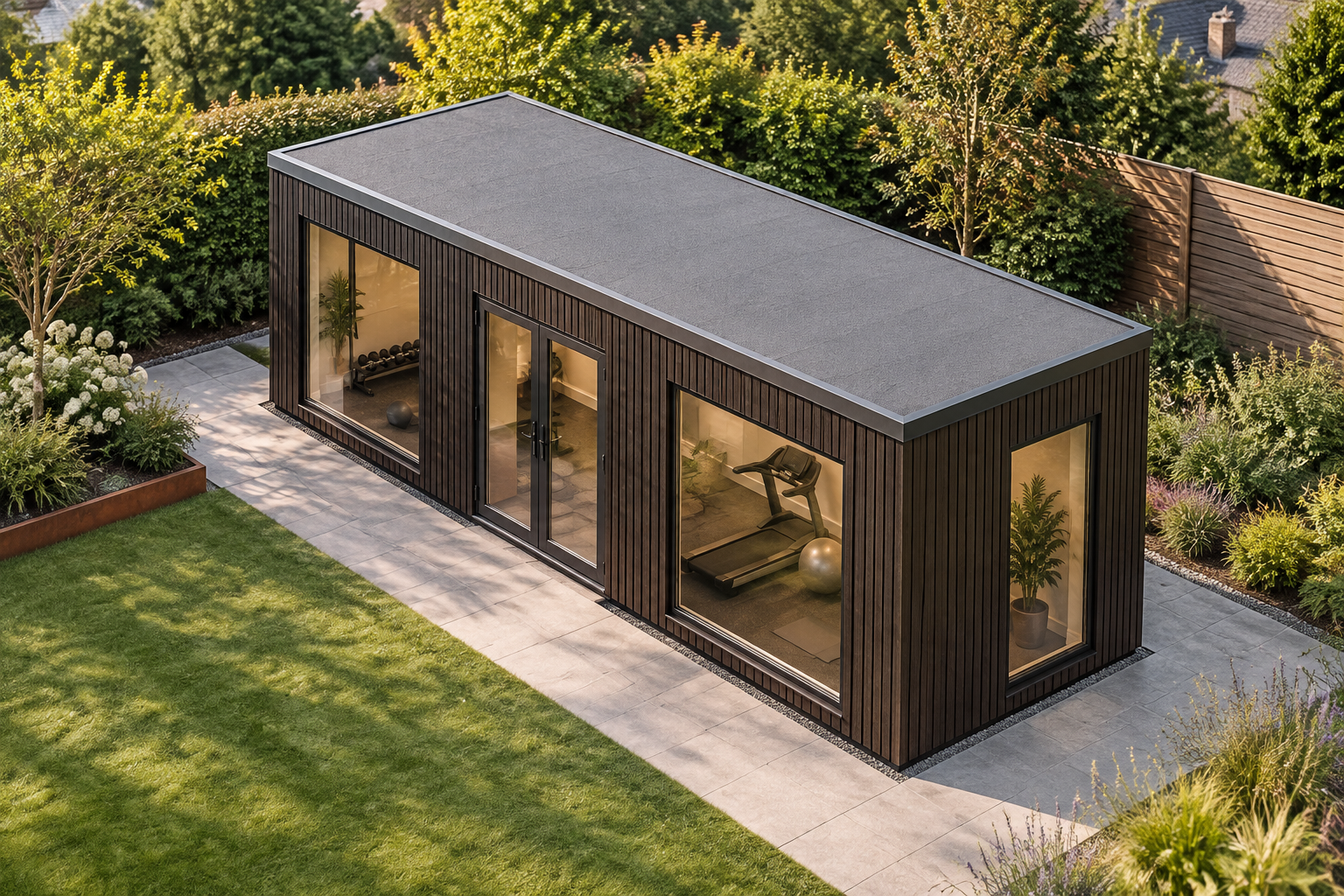

Single-Module P600 Gym with Requested WC and Shower
This single-storey P600 modular gym combines an extensively glazed training space with a requested WC and shower fit-out. It suits home gym owners and small personal-training studios seeking a compact, self-contained building.
£14,100ex VAT
£16,920 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.
Made to order. Build and delivery timing will be confirmed with your quotation.
Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.
Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.
- Modules
- 1
- Storeys
- 1
- Approx. usable internal area
- 11.4 m² before partitions
- External dimensions
- 5.9m x 2.2m footprint
Design highlights
- One P600 module over a single storey
- 5.9m x 2.2m external footprint
- Approximately 11.4m² usable internal area before partitions
- Windows specified on all four exposed walls
- Glazed double door on the south wall
- Venge ARLINE AR14514 fine-ribbed external cladding
- Requested WC and shower fit-out
Compact single-module gym layout
This configuration uses one P600 steel-framed module arranged over a single storey. Its external footprint is 5.9m x 2.2m, with an external height of 2.40m and a 2.16m internal ceiling. The approximate usable interior measures 5.7m x 2.0m, providing around 11.4m² of usable internal area before partitions. Adding the requested WC and shower partitions will reduce the open training area.
Designed for the Sport & Leisure sector, this compact modular gym is suited to a residential exercise space or a small personal-training studio. The single-module format keeps the accommodation on one level while the specified windows and glazed entrance create an open visual connection with the surrounding site.
Windows and glazed entrance
Openings are specified on all four exposed walls. The north-facing 5.9m side has a large window positioned between two small windows. The south-facing 5.9m side has a glazed double door between two large windows. Each 2.2m end wall has a full-size window.
- North wall: small window, large window and small window
- East end wall: full-size window
- South wall: large window, glazed double door and large window
- West end wall: full-size window
Venge fine-ribbed exterior
All four exposed walls are selected with vertically arranged ARLINE AR14514 fine-ribbed cladding in Venge, applied between the steel frame. This consistent treatment covers the north, east, south and west walls. The building has a flat roof with an approximately 120mm steel-frame fascia; no additional fascia is included in this stored configuration. Final details and finishes are confirmed by quotation.
Requested WC and shower fit-out
A WC and shower have been requested, but their arrangement must be confirmed as part of the final room layout. Bathroom walls use 40mm waterproof insulated sandwich panels as standard, with hygienic panels available as an optional selection. Shower rooms use wet-room PVC flooring. The exact position and extent of these areas will determine how much of the 11.4m² usable internal area remains open.
Elsewhere, insulated sandwich panels are the included internal wall finish. A plaster finish can be selected outside bathroom walls, while other wall and floor finishes are chosen to suit the confirmed room layout. Illustrated fixtures and finishes should be treated as indicative until they are recorded in the final quotation and specification.
Quotation and site considerations
The indicative configured estimate is £14,100 ex VAT, or £16,920 including VAT, subject to quotation. Cladding costs are incorporated into the configured estimate and are not separately itemised in public pricing.
Transport is priced according to the delivery postcode and site access. Offloading or cranage, groundworks and other site-specific works are separate. Siting is subject to survey, including confirmation of access and the conditions affecting placement. These factors are assessed for the intended location before the order details are finalised.
The stored design can be reviewed through the P600 configuration process, where the requested internal arrangement and selected finishes can be confirmed for quotation.
Full specification
1 P600 module (single storey), single layout, 5.9m x 2.2m footprint, approx 11.4 m2 usable internal area before partitions (conservative per-module allowance; connected open layouts may provide more space). Each module is 2.40m externally with a 2.16m internal ceiling; its approximate usable interior is 5.7m x 2.0m. Exterior: ARLINE AR14514 fine-ribbed applied to exposed walls between the frame in Venge. Roof: flat roof with approximately 120mm steel-frame fascia (no extra fascia). Selected outside walls: Module 1 North wall: Full-wall cladding, Venge, ARLINE AR14514 fine-ribbed, vertical boards; Module 1 East wall: Full-wall cladding, Venge, ARLINE AR14514 fine-ribbed, vertical boards; Module 1 South wall: Full-wall cladding, Venge, ARLINE AR14514 fine-ribbed, vertical boards; Module 1 West wall: Full-wall cladding, Venge, ARLINE AR14514 fine-ribbed, vertical boards. Cladding prices are quote-only and must not be itemised in public copy. Module 1 P600 (ground floor) exposed walls — north (5.9m side): Small window + Large window + Small window; east (2.2m end): Full-size window; south (5.9m side): Large window + Glazed door (double) + Large window; west (2.2m end): Full-size window. Requested fit-out to confirm in the final layout: WC, shower. Bathroom walls use 40mm waterproof insulated sandwich panels as standard, with hygienic panels optional; shower rooms use wet-room PVC flooring. Plaster applies outside bathroom walls when selected. Elsewhere insulated sandwich panels are the included wall finish; other finishes are selected for the final room layout.
Frequently asked questions
Make it yours
Change the module count, layout, windows, doors and finish — then get an instant estimate.
Get a price for Single-Module P600 Gym with Requested WC and Shower
Tell us what you need and we'll come back with pricing and lead times — usually within one working day.
