Modular Gyms
Single-Module P600 Gym with Proposed WC and Shower
This single-storey P600 modular gym combines a compact training space with a proposed WC and shower layout. It suits home gym owners and small personal-training studios seeking a self-contained facility.
£12,900ex VAT
£15,480 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.
Made to order. Build and delivery timing will be confirmed with your quotation.
Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.
Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.
- Modules
- 1
- Storeys
- 1
- Approx. usable internal area
- 11.4 m² before partitions
- External dimensions
- 5.9m x 2.2m footprint

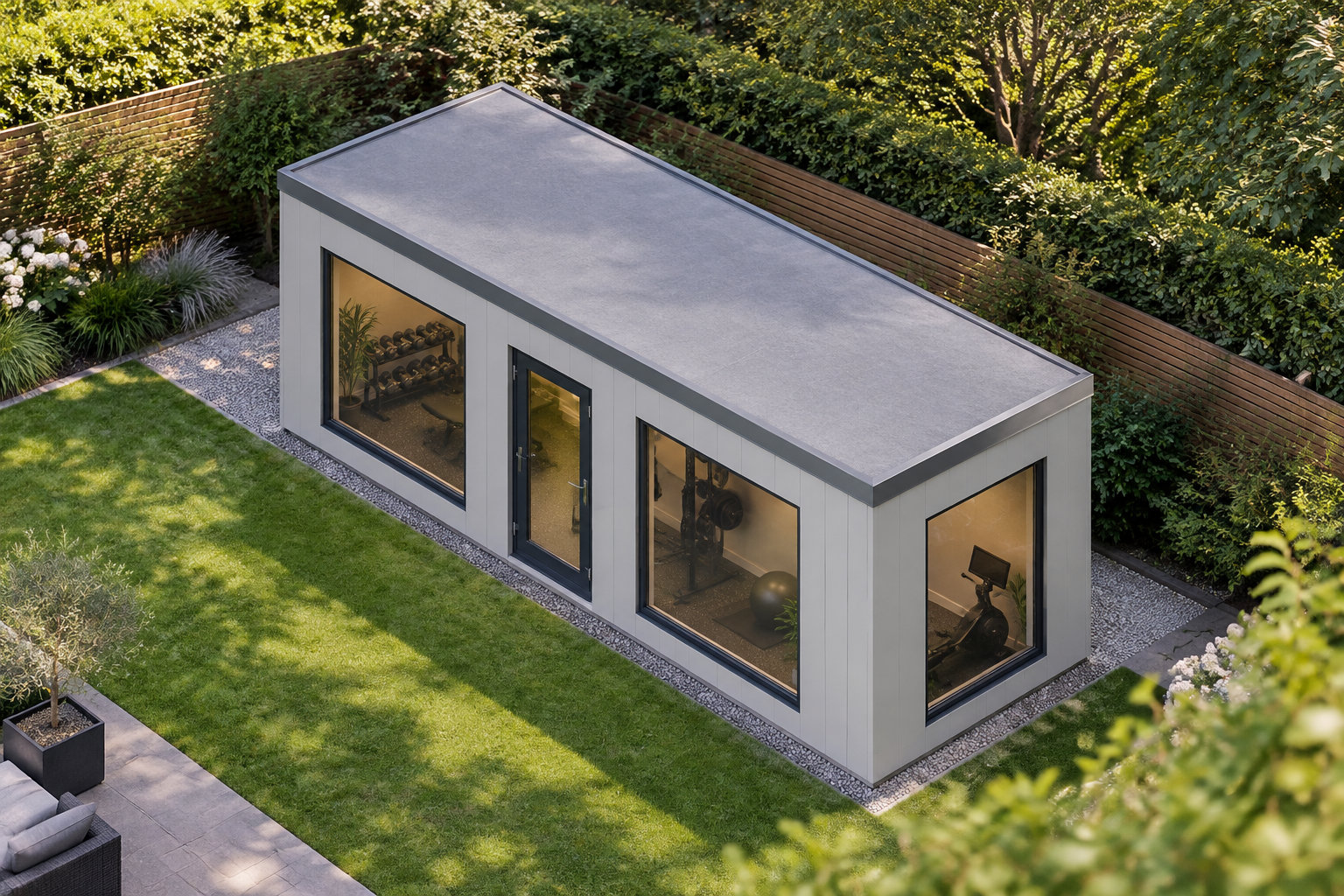

Design highlights
- One P600 module in a single-storey layout
- 5.9m x 2.2m external footprint
- Approximately 11.4m2 usable internal area before partitions
- Six large windows and one single glazed door
- Smooth Light Grey RAL 7035 insulated external panels
- Proposed WC and shower fit-out
- Flat roof with approximately 120mm steel-frame fascia
Compact format for focused training
This P600 configuration uses one steel-framed module in a single-storey arrangement. Its external footprint is 5.9m x 2.2m, with an external module height of 2.40m and an internal ceiling height of approximately 2.16m. The approximate usable interior measures 5.7m x 2.0m, providing around 11.4m2 of usable internal area before partitions. The proposed WC and shower will reduce the remaining open training area once their final positions and dimensions are agreed.
Designed for the Sport & Leisure sector, this compact modular gym is suited to a private home gym or a small personal-training studio. Its single-module format provides a defined space for individual workouts, one-to-one coaching or a carefully selected range of equipment. Equipment, storage and circulation requirements should be considered when confirming the room layout.
Windows, door and external finish
The north-facing 5.9m wall contains two large windows. The opposite south-facing wall contains two large windows and one single glazed door. Each 2.2m end wall, east and west, contains one large window. This stored arrangement gives the gym multiple glazed openings while retaining a single external entrance.
All four outside walls use standard insulated sandwich panels with a smooth Light Grey finish in RAL 7035. The included panels are installed vertically. Above them, the flat roof is edged by the steel frame’s approximately 120mm fascia, with no additional fascia selected. Final visible details, including finishes and fixtures represented in supporting imagery, are confirmed through the project quotation.
Proposed WC and shower fit-out
A WC and shower have been requested for this configuration, but their precise arrangement remains to be confirmed in the final layout. Bathroom walls use 40mm waterproof insulated sandwich panels as standard. Hygienic wall panels are available as an optional selection, while wet-room PVC flooring is used within shower rooms. Where selected, plaster applies to the outside faces of bathroom walls.
Elsewhere, insulated sandwich panels are the included internal wall finish. Alternative wall and floor finishes depend on the final room plan and selected specification; no unconfirmed decorative treatment or precise general flooring finish is included in this description. The stored arrangement can be reviewed through the P600 configuration before the quotation establishes the final fit-out.
Price, transport and siting
The indicative configured estimate is £12,900 excluding VAT, or £15,480 including VAT, subject to quotation. Transport is priced separately according to the delivery postcode and site access. Offloading or cranage, groundworks and other site-specific works are also separate from this estimate.
The proposed position, access route and site conditions are subject to survey. Space for transport and offloading must be considered alongside the supporting ground conditions and any works required at the property. These factors can affect the final quotation and should be assessed for the intended home or studio location before the configuration is confirmed.
Full specification
1 P600 module (single storey), single layout, 5.9m x 2.2m footprint, approx 11.4 m2 usable internal area before partitions (conservative per-module allowance; connected open layouts may provide more space). Each module is 2.40m externally with a 2.16m internal ceiling; its approximate usable interior is 5.7m x 2.0m. Exterior: included vertical insulated sandwich panels in Light Grey (RAL 7035). Roof: flat roof with approximately 120mm steel-frame fascia (no extra fascia). Selected outside walls: Module 1 North wall: Standard insulated panel, Light Grey (RAL 7035), Smooth; Module 1 East wall: Standard insulated panel, Light Grey (RAL 7035), Smooth; Module 1 South wall: Standard insulated panel, Light Grey (RAL 7035), Smooth; Module 1 West wall: Standard insulated panel, Light Grey (RAL 7035), Smooth. Cladding prices are quote-only and must not be itemised in public copy. Module 1 P600 (ground floor) exposed walls — north (5.9m side): Large window + Large window; east (2.2m end): Large window; south (5.9m side): Large window + Glazed door (single) + Large window; west (2.2m end): Large window. Requested fit-out to confirm in the final layout: WC, shower. Bathroom walls use 40mm waterproof insulated sandwich panels as standard, with hygienic panels optional; shower rooms use wet-room PVC flooring. Plaster applies outside bathroom walls when selected. Elsewhere insulated sandwich panels are the included wall finish; other finishes are selected for the final room layout.
Frequently asked questions
Make it yours
Change the module count, layout, windows, doors and finish — then get an instant estimate.
Get a price for Single-Module P600 Gym with Proposed WC and Shower
Tell us what you need and we'll come back with pricing and lead times — usually within one working day.
