Modular Cafés
Single-Module P600 Café with WC
This single-storey P600 modular café combines a compact service space, extensive glazing and a requested WC within one steel-framed module. It suits coffee operators, parks and visitor attractions seeking a dedicated Retail & Hospitality building.
£14,100ex VAT
£16,920 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.
Made to order. Build and delivery timing will be confirmed with your quotation.
Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.
Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.
- Modules
- 1
- Storeys
- 1
- Approx. usable internal area
- 11.4 m² before partitions
- External dimensions
- 5.9m x 2.2m footprint
Design highlights
- One P600 module over a single storey
- 5.9m x 2.2m external footprint
- Approximately 11.4m² usable internal area before partitions
- Two large windows and two full-size end windows
- Glazed double door on the south wall
- Teak ARLINE 24136 vertical slatted cladding to all exposed walls
- Requested WC subject to final layout confirmation
Compact single-module café layout

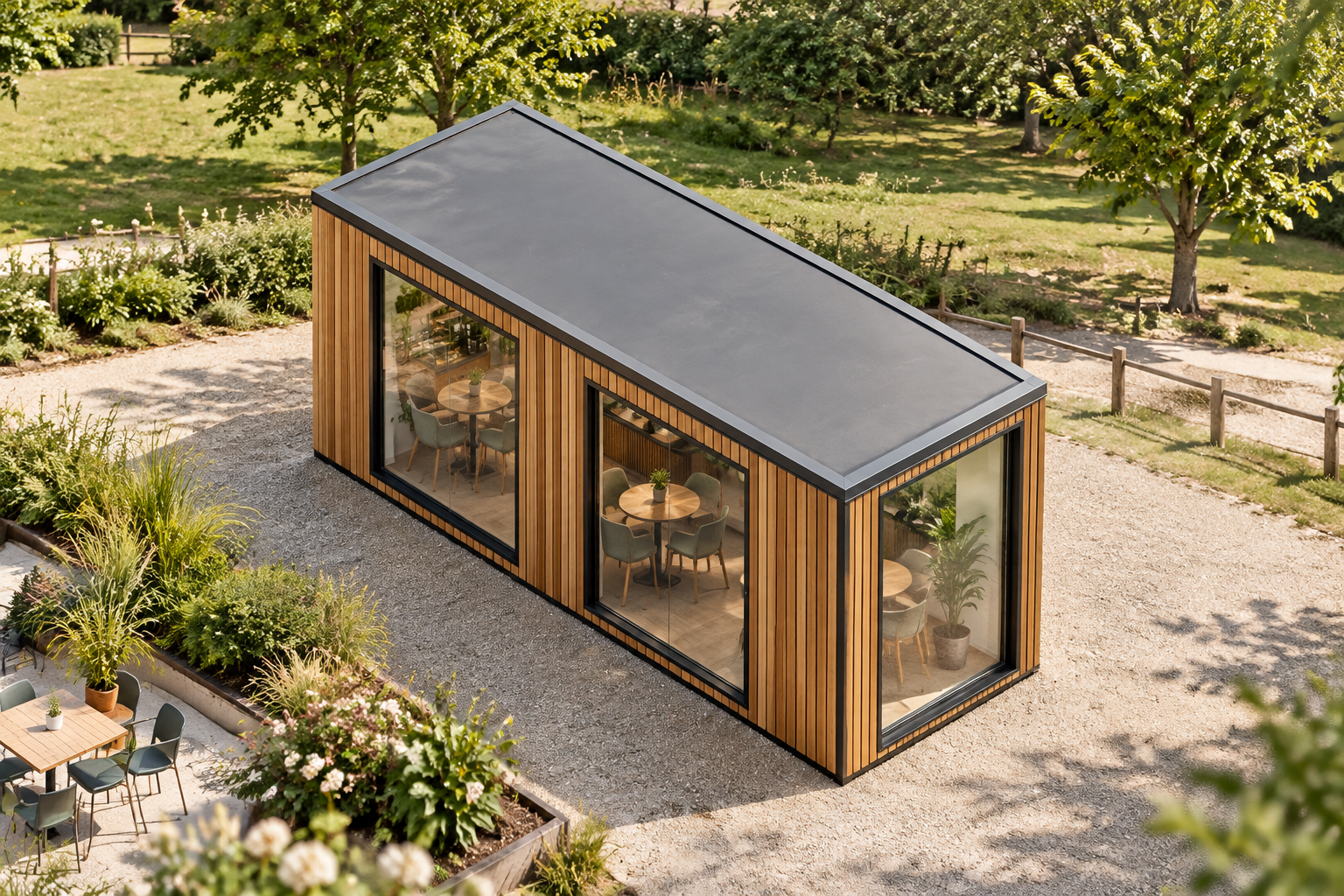

This P600 configuration uses one steel-framed module arranged over a single storey. Its external footprint is 5.9m x 2.2m, with approximately 11.4m² of usable internal area before partitions. This is a conservative per-module allowance; the approximate usable interior measures 5.7m x 2.0m. The module is 2.40m high externally and has a 2.16m internal ceiling.
The stored design is intended as a compact modular café for the Retail & Hospitality sector. Its scale can suit an independent coffee operator, a park refreshment point or a visitor attraction that needs a defined customer-facing space without combining multiple modules.
Glazing and access
The north wall, along the 5.9m side, has two large windows. The east and west 2.2m end walls each have a full-size window. A glazed double door is positioned on the south 5.9m wall, providing the entrance specified for this layout. Together, these selected openings create a highly glazed configuration, although the precise fixtures and final detailing remain subject to the confirmed quotation.
Teak slatted external finish
All four exposed outside walls are selected with ARLINE 24136 slatted cladding in Teak, applied between the structural frame. The north, east, south and west walls each use vertical boards, giving the complete module a consistent external treatment around its windows and glazed door.
The building has a flat roof with an approximately 120mm steel-frame fascia. No additional fascia is selected. Cladding and other final external details are confirmed as part of the quotation and are not separately itemised in this product description.
Requested WC and internal finishes
A WC has been requested for this café, with its position and partitioning to be confirmed in the final room layout. As partitions reduce the open internal space, the stated approximate 11.4m² usable internal area applies before the WC and any associated divisions are formed.
Insulated sandwich panels are the included wall finish elsewhere in the module. Subject to confirmation of the final WC layout, bathroom walls use 40mm waterproof insulated sandwich panels as standard, with hygienic panels available as an option. Plaster can be applied outside bathroom walls when selected. Wet-room PVC flooring is used for shower rooms, but no shower room is specified in this stored configuration. Any other finishes are selected against the final room arrangement rather than assumed from illustrations.
Configured estimate and site requirements
The indicative configured estimate is £14,100 excluding VAT, or £16,920 including VAT, subject to quotation. Transport is priced separately according to the delivery postcode and site access. Offloading or cranage, groundworks and other site-specific works are also separate and should be allowed for when planning the project.
Placement remains subject to a site survey, including confirmation of access, ground conditions and the requirements for positioning the module. The selected layout, WC arrangement, finishes and project-specific details can be reviewed through the building configurator before the final quotation is prepared.
Full specification
1 P600 module (single storey), single layout, 5.9m x 2.2m footprint, approx 11.4 m2 usable internal area before partitions (conservative per-module allowance; connected open layouts may provide more space). Each module is 2.40m externally with a 2.16m internal ceiling; its approximate usable interior is 5.7m x 2.0m. Exterior: ARLINE 24136 slatted applied to exposed walls between the frame in Teak. Roof: flat roof with approximately 120mm steel-frame fascia (no extra fascia). Selected outside walls: Module 1 North wall: Full-wall cladding, Teak, ARLINE 24136 slatted, vertical boards; Module 1 East wall: Full-wall cladding, Teak, ARLINE 24136 slatted, vertical boards; Module 1 South wall: Full-wall cladding, Teak, ARLINE 24136 slatted, vertical boards; Module 1 West wall: Full-wall cladding, Teak, ARLINE 24136 slatted, vertical boards. Cladding prices are quote-only and must not be itemised in public copy. Module 1 P600 (ground floor) exposed walls — north (5.9m side): Large window + Large window; east (2.2m end): Full-size window; south (5.9m side): Glazed door (double); west (2.2m end): Full-size window. Requested fit-out to confirm in the final layout: WC. Bathroom walls use 40mm waterproof insulated sandwich panels as standard, with hygienic panels optional; shower rooms use wet-room PVC flooring. Plaster applies outside bathroom walls when selected. Elsewhere insulated sandwich panels are the included wall finish; other finishes are selected for the final room layout.
