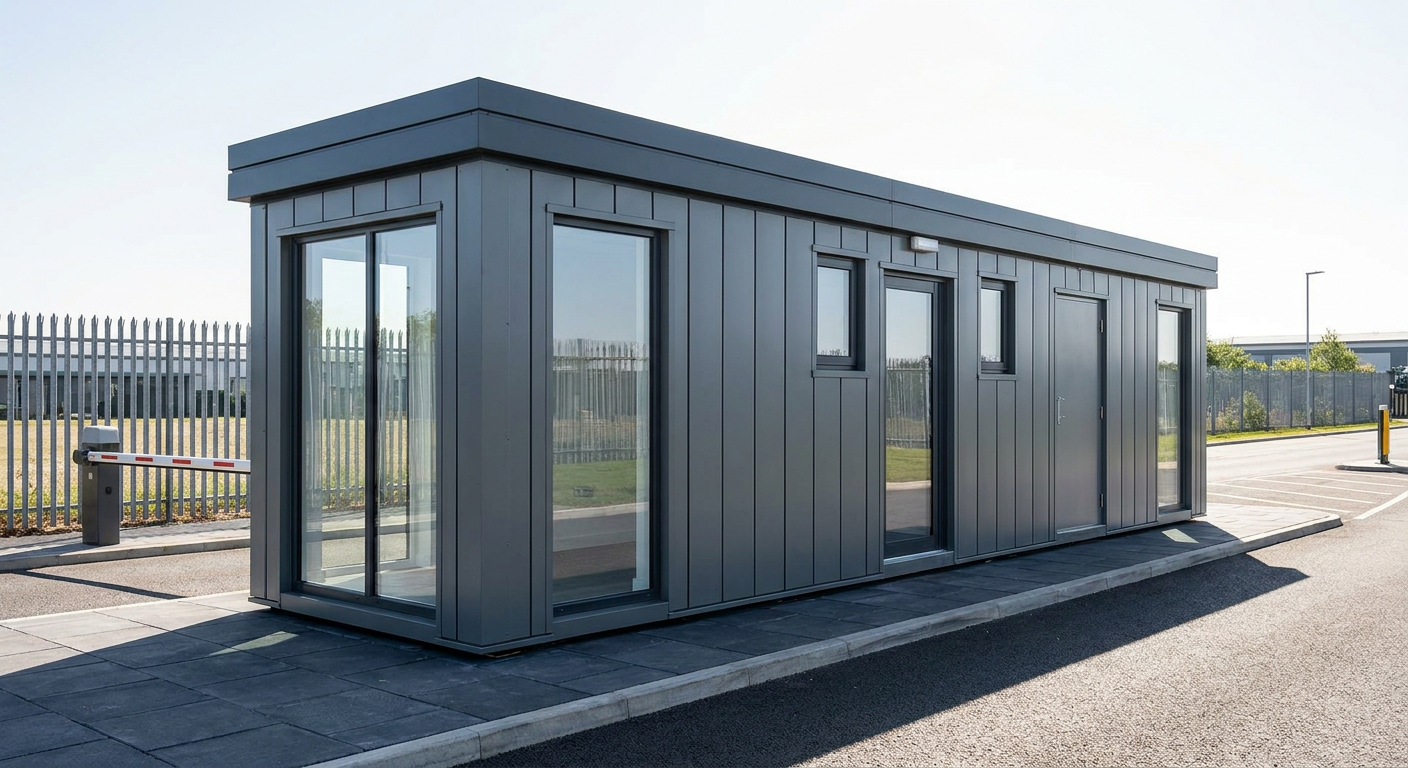

One single-storey dark grey module with a glazed door and six windows, Adacon P600 modular building — A single-module P600 gatehouse with WC for security and site control at staffed entrances.

Gatehouses

Single-Module Gatehouse with WC

This single-storey P600 gatehouse provides a compact, fitted space for security staff and site access control. It suits logistics parks, schools and gated developments requiring a visible, self-contained entrance building with a WC.

£10,750ex VAT

£12,900 inc VAT · standard fitted specification. Delivery, groundworks and site-specific works quoted separately.

Configure this design Request a quote

Modules: 1
Storeys: 1
Floor area: 11 m²
Footprint: 5.9m x 2.2m footprint

What's included

One P600 module in a single-storey layout
5.9m x 2.2m external footprint
Approx. 11 m² internal floor area
Single glazed entrance door
Six windows across all four elevations
Internal WC included
Dark grey vertical cladding and flat roof

A compact building for site control

This single-module P600 is configured as a compact gatehouse for staffed entrances where oversight, visitor contact and access control need to sit in one practical room. It is suited to logistics parks, schools and gated developments, and forms part of Adacon’s wider range of gatehouses for the Security & Site Control sector. With an approximate internal floor area of 11 m², it provides a defined working space without the footprint of a larger multi-module building.

Single-module run layout

The building uses one P600 module in a single-storey run layout. Its external footprint is 5.9m long by 2.2m wide. As a standalone module, all four sides are exposed external walls, with the door and window arrangement distributed around the building to support visibility from the working area.

The north-facing 5.9m wall contains two large windows. Each 2.2m end wall has one full-size window: one on the east end and one on the west end. The south-facing 5.9m wall combines the main entrance with two smaller windows.

North wall: two large windows
East end: one full-size window
South wall: two small windows and one single glazed door
West end: one full-size window

Access and internal fit-out

Access is through the single glazed door on the south elevation, positioned between the two small windows. The internal specification includes a WC, allowing the gatehouse to operate as a self-contained staffed space where suitable service connections are available. The remaining internal floor area provides the principal gatehouse workspace; any additional furniture, equipment or site-specific requirements should be defined separately.

Dark grey external finish

The exterior is finished in vertical Dark grey cladding, giving the module a clear, practical appearance for entrance and perimeter locations. A flat roof with a slim fascia keeps the overall profile straightforward and compact. Adacon designs, manufactures and delivers the P600 system, with buildings delivered and installed across the UK.

Indicative price and specification

The indicative price for this standard fitted configuration is £10,750 excluding VAT, or £12,900 including VAT. This price relates to the one-module gatehouse specification described here, including the stated door and window arrangement, Dark grey vertical cladding and internal WC. Delivery, groundworks and other site-specific works are not included in the indicative figure and are quoted separately. Alternative requirements can be explored using the P600 configurator.

Typical lead time

A typical lead time for a P600 building is 8–12 weeks. The actual programme will depend on the confirmed specification, delivery location and any site-specific requirements that need to be resolved before delivery and installation.

Preparing the site

The gatehouse requires a suitable, level prepared base and clear access for delivery and installation. Ground conditions, access restrictions and the position of the building within the entrance or security area should be assessed in advance. The WC also requires the appropriate site services to be planned and brought to the required connection points. Groundworks, service connections, delivery arrangements and other site-specific works are assessed and priced separately.

Full specification

1 P600 modules (single storey), run layout, 5.9m x 2.2m footprint, approx 11 m2 internal floor area.
Exterior: vertical cladding in Dark grey. Roof: flat roof with slim fascia.
Module 1 (ground floor) exposed walls — north (5.9m side): Large window + Large window; east (2.2m end): Full-size window; south (5.9m side): Small window + Glazed door (single) + Small window; west (2.2m end): Full-size window.
Internal fit-out includes: WC.
