Modular Shower Blocks
P600 Shower Block with Requested WC and Shower
This single-storey P600 modular shower block combines one compact module with a requested WC and shower fit-out. It is configured for construction sites, campsites and sports clubs requiring practical washing facilities within a 5.9m x 2.2m footprint.
£14,100ex VAT
£16,920 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.
Made to order. Build and delivery timing will be confirmed with your quotation.
Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.
Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.
- Modules
- 1
- Storeys
- 1
- Approx. usable internal area
- 11.4 m² before partitions
- External dimensions
- 5.9m x 2.2m footprint
Design highlights
- One single-storey P600 module
- 5.9m x 2.2m external footprint
- Approximately 11.4m2 usable internal area before partitions
- Requested WC and shower fit-out

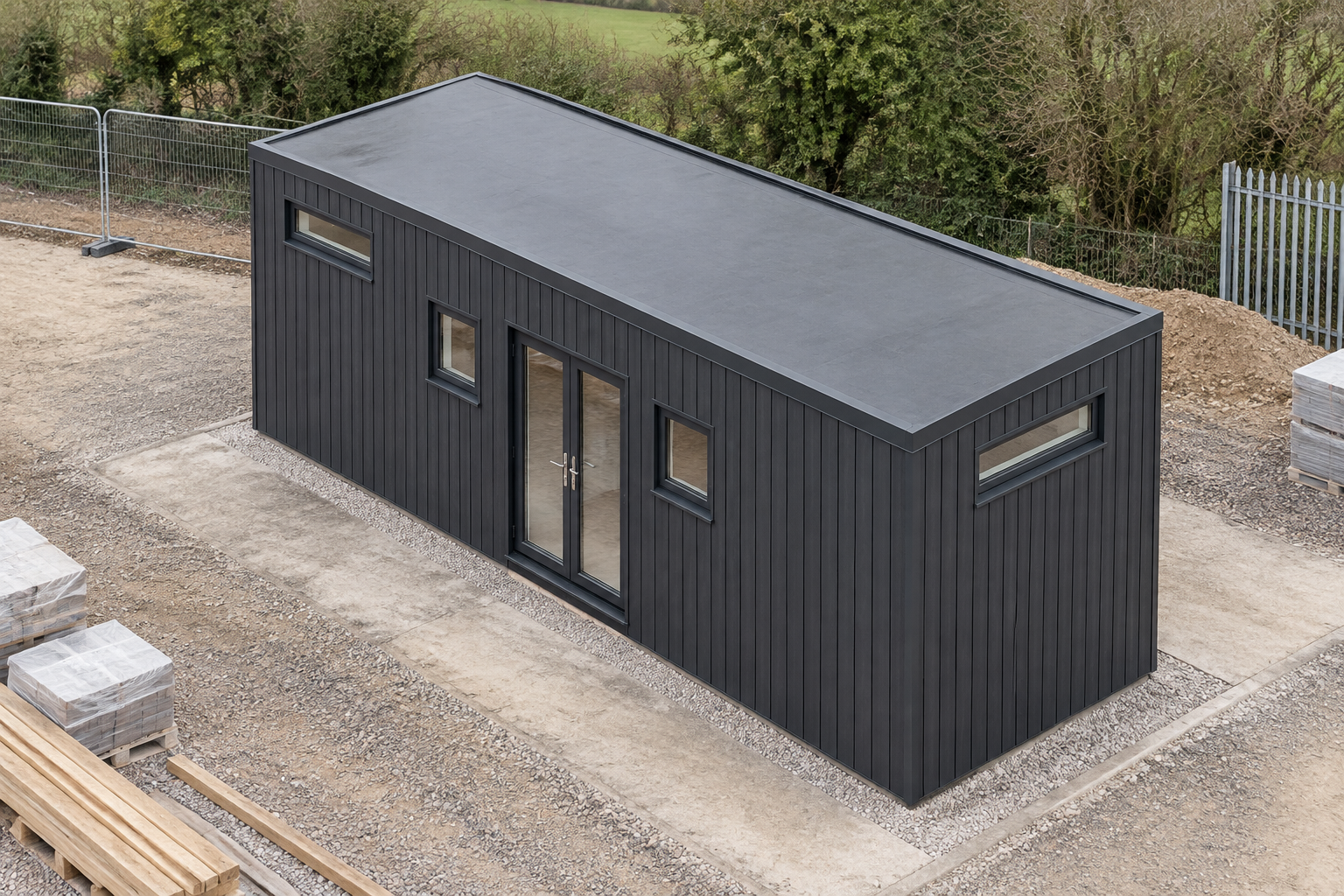

- Anthracite vertical grooved plank cladding
- Double glazed entrance door with surrounding windows
- Flat roof with approximately 120mm steel-frame fascia
Single-module run layout
This stored configuration uses one P600 steel-framed module in a single-storey run layout. Its external footprint is 5.9m x 2.2m, with an approximate usable interior of 5.7m x 2.0m. The module is 2.40m high externally and has a 2.16m internal ceiling.
- One P600 ground-floor module
- Single-storey run configuration
- 5.9m x 2.2m external footprint
- Approximately 11.4m2 usable internal area before partitions
The stated internal area is a conservative per-module allowance before the requested WC and shower partitions are finalised. This compact arrangement is intended as a modular shower block for Construction sector use.
Windows and entrance
The exposed north wall on the 5.9m side has a high-level, top-only window. Both 2.2m end walls, east and west, also have high-level, top-only windows.
- North: one top-only high-level window
- East: one top-only high-level window
- South: small window, double glazed door and small window
- West: one top-only high-level window
The double glazed entrance door is positioned on the south wall between the two small windows. These openings form part of this specific stored configuration rather than a generic P600 specification.
Anthracite external finish
All four exposed walls are selected with full-wall ARLINE AR16016 grooved plank cladding in Anthracite. The boards run vertically and are applied between the visible steel frame, giving the module a consistent finish on the north, east, south and west elevations.
The module has a flat roof with an approximately 120mm steel-frame fascia. No additional fascia is selected.
Requested washroom fit-out
The requested internal fit-out comprises a WC and shower, with the precise positions and partition arrangement to be confirmed in the final room layout. Bathroom walls use 40mm waterproof insulated sandwich panels as standard, while hygienic panels are available as an optional selection. Shower-room areas use wet-room PVC flooring.
Elsewhere, insulated sandwich panels are the included internal wall finish. Plaster applies outside bathroom walls when that finish is selected, and any other finishes are determined alongside the final room layout. Illustrated fixtures and finishes remain subject to the final quotation and agreed specification. The stored arrangement can be reviewed through the P600 configuration process.
Estimate, transport and siting
The indicative configured estimate is £14,100 excluding VAT, or £16,920 including VAT, subject to quotation. This figure relates to the described one-module configuration and should not be treated as a final project price.
Transport is priced according to the delivery postcode and site access. Offloading or cranage, groundworks and other site-specific works are separate. Final siting remains subject to survey, including access and site conditions, before the project requirements can be confirmed.
Full specification
1 P600 module (single storey), run layout, 5.9m x 2.2m footprint, approx 11.4 m2 usable internal area before partitions (conservative per-module allowance; connected open layouts may provide more space). Each module is 2.40m externally with a 2.16m internal ceiling; its approximate usable interior is 5.7m x 2.0m. Exterior: ARLINE AR16016 grooved plank applied to exposed walls between the frame in Anthracite. Roof: flat roof with approximately 120mm steel-frame fascia (no extra fascia). Selected outside walls: Module 1 North wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 1 East wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 1 South wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards; Module 1 West wall: Full-wall cladding, Anthracite, ARLINE AR16016 grooved plank, vertical boards. Cladding prices are quote-only and must not be itemised in public copy. Module 1 P600 (ground floor) exposed walls — north (5.9m side): Top-only window (high level); east (2.2m end): Top-only window (high level); south (5.9m side): Small window + Glazed door (double) + Small window; west (2.2m end): Top-only window (high level). Requested fit-out to confirm in the final layout: WC, shower. Bathroom walls use 40mm waterproof insulated sandwich panels as standard, with hygienic panels optional; shower rooms use wet-room PVC flooring. Plaster applies outside bathroom walls when selected. Elsewhere insulated sandwich panels are the included wall finish; other finishes are selected for the final room layout.
