Holiday Lodges

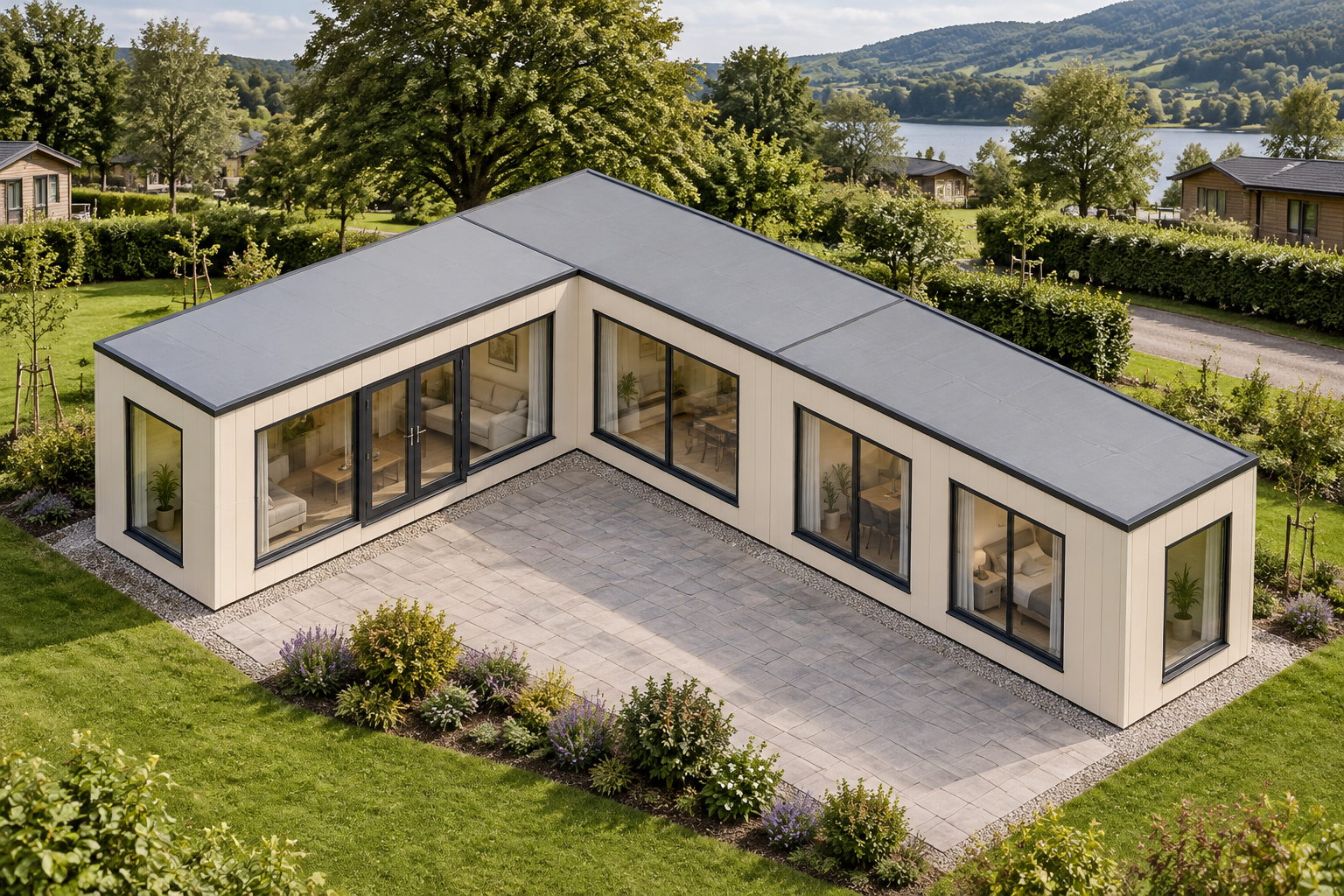

L-Shaped 3-Module Holiday Lodge Configuration
This single-storey holiday lodge configuration combines three P600 modules in an L-shaped layout, providing approximately 34 m² of usable internal floor area. It is suited to holiday parks, glamping sites and short-let operators seeking a spacious modular accommodation layout.
£38,700ex VAT
£46,440 inc VAT · indicative configured estimate, subject to quotation. Transport depends on postcode and access; offloading, groundworks and site-specific works are separate.
Made to order. Build and delivery timing will be confirmed with your quotation.
Order the standard specification online. We'll confirm delivery, access and final order details before accepting your order and issuing your invoice.
Built to order in approx. 7–8 weeks, then delivery typically within 1–2 weeks. Delivery is priced by postcode and confirmed with your quote.
- Modules
- 3
- Storeys
- 1
- Floor area
- 34 m²
- Footprint
- 11.8m x 8.1m footprint
Design highlights
- Three P600 modules in a single-storey L-shaped layout
- 11.8m x 8.1m overall footprint
- Approximately 34 m² usable internal floor area
- Cream RAL 9001 smooth insulated external panels
- Flat roof with approximately 120mm steel-frame fascia
- Multiple large and full-size windows across exposed walls
- Requested kitchenette, WC and shower fit-out
Configured scale and layout
This stored design uses three steel-framed P600 modules arranged across a single storey in an L-shaped layout. The completed configuration has an overall footprint of 11.8m x 8.1m and provides approximately 34 m² of usable internal floor area.
Each module measures 5.9m x 2.2m externally and is 2.40m high, with an internal ceiling height of 2.16m. The approximate usable interior of each module is 5.7m x 2.0m. Together, the three modules create a broader plan suited to zoning living, sleeping and washroom areas within a compact holiday accommodation footprint.
The intended application is a holiday lodge for the Holiday Parks & Accommodation sector. Typical buyers include holiday parks, glamping sites and short-let operators. The internal arrangement, kitchenette and washroom positions remain subject to final layout confirmation and quotation.
Windows and entrance arrangement
Module 1 forms a highly glazed part of the lodge. Its exposed north-facing 5.9m wall is configured with a large window, a glazed double door and a second large window. The exposed 2.2m west end has one full-size window.
Module 2 has two large windows on its exposed north-facing 5.9m wall, one full-size window on the exposed 2.2m east end and two further large windows along the exposed south-facing 5.9m wall.
Module 3 has two large windows on its exposed east-facing 5.9m wall and a full-size window on the exposed 2.2m south end. Its exposed west-facing 5.9m wall contains two additional large windows. These openings are part of the stored configuration, while final fixture details are confirmed within the quotation.
Selected exterior and roof
The included exterior uses vertically installed insulated sandwich panels in Cream, RAL 9001. The selected exposed outside walls of all three modules use standard smooth insulated panels in this colour, creating a consistent finish around the L-shaped arrangement.
The configuration has a flat roof with an approximately 120mm steel-frame fascia. No additional fascia has been selected. Final external detailing is confirmed by quotation rather than assumed from illustrative imagery.
Requested internal fit-out
The requested fit-out comprises a kitchenette, WC and shower, with their precise locations to be confirmed in the final plan. The toilet and shower rooms require hygienic wall panels together with wet-room PVC flooring appropriate to those designated areas.
Elsewhere, the included internal wall finish is white, lightly ribbed insulated sandwich panelling. Plasterboard and other hygienic-panel styles can be selected as alternatives or upgrades. Room-by-room flooring choices are also selectable and should not be treated as included unless they are specifically recorded in the final quotation.
Estimate, transport and siting
The indicative configured estimate is £38,700 excluding VAT, or £46,440 including VAT, subject to quotation. Transport is priced separately according to the delivery postcode and site access. Offloading or cranage, groundworks and other site-specific works are separate.
Final siting is subject to survey, including access, ground conditions and the requirements of the proposed location. The stored design can be reviewed and final selections recorded through the building configurator.
Full specification
3 P600 modules (single storey), l-shape layout, 11.8m x 8.1m footprint, approx 34 m2 internal usable floor area. Each module is 2.40m externally with a 2.16m internal ceiling; its approximate usable interior is 5.7m x 2.0m. Exterior: included vertical insulated sandwich panels in Cream (RAL 9001). Roof: flat roof with approximately 120mm steel-frame fascia (no extra fascia). Selected outside walls: Module 1 North wall: Standard insulated panel, Cream (RAL 9001), Smooth; Module 1 West wall: Standard insulated panel, Cream (RAL 9001), Smooth; Module 2 North wall: Standard insulated panel, Cream (RAL 9001), Smooth; Module 2 East wall: Standard insulated panel, Cream (RAL 9001), Smooth; Module 2 South wall: Standard insulated panel, Cream (RAL 9001), Smooth; Module 3 East wall: Standard insulated panel, Cream (RAL 9001), Smooth; Module 3 South wall: Standard insulated panel, Cream (RAL 9001), Smooth; Module 3 West wall: Standard insulated panel, Cream (RAL 9001), Smooth. Cladding prices are quote-only and must not be itemised in public copy. Module 1 P600 (ground floor) exposed walls — north (5.9m side): Large window + Glazed door (double) + Large window; west (2.2m end): Full-size window. Module 2 P600 (ground floor) exposed walls — north (5.9m side): Large window + Large window; east (2.2m end): Full-size window; south (5.9m side): Large window + Large window. Module 3 P600 (ground floor) exposed walls — east (5.9m side): Large window + Large window; south (2.2m end): Full-size window; west (5.9m side): Large window + Large window. Requested fit-out to confirm in the final layout: kitchenette, WC, shower. Toilet/shower rooms require hygienic wall panels and wet-room PVC flooring; elsewhere white lightly ribbed insulated sandwich panels are the included wall finish. Plasterboard, other hygienic-panel styles and room-by-room flooring are selectable upgrades/choices, not included claims unless specified.
